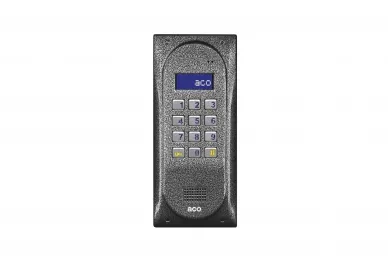

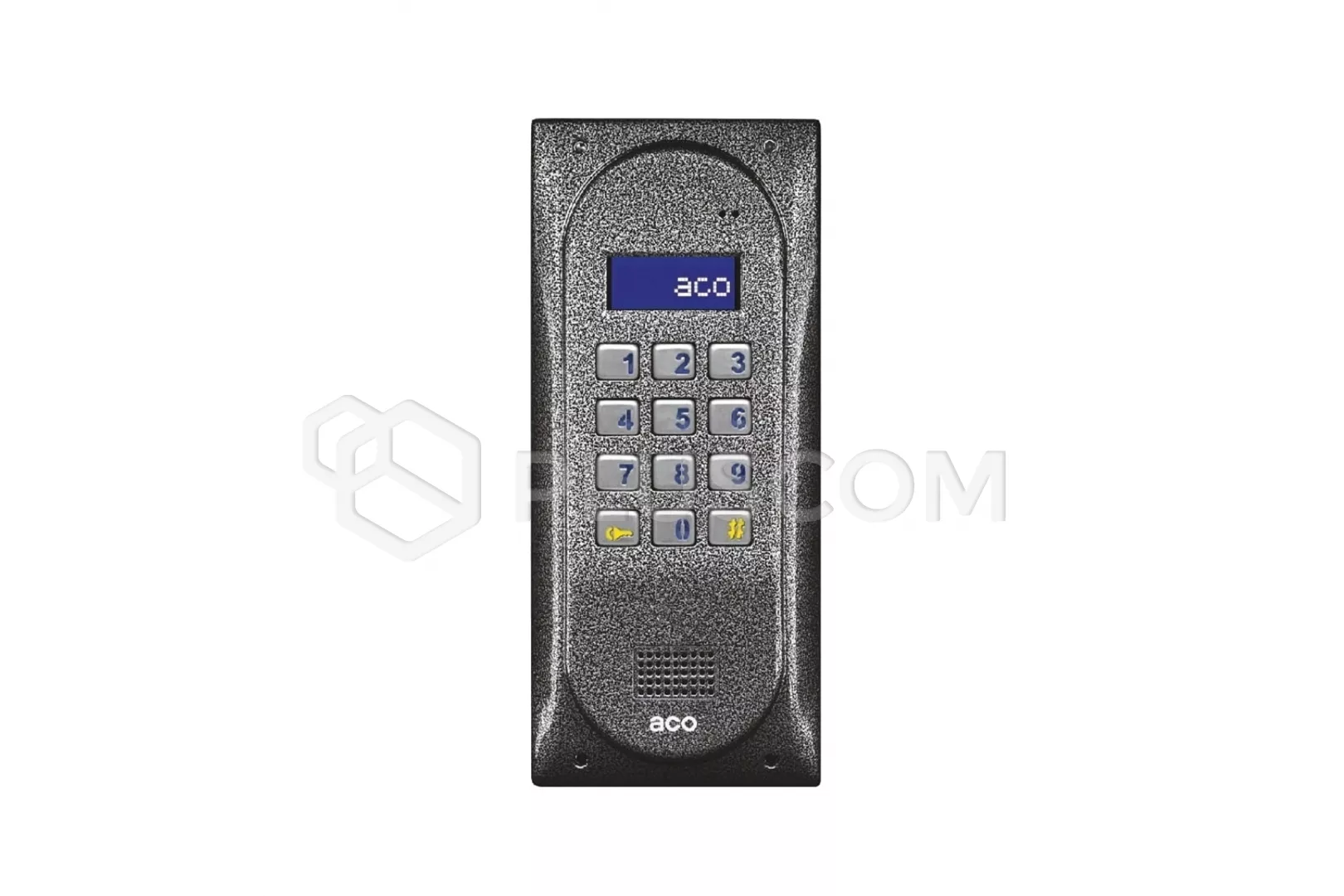

Aco CDNA GR Analogue door entry system

226,98 EUR including 23.00% VAT
Product code: #10457
Manufacturer: ACO
  • Analogue uniphone
  • Supports most multi-entry Master/Slave systems
  • Max. no. of phones: 64 apartments
  • Combination lock
  • Color: graphite
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco INS-UA (G2) Analogue audio inside unit with magnetic handset hang-up Aco CDN-6N GR Medium descriptive list Aco CDN-ACC GR Proximity card and key ring reader Aco CDNVK GR Video module Aco CDN-230E GR Electronic occupants list Aco CDN-17NACC GR Large description list with a proximity reader Aco CDN-6NACC GR Medium descriptive list with proximity reader Aco CDN-5NACC GR Small desctription list with proximity reader Aco CDN-10NP GR 10 Calling buttons Aco CDN-6NP GR 6 Calling button

ACO CDNA GR Analog intercom switchboard with combination lock


The CDNA analog intercom with a code lock is a modern device with a digital one dialing the apartment number and coded door opening.
The use of the LED display ensures simple and friendly operation by users and installers.

The control panel can be combined with a very wide range of additional modules, thanks to which its functionality can meet the individual expectations of customers. Very wide configuration possibilities make the products easy to find versatile use when modernizing old systems.

KEY FEATURES:
  • facilities for people with disabilities - illuminated buttons keyboard, optionally with embossed Braille characters
  • housing resistant to weather conditions and acts of vandalism
  • support for multiple expansion modules to increase system functionality
  • support for multi-entry Master/Slave systems
  • home automation: controlling external devices, e.g. a gate entrance gate, barrier, lighting, blinds
  • possibility to connect multiple receivers under the same number
  • wide possibilities of individual configuration of settings for everyone premises
  • individual settings of sound parameters
  • intuitive and comfortable operation and configuration
  • corridor opening function
  • operating electric strikes and electromagnetic locks of various types
  • programming from the panel and computer via USB cable
  • free software for creating description lists and configurations devices available in the "download" tab
The housing of the intercom is made of powder coated aluminum alloy a stainless steel keypad. Depending on the choice of frame, we can intercom mount flush or surface mounted.

TECHNICAL PARAMETERS:
  • power supply: 15V DC / 140mA or 12V ± 0.5V AC
  • standby power consumption: ~0.9W
  • combination lock
  • LED display
  • execution:
    • powder coated aluminum alloy housing
    • stainless steel keyboard
  • installation type: Analogue: 4, 5 or 6 wires
  • line length: max. 300m
  • max. number of subscribers: 64 premises
  • assembly method depending on frame selection:
    • recessed
    • surface-mounted
  • Outputs (first to connect):
    • traditional electric strike (max. 1A)
    • CDN-PK relay module (max. 5A)
  • inputs: 1x normally open (NO), e.g. "bell" button - direct activating the electric strike or calling the selected premises
  • dimensions: 206x88mm
  • color: graphite (GR)
