Aco CDN-230E ST (W) Electronic occupants list

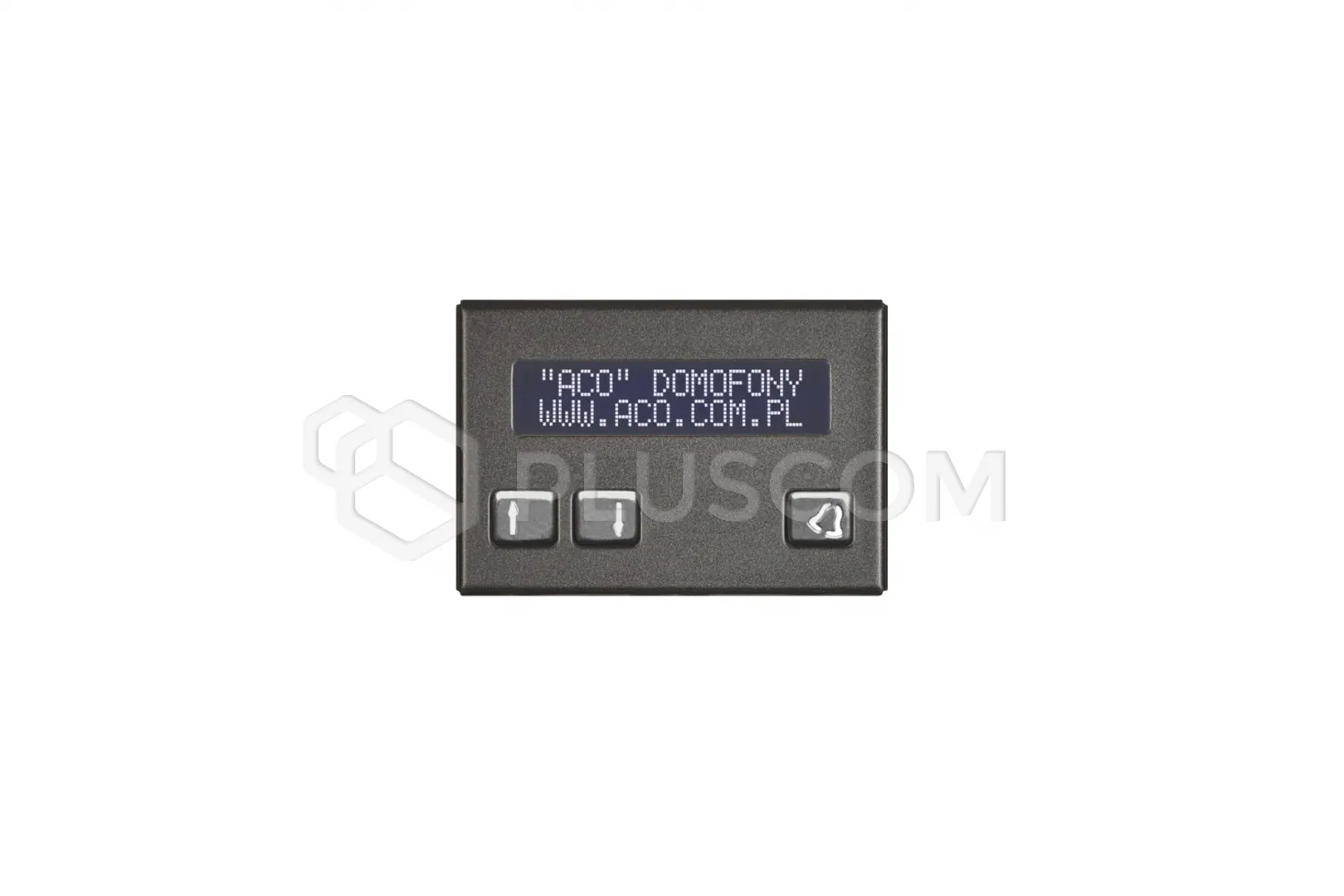

Aco CDN-230E ST (W) Electronic Tenant List with Backlight and Heated LCD Display

Electronic tenant list module for CDN series control units. Using the arrow buttons, you can search through entered entries sequentially (sorted by receiver address) or search through entries sorted alphabetically.
It allows you to enter up to 27 characters of description for each apartment.
The "bell" button calls the selected apartment. When calling from the control unit's numeric keypad, a description for the apartment also appears on the module's display.

The module has a heated display and the ability to enter up to 4 welcome screens – Intro (4 x 32 characters), which will be displayed sequentially in standby mode. Can be programmed from a computer using free software (CDN-USB programming cable required) and from the control panel keypad (not applicable to CDNP7ACCC control panels).

FEATURES:

• Weather and vandalism resistant
• 27-character description for each apartment
• Up to 4 welcome messages (intro) changing at a set time interval
• Intro – 32 characters stored in 2 lines of 16 characters each
• Individually backlit alphabetical selection and call buttons
• Programming from the control panel or a computer via USB cable
• Free software

The module can only be installed in additional frames or boxes dedicated to CDN exchanges.

DANE TECHNICZNE:

• max. ilość abonentów: 255 lokali
• pobór mocy w trybie czuwania: ~0,3W
• wykonanie: stal ocynkowana malowana proszkowo
• wyświetlacz: LCD (podgrzewany)
• 27 znaków opisu dla każdego lokalu
• indywidualnie podświetlane przyciski alfabetycznego wyboru oraz dzwonienia
• programowanie z poziomu centrali oraz komputera za pomocą kabla USB
• wymiary: 88x61mm
• kolor: stalowy (ST)
