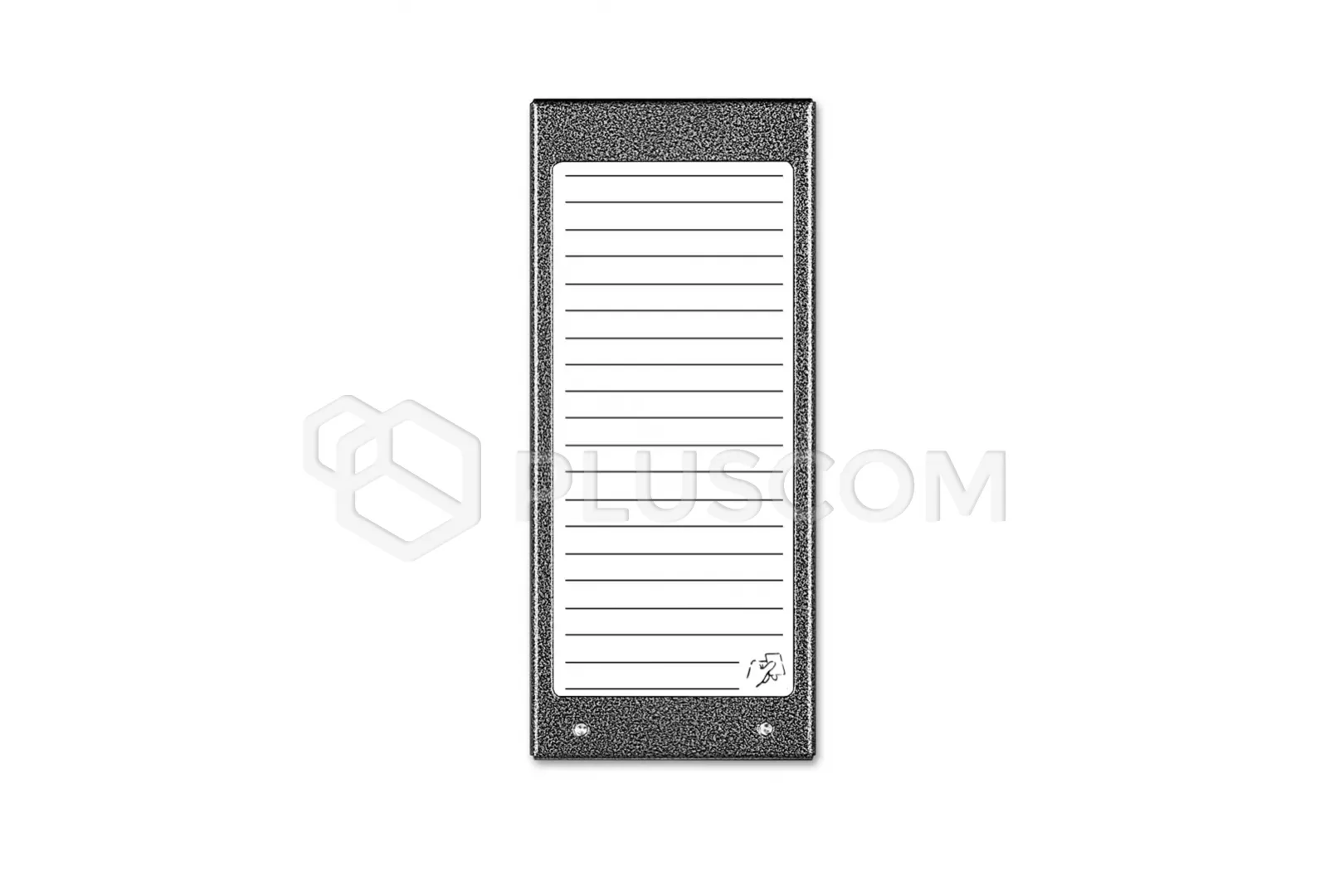

Aco CDN-17NACC ST (W) Large descriptive list with a proximity reader

ACO CDN-17NACC ST (W) Large Descriptive List with Proximity Reader

The CDN-17NACC ST large illuminated list module with a built-in proximity card and key fob reader in the Unique 125kHz standard is a dedicated device for CDNA, CDNC, CDNP, and CDNV systems. The 17NACC ST module supports a maximum of 1,530 cards - 6 for each premise. Assigning a card to a specific premise allows for easy:

• adding a new card
• replacing
• checking the assigned card
• deactivating

The white illuminated, easily replaceable descriptive list allows for approximately 17 entries. The module is mounted in an ABS and stainless steel frame. It can be combined with other compatible modules.

FEATURES:

• Weather and vandalism resistant
• Supports up to 1,536 cards – 6 for each apartment
• Easily manages key fobs or cards
• Easily replaceable, backlit description field
• Programming from the control panel and computer via USB cable
• Free software

TECHNICAL PARAMETERS:

• Power consumption in standby mode: ~0.6W
• Construction: powder-coated galvanized steel
• Supports up to 1,536 cards 1530 key fobs or cards - 6 for each apartment.
• Easy card or key fob management.

• Programming from the control panel or computer via USB cable.
• Dimensions:

  • Module - 88x206mm.
  • Description field - 68x160mm.
• Color: Steel (ST)

ABS plastic frame for flush mounting:
{REL_5897}
Stainless steel frame for flush mounting:
{REL_5822}
Stainless steel frame for surface mounting:
{REL_5904}
