Aco 1-family intercom kit

ACO Single-family intercom set

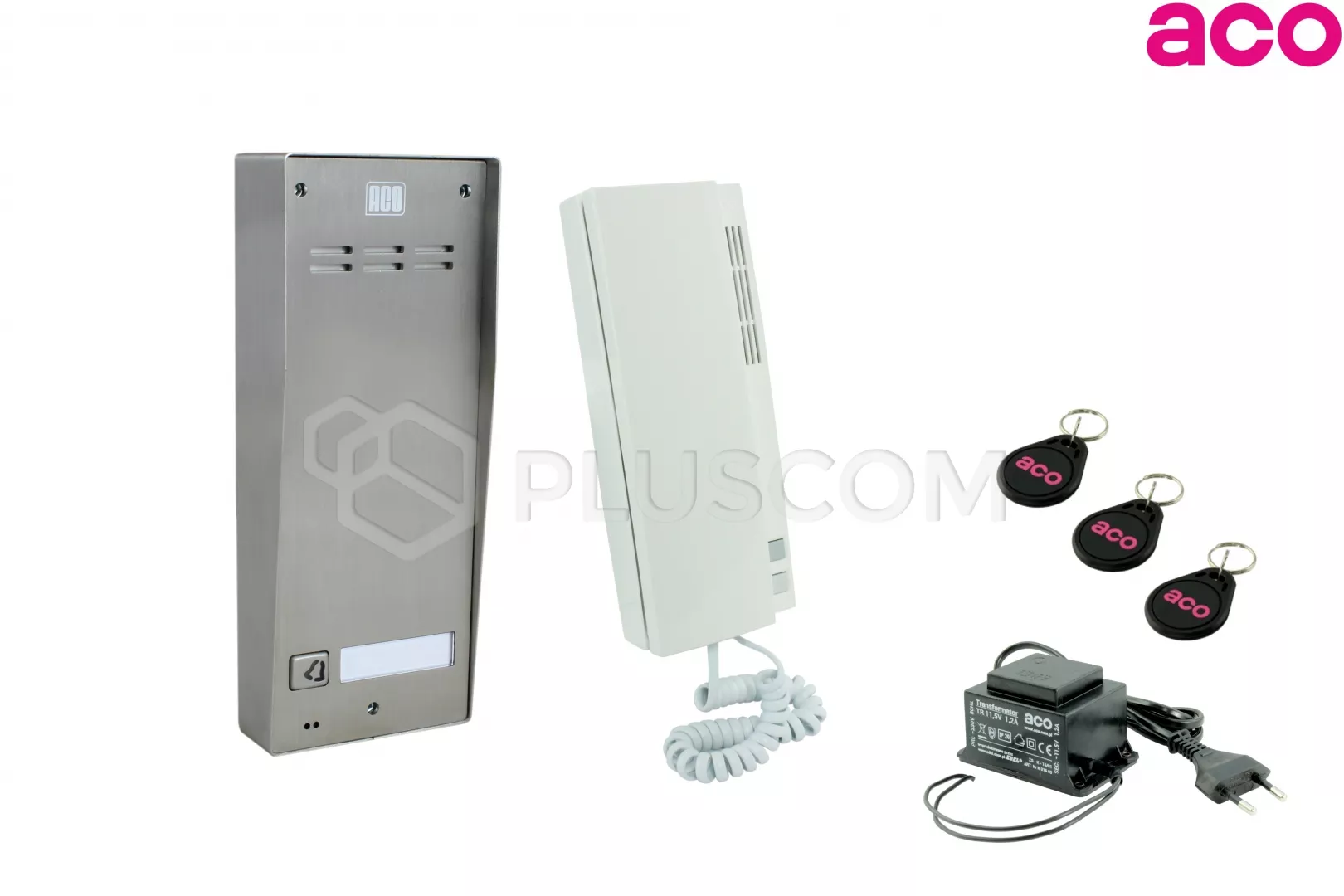

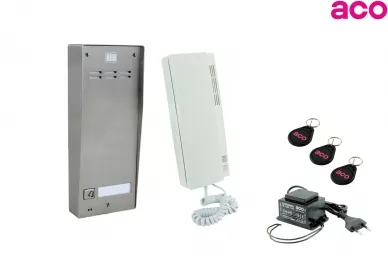

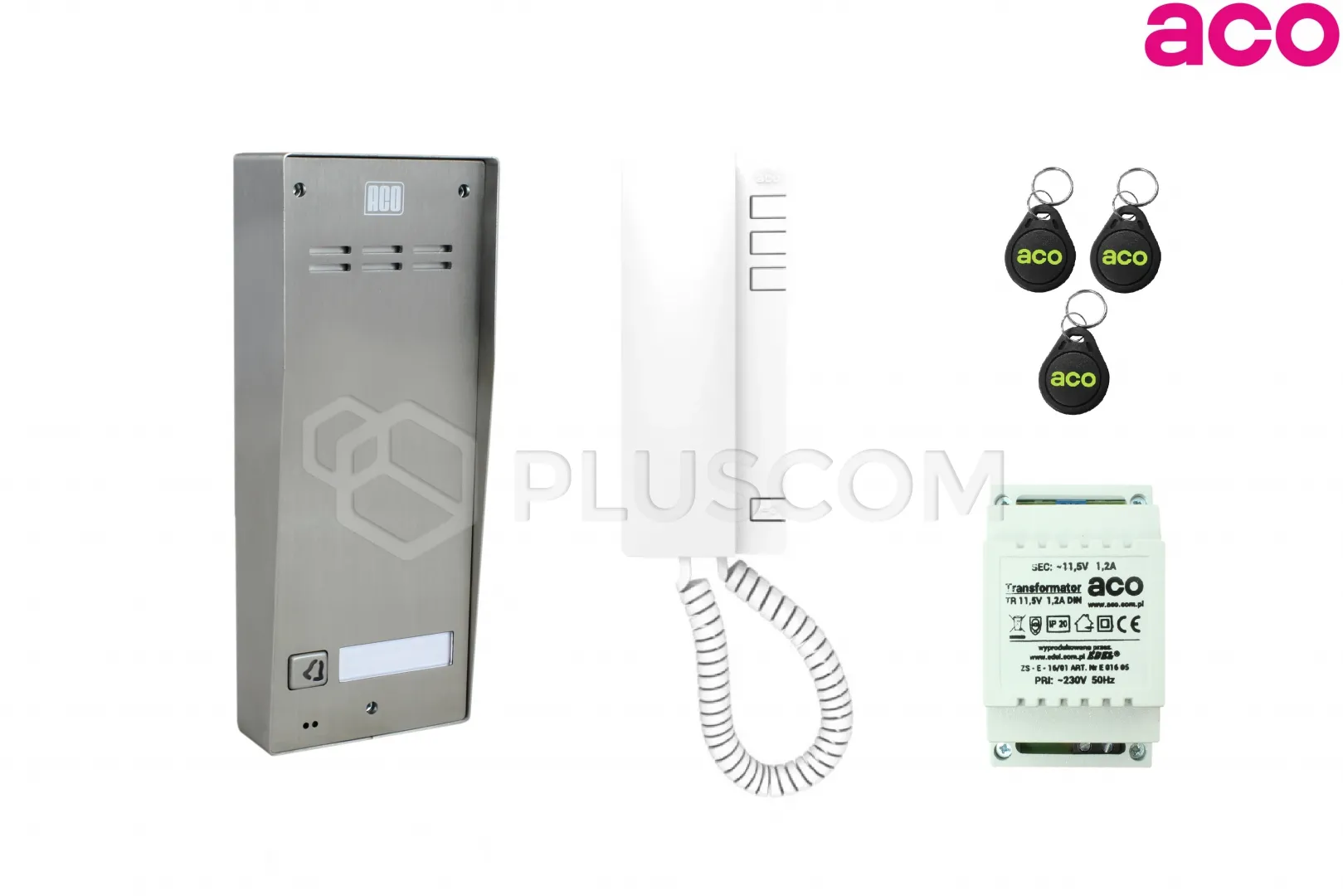

THE SET INCLUDES:

• ACO FAM-P-1NPACC NT doorphone panel
• ACO INS-UP720M digital uniphone
• TR transformer 11.5V/1.2A
• 3pcs TR-ACO proximity key fobs black Unique 125kHz

ACO Intercom kit

MOST IMPORTANT FEATURES OF THE INTERCOM PHONE:

• flat gate panel made of stainless steel, resistant to weather conditions weather conditions and acts of vandalism
• uniphone with convenient magnetic hang-up, made of high-quality material quality material
• integrated key fob/card reader (125kHz)
• electric strike connected directly to the panel (no additional one needed). power supply)
• exit button support
• surface mounting (box width 70mm)
• 2-wire digital installation, only two wires are needed to connect uniphone with doorphone
• very good sound quality

The kit is ready for installation. Keychains are loaded into intercom panel. Just connect the power supply, electric strike and uniphone to use the intercom.

EXPANSION

The set can be expanded with:

• additional uniphones (up to 4) that will ring all together
• a larger number of key rings (max 192)

GATE CONTROL

It is possible to control the gate automation with an additional button functional F2 located on the uniphone. This requires an additional pair of wires between the gate drive control unit and the uniphone.
