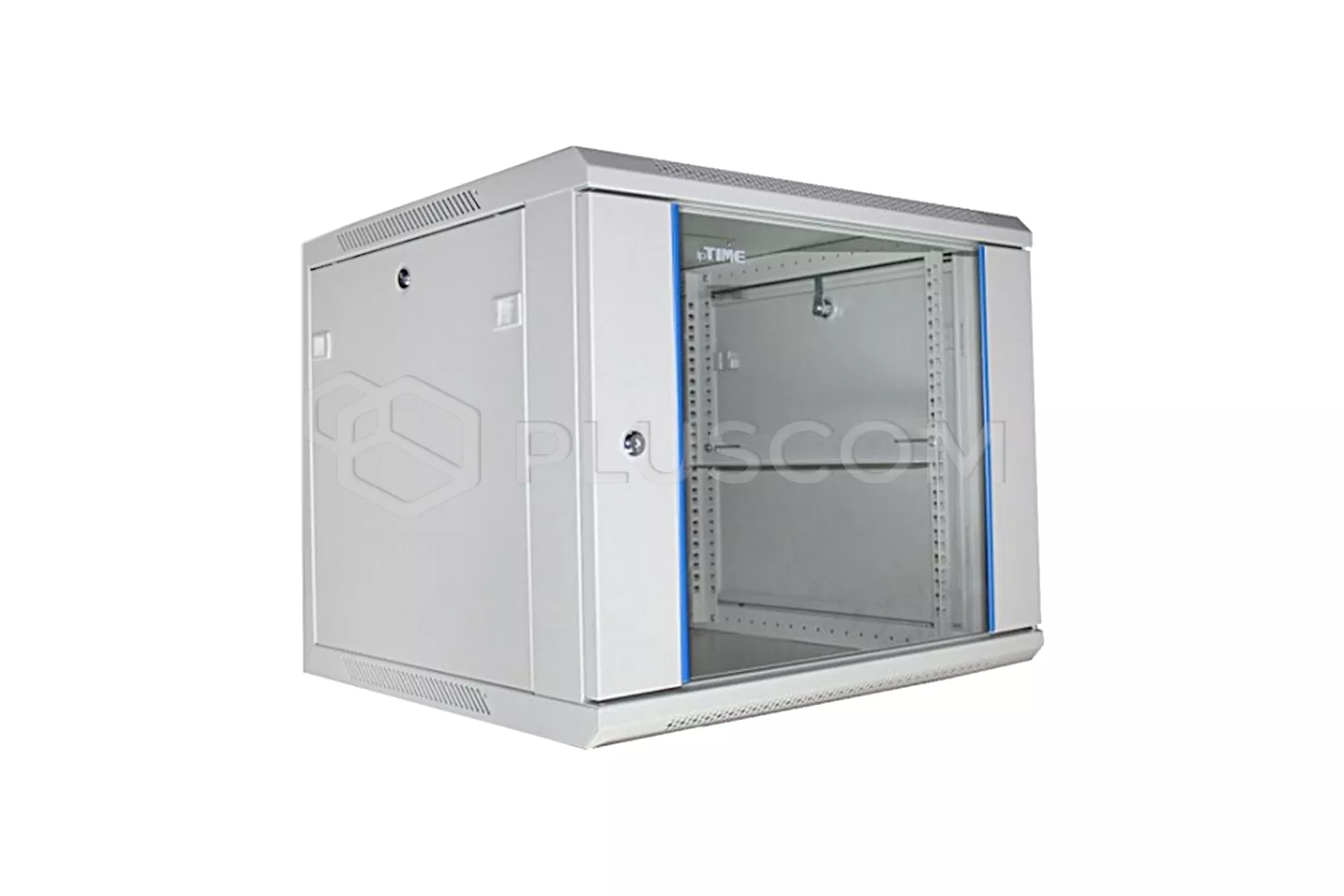

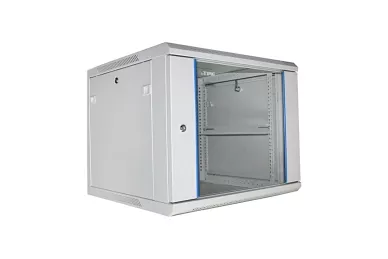

9U 19'' Fixed Wallmount Cabinet glass front door D: 600mm gray to assemble

Hanging cabinet RACK 19 '' 9U with a depth of 600 mm in black with glass doors, screwed requires assembly.

The wardrobe is perfect as a central place integrating various LAN, CCTV, KD and SSWiN systems. They increase the aesthetics of the installation. They protect devices against damage while providing convenient access during service work. Basically, the cabinet is designed to mount devices in the 19 '' standard, but the installation of appropriate shelves allows you to put in the cabinet any desktop devices such as switches, routers, UPSs.

PARAMETERS AND FEATURES:

• assembly dimensions:
• • height: 9U
  • 19 '' width
• external dimensions: 600x600x500 (h) mm (width / depth / height)
• Weight: 24.1kg
• cable entries in the top and bottom of the cabinet
• room for two fans on the top of the cabinet (spacing of mounting holes: 105x105mm)
• numerous ventilation openings

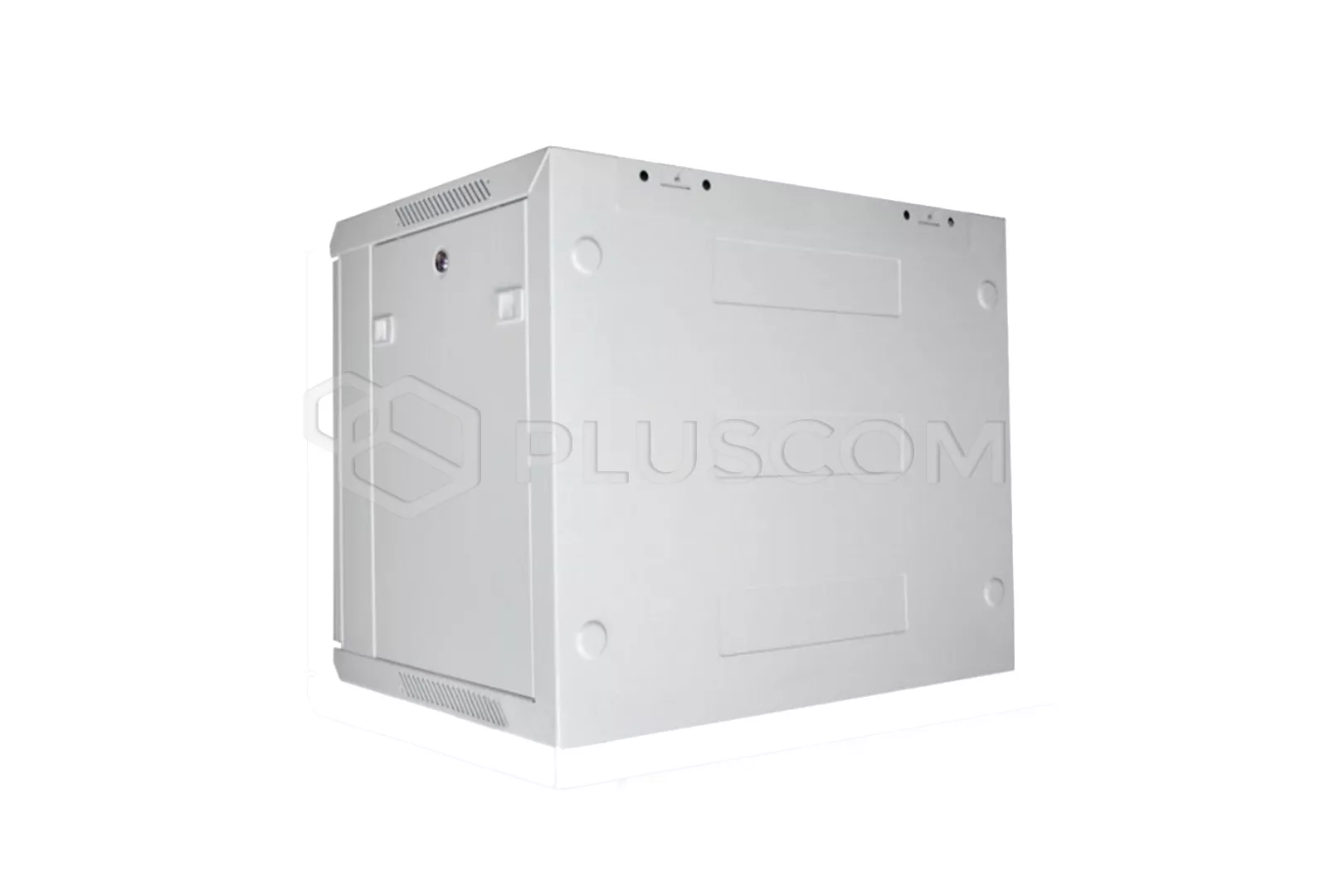

• removable side walls (no tools required)
• glass door opening angle <180 °, interleaved, opening to the left or right side, locked with a key

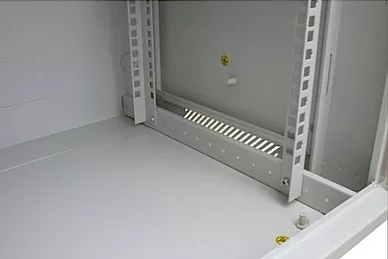

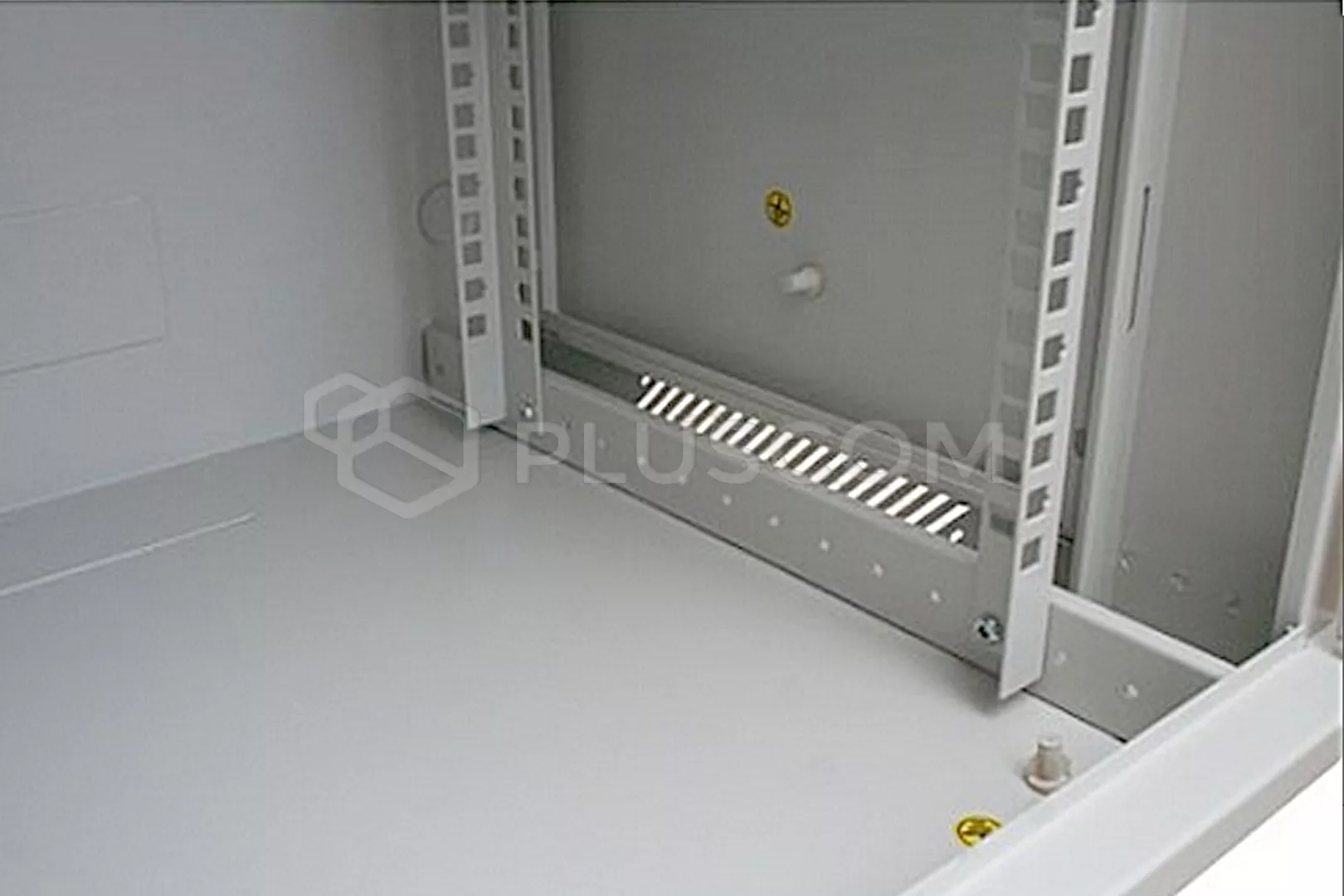

• adjustable front and rear RACK rail
• maximum static load: up to 60kg

INSTALLATION COMMENTS:

The cabinet is delivered in a cardboard with dimensions (650x650x170mm) and requires assembly. This solution allows you to reduce shipping costs and save space in the warehouse. After twisting, we get a solid construction that can withstand a static load of up to 60kg

The assembly steps are simple and should not take more than 30 minutes.
