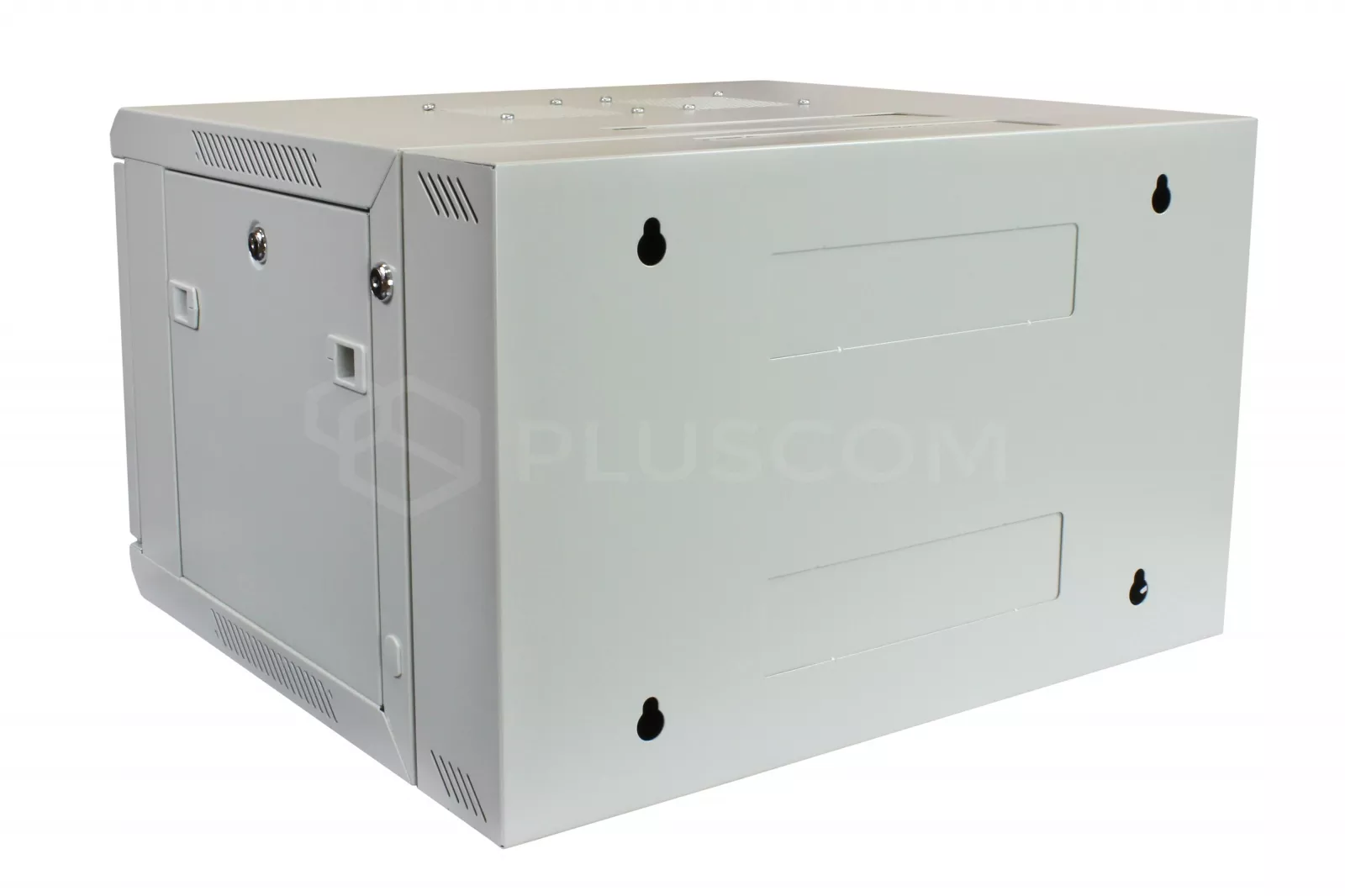

6U 19'' Swing Wallmount Cabinet glass front door D: 550mm grey

134,16 EUR including 23.00% VAT
Product code: #6186
Manufacturer: IpTime
  • Wall Rack, two-section: 6U
  • Depth: 550mm
  • Height/width: 368mm/600mm

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
4,56 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Shelf 19'' 1U 450mm with holes gray

FEATURES
  • height: 6U
  • depth: 550mm
  • usable depth:
    • section I: 425mm
    • section II: 95mm
  • usable height: 275mm
  • two-section wardrobe hanging 19'' designed for indoor applications
  • SECTION OPENS TO YOUR LEFT (important when mounting in the corner of the wall)
  • front glass door (tempered) equipped with a single-point lock can function as right or left opening angle >180 degrees

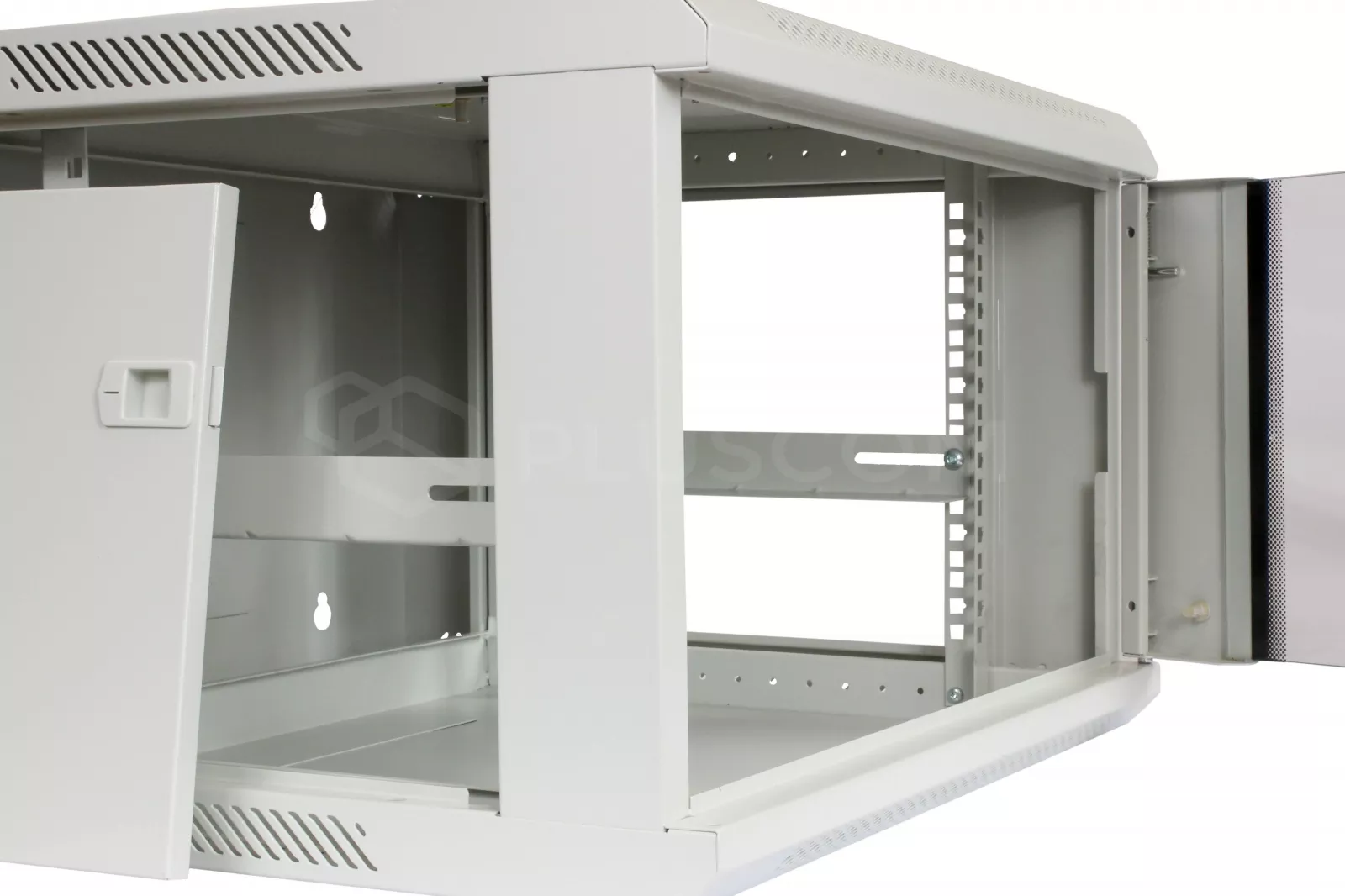

  • removable side panels, lockable

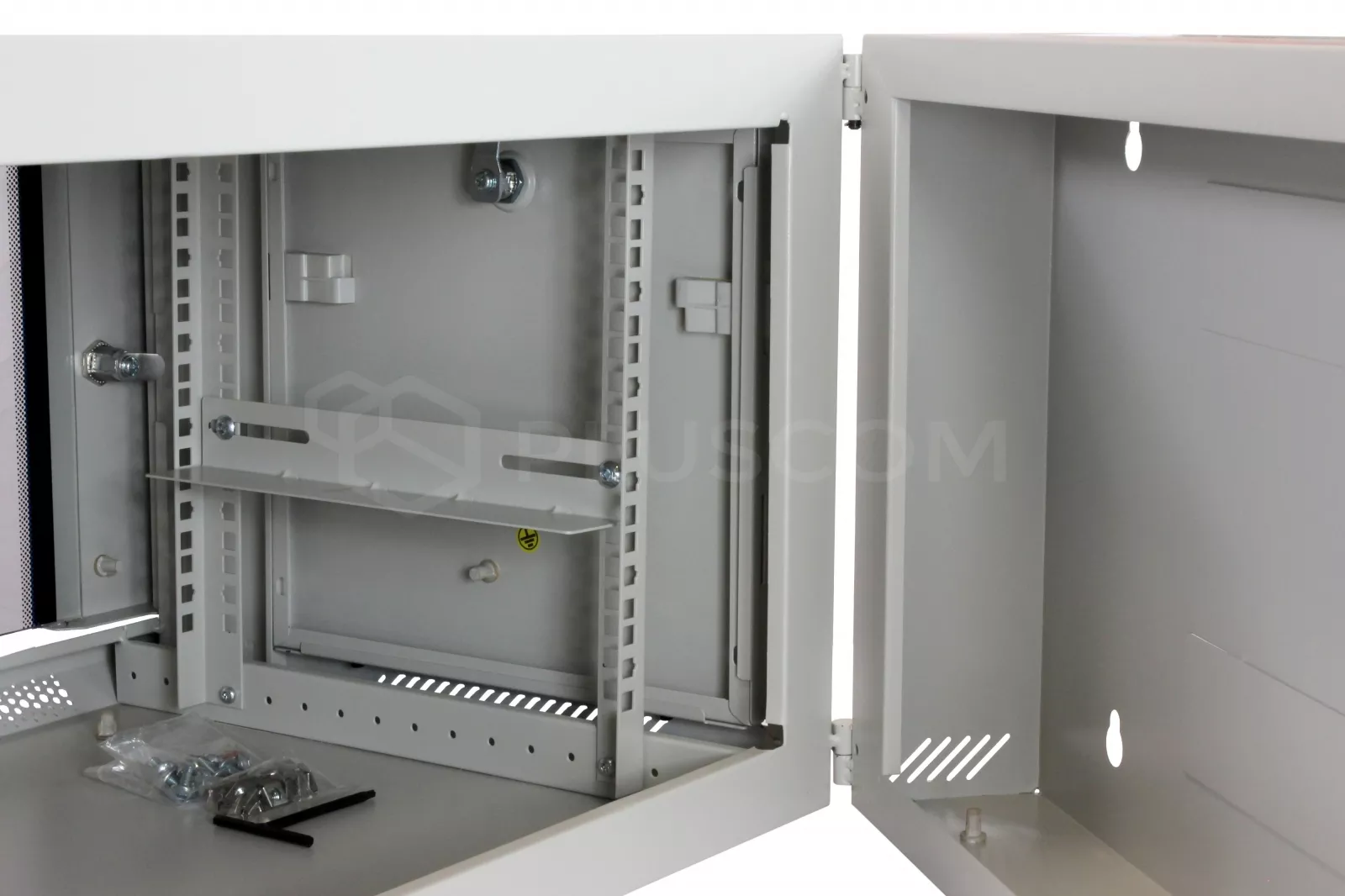

  • mounting brackets 19'' in the front and rear of the housing (4x)
  • space for cable glands: the top, bottom and rear of the cabinet
  • space for additional fans: 2x a part of the ceiling cabinet
  • protection degree of protection: IP20
SPECIFICATIONS
  • material: SPCC 1.2mm sheet steel, 2mm mounting profiles (welded frame)
  • dimensions: 600x550x368mm (width/depth/height)
  • weight: 22kg
  • color: gray RAL7035
Complies with standards: ANSI / EIA RS-310D, DIN41497 PART1, IEC297-2, DIN41494 part7

INSTALLATION:
  • cabinet is provided in full, does not require twisting

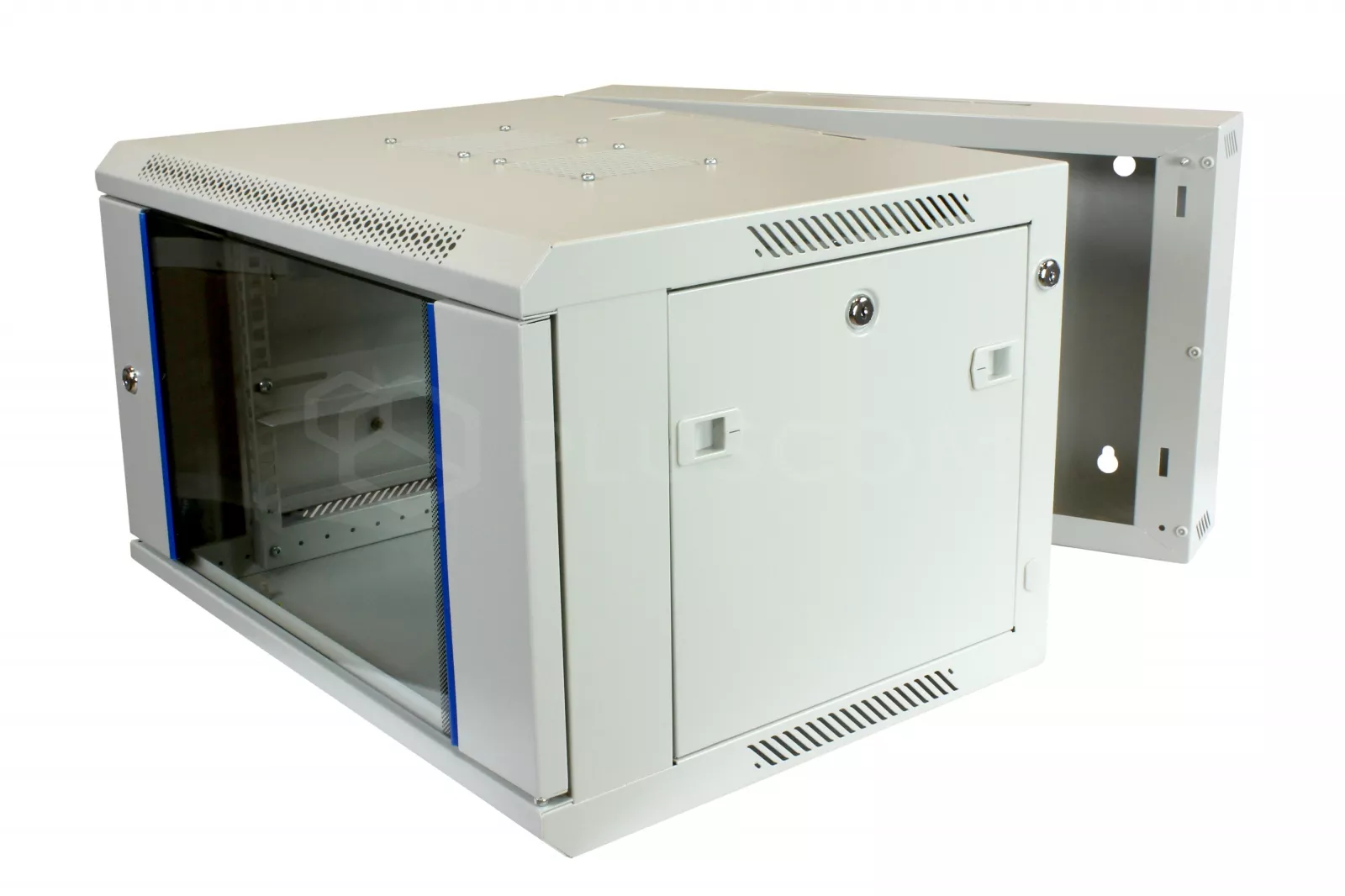

  • sections can be separated on hinges, fasten one then embed the second
  • cabinet static load: 60kg
  • to ensure maximum capacity, it is important to spread the load
