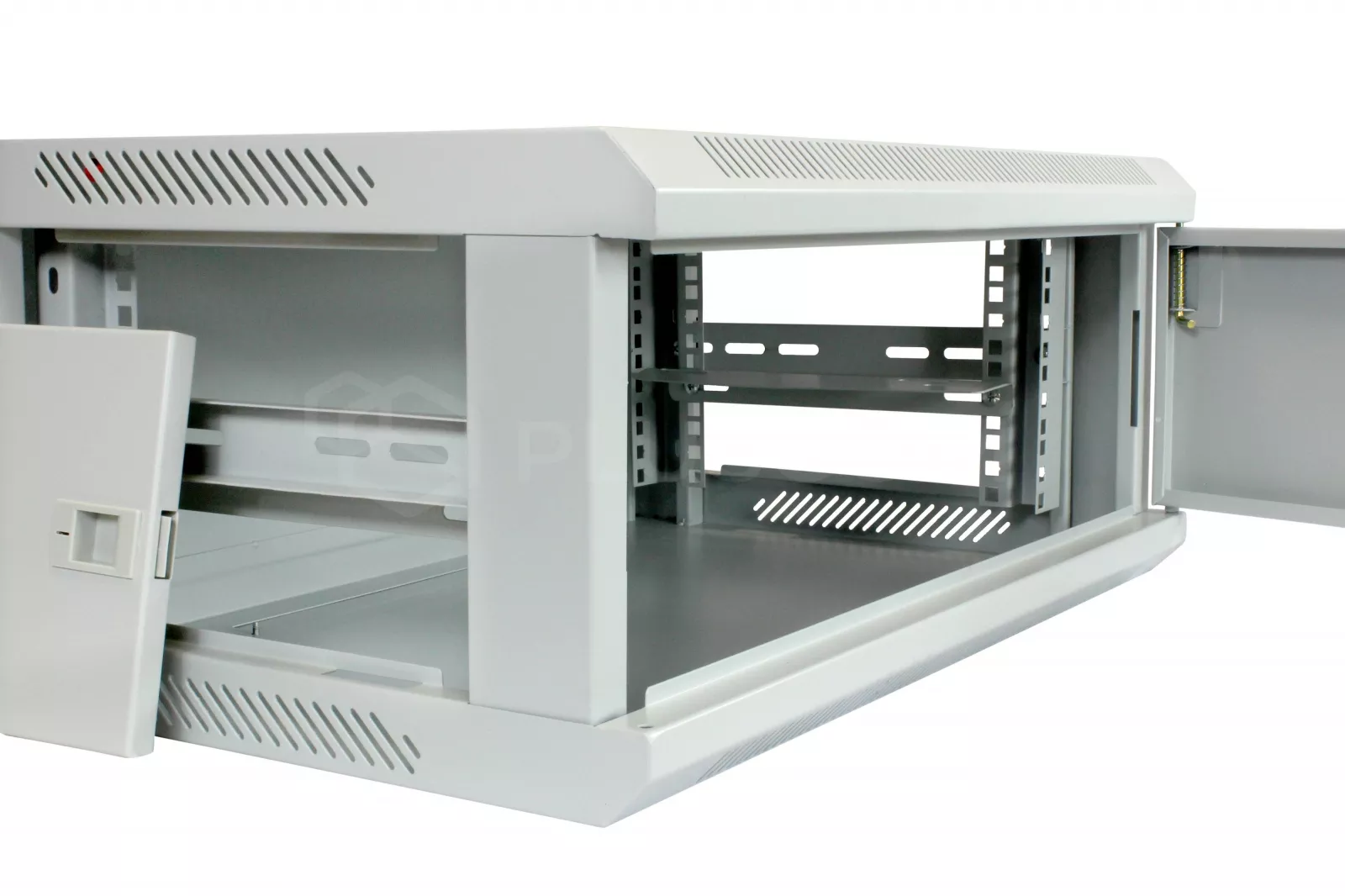

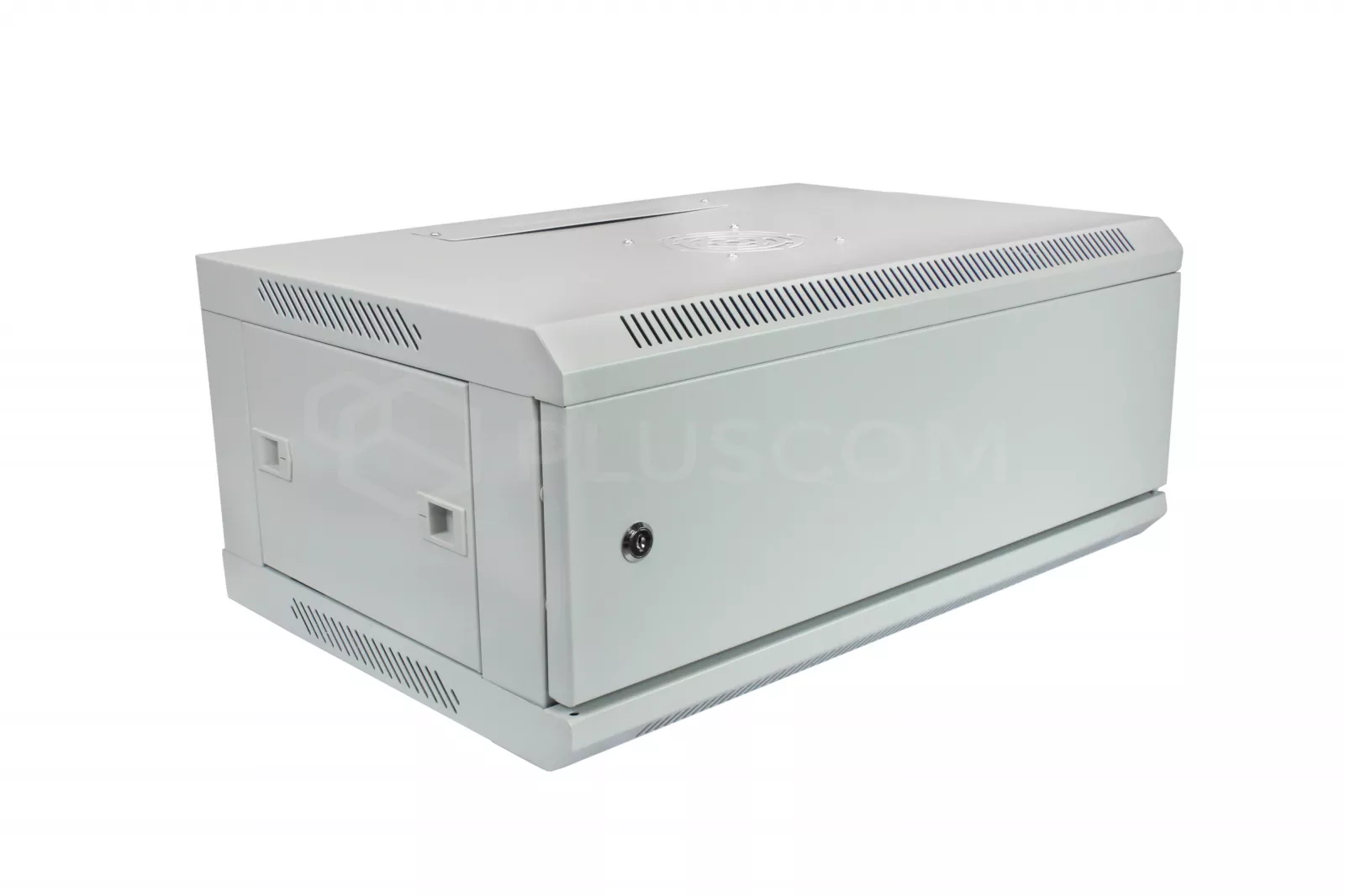

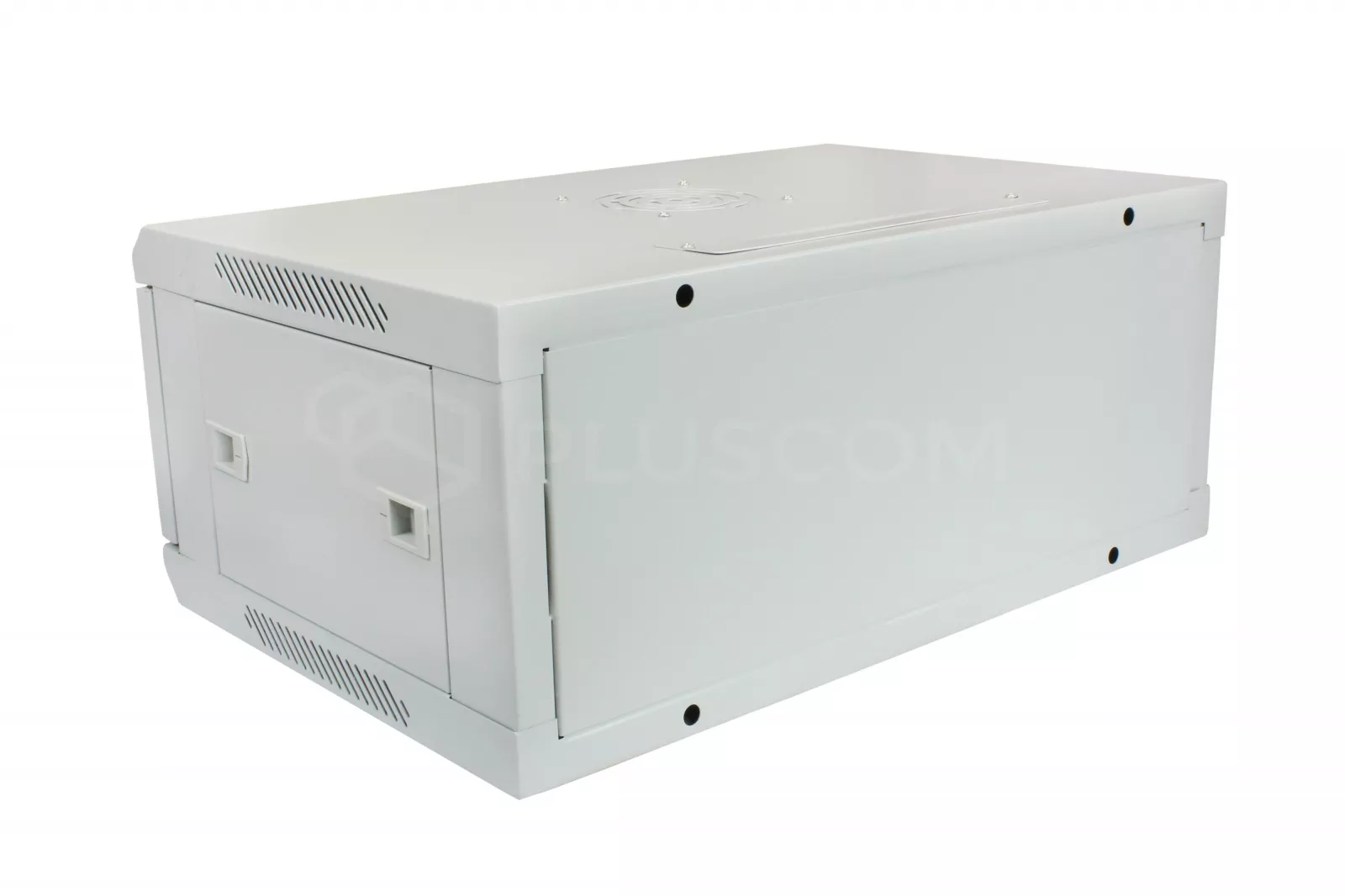

4U 19'' Fixed Wallmount Cabinet metal front door D: 400mm gray

60,46 EUR including 20.00% VAT
Product code: #6190
Manufacturer: IpTime
  • Wall Rack: 4U
  • Depth: 400mm
  • Height/width: 260mm/600mm

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Shelf 19'' 1U 300mm with holes grey Shelf 19'' 1U 650mm with holes grey Shelf 19'' 1U 300mm with holes gray

FEATURES
  • height: 4U
  • usable height: 160mm
  • depth: 400mm
  • usable depth: 375mm
  • rack wall 19" designed for indoor applications

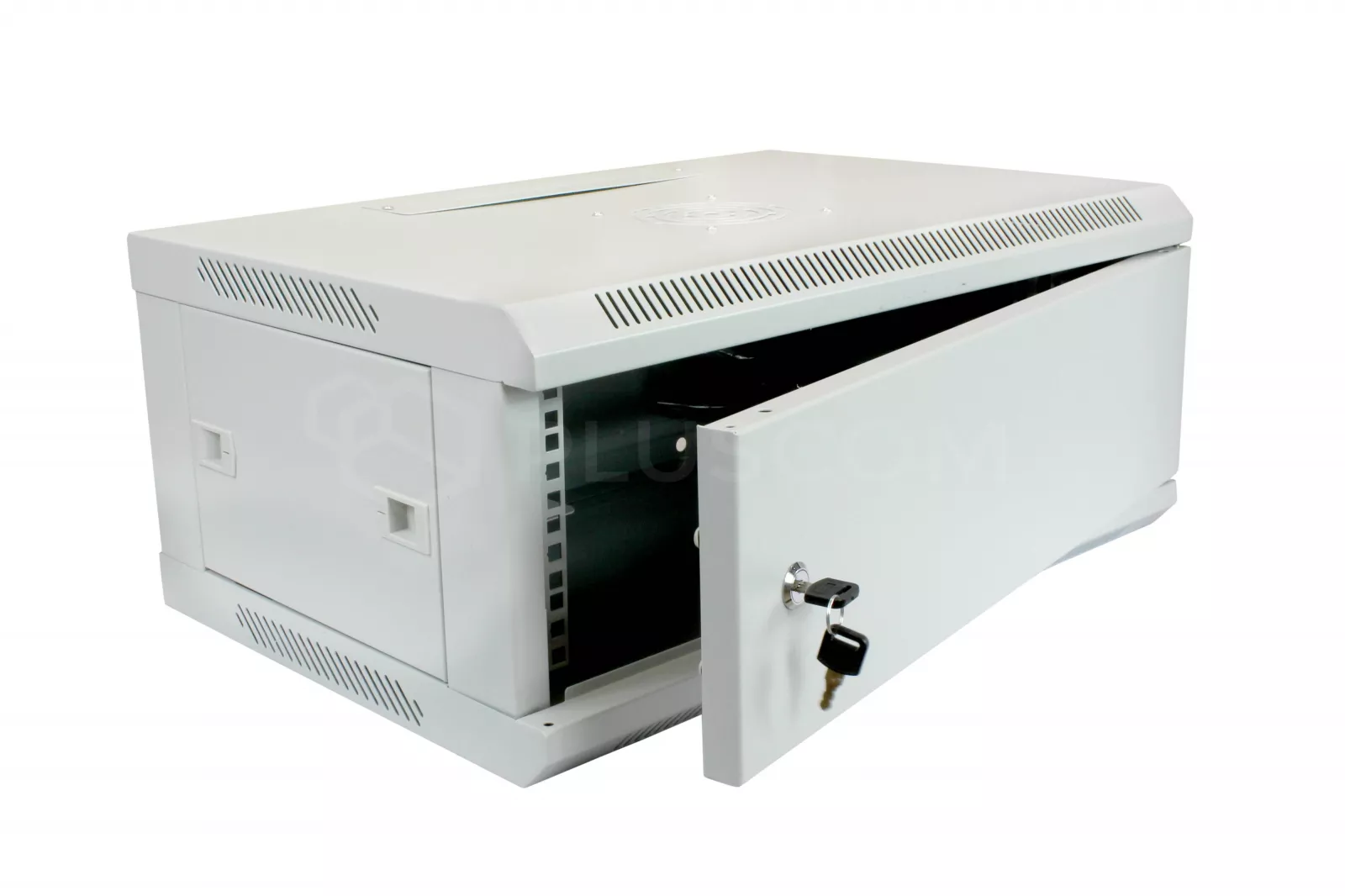

  • front metal door equipped with a single-point lock can function as right or left opening
    angle >180 degrees
  • removable side panels, lockable

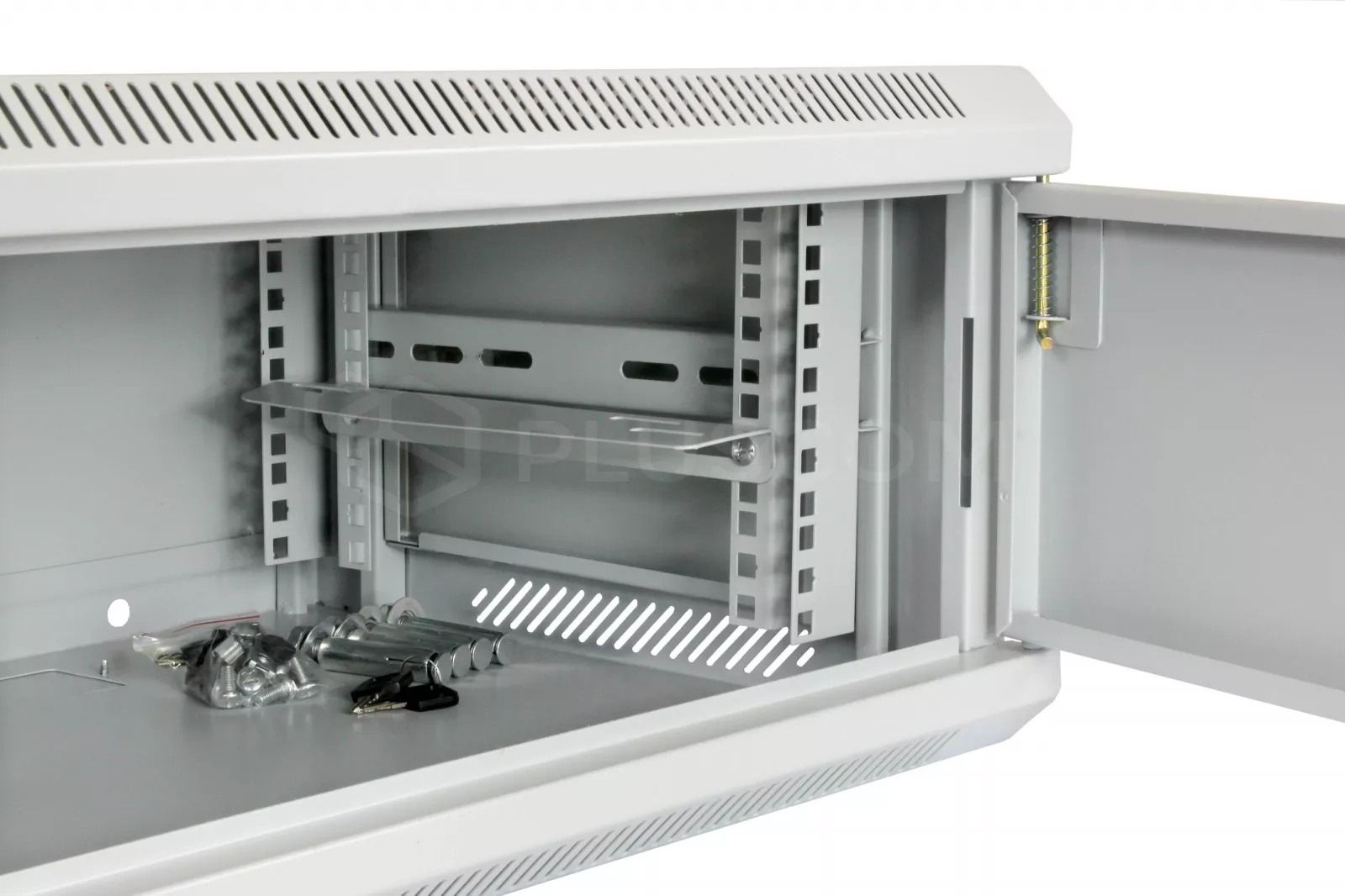

  • mounting brackets 19'' in the front and rear of the housing (4x)
  • space for cable glands: the top and bottom of the cabinet
  • space for additional fans: 1x
  • protection degree of protection: IP20
SPECIFICATIONS
  • material: SPCC 1,0mm sheet steel, 1,2mm mounting profiles (welded frame)
  • dimensions: 600x400x260mm (width/depth/height)
  • weight: 12kg
  • color: gray RAL7035
Complies with standards: ANSI / EIA RS-310D, DIN41497 PART1, IEC297-2, DIN41494 PART7

INSTALLATION:
  • rack is provided in full, does not require torsion
  • cabinet static load: 50kg
  • to ensure maximum capacity, it is important to spread the load
  • are supplied with the cabinet plugs 4 pcs
