24V 8p PoE RACK 19 PoE buffer power supply

158,47 EUR including 23.00% VAT
Product code: #5104
  • PoE buffer power supply mounted in RACK 19
  • 8x Ethernet 10/100Mbit
  • 24V max 1,4A port
  • Battery space: 2x 12V 7,2Ah
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

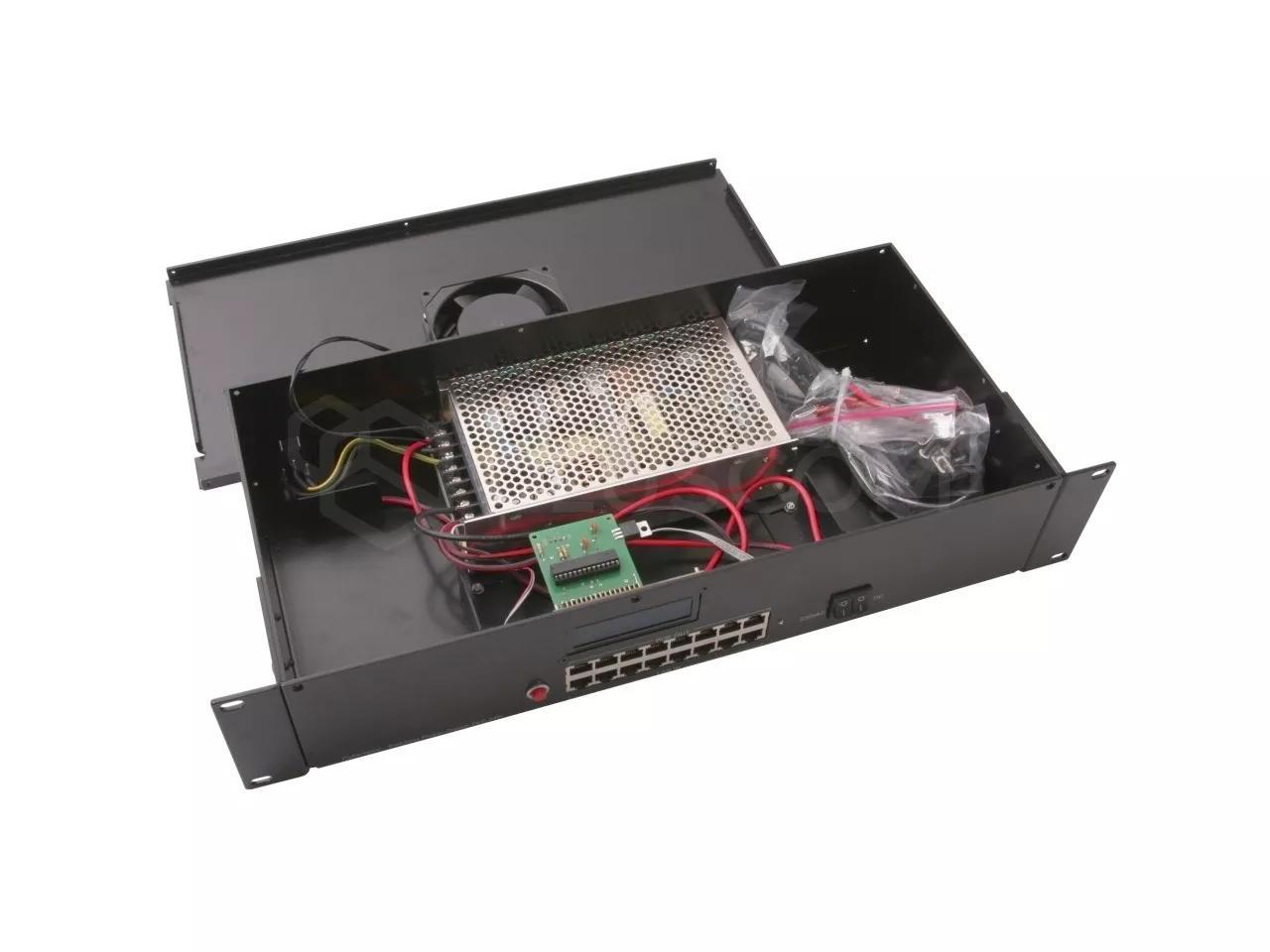

Switching power supply 24V  PoE 8p RACK 19  is a combination of 24V switching power supply and 8p PoE adapter closed in  all-aluminum 2U case for 19" RACK cabinets. Inside the case there is also space to fit two 7-7,2Ah 12V batteries.

Switching power supply 24V  PoE 8p RACK 19 is the easiest way to supply with power up to 8 devices via Ethernet cable using PoE (Power Over Ethernet) technology.

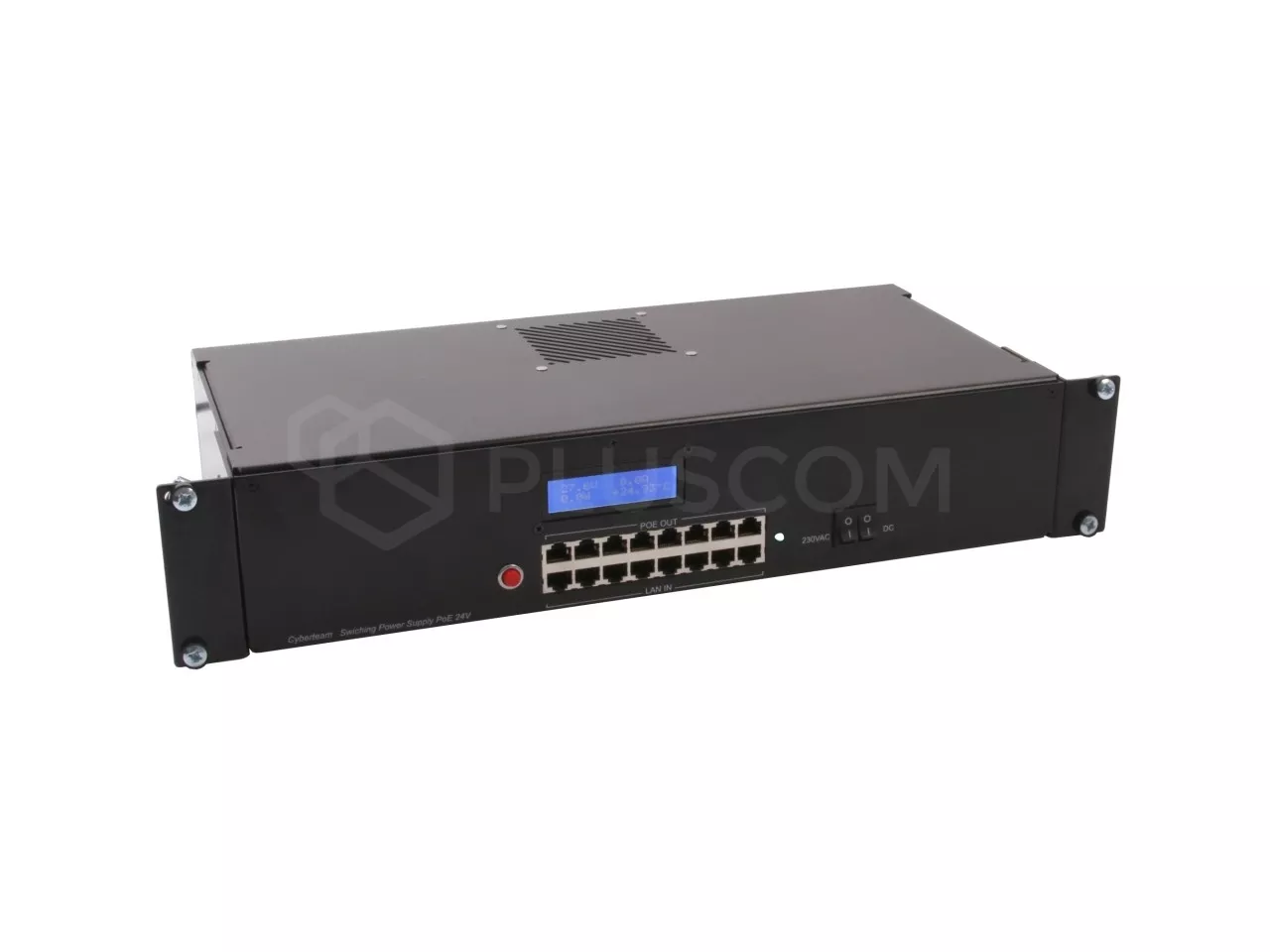

Case is equipped with LCD display, which shows current temperature, voltage, amperage and power consumption.

Using Switching power supply 24V  PoE 8p RACK 19 in 19" RACK cabinets allows better space management by eliminating traditional power supplies connected to UPS.

Device  has 2 on/off switches: one allows disconnecting from AC230, other disconnects battery power.  Thanks to that, power supply can be turned on without power from electrical grid ("cold start").

Key features:
  • supply with power via Ethernet cable up to 8 PoE-ready systems
  • save space in  RACK cabinet
  • control load of switching power supply
  • immediate and accurate information about temperature, amperage and power consumption
  • 2 on/off switches: for  AC230 and  DC (battery)
  • standard  1,5m power cord
  • fan works only when  power comes from 230V socket
  • works with MikroTik, Ubiquiti and virtually any system that is powered via PoE with 24V power
  • solid, sleek, black painted, all-aluminum rackmounted case
  • "cold start" -system starts even witchout being connected to electrical grid
  • inside case there is room for two 7-7,2Ah batteries
  • Batteries are not included.
Specification:
  • LAN ports     8x 10/100Mbps
  • PoE ports     8x 10/100Mbps
  • Input power     230V

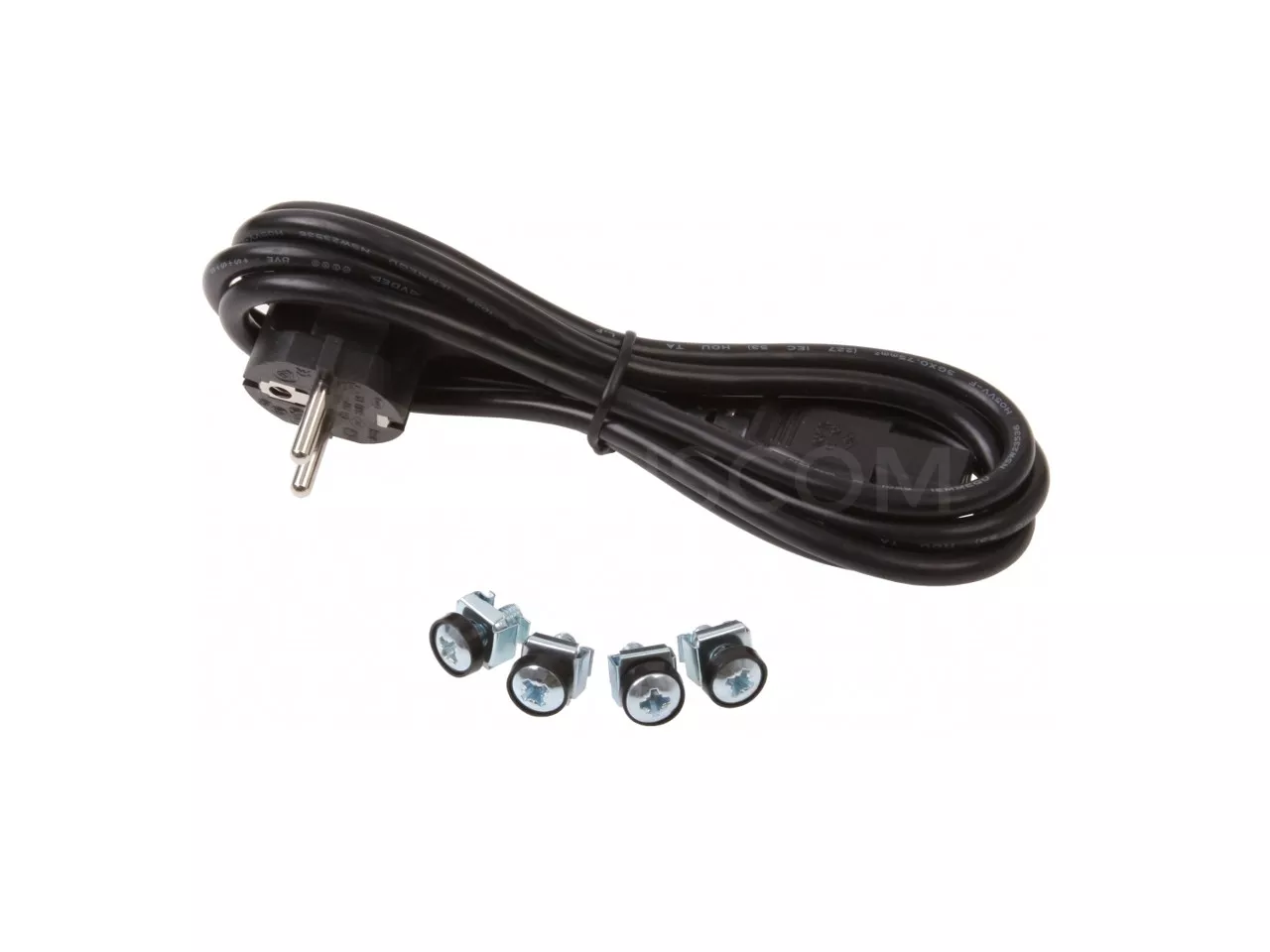

  • M6 mounting screw     4 pcs, included
  • Power cord     Yes, included
  • Power cord lenght     1,5m
  • LCD display functions
    • Voltage(V)
    • Amperage(A)
    • Power consumption (W)
    • Temperature (°C)
  • VAC 230V switch on/off     yes, on front panel
  • DC switch on/off     yes, on front panel
  • Switching power supply symbol     AD-155B
  • Max. power     151,55W
  • Voltage     power supplying: 27,6V; battery charging: 27,1V
  • Amperage     power supplying: 5A;battery charging: 0,5A
  • Amperage range     power supplying: 0~5A, battery charging 0~0,5A
  • Maximum amperage of single PoE port     1,4A
  • Operating temperature     -10 ~ +60°C
  • Operating humidity     20 ~ 90% without condensation
  • Weight     2,9 kg
  • Dimensions     425x150x90mm
