ATTE APS-90-550-OF Switching power supply 55V 1.7 For installation

ATTE APS-90-550-OF Switching power supply 55V 1.7 For installation

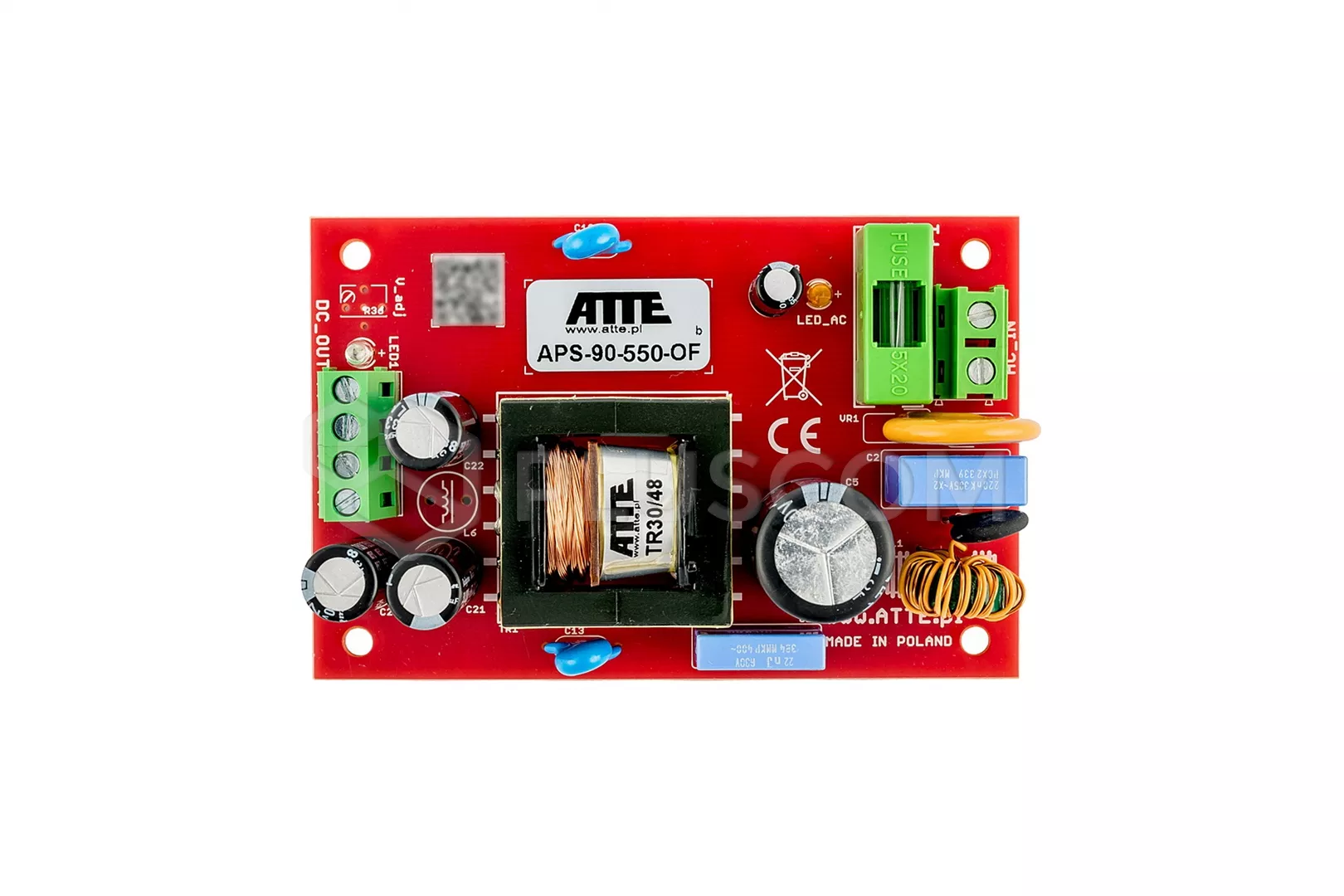

ATTE APS-90-550-OF is a power supply module supplying constant voltage to CCTV devices in a small housing. The PSU has security features surge and short-circuit protection, therefore it is recommended for work in systems monitoring requiring high power reliability. The module provides isolation between the 230 VAC network and the powered device.
Thanks to the OF (Open frame) design, the power supply can be mounted in any enclosure, however the best solution is dedicated enclosures from the ABOX series, and mounting plates, equipped with system holes in 10.8 mm pitch.

TECHNICAL DATA:

• output voltage: 55 VDC
• output current: 1.7A
• power adapter power: 96W
• efficiency: 93%
• power supply: 190-260 VAC
• power supply input protection:
• • slow blow fuse 3.15A
  • surge protector
• power supply output protection:
• • electronic overload protection at 3 A level (each power supply separately)
  • electronic short circuit protection (after short circuit may be required power supply restart)
  • surge protectors
• work signaling:
• • LED_AC (yellow) - network voltage present
  • LED1 (blue) - output voltage present
• housing construction: lack - built-in module
• assembly: click stud spacers, mounting holes in the 10.8 pitch mm </ li>
• working temperature: -25 ... + 50 ° C
• dimensions: 100 x 65 x 40 mm
• weight: 0.11 kg
