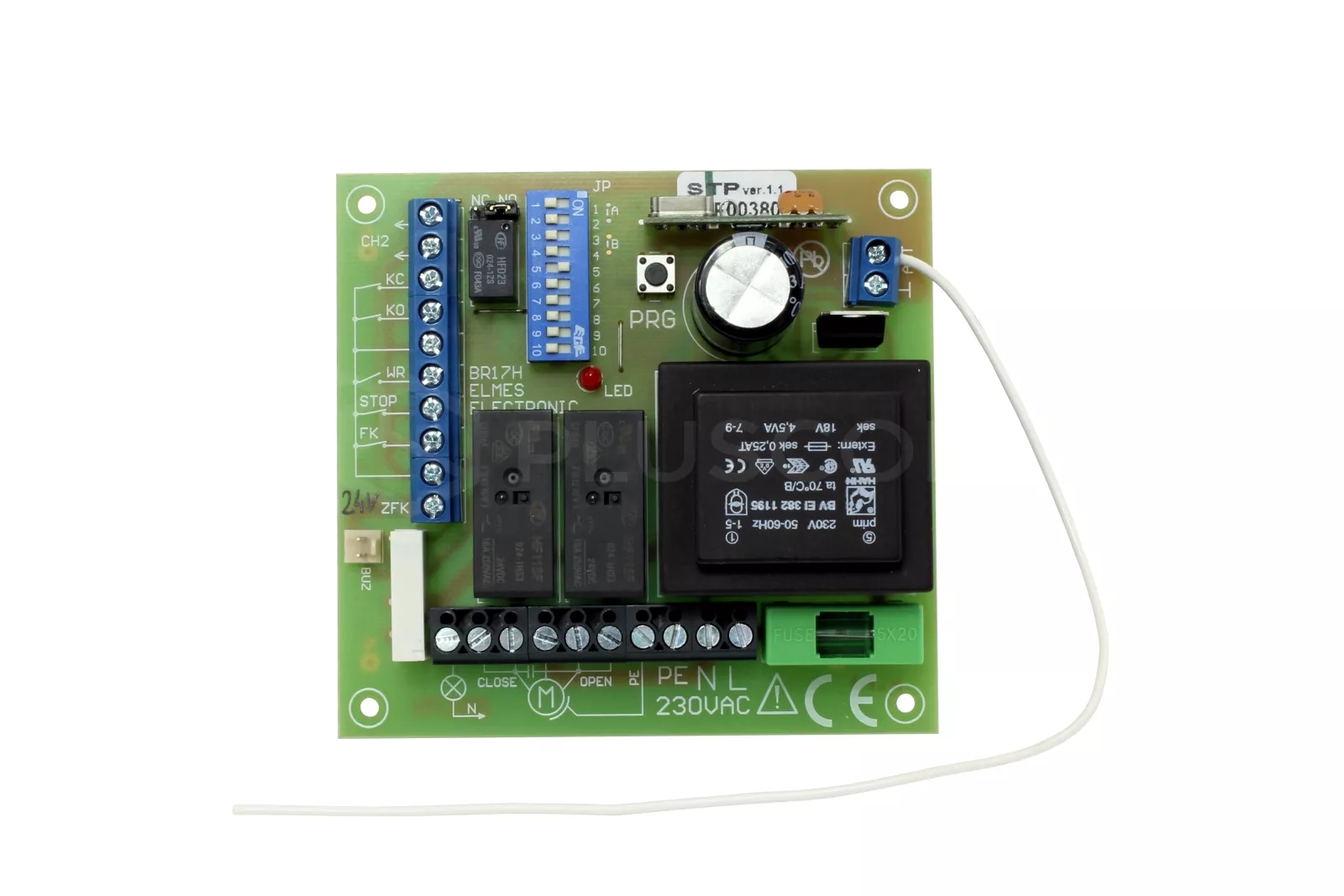

Elmes STP Sliding gate automation controller

43,73 EUR including 23.00% VAT
In stock. Ships today!
Product code: #6793
Manufacturer: Elmes
  • gate drive control
  • four modes
  • support up to 112 pilots ELMES company
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes DWB100HT Two channels transmitter Elmes UMB100HT One channel transmitter Elmes CH4HT Four channels transmitter Elmes CH8HT Eight channels transmitter Elmes STX Multichannel transmitter with timer Elmes DW200HT Two channels transmitter Elmes CH32HT Thirty two channels transmitter Elmes AN200HT One channel transmitter

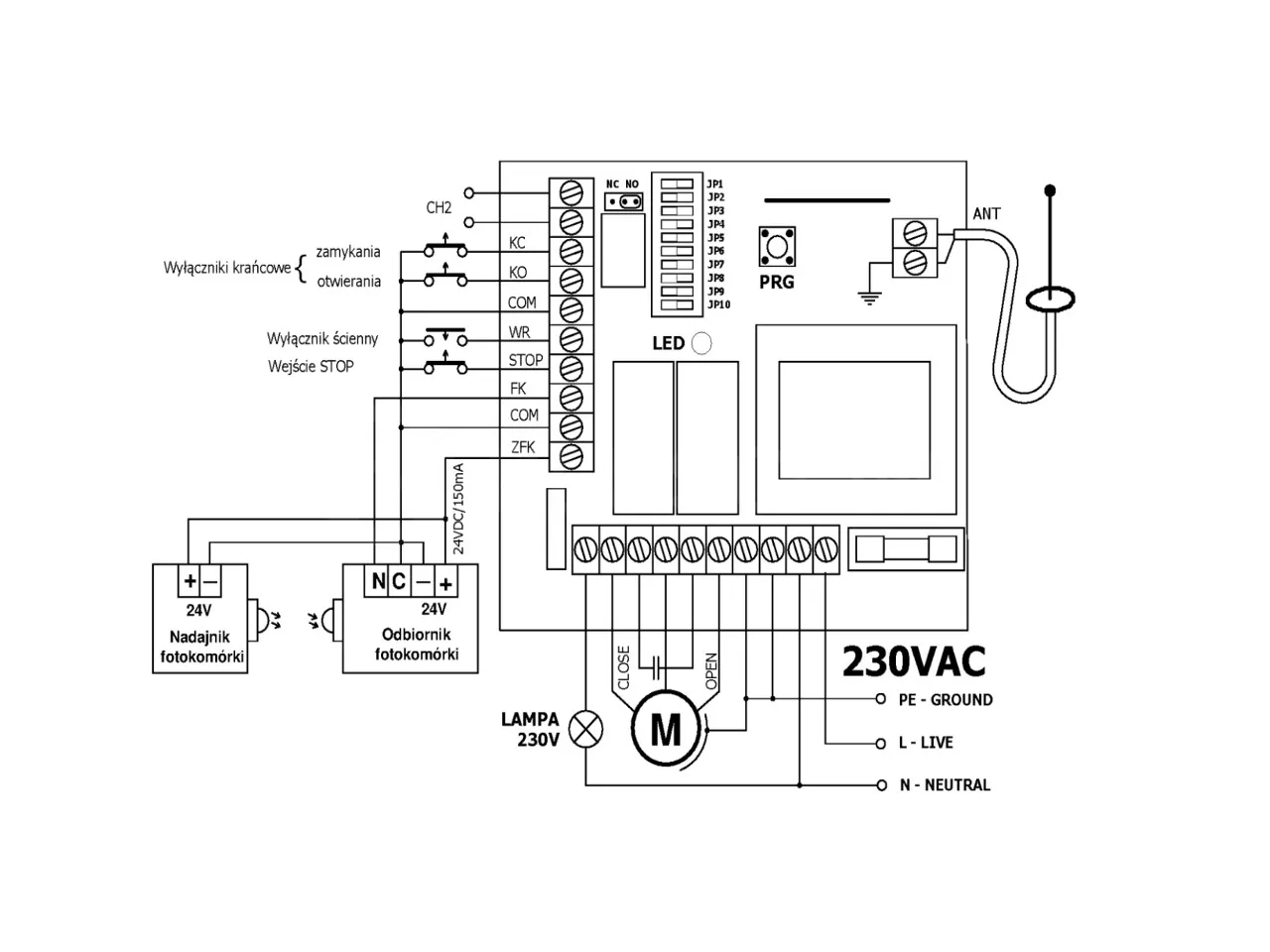

The controller is designed to use in remote (radio) controlled sliding gate automation system powered by one 230VAC single-phase induc-tive motor capable of moving gate in two directions. It provides the following operating functions and features:
  • Hopping (rolling) code KEELOQ® transmission allowing high level of control command security
  • Sensitive superhet receiver operating with all Elmes Electronic made 433,92MHz band hand transmitters;
  • Extended memory capacity up to 112 hand transmitters;
  • Remote control accepting one or two transmitter’s buttons control commands
  • Remote gate control by wired wall switch;
  • Operation modes: manual, auto-close and two „auto-parking” modes;
  • Auto-close mode with preset PAUSE time (from 1 second up to 4 minutes);
  • Operation with end-of-line switches NO or NC types (normally opened or normally closed at standby);
  • Programmable motor operation time allowing controller use in gate automation without installed end-of-line switches;
  • Operation with NC type (normally closed) output Infrared (IR) protective barrier;
  • Auto-open function on IR barrier disturbance while in gate close movement;
  • Gate „STOP” security switch input halting gate’s movement in any direction;
  • Courtesy lamp output – warning (flashing) or lighting lamp modes;
  • Separated, auxiliary relay output NO/NC type controlled by additional hand transmitter button;
  • Installation facilitation function allowing reverse gate movement and reverse end-of-line switches functionality set by jumpers.

Download
Datasheet 0.06 MB
User manual 0.06 MB
CE Declaration 0.05 MB
