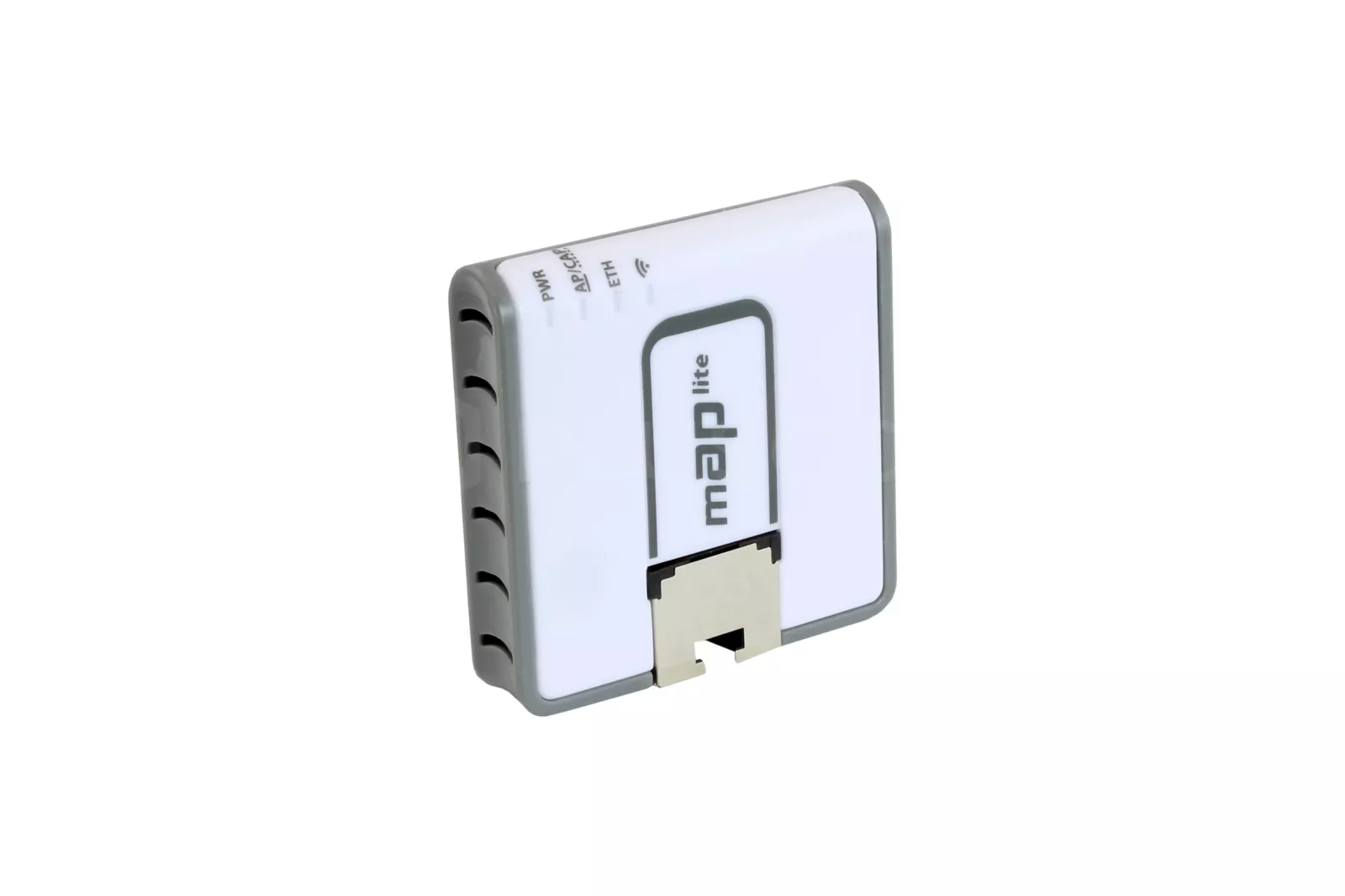

MikroTik RouterBoard mAP lite

Out of stock. Archived Product.
MikroTIK mAP lite is the smallest wireless access point. There is not much higher than the AAA batteries and the thickness was determined by the RJ-45 port. Its dimensions are only: 48x49x11mm. You can have it always with you at work or traveling.

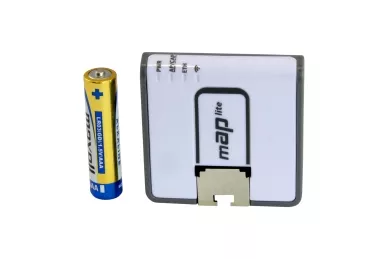

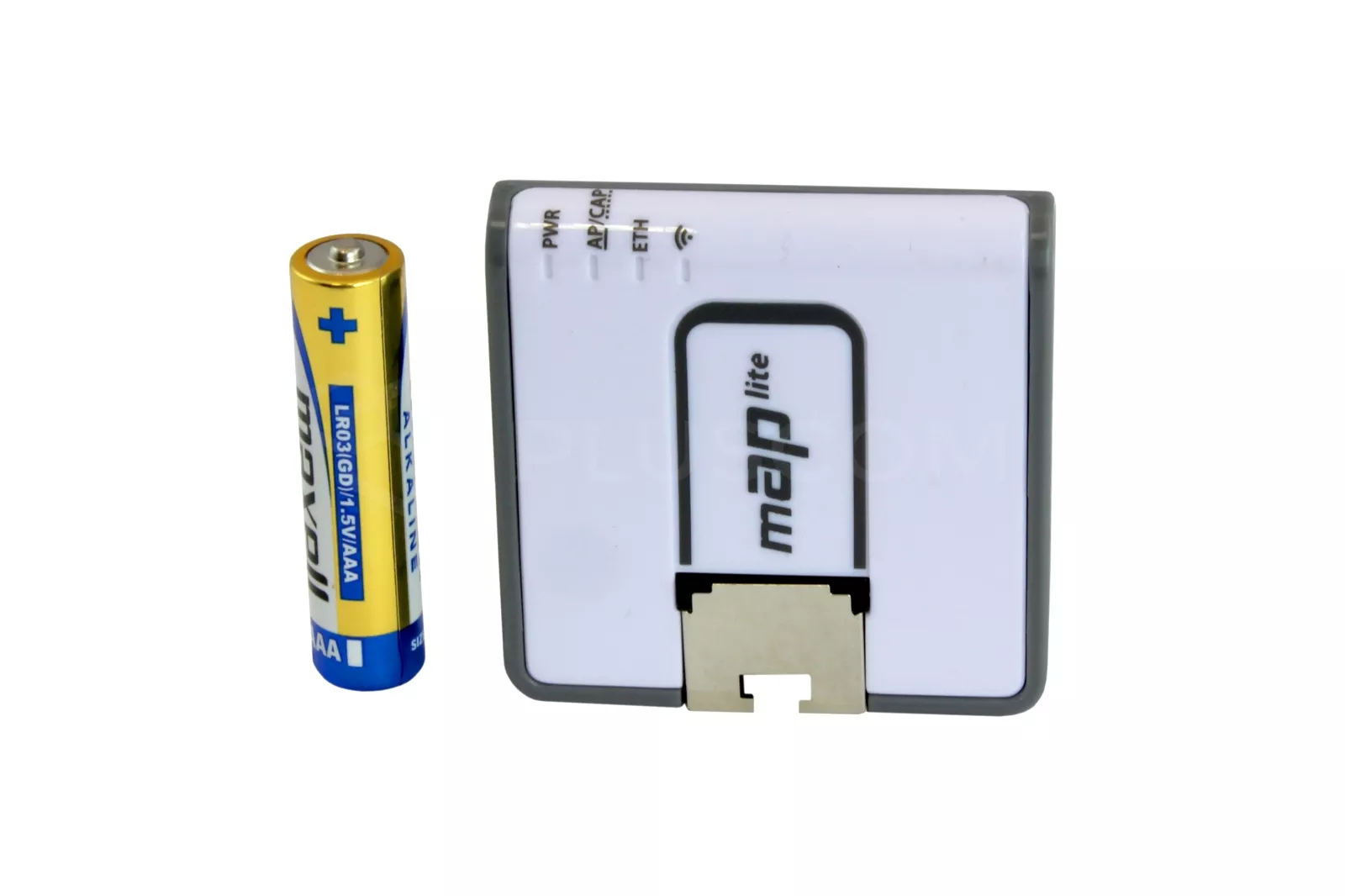

The smallest of the family MikroTIK

The smallest of the family MikroTIK


The basic modes are AP Client or access point for other devices, eg. (Smartphone). These are only the two most important functions, the system RouterOS Level 4 provides a lot of useful functionality.

The housing has an integrated magnet which allows you to mount the router on a metal surface. In the box you will find additional metal handle adhesive which will allow the installation of the device in any other place.

The device has an integrated radio card, 802.11b/g/n 2.4GHz 2xMIMO and a built-in antenna 1,5dBi.
MikroTik 'and are powered by the supplied charger 5V DC with microUSB or using Power over PoE port.

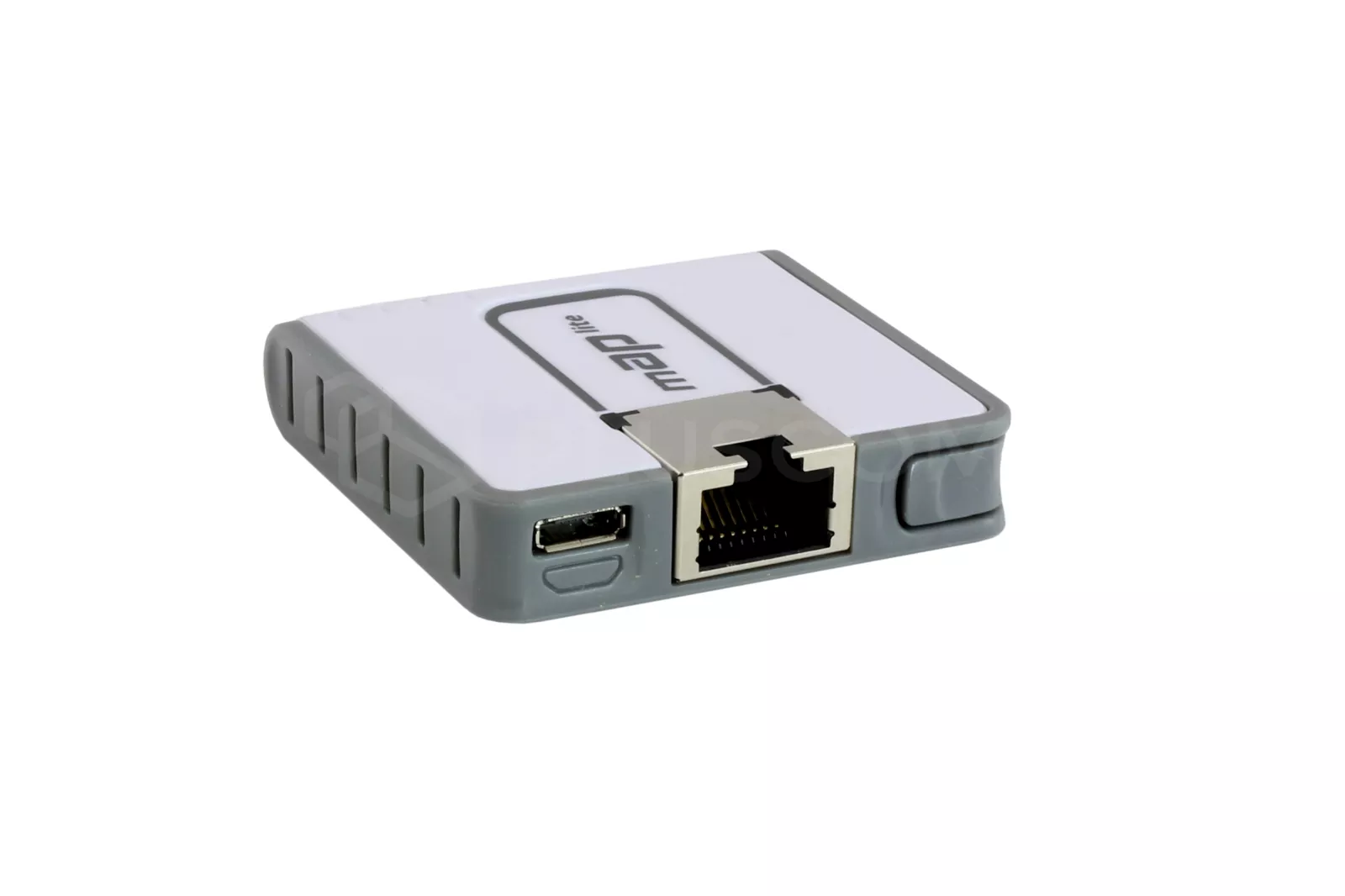

LAN port, power socket:

LAN port, power socket:



PARAMETERS
  • CPU 650MHz / 64MB RAM
  • 1x RJ-45 LAN, WIFI 2,4 GHz 802.11b/g/n
  • power supply range 5-60V
    • microUSB 5V DC
    • 802.3af/at (+ 4,5/-7,8 or + 3,6/-1,2)
  • operating system: RouterOS Level 4
  • operating temperature: -30°C...+70°C
  • power consumption: about 4W
IN THE BOX
  • MikroTIK mAP lite
  • microUSB adapter 5V DC
  • metal handle

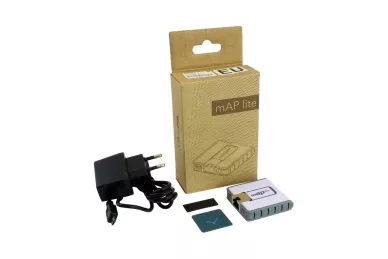

BOX contents:

BOX contents:
Download
Brochure 0.73 MB
Quick Setup Guide 0.13 MB
