Remotely controlled relay switch of Fibaro System is designed to operate in a wall switch box or in locations where the control of anelectric device (up to 3kW) is needed. It is also possible to send a signal to any system that is to be integrated with Fibaro system.
The Fibaro On/Off Relay Switch can switch connected devices on or off either through radio waves or through the wall switch connected directly to it.

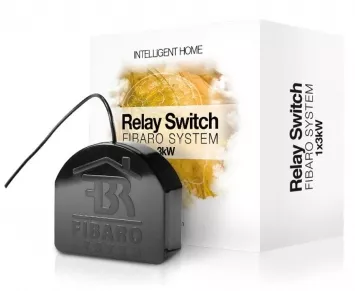

Fibaro Relay Switch 1x3kW
Product characteristics:
- Controlled by FIBARO system devices or any Z-Wave controller.
- Microprocessor control.
- Executive element: relay
- The device may be operated by mono-stable (press switch) and bi-stable push-buttons.
Technical Data:• Power Source 110V - 230V +/-10% 50/60Hz,
• Max. single AC output: 16A / 230V 50/60Hz,
• Max. single DC output: 10A / 30V,
In case of loads other than resistive it may be necessary to connect lower output in order to protect the switch from damage.

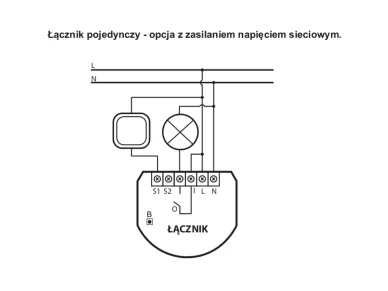

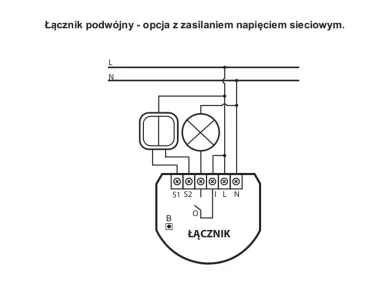

NOTES FOR THE DIAGRAMS:N - terminal for neutral lead
L - terminal for live lead
I - input terminal for load power supply
O - output terminal of the load
S2 - terminal for key no. 2
S1 – terminal for key no. 1 (has the option of entering the device in learning mode)
B- service button (used to add or remove a device from the system)
You may also like:{REL_2135}
Fibaro product code:
FGS-211
