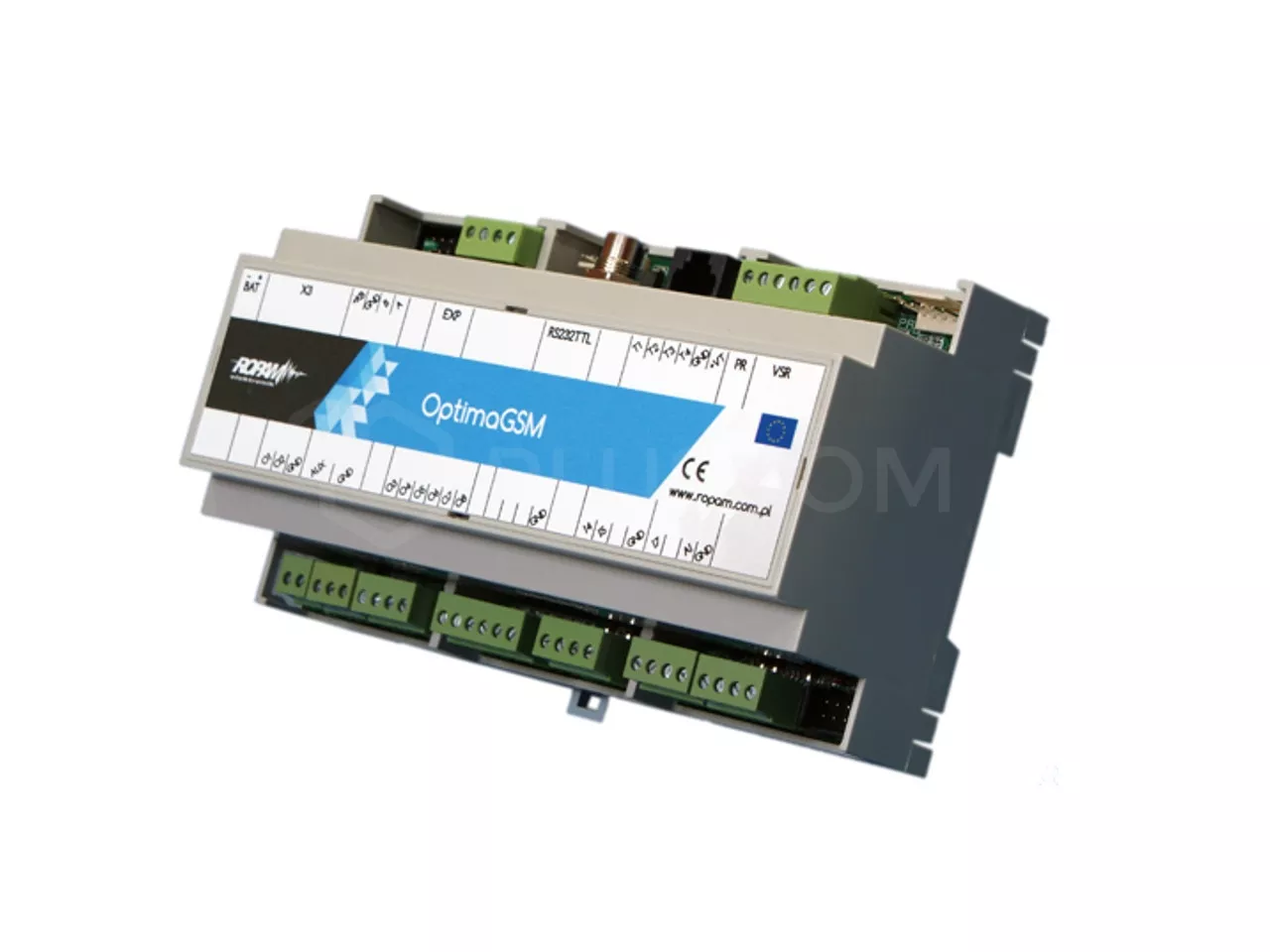

The modular control panel Ropam OptimaGSM-D9M

The panel OptimaGSM-D9M is the main element of the modular alarm system. It integrates intrusion detection system with home automation with the use of technology SmartPLC in which communication with intelligent switches is via low-voltage supply line. Built-in GSM communicator allows remote monitoring and control system.

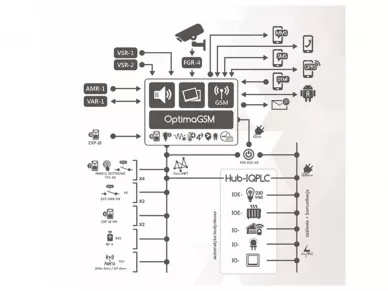

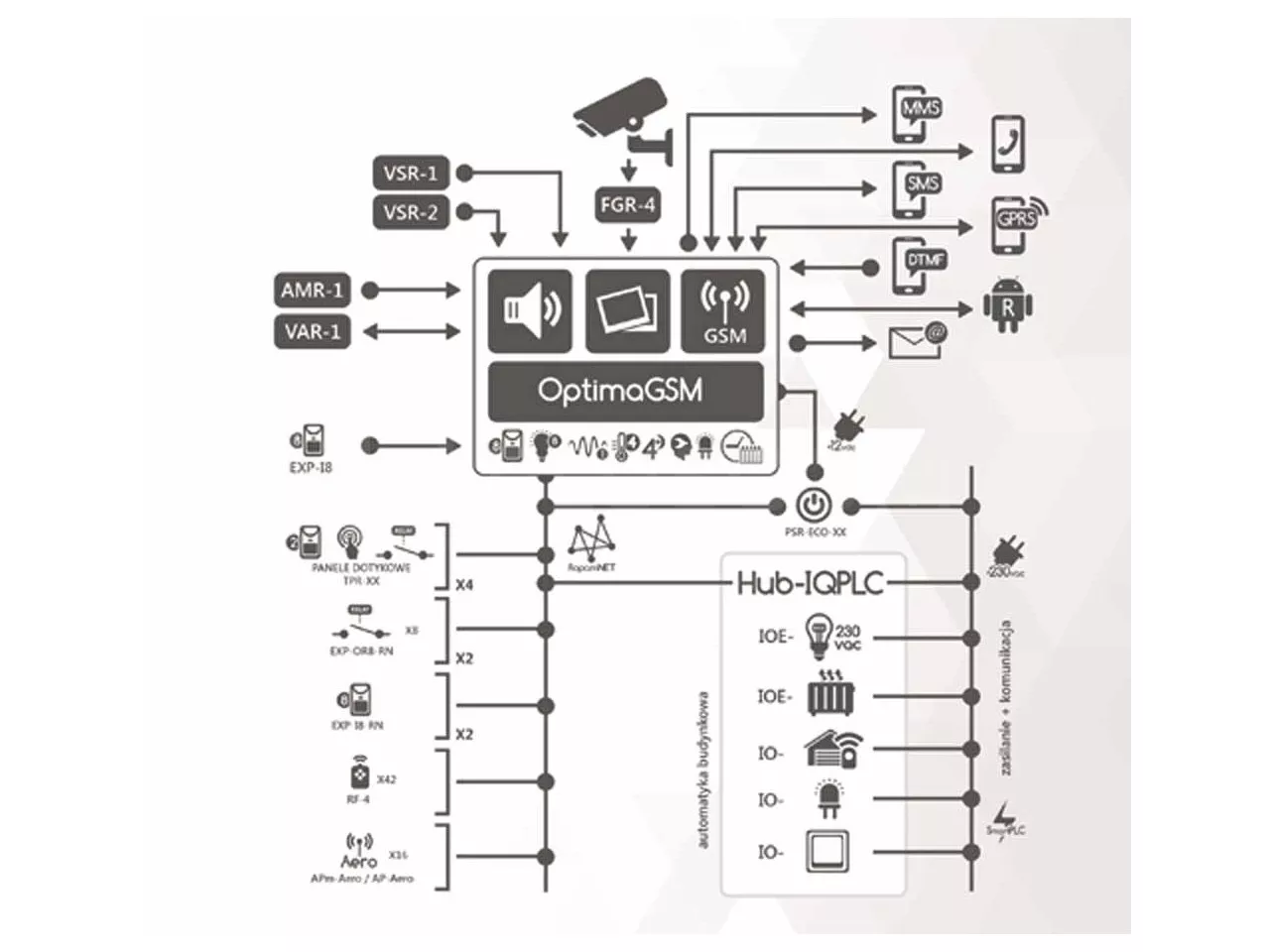

The panel together with the available modules offers the following features:

• building automation functions using communication over the electricity network technology SmartPLC
• ability to control via the application RopamDroid
• service headquarters is via modern touch panels TPR-XX (v.Optima)
• visual verification facility enables the module FGR-4 for his help, we can send images from CCTV cameras via MMS or e-mail
• audio verification, eavesdropping facility allows AMR-1 module
• VAR modules 1 and FGR-4 capable of reporting the conversation in a supervised building with a video intercom on the mobile phone of the owner
• temperature sensors monitor the temperature and can function as a thermostat
• RF radio controller-4 allows you to remotely control the functions of the unit.
• LogicProcessor:
• • advanced logic, arithmetic functions, counters, timers,
  • to 20 independent logical conditions (blocks If ... Then ... Else)
  • 20 timers to implement time-logic functions,
  • logic wizard or editor script (scripting language C), simulator and preview the script,


APPLICATION:

• building automation systems integrated with OptimaGSM,
• smart home, home automation,
• electronic systems intruder alarm,
• alarm systems: fire, gas leak, flooding, power status, UPS,
• remote control and monitoring of electrical equipment,
• intelligent lighting,


PROPERTIES

• 4 zones with two types of mode (full, night).
• input (BI): 8-32 wired extension through expanders inputs and touch panels TPR-xx
• output (BO): 8-32 wired extension through output expanders
• output: O1, O2 outputs 12VDC / 1A with short-circuit protection, overload, temperature and load control.
• output: O8 O3-OC transistor outputs 100mA,
• additional local relay output for each touch panel,
• users: 32 codes (1 main +31) 8 telephone numbers, 8 e-mail addresses,
• support for up to four touch panels
• cooperation with Aero wireless security system: supports up to 16 devices Aero (1 Aero is a 1-BI)
• GSM jamming detection (JAMMING): reporting the state of the output and record in the event log,
• RTC clock and calendar with battery backup NTP time server support, updated summer / winter time,
• 4 timers with a choice of mode: annual, monthly, weekly, daily, constant, each timer has a set of 20 markers ON / OFF
• event memory up to 10 000,
• communications test function: SMS, SMS STATE, CLIP, MMS, Email,
• optical work signaling and GSM coverage
• functions to reduce the cost and the amount of transmission
• USSD service codes (control of pre-paid cards)
• separable connector blocks, grouped by port,
• Certyfikat EN50131: Grade 2


CONFIGURATION PROGRAMMING

This is done through software OptimaGSM manager. It can take place locally or remotely via modem connection CSD. Also, touch panels with the service level functions allow you to configure touch panels.

Optional USB cable for programming the control panel:


The system can be controlled using the free application RopamDroid supported by smartphones with Android.

The basic properties of the application:

• support Android version 2.1 - 4.4
• a dedicated application for smartphones on display 3 "- 5"
• transparent graphical interface and bar The status analogous to the touch panels TPRxx
• application and service filtering messages from a phone number system
• two-way communication via SMS System
• application security password
• access to functions: control of armed status, current status and failures, view and control block entrances, exits control group, view and change temperature thresholds for TermostatGSM, a preview of the AI ​​and change the set thresholds
• control cost reduction via SMS by consolidating information in a single application messages
• RopamDroid Pro version of the app with support for multiple systems, facilities
• OptimaGSM system operation RopamDroid version 1.8.


INSTALLATION

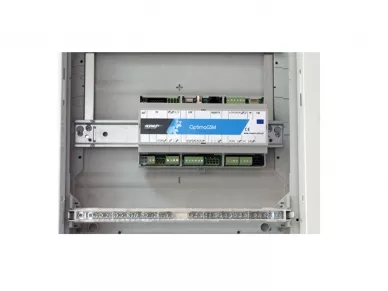

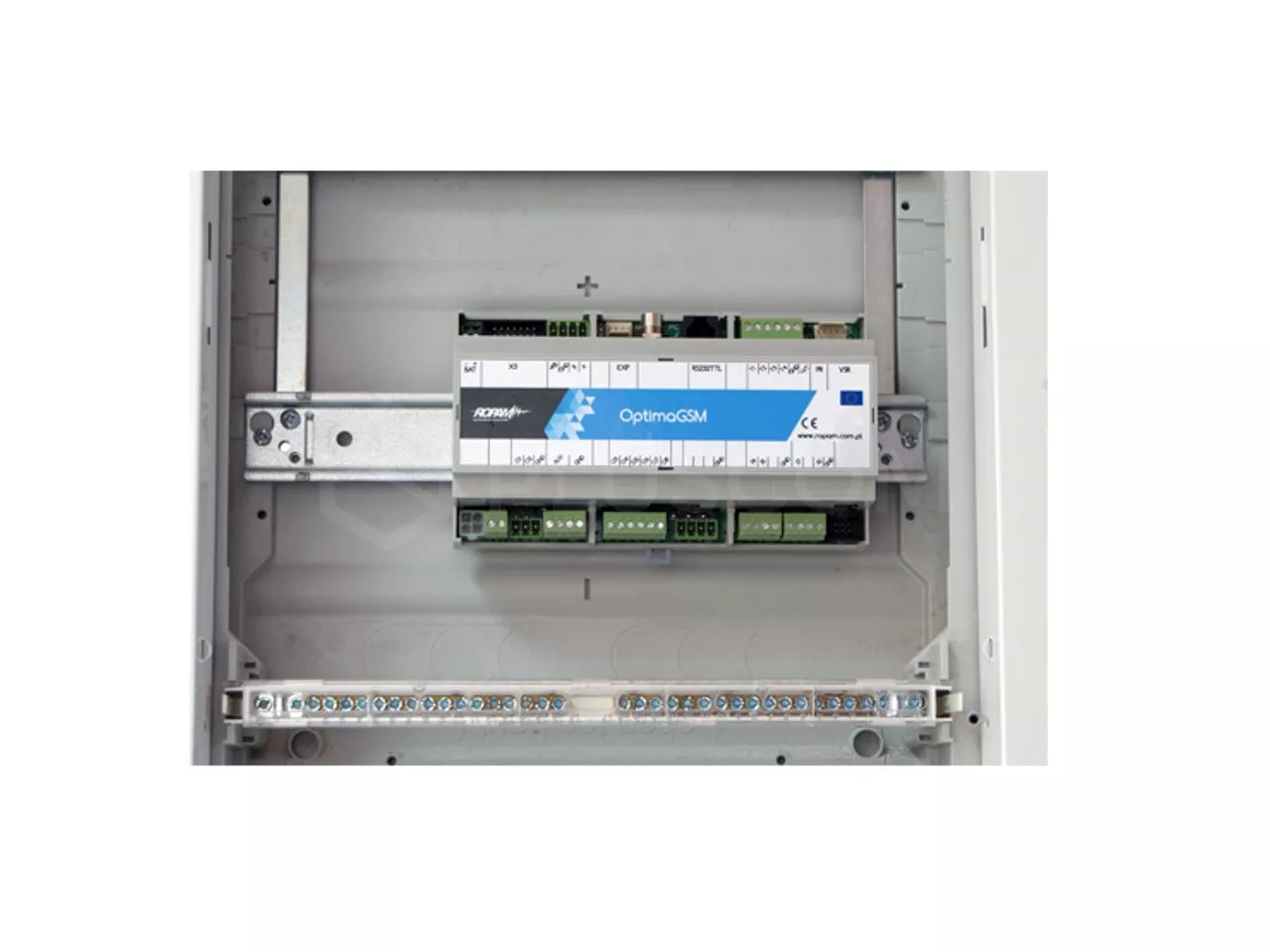

Control panel in housing for DIN 9M rail mounting.
For power unit is required supervised, intelligent, power supply system: PSR-ECO-5012-RS
