Somfy Axovia 220B RTS Comfort pack, set for weight swing gates 200kg per
gate leaf (1216502)

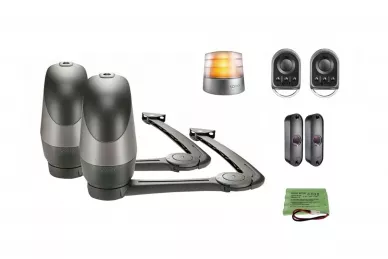

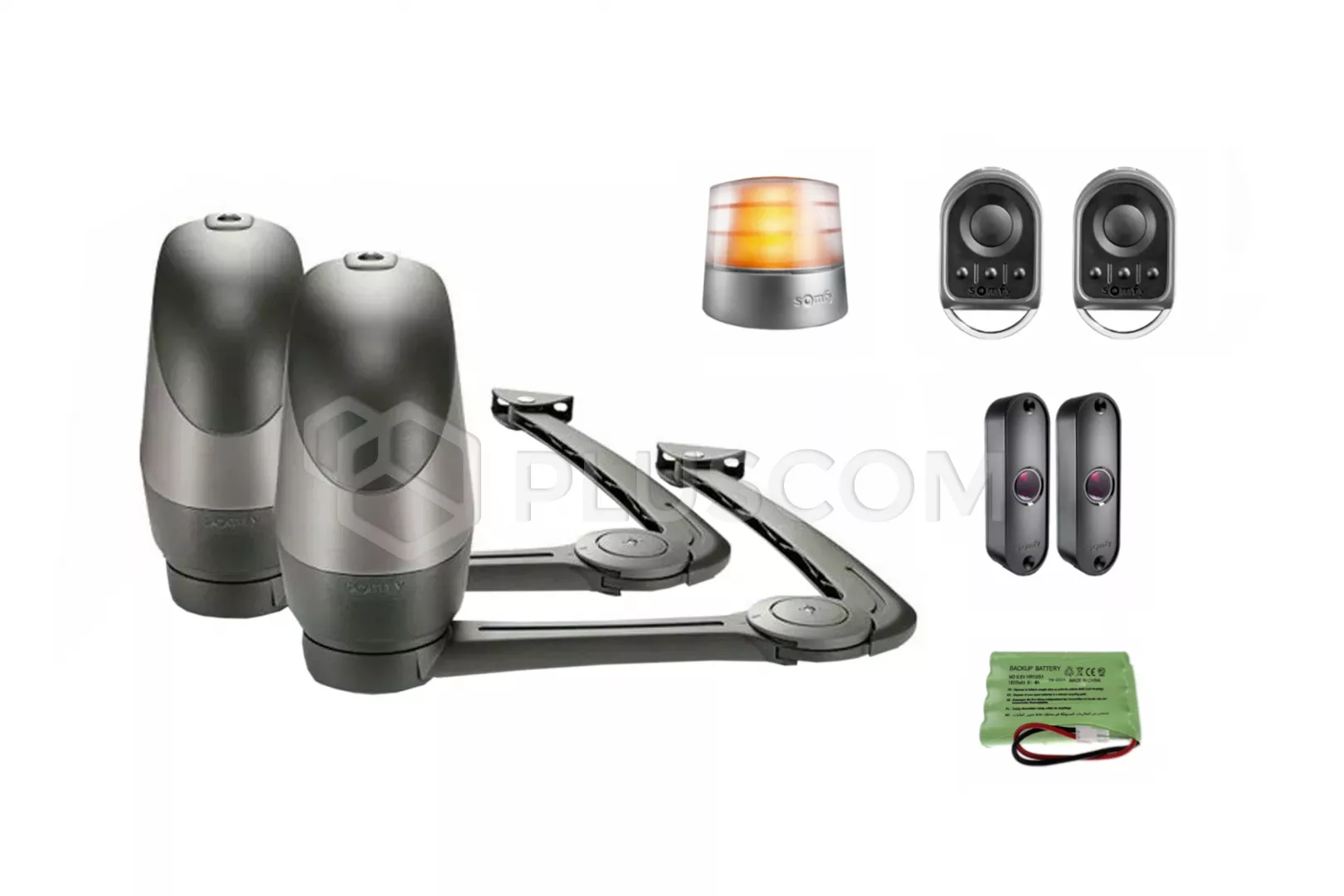

PACKAGE CONTAINS
- 24 V DC actuator Axovia 220B RTS - 2pcs
- Keygo 4 RTS 4-channel remote control - 2 pcs
- 24V Master Pro lamp with built-in RTS antenna
- set of Master Pro photocells - Bitech
- buffer battery
|
Somfy Axovia 220B RTS Comfort pack
|
Crooked arm actuators for swing gates with a leaf length up to 2m and
weight up to 200kg. Axovia 220B RTS Standard pack is a universal set, which is
characterized by high-quality workmanship, as well as wide possibilities.
Built-in electronics reduce startup time and using only remote control, the
drive is ready for operation in 2 minutes. It has easy positioning marginal.
Limit switches built into the arms eliminate the need fixing the bumpers in the
ground and after the test movement of the door leaves, no additional settings
need to be made.
In case of installation in places that are difficult to access for the lead
power cables, the drive can be connected to the solar panel.
The most important features of the drive include:
- short opening time: 90 ° in 10 sec.
- self-locking arms - withstand strong wind pressure and trials forcing
opening
- manual unlock
- can be installed in the emergency power drive as a kit batteries
- soft closing of the gate
- the natural way of opening the gate without straining it
construction
- automatic closing of the gate after a certain period of time
- opening one leaf for pedestrians, wired or controlled wirelessly

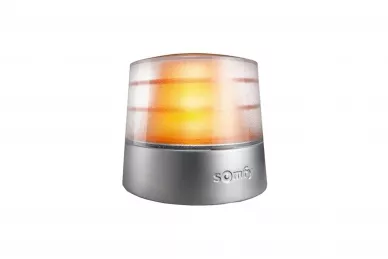

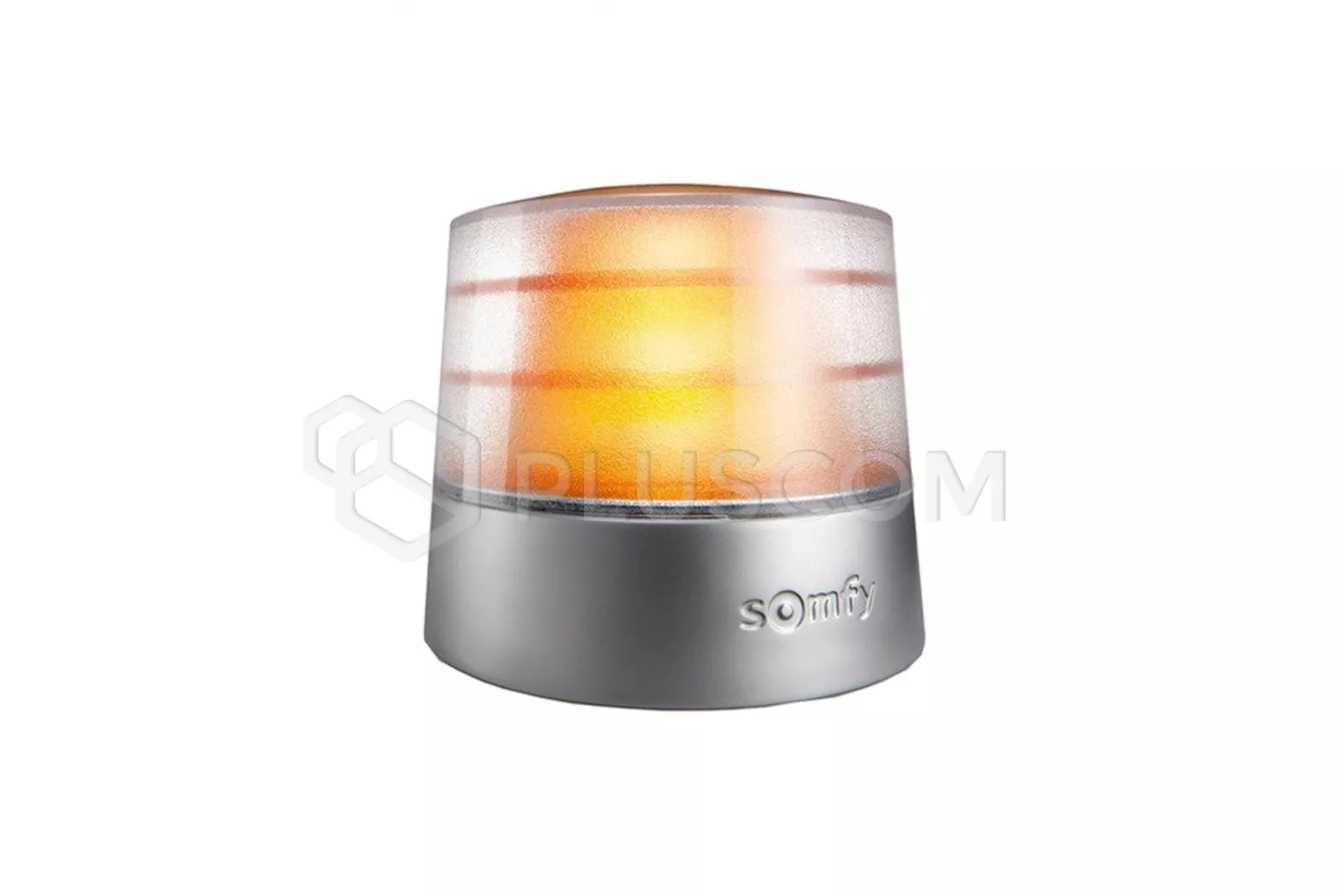

Orange Master Pro lamp signals the movement of the entrance gate.
It has a bright orange light, class III insulation.
Specification:
- power: 15 W
- power supply: 24V
- flashing management: controlled from the drive control panel
- integrated antenna: RTS 433.42MHz
- electrical insulation class: class III
- dimensions: 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|
Master Pro 24V lamp
|

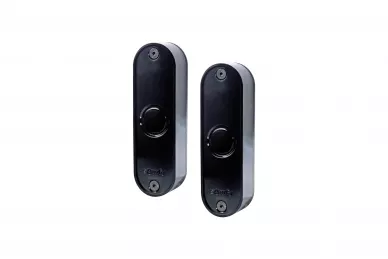

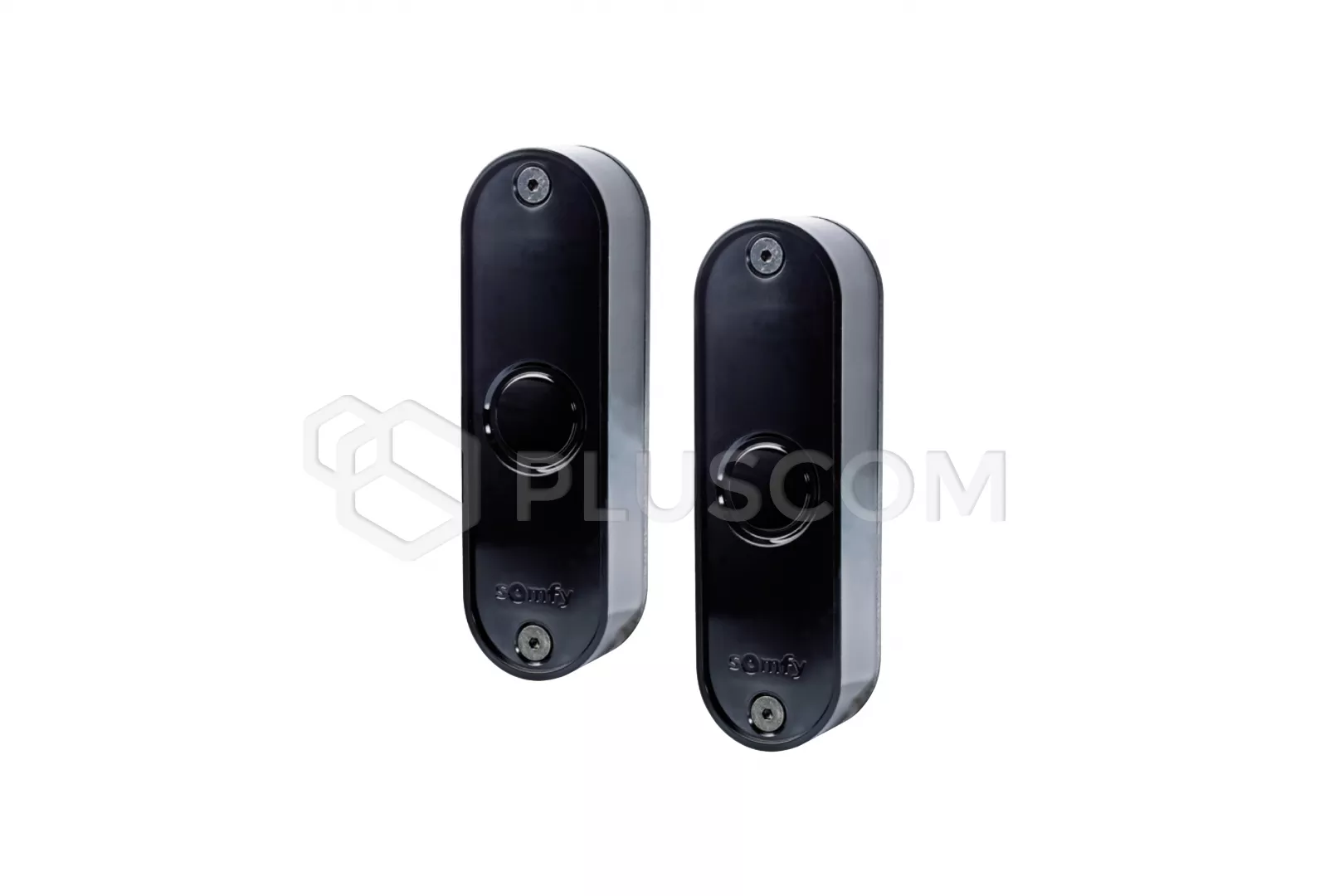

Master Pro photocells - Bitech are discreet devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Master Pro photocells - Bitech
|

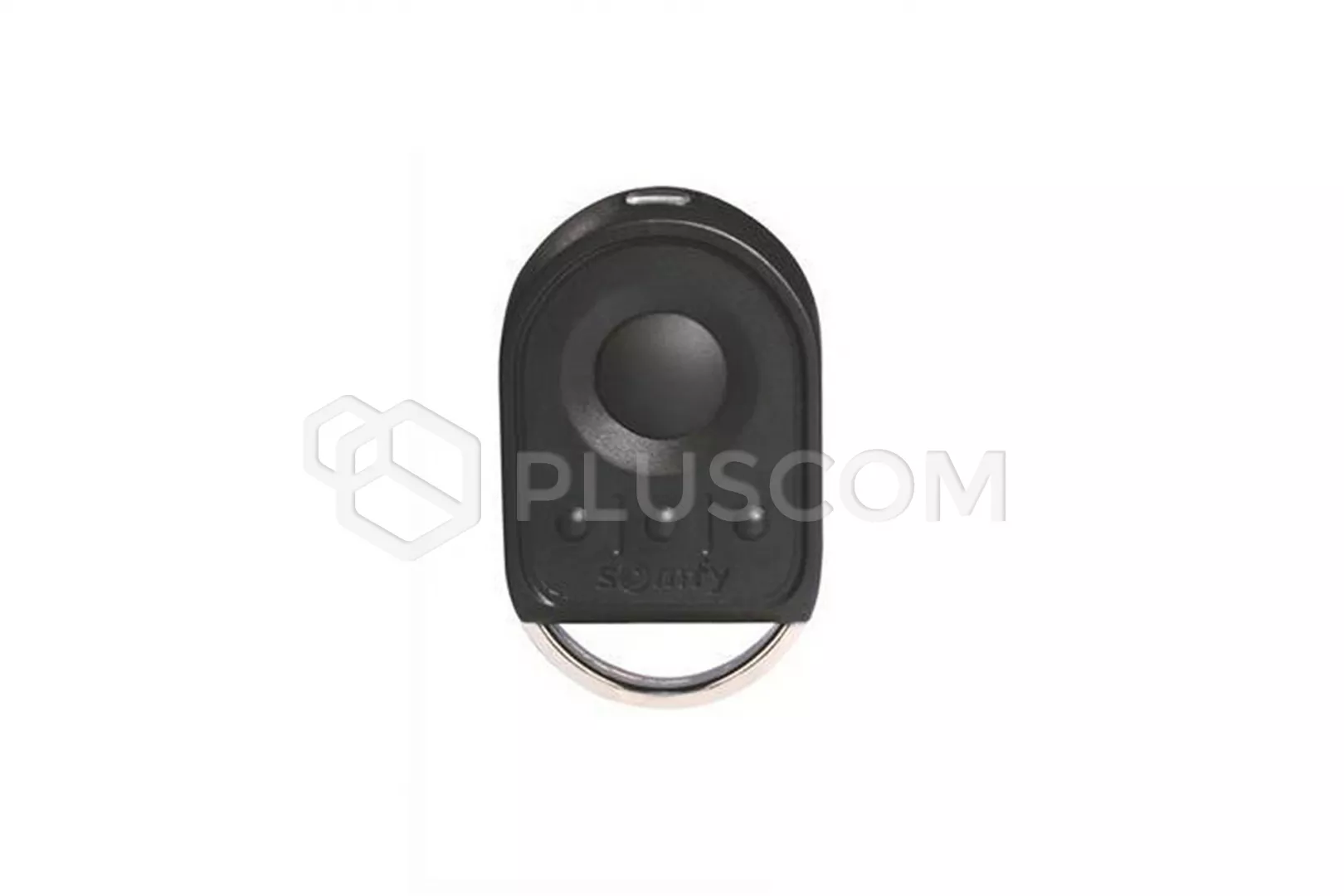

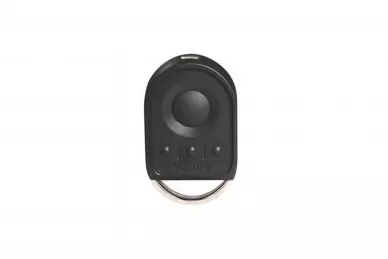

The kit includes
two 4-channel Keygo 4 RTS remote controls .
It's resistant to moisture and damage to the device. The large central
button is easy to use pressed without looking at the remote control.
Remote specification
- number of channels: 4
- frequency: 433.4MHz
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
- protection class: IP30
|
Somfy AxoKeygo RTS 4-channel remote controlvia 220B RTS Comfort pack
|
TECHNICAL DATA OF THE ACTUATOR 569 / 5000 Wyniki tłumaczenia
- main power: 220-230 V - 50-60 Hz
- electric motor supply: 24 VDC
- accessory power supply: 24 V DC / 1A
- maximum power consumption: 130 W
- minimum distance behind the sash: 490 mm
- maximum hinge offset: 250 mm
- lighting: 500 W max. halogen
- opening time to 90 ° 10 seconds
- Number of storable remote control devices: max. 32 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
