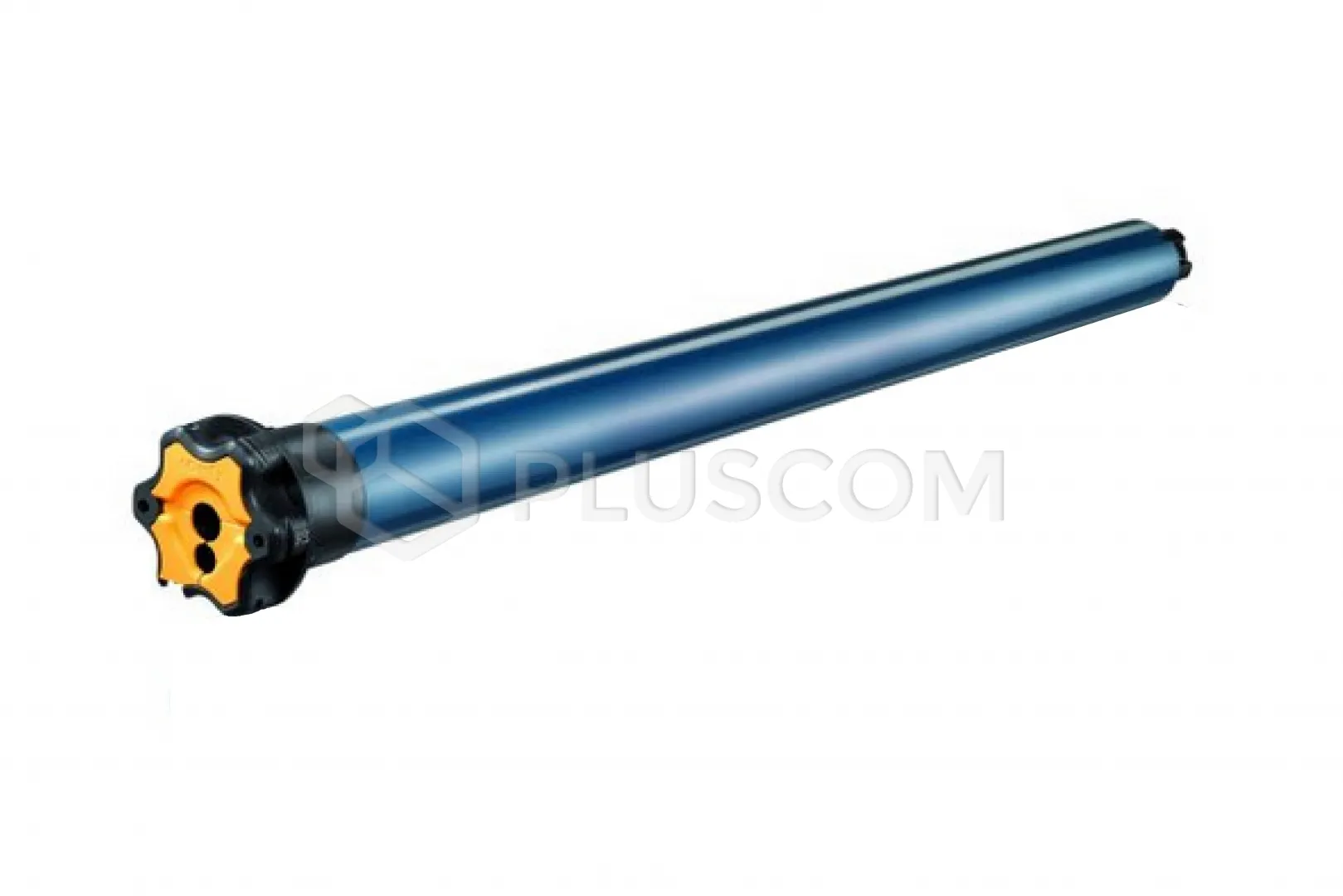

Somfy 1032696 Oximo 50 io 6/17 VVF 3m drive

SOMFY 1032696 Oximo 50 io 6/17 VVF 3m drive

The set includes:

• OXIMO 50 io 6/17 drive
• Adaptation to an 8-corner shaft fi 60
• Universal mounting bracket

Electronic radio drive for roller shutters with obstacle and ice detection.

Somfy OXIMO io is an interactive radio drive system for roller shutters with the Somfy Drive Control™ system and an integrated, patented radio antenna. Continuous torque control by the integrated electronic system. Obstacle detection during closing and ice detection in opening mode. Four types of end position adjustment - automatic, two semi-automatic and manual.
For automatic end position settings, automatic corrections of their positions.
For manual adjustment, the correction can be carried out manually.

Adjustments are made using transmitters and/or remote controls. Possibility to set any comfort position to optimize visibility and light intensity. Using the AutoScan function, each io-homecontrol series drive can always be selected as the target. Each drive can be named individually. The name of the drive appears on the controller display and is easy to find.

Important information regarding operation in automatic mode

• Lower position - the roller shutter curtain must have a rigid and stable connection to the winding tube. For this purpose, locking handles must be used, e.g. Lock to Play
• Top position – mandatory installation of bumpers (limiters permanently mounted in the bottom strip of the roller shutter)

Technical data:

• Length of the complete drive 625 mm
• Diameter 45 mm, adapted to an octagonal shaft fi 60 mm
• Power supply 230V/50Hz
• Nominal torque 6 Nm
• Nominal speed 17 rpm
• Continuous operation time 4 min.
• Power consumption 90 W
• Protection class IP 44
• Max. load capacity approx. 14 kg (with a roller shutter height of up to 150 cm)
• Electronic adjustment of end positions
• Obstacle / ice detection
