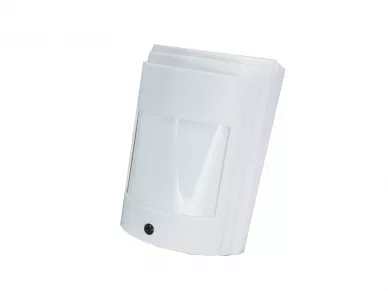

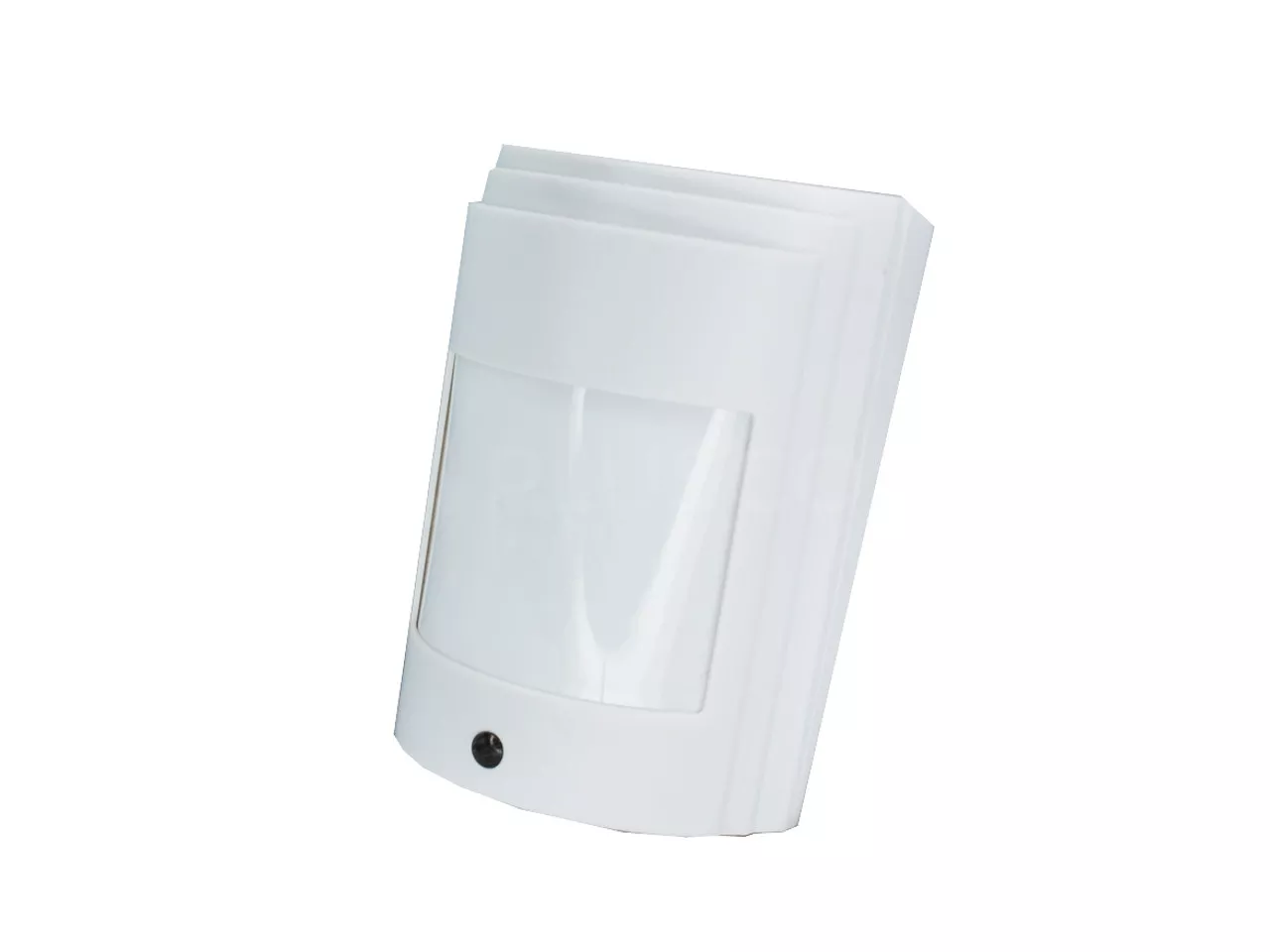

SmartPIR-Aero is a wireless motion detector built on a high-quality dual
pyro element. Signal analysis is done digitally by the microprocessor and the
unique and patented advanced algorithm analysis of the results of PIR can
effectively eliminate false alarms.
The detector is also resistant to external interference, strong radio waves,
laser or white light illumination.The detector operates in the wireless system
AERO.
The range of the detector is above300m in the open.
Communication is bi-directional in the 868MHz ISM band is encrypted with
AES-128bit.Real-time detector sends the information:
- motion detection
- battery
- the status of detector
APPLICATION:
- protection of the premises against intruders
- human motion detection (an intruder) in the protected area,
- protection of rooms with resistance to pets.
INSTALLATION:

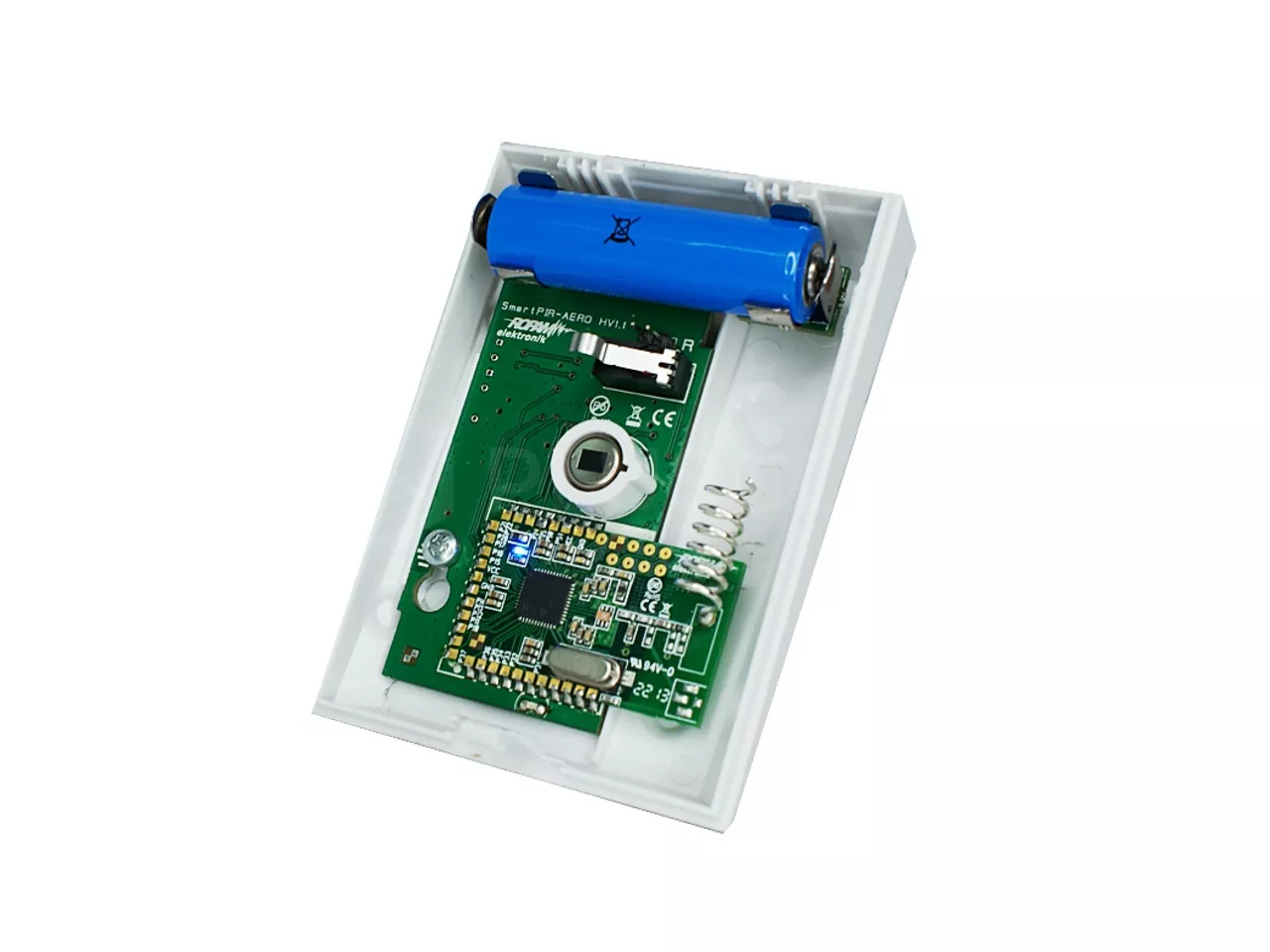

The detector has a housing made of ABS plastic surface-mounted measuring
66x94x51mm. It is powered by a lithium battery Li-SOCl2 ER14505M 3.6V 2Ah,
AA.Battery life is approximately 2-3 years. It is, however, at least once a
year for maintenance and voltage control that can operate in the following
areas: 3,6-3,1V
Ropam SmartPIR-Aero Digital wireless motion detector (PIR)
Mounting height detector: 2,1-2,7m recommended installation location is
the corner of the protected space.
The range of detection is 15x15m angle of 90°.

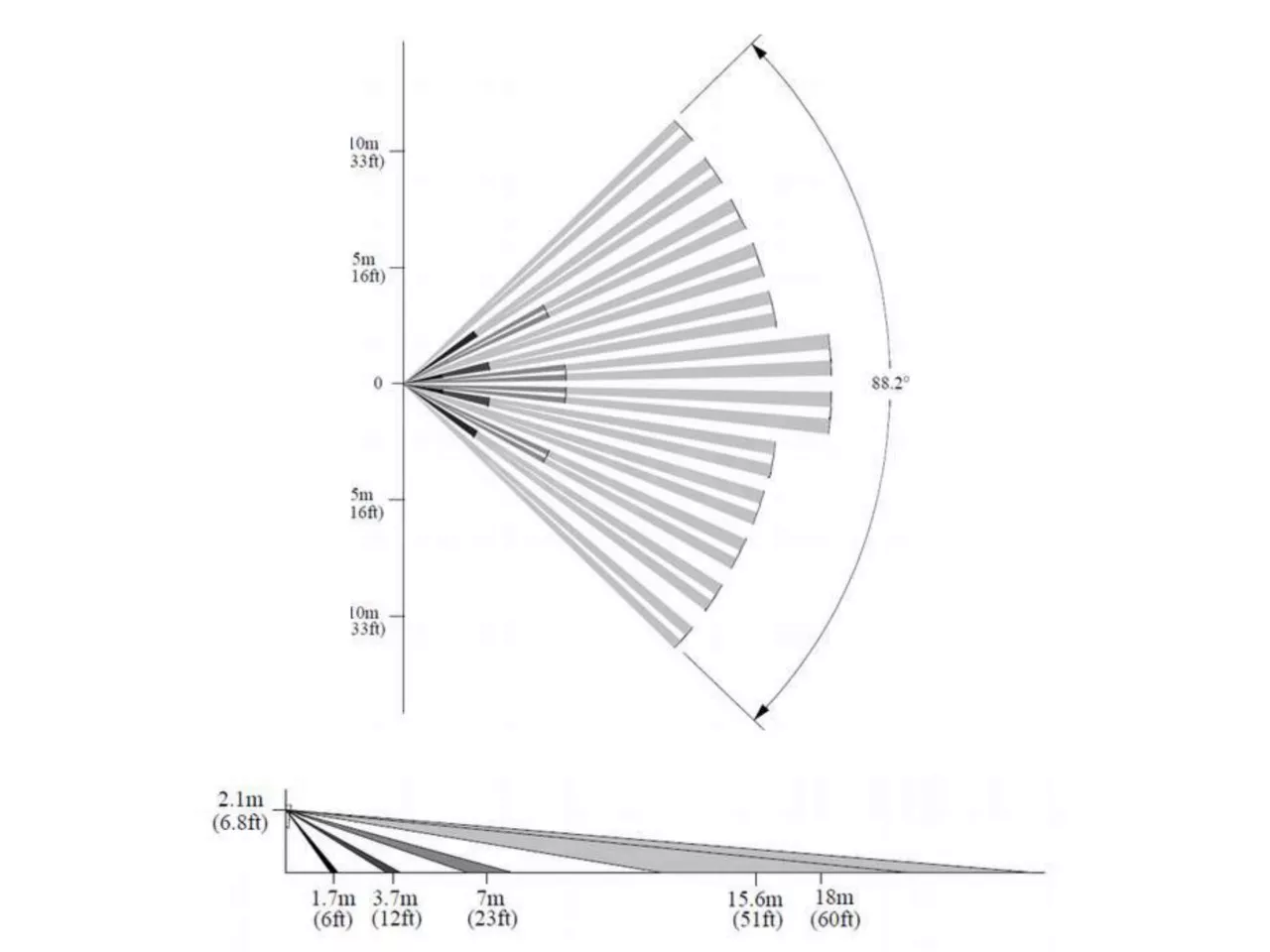

The characteristics of the lens:
The most sensitive element PIR motion occurs for crossing the beam, the
sensitivity is slightly less when moving in the direction of the detector.
