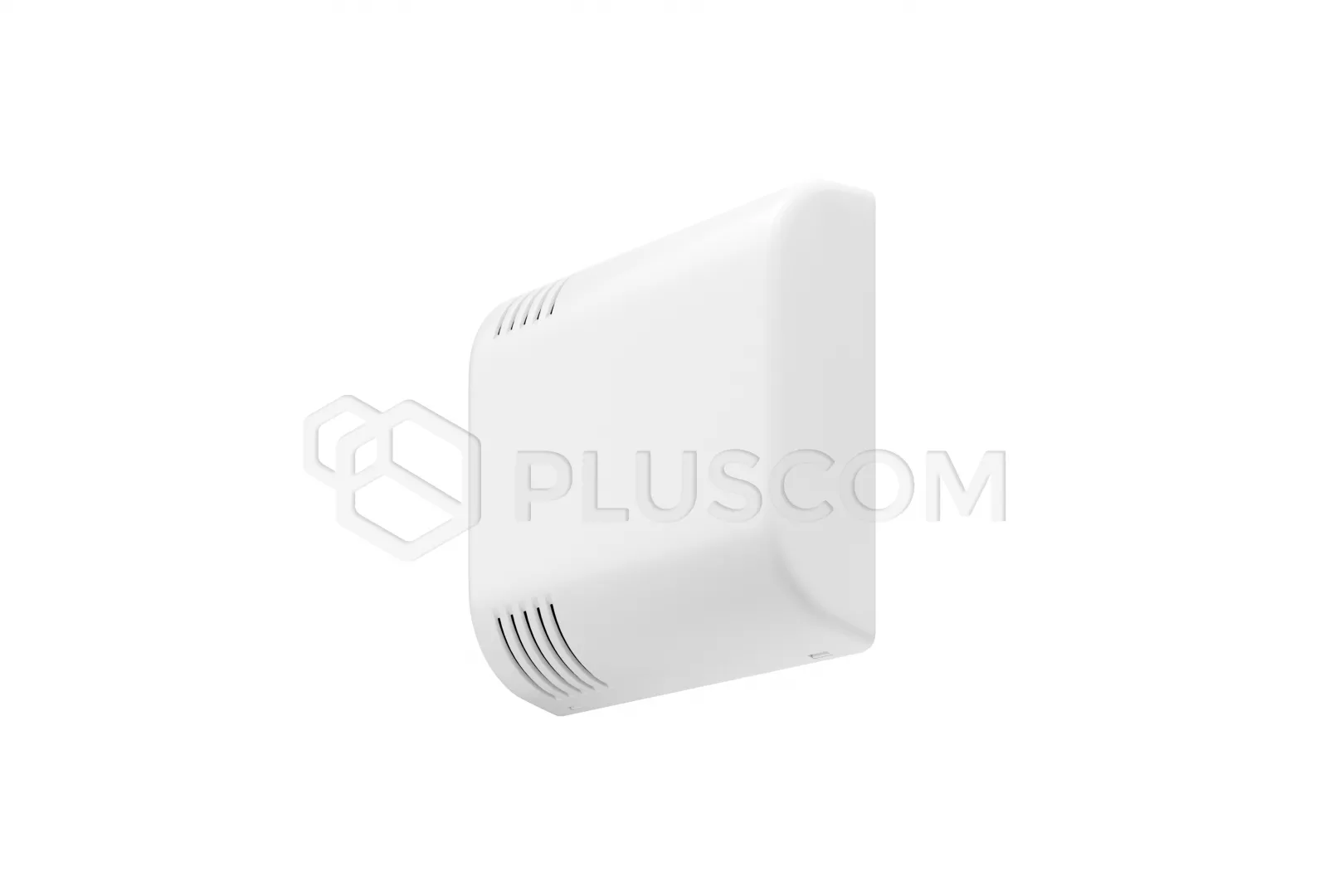

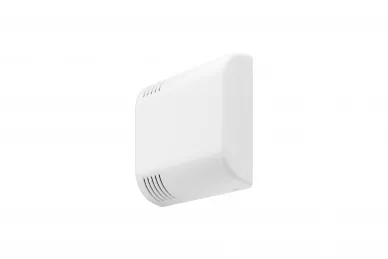

Ropam RHT-AERO Wireless Aero temperature and humidity sensor

Ropam RHT-AERO Wireless Aero temperature and humidity sensor

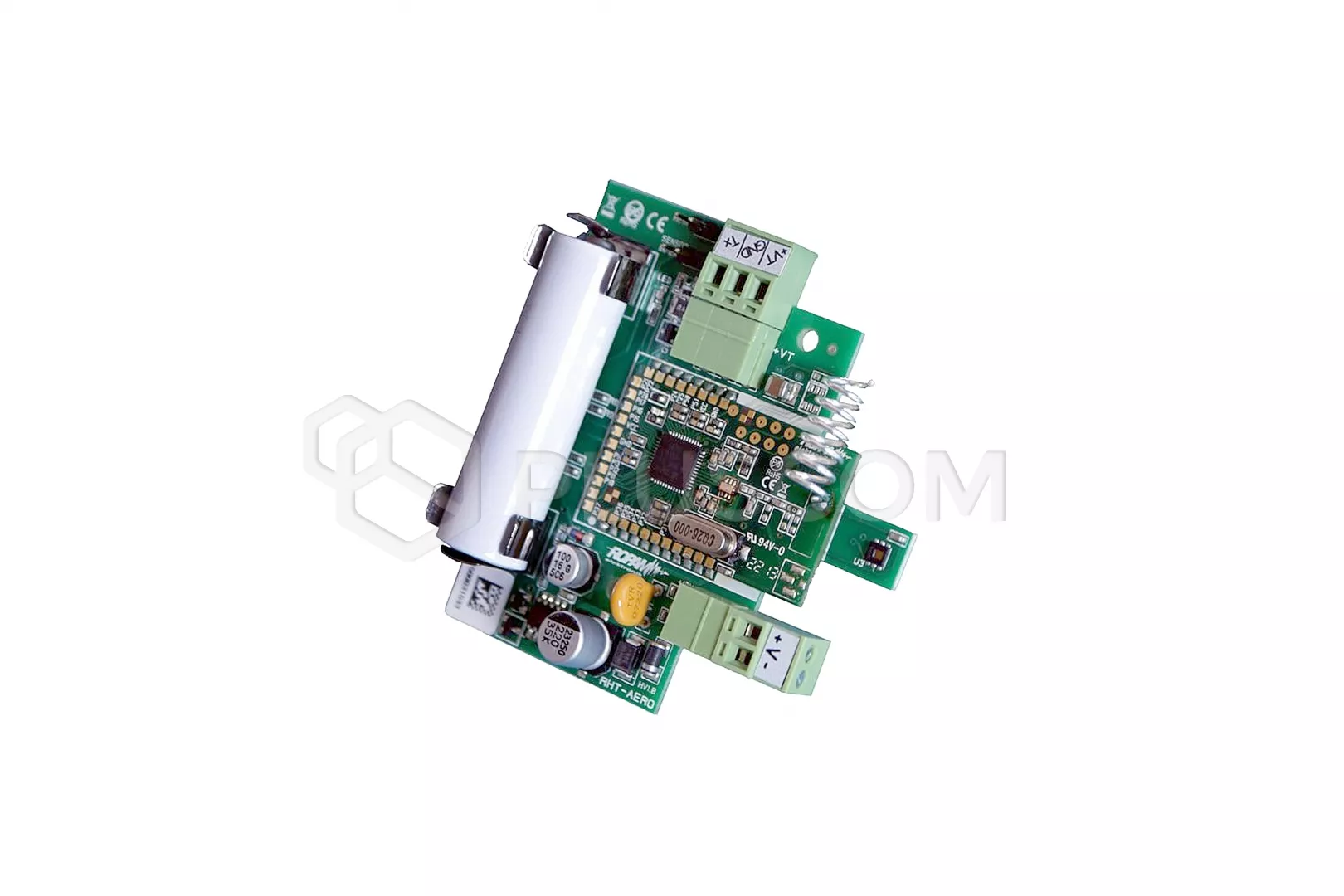

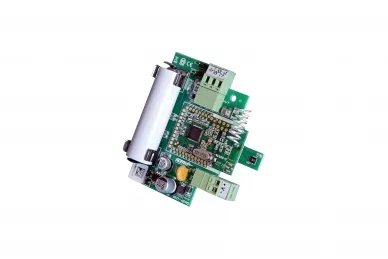

RHT-Aero is a system module for a wireless temperature and humidity sensor Aero, thanks to which we integrate measurements from many devices (up to 8 in the system OptimaGSM). Ideally suited to rooms where there are frequent changes humidity and large temperature fluctuations. The device is designed to work with OptimaGSM control panels within a two-way, encrypted system Wireless Aero.

TEMPERATURE MEASUREMENT

• in the range -20 ° C to + 70 ° C (built-in sensor - air)
• in the range -20 ° C to + 125 ° C using an external sensor TSR1-HT

HUMIDITY MEASUREMENT

• in the range of 0-100% Rh without condensation

DETECTOR PROPERTIES:

• compliance with the SSWiN PN-EN 50131-1 grade 2 standard
• two-way encrypted (AES 128-bit) communication in the ISM 868 band MHz
• high RF sensitivity down to -110 dBm
• automatic transmission power control, up to + 10dBm, depending on the strength (RSSI)
• range over 200m in open area
• programming and diagnostics of Aero devices from the control panel
• full supervision and transmission of statuses to Aero devices, control presence, link quality, battery status, primary power presence
• unique ID-Aero of each module allows for proper operation within range another Aero system
• non-volatile configuration memory
• optical operation signal
• cooperation with systems: OptimaGSM (from 2.4)
• tamper protection

TECHNICAL DATA:

• supply voltage:
• • U=9V-14V DC - basic
  • U=3,6VDC - battery ER14505M
• cpower consumption:
• • ~2mA@12VDC
  • ~0,2mA@3,6VDC
• estimated battery life: 2 years
• Aero communication in the ISM band: 868,000 MHz ... 870,000 MHz
• sensitivity: -110 dBm
• transmit power: up to + 10dBm
• programming from the control panel level - system operation
• environment class: II
• working temperature: -10 ° C ... + 55 ° C
• AWG connectors: 24-18, detachable
• housing: ABS surface white
• dimensions: 80x25x80mm
• weight: ~ 70g
