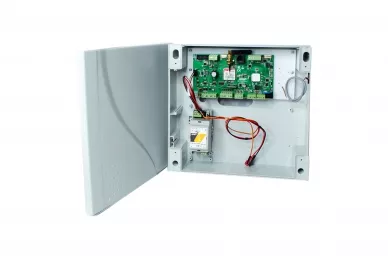

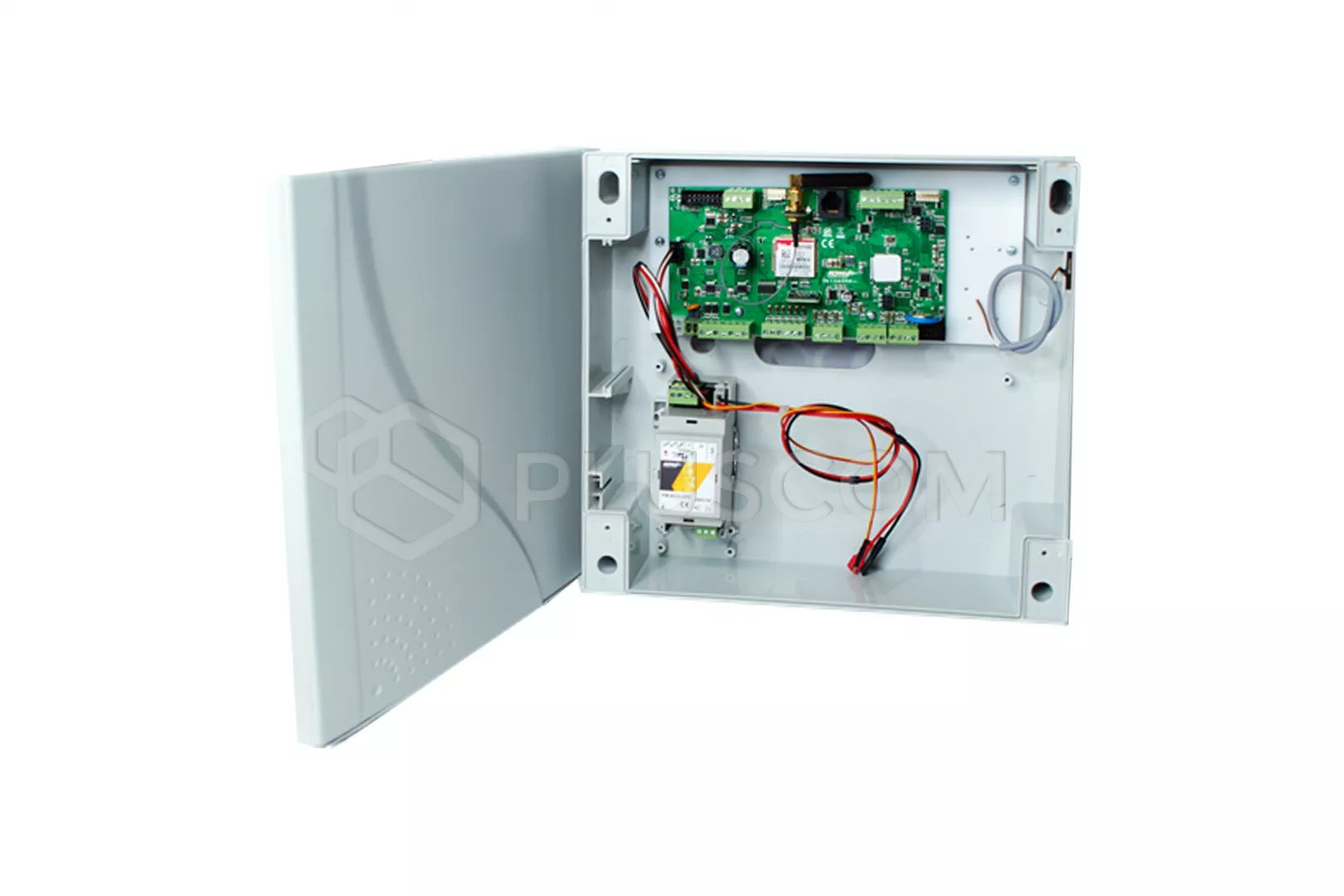

Ropam NeoGSM-IP-SET - modular control panel ROPAM OptimaGSM
The panel OptimaGSM is the main element of the modular alarm system. It
integrates intrusion detection system with home automation with the use of
technology SmartPLC in which communication with intelligent switches is via
low-voltage supply line. Built-in GSM communicator allows remote monitoring and
control system.
The panel together with the available modules offers the following
features:
- building automation functions using communication over the electricity
network technology SmartPLC
- ability to control via the application RopamDroid
- service headquarters is via modern touch panels TPR-XX (v.Optima)
- visual verification facility enables the module FGR-4 for his help, we
can send images from CCTV cameras via MMS or e-mail
- audio verification, eavesdropping facility allows AMR-1 module
- VAR modules 1 and FGR-4 capable of reporting the conversation in a
supervised building with a video intercom on the mobile phone of the
owner
- temperature sensors monitor the temperature and can function as a
thermostat
- RF radio controller-4 allows you to remotely control the functions of the
unit.
- LogicProcessor:
-
- advanced logic, arithmetic functions, counters, timers,
- to 20 independent logical conditions (blocks If ... Then ...
Else)
- 20 timers to implement time-logic functions,
- logic wizard or editor script (scripting language C), simulator and
preview the script,
Construction and elements of the system:
APPLICATION:
- building automation systems integrated with OptimaGSM,
- smart home, home automation,
- electronic systems intruder alarm,
- alarm systems: fire, gas leak, flooding, power status, UPS,
- Remote control and monitoring of electrical equipment,
- intelligent lighting,
The AT-GSM-MINI90 antenna works with GSM modules and alarm control
panels of ROPAM. Intended for internal use. Antenna angular 90 °,
omnidirectional.
Parameters
- frequency: dual-band, 900/1800 MHz
- assembly: screwed into the FME-M connector
- gain: 2 dBi
- VSWR <2.0
- Impedance: 50 Ω
- polarization: Vertical
- dimensions: ø12x55mm
- black color
- temp. range: -20°C...60°C
O-R3P Surface-mounted housing made of plastic, compact size with
space for a 7Ah / 12V V (SLA) battery. Compatible with the PSR-ECO-2012 power
supply and inside we can install GSM and WiFi antennas. It is equipped with
anti-tamper TEMPER and case opening.
It has a DIN rail (TSH35) mounted inside for mounting the power supply and a
plexiglass mounting plate.
Ropam PSR-ECO-2012 Intelligent, buffer type supervised AC-DC power
supply
The ECO series buffer power supply with an efficiency of up to 91% and which is
perfect for installations low-current.
PSR-ECO power supplies are based on newest IC's (SMPS). These solutions
eliminates power losses sources: transformer, rectifier, voltage regulator.
PSR-ECO-5012 integrates three functions in one design: regulated power supply,
battery charger, UPS for 12VDC or 24VDC - see version.
