Ropam O-R2D Metall casing ('slim' type)

25,01 EUR including 22.00% VAT
Product code: #21946
Manufacturer: Ropam
  • For the unit and GSM modules Ropam
  • Tamper protection
  • Space for battery 12V/1.2Ah or 12V/2.2Ah
  • Dimensions 285x185x55mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam BasicGSM 2 GSM Notification and control module The modular control panel Ropam OptimaGSM Ropam AP-IP TCP/IP communication module. Ropam MultiGSM 2 GSM Notification and control module

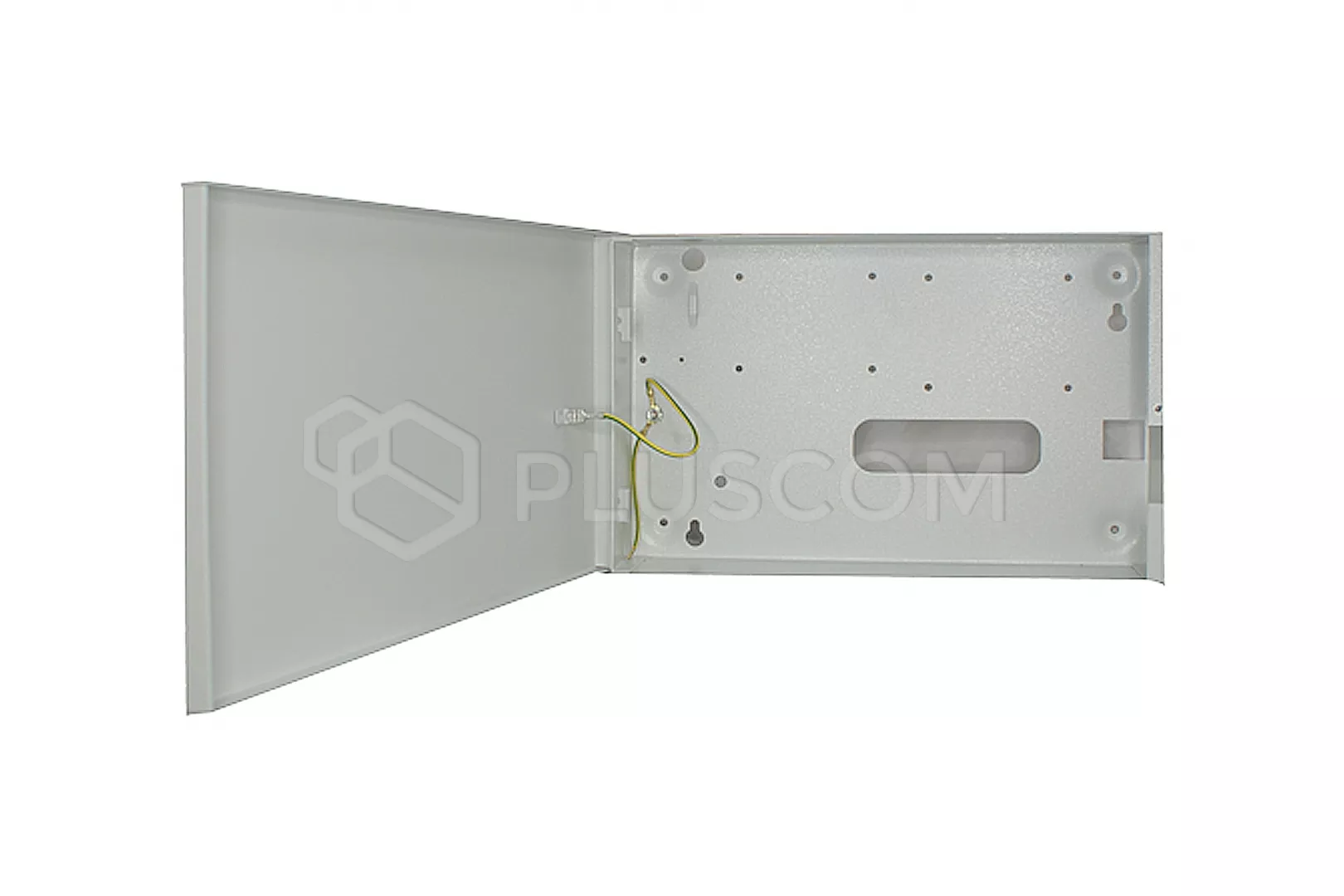

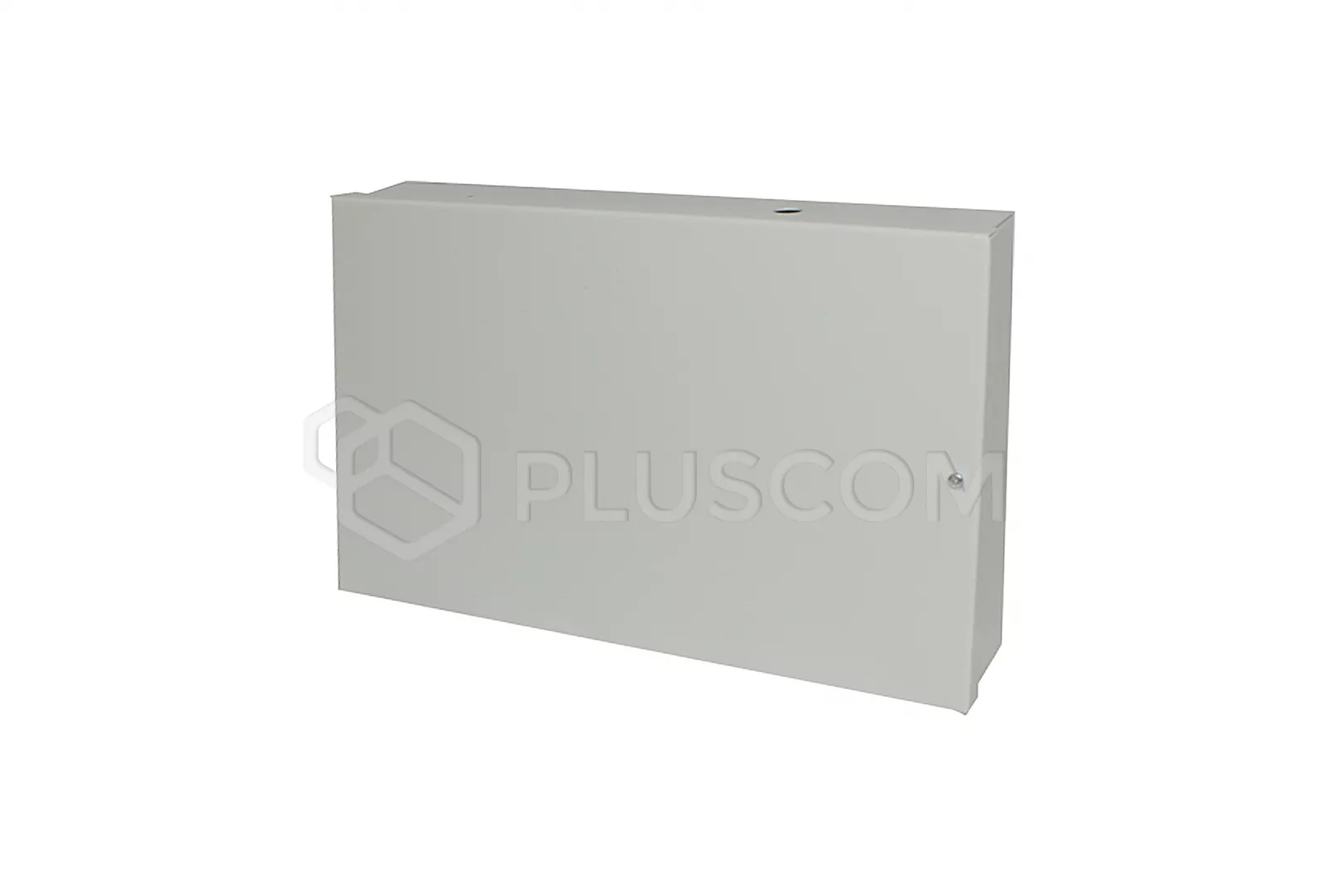

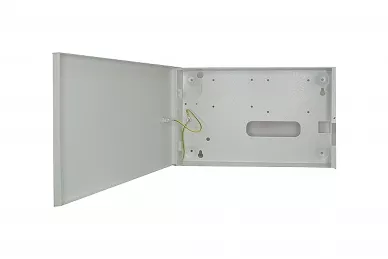

Ropam O-R2D Metal housing, designed for mounting the company's GSM modules ROPAM


Surface-mounted "slim" steel housing with space for a battery 12V / 1.2Ah or 12V / 2.2Ah. Compatible with the PSR-ECO-2012 power supply, it has holes for SMA antenna connectors, which allows the installation of the antenna (AT-GSM-MINI, MAXI, -WIFI, ISM) in the connector on the housing. It is equipped with an anti-tamper TEMPER and opening the housing.

Metall casing for modules:
  • BasicGSM 2 + VAR-2
  • MultiGSM 2 + VAR-1
  • OptimaGSM + AP-IP
TECHNICAL PARAMETERS
  • closed: screwed x1
  • dimensions:
    • outside: 285x185x55mm
    • inside: 280x180x50mm
  • special microswitch SPST (C/NC) with terminal blocks
  • according with PN-EN 50131 Grade 2
  • Material: steel 1mm, color light gray (RAL7035)
