Ropam NeoGSM-IP-U-SET Set

314,17 EUR including 23.00% VAT
Product code: #25622
Manufacturer: Ropam
  • NeoGSM-IP-U control panel
  • PSR-ECO-2012 buffer power supply
  • O-R3D housing
  • AT-GSM-MINI antenna
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam TK-4B Touch keyboard in white surface-mounted housing Ropam TPR-4WS-P 4.3 ” touch panel in a surface-mounted housing, white Ropam TPR-4W-P 4.3 ” touch panel in a surface-mounted housing, white Ropam EXP-I8-RN Inputs module Expander Ropam APm-AERO The access point system AERO

Ropam NeoGSM-IP-U-SET Set - Alarm panel with GSM/IP communication

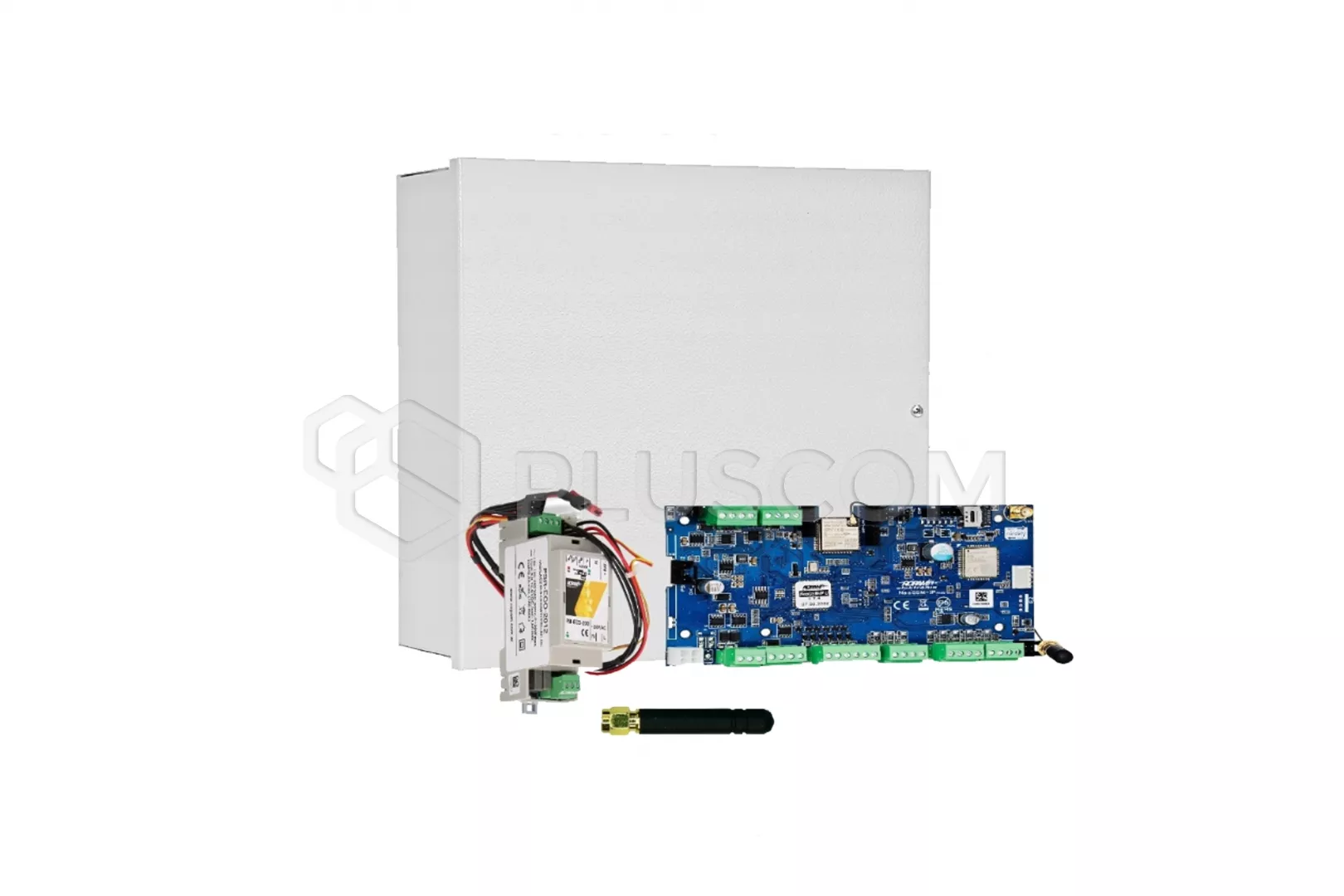

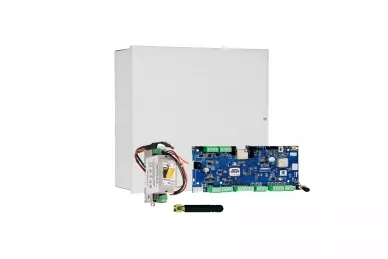

SET CONTAINS:
  • Alarm control panel with GSM/IP communication NeoGSM-IP-U
  • AT-GSM-MINI GSM antenna
  • O-R3D Housing
  • PSR-ECO-2012 Intelligent buffer power supply 12 AC/DC
Ropam NeoGSM-IP-U-SET Set

Ropam NeoGSM-IP-U-SET Set
The NeoGSM-IP-U-SET set is a solution that integrates an electronic burglary and attack detection system and home automation. The built-in GSM communicator and WI-FI module allow for remote control of the system. Thanks to its modular design the system can be expanded and adapted to the changing needs of the user.

The control panel, together with the available modules, offers the following functions:
  • 2 independent zones with two types of standby: full or night,
  • 8-32 programmable zones, expansion via input expanders, touch panels,
  • 8-24 programmable outputs, expansion via output expanders,
  • hybrid control panel: wired + Aero wireless system,
  • support for up to 32 users (1 main +31), 8 phone numbers, 8 e-mails,
  • support for up to 4 touch panels (TPR-4 series) or touch keyboards (TK-4 series),
  • built-in GSM modem (2G),
  • built-in WIFI module (802.11 b/g/n), (with connector and antenna for housing)
  • IP communication: WIFI/LAN primary channel, GPRS backup channel (automatic switching),
  • wired LAN connection option via expander: EXP-LAN,
  • dedicated RopamNeo mobile application for online supervision and remote control,
  • 1 RopamNet communication bus for connecting touch panels, expansion modules,
  • 1 TSR bus for connecting temperature and humidity sensors
  • 4 timers with calendar for control and automation,
  • built-in LogicProcessor for creating advanced logic functions
  • programming: local via micro USB or WIFI/ETH, remote via GPRS/IP
  • support for USSD codes (pre-paid card control),
  • convenient, detachable terminal connectors, grouped by ports,
  • software update possible via USB cable or WiFi.
  • 12V DC power supply, supervised system power supply PSR-ECO-5012-RS or PSR-ECO-2012 required for power supply
The control panel, power supply and antenna are housed in an anti-sabotage O-R3D metal casing. (tamper signals opening and detaching the casing).

The PSR-ECO-2012 buffer power supply has an efficiency of up to 91% and is perfect for installations low current.
It is devoid of a separation transformer, low voltage rectifier and low voltage stabilizer, i.e. the elements that generate the greatest energy losses.
The power supply integrates three functions in one:
  • regulated power supply
  • battery charger
  • DC 12V voltage UPS
Has the following features:
  • high quality power components and capacitors
  • passive cooling and low thermal emissions
  • SMT automatic assembly technology within the available material base
  • DIN 2M modular housing (ABS, UL94 V0) and dedicated wall-mounted and hermetic housings
  • technical outputs for status reporting: AC status, low battery voltage
  • optical indication of the power supply status with information on power supply status and failures

  • two-phase battery charging: constant current and constant voltage
  • auto-compensation of charging voltage using a temperature sensor (a +/- 3.3 [mV/°C/cell] relative to the design temperature of 20 °C)
  • dynamic battery test and diagnostics when working with load
  • support for 12V lead-acid batteries (SLA or AGM)
