Ropam NeoGSM-IP-U alarm panel with GSM/IP

208,39 EUR including 20.00% VAT
Product code: #25623
Manufacturer: Ropam
  • 2 zones with two types of mode
  • Inputs: 8 max 32, outputs 8 max 24
  • Built-in GSM modem (2G) and WIFI module
  • External WIFI antenna
  • Power supply 12V / DC
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam AT-GSM-MAG GSM Antenna 900/1800MHz Ropam PSR-ECO-2012 Intelligent, buffer type supervised AC-DC power supply Ropam PSR-ECO-5012-RS Backup power suppply Ropam EXP-LAN Ekspander Ethernet Ropam NeoGSM-IP-D9M Alarm control panel with GSM / IP communication Ropam TPR-4W 4.3 ”touch panel in a surface-mounted housing, white Ropam TPR-4W 4.3 ”touch panel in a surface-mounted housing, black

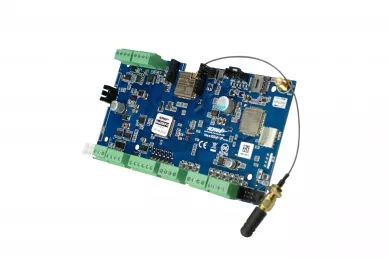

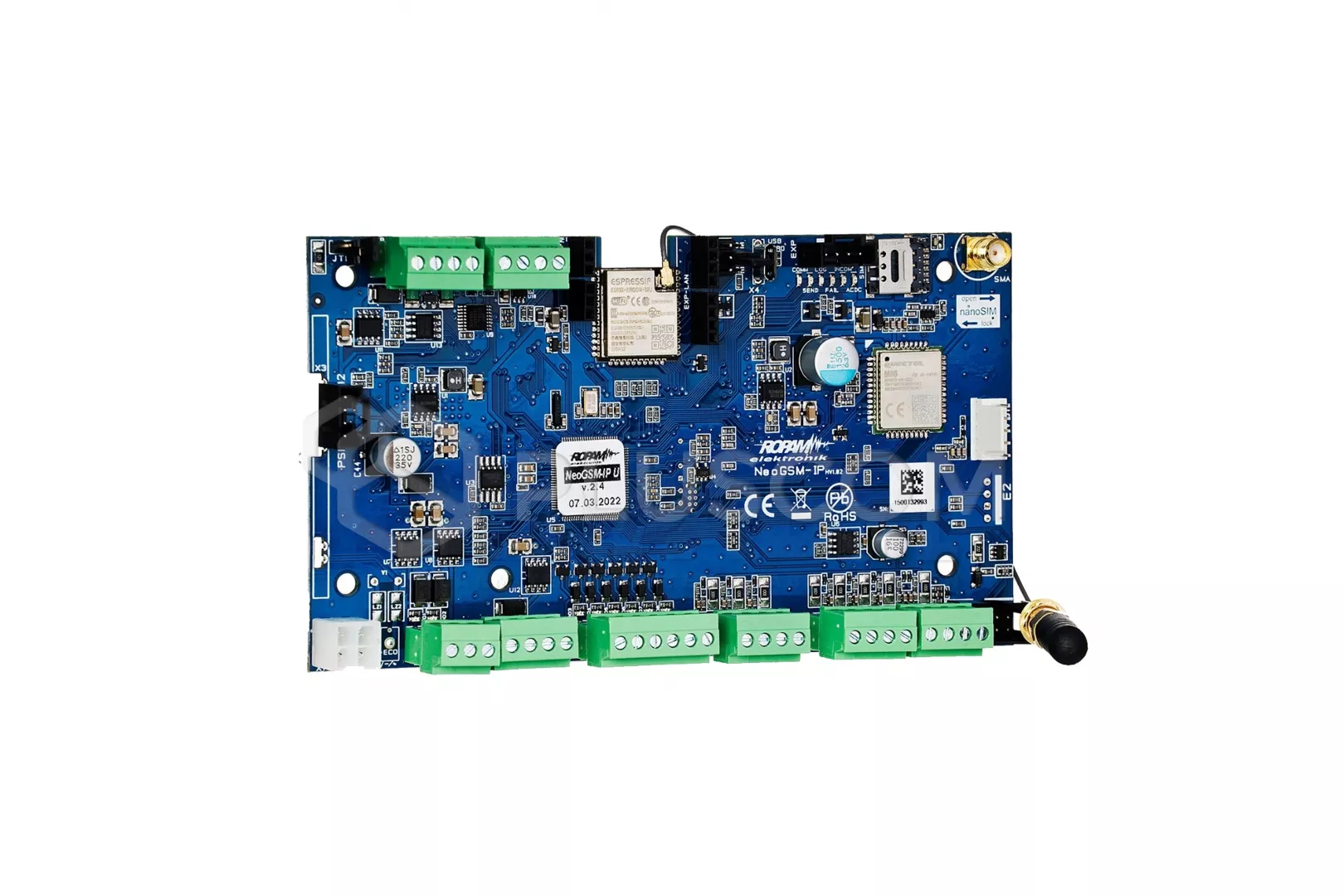

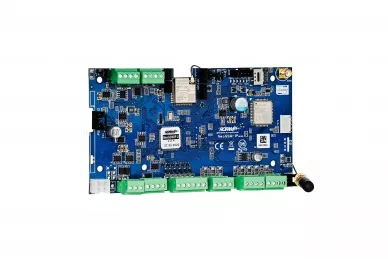

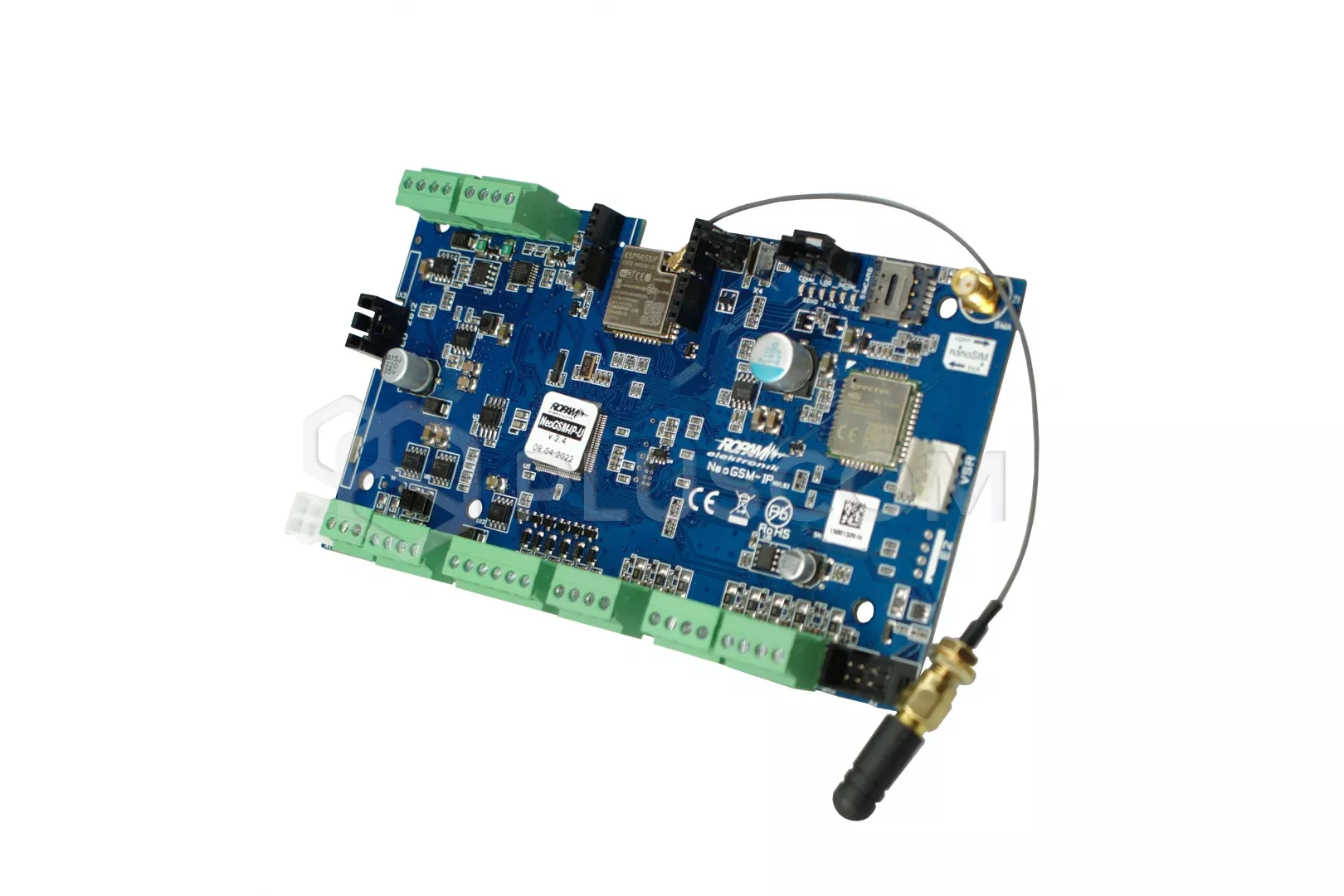

Ropam NeoGSM-IP-U Alarm control panel with GSM/IP communication with GSM and WiFi module and external WIFI antenna


NeoGSM-IP-U Control Panel is an electronic integration solution burglary and assault detection system and home automation. Built-in GSM communicator and WI-FI module allow for remote control system. Thanks to its modular design, the system can be expanded and adapted to the changing needs of the user.

The control panel has the following functions:
  • 2 independent zones with two types of standby: full or night,
  • 8-32 programmable zones, expansion via input expanders, panels touch,
  • 8-24 programmable outputs, expansion via output expanders,
  • hybrid control panel: wired + Aero wireless system,
  • support for up to 32 users (1 main +31), 8 phone numbers, 8 e-mail,
  • support for up to 4 touch panels (TPR-4 series) or touch keyboards (TK-4 series),
  • built-in GSM modem (2G),
  • built-in WIFI module (802.11 b/g/n), (with connector and antenna on housing)
  • IP communication: WIFI/LAN primary channel, GPRS backup channel (automatic switching),
  • wired LAN connection option via expander: EXP-LAN,
  • Dedicated RopamNeo mobile application for online and remote supervision control,
  • 1 RopamNet communication bus for connecting touch panels, expansion modules,
  • 1 TSR bus for connecting temperature and humidity sensors
  • 4 timers with calendar, for control and automation,
  • Built-in LogicProcessor for creating advanced functions logical
  • programming: local via micro USB or WIFI/ETH, remote via GPRS/IP
  • support for USSD codes (pre-paid card control),
  • convenient, detachable terminal connectors, grouped by ports,
  • possibility of updating the software via USB cable or WiFi.
  • 12V DC power supply, a supervised system power supply is required for power supply PSR-ECO-5012-RS or PSR-ECO-2012
Building automation functions:
  • support for temperature and humidity sensors (wired, wireless)
  • Room Thermostat function (support for 1 heating zone)
  • control of outputs for controlling automation elements possible via: RopamNeo mobile application, SMS, DTMF, CLIP (KeyGSM)
  • AI 0-10V analog input for controlling physical parameters, e.g. battery voltage, humidity [%RH], temperature, etc.
Notification / Control
  • SMS notification and control - independent messages for events in the system
  • PUSH notification to the RopamNeo mobile application
  • VOICE/CLIP: independent voice connection for events in the system with voice messages (possibility of uploading up to 16 messages directly to the control panel)
  • E-MAIL: independent e-mail messages for system events, SMTP server support (SSL/TSL)
  • GPRS monitoring: cooperation with the Ropam Monitoring Software (RMS) station/server, with the Kronos NET station (RopamDirect driver) or SafeStar, encrypted TCP/IP transmission, two IP addresses, backup SMS transmission, parallel operation with SMS/VOICE notification mode
  • built-in SIA-IP communication protocol
  • possibility to operate the system using the RopamNeo mobile application
