Ropam MultiGSM 2 GSM Notification and control module

158,79 EUR including 23.00% VAT
Product code: #13512
Manufacturer: Ropam
  • Support 1000 phone numbers, SD Card
  • 8 inputs NC, NO / 4 outputs controlled
  • GSM jamming detection
  • RopamDroid - remote management

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam USB-USBmicro Cable

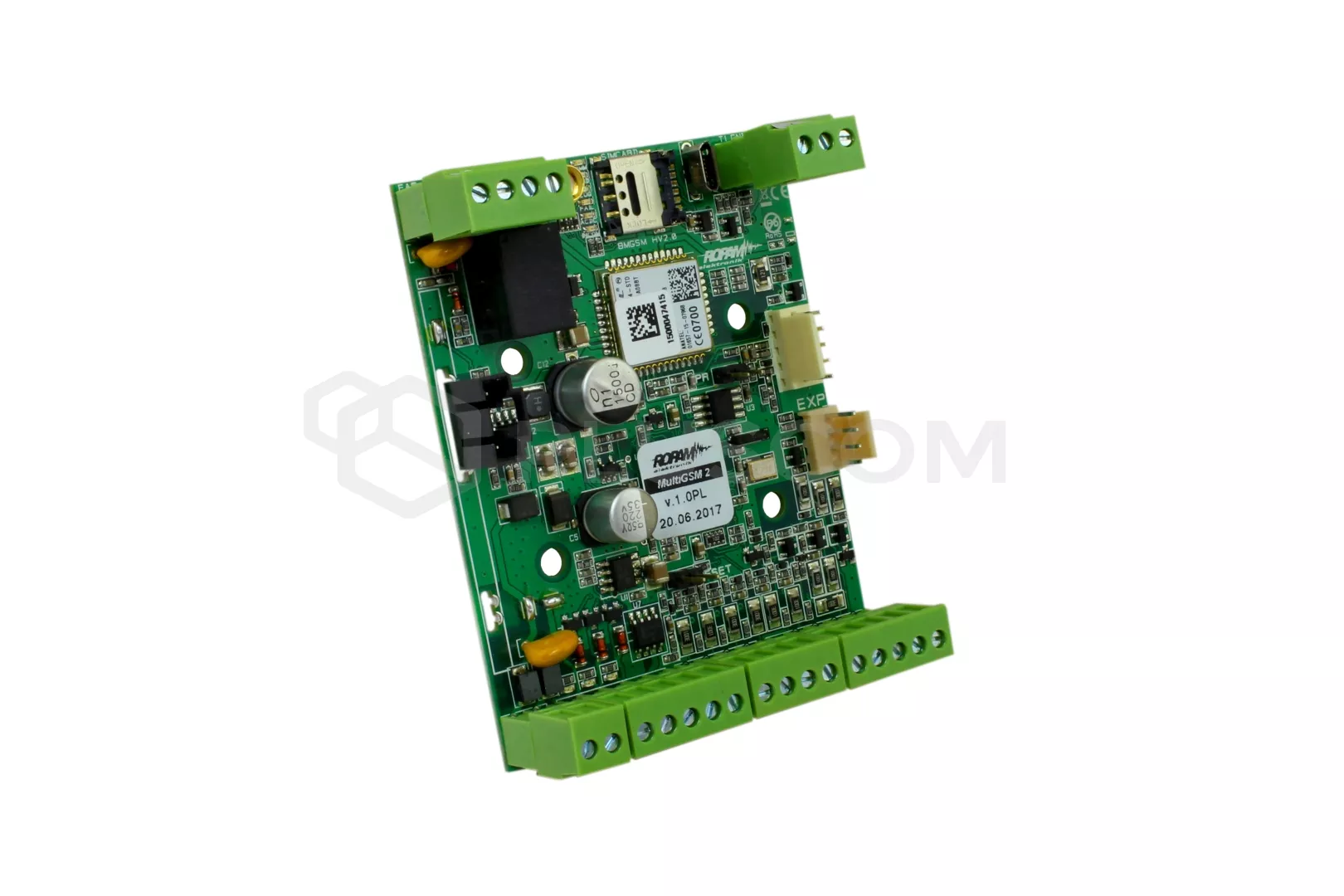

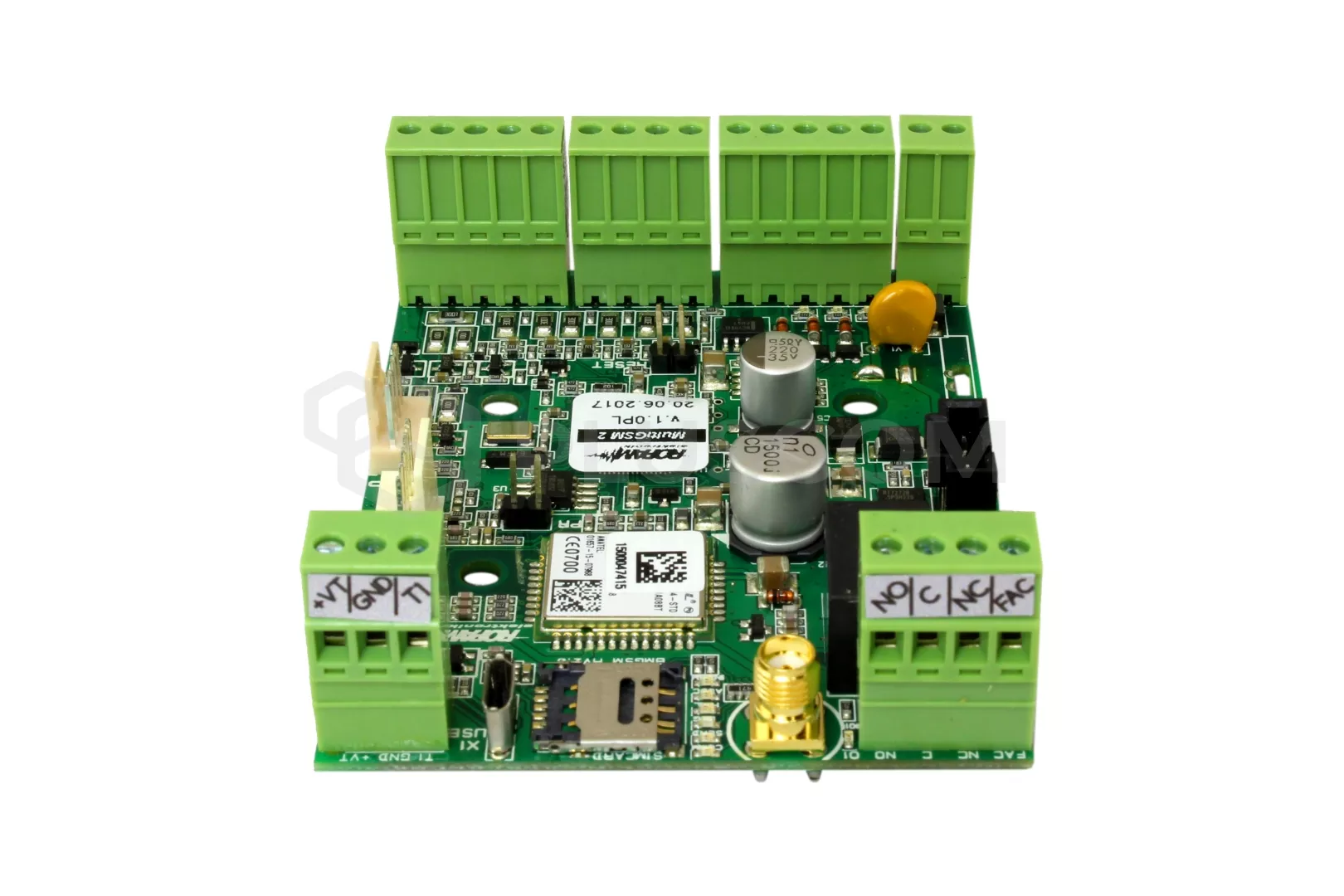

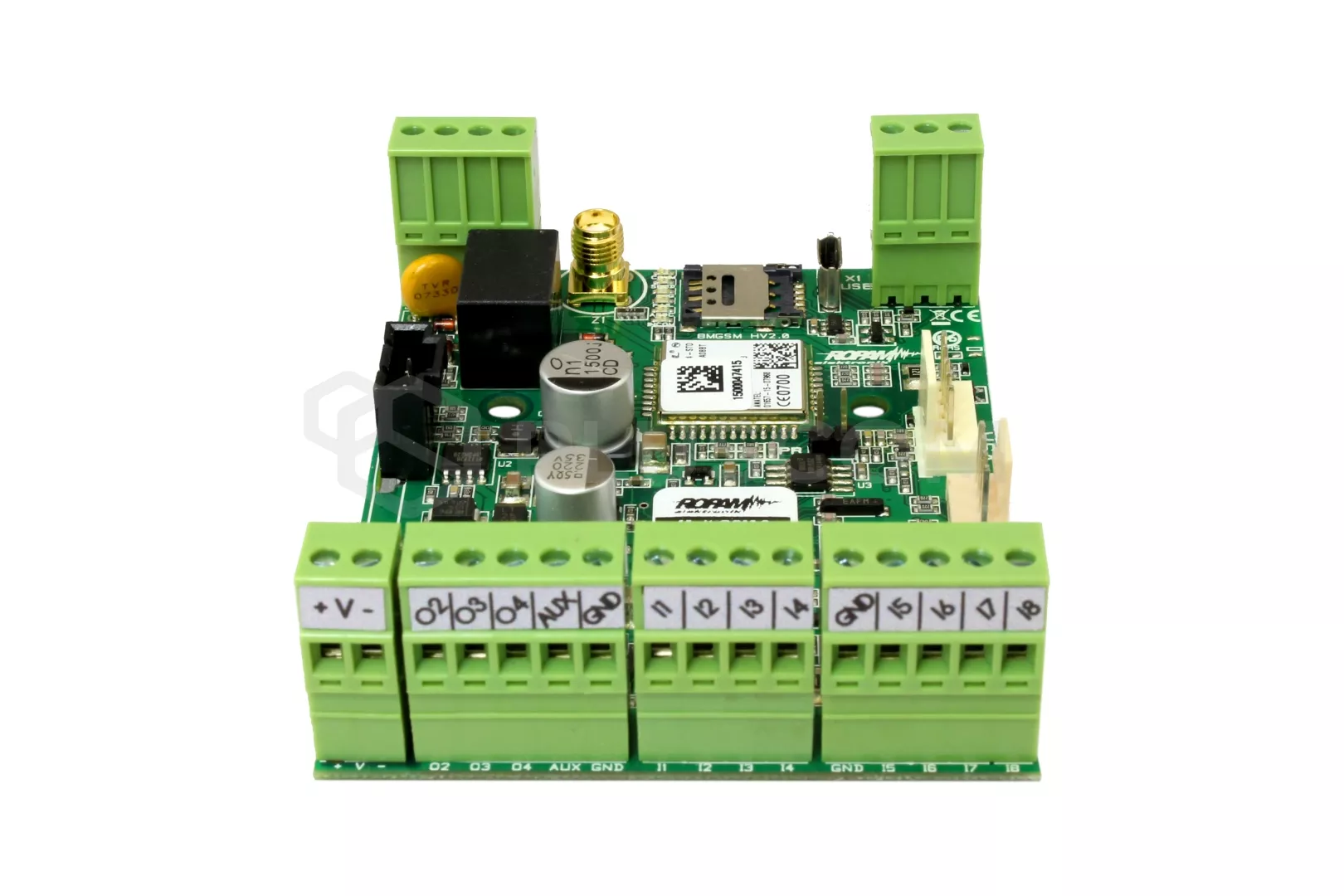

MultiGSM GSM Notification and control module

8 telephone numbers, 8 inputs, 4 outputs, SMS/VOICE/CLIP/RING, 12V/DC, built-in GSM modem,

GENERAL DESCRIPTION:
  • built-in GSM modem (industrial)
  • operation with eight telephone numbers (call numbers):
    • cooperation with SMS/CLIP monitoring centers
    • signaling to private call numbers: SMS, VOICE, SMS+VOICE, CLIP
  • sending system status information via SMS:
    • programming messages from individual inputs
    • independent violation and restore (input) information
    • power supply failure messages
    • system status messages: inputs, outputs, failures
  • sending voice messages:
    • cooperation with VSR-2 voice synthesizers (16 messages)or VSR-1 (1 message)
    • cooperation with voice module (MC1), object listening
  • inputs [8]:
    • wide range of reactions, e.g. arm/disarm, delayed, counter
    • choice of operating configuration: 2EOL/NC, 2EOL/NO, EOL, NC, NO (I1-I6)
    • triggered inputs „+12V” or „GND„ with configuration NO-NC (I7, I8)
  • outputs [4]:
    • one high current (1A) output and three OC (100mA) outputs
    • controlled with: SMS, CLIP, inputs, module status (alarm, failure etc.)
    • programmable mode of operation: MONO- (time) or BISTABLE
    • logical functions I/O and O/O: AND, OR, NOR, XOR
  • communication test function:
    • cyclical (every 1-99 hours), according to clock
    • triggered by input, external polling
    • programmable test type: SMS or CLIP (RING)
  • module programming:
    • local by PC (PARTNER GSM): RS232TTL, USB
    • lokal by SD card
    • remote by SMS (selected parameters)
    • remote by PC: modem download (via CSD)
    • firmware update function (FLASH memory)
  • visual signalization:
    • visual signalization of operation and failure status
    • visual signalization of outputs status
  • events memory:
    • events registration e.g. alarm arming/disarming
    • event date and time (RTC)
    • register of 1000 events with an overwrite function
  • power supply:
    • 9V-14V DC
    • permanently monitors the value of the supply voltage U<11V
