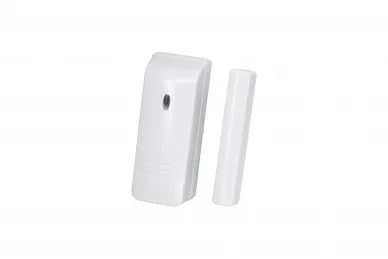

Ropam MGD-Aero-WH Wireless magnetic detector

Ropam MGD-Aero-WH Wireless magnetic detector

The MGD-Aero-WH is a wireless magnetic detector that detects unauthorized persons opening doors and windows. It is designed to work in a bidirectional framework Aero wireless system.

Detector alarm, activates the removal of the magnet from the wireless sensor magnetic field and this information is sent by radio to the controller APm-Aero. There is also a detachment of the detector from the base or opening the housing immediately sent to the system.
The transmission of the current state of the tamper contact and the battery is sent by detector every 30s / 60s / 90s.

LED SIGNALING

LED red:

• cindicates detector operation (detection) in test mode - WalkTest can run only with APm-Aero (during programming) or with SMS command (on time Thirty minutes). The command is sent after establishing a check transmission from detectors (interval: 30/60/90 s)

LED blue:

• after installing the batteries, blinking cyclically every 1s - detector not programmed
• with batteries installed, 2x series of flashes - detector programmed (series flashes is the number of the detector in APm-Aero)
• ccyclic flashes: 1x500ms every 90s low detector battery voltage, i.e. voltage lower than 3.15V

TECHNICAL PARAMETERS:

• supply voltage: 3.6V, ER14250 battery
• Aero communication in the ISM band: 868,000 MHz to 870,000 MHz
• sensitivity: -110dBm
• transmit power: up to + 10dBm
• programming from the control panel level
• environment class: II
• working temperature: -10 ° C ... + 55 ° C
• connectors: screw terminals, 1mm2
• dimensions:
• • detector: 32x81x28mm
  • magnet: 13x75x18mm
• weight:
• • detector: 40g
  • magnet: 17g
• battery life: approx. 2-3 years
