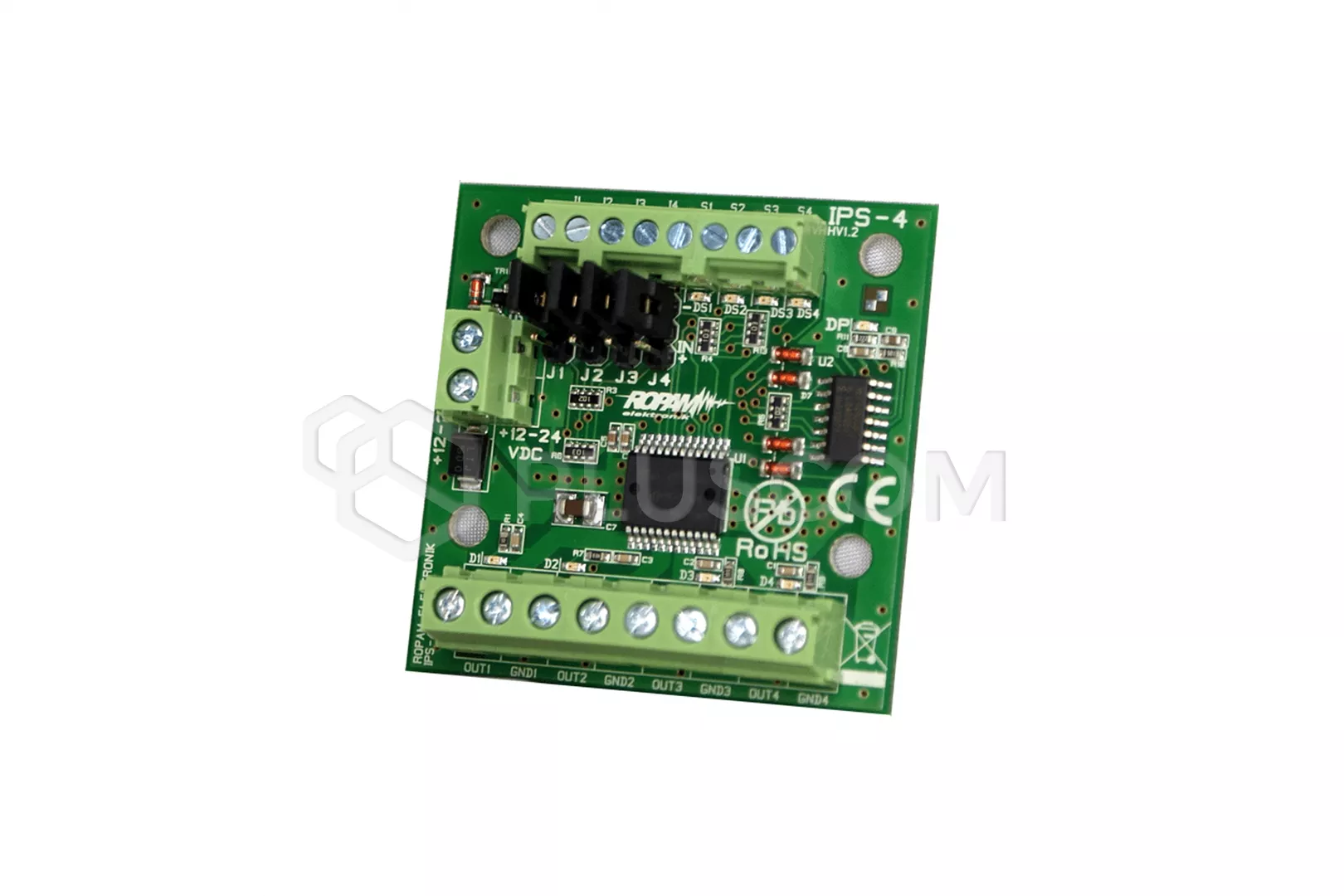

Ropam IPS-4 Intelligent power relay

18,06 EUR including 23.00% VAT
Product code: #21953
Manufacturer: Ropam
  • For supplying resistive and / or inductive loads
  • Supply voltage 10V-30V DC
  • Nominal current 0.7A of each channel
  • Optical signaling
  • Dimensions 50x50mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
The modular control panel Ropam OptimaGSM The modular control panel Ropam OptimaGSM-PS-D9M The modular control panel Ropam OptimaGSM-D9M The modular control panel Ropam OptimaGSM-PS

Ropam IPS-4 Intelligent power relay


Quad high-side smart power solid-state relay with built-in electronic protections so. electronic fuses.

APPLICATION: Control and protection circuits in DC power supply (low voltage). With universal design module is ideal: power control and alarm systems, access control, CCTV, power distribution, short circuit separation, LED lighting, smoke exhaust systems, etc.

FEATURES:
  • four independent "electronic fuse" with an automatic back/reset after a short circuit or overload, do not require maintenance such as changing fuse or manual reset PTC fuse
  • four independently controlled channels and prtections outputs OUT1-OUT4 dedicated to power devices (common GND)
  • four trigger input I1-I4 by GND or +U (Vcc)
  • four status outputs S1-S4 power supply outputs OUT1-OUT4 for remote control module state
  • supply voltage 10V-30V DC (undervoltage protection
  • nominal current 0.7 A (1.3 A Ipeak), each channel (4x0, 7A) with the possibility of aggregation of channels such as 2x 1,4A, 1x2,8A, 1x0,7A+1x2,1A
  • protection: overload, overload protection (current limit), undervoltage, temperature
  • dedicated to power supply resistive loads and / or induction
  • optical signaling operating state: DC power supply, outputs OUT1-OUT4, status outputs S1-S4
  • a minimum resistance of a solid-state relay ( 10 times smaller than the PTC fuses and 5 times smaller than the fuse (@ 1A)
  • small dimensions 50mmx50mm
  • easy installation and configuration
  • easy installation using adhesive pins
