Ropam IO-SimplePLC SimplePLC controlled system link

Ropam IO-SimplePLC SimplePLC controlled system link

The executive element of the SmartPLC system, which allows you to control distributed switches using SmartPLC technology. Operation can also be controlled remotely from the system as part of the LogicProcessor operation.

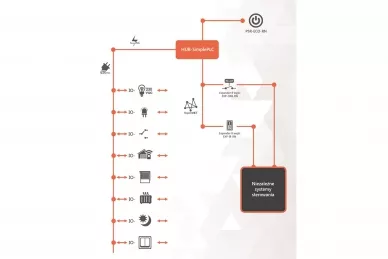

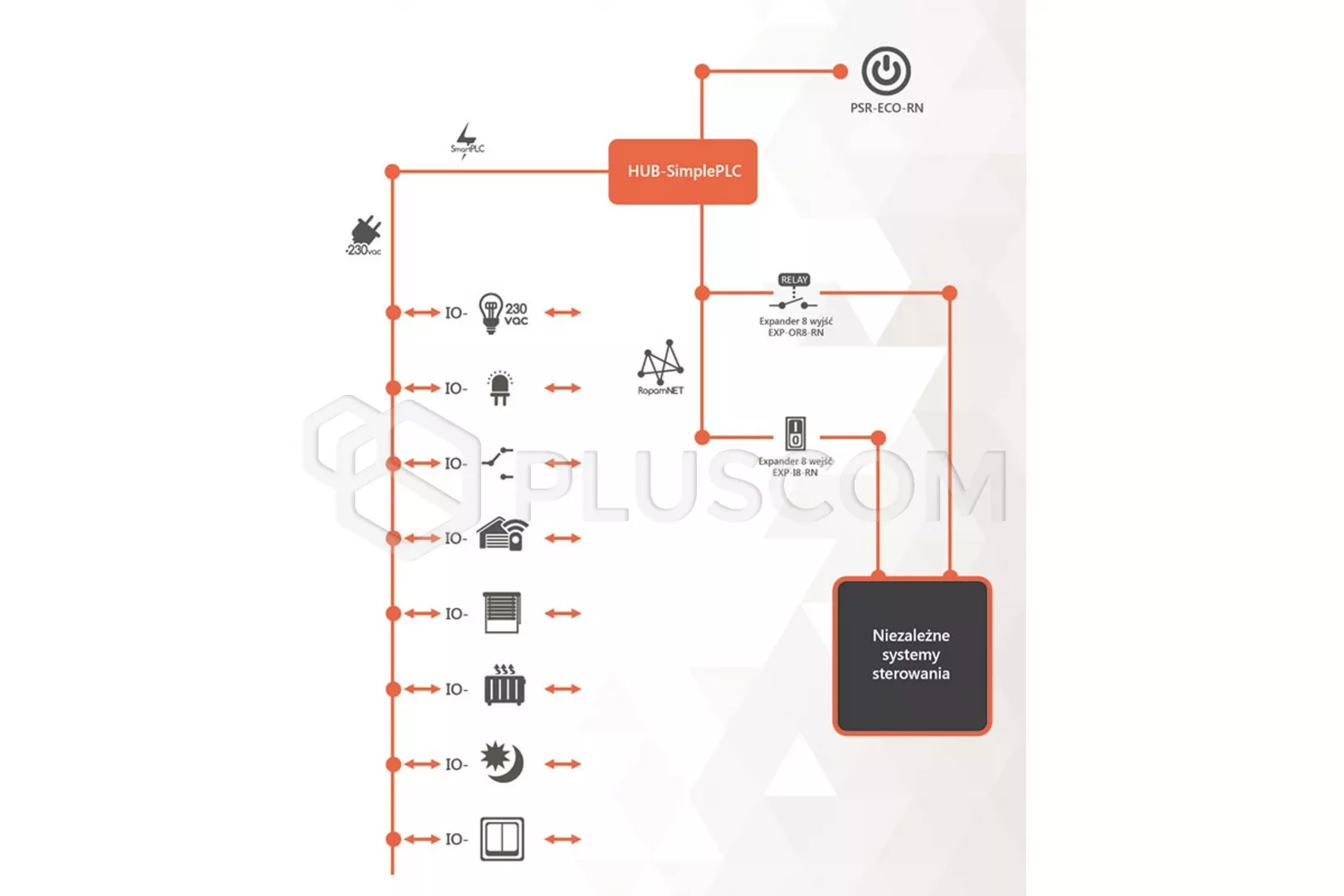

IO-SimplePLC communicates with the concentrator HUB-SimplePLC-D4M using the RopamNET bus and data exchange between the hub and intelligent connectors takes place over the LV electrical network (230VAC) using the smartPLC technology.



PROPERTIES:

• load on switch 10A / 250V
• digital input ON / OFF, potential N / L, for operating a switch or single-pole button
• input: locally or system controlled within the action LogicProcessora

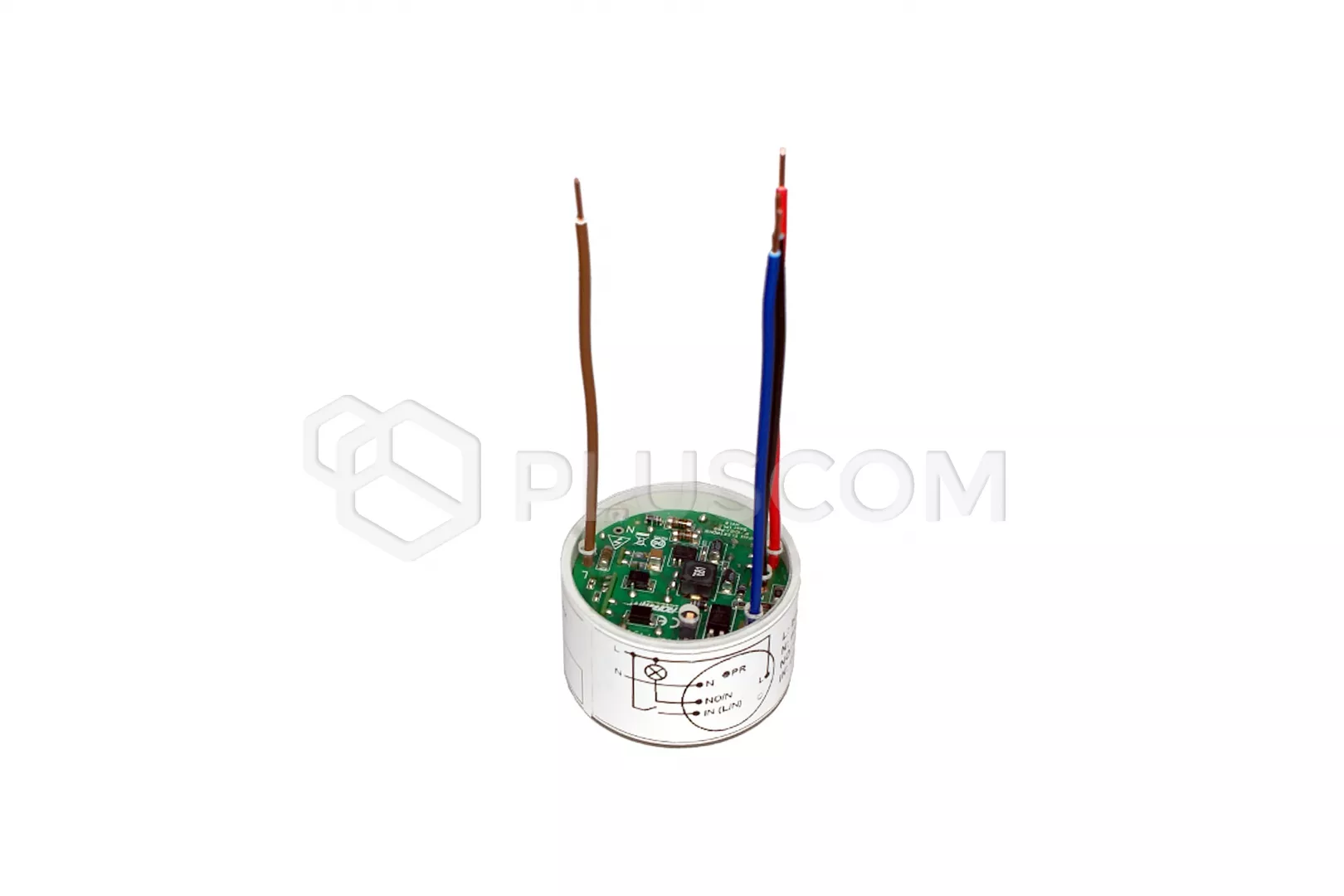

• miniature dimensions: Ø50x30mm

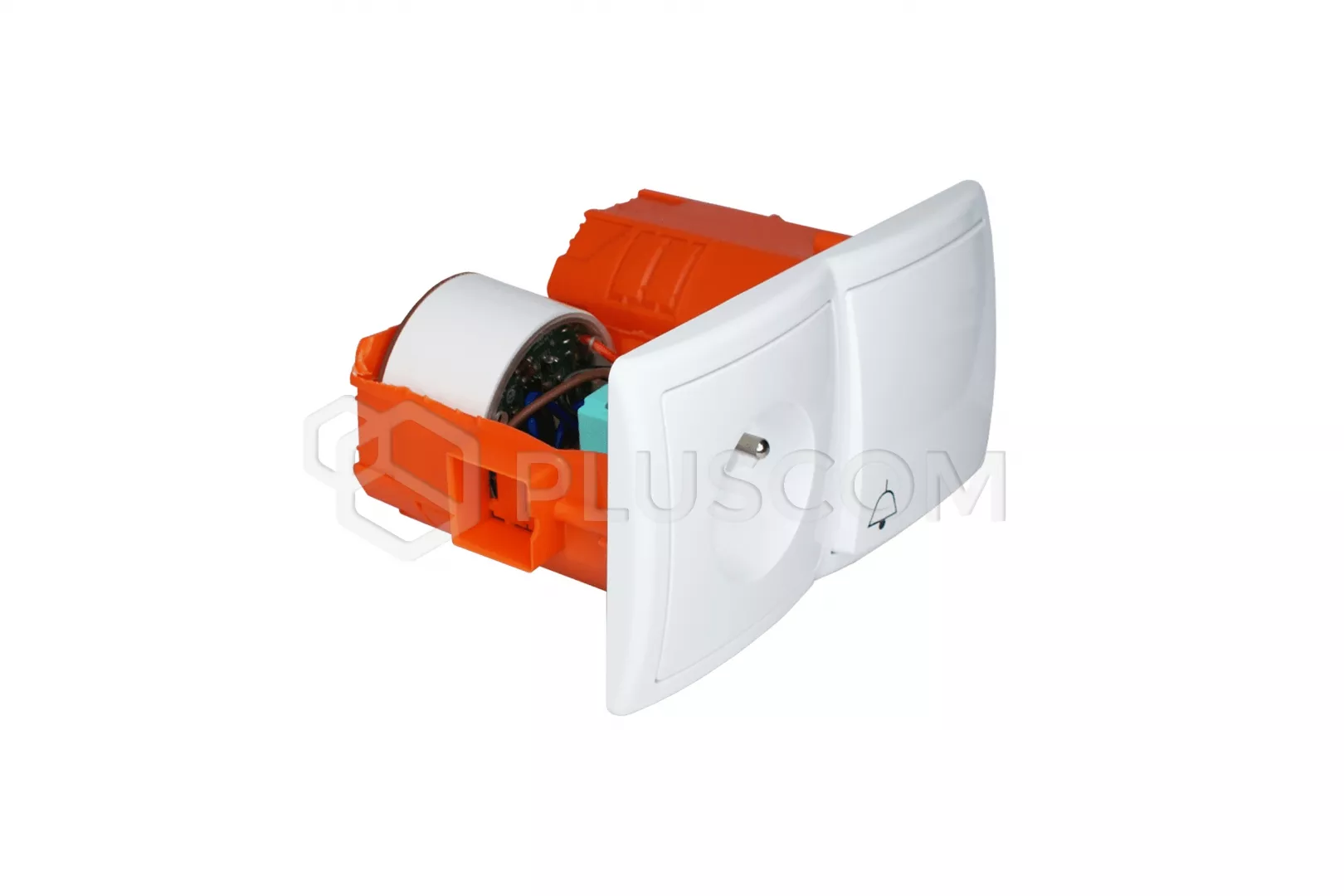

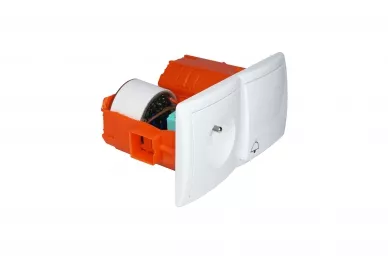

• installation in a Ø60 (deep) flush-mounted box
• module compatible with any standard i socket electric switch / button
• communication SmartPLC, with Hub IQPLC on the building's electrical installation NN
• control and state of the switch are available within the arguments, LogicProcessor of the OptimaGSM
• system
• AC 230V 50Hz power

Modules are an excellent alternative to existing objects , buildings in which can be introduced without changing the cabling home automation elements based on the OptimaGSM control panel.
