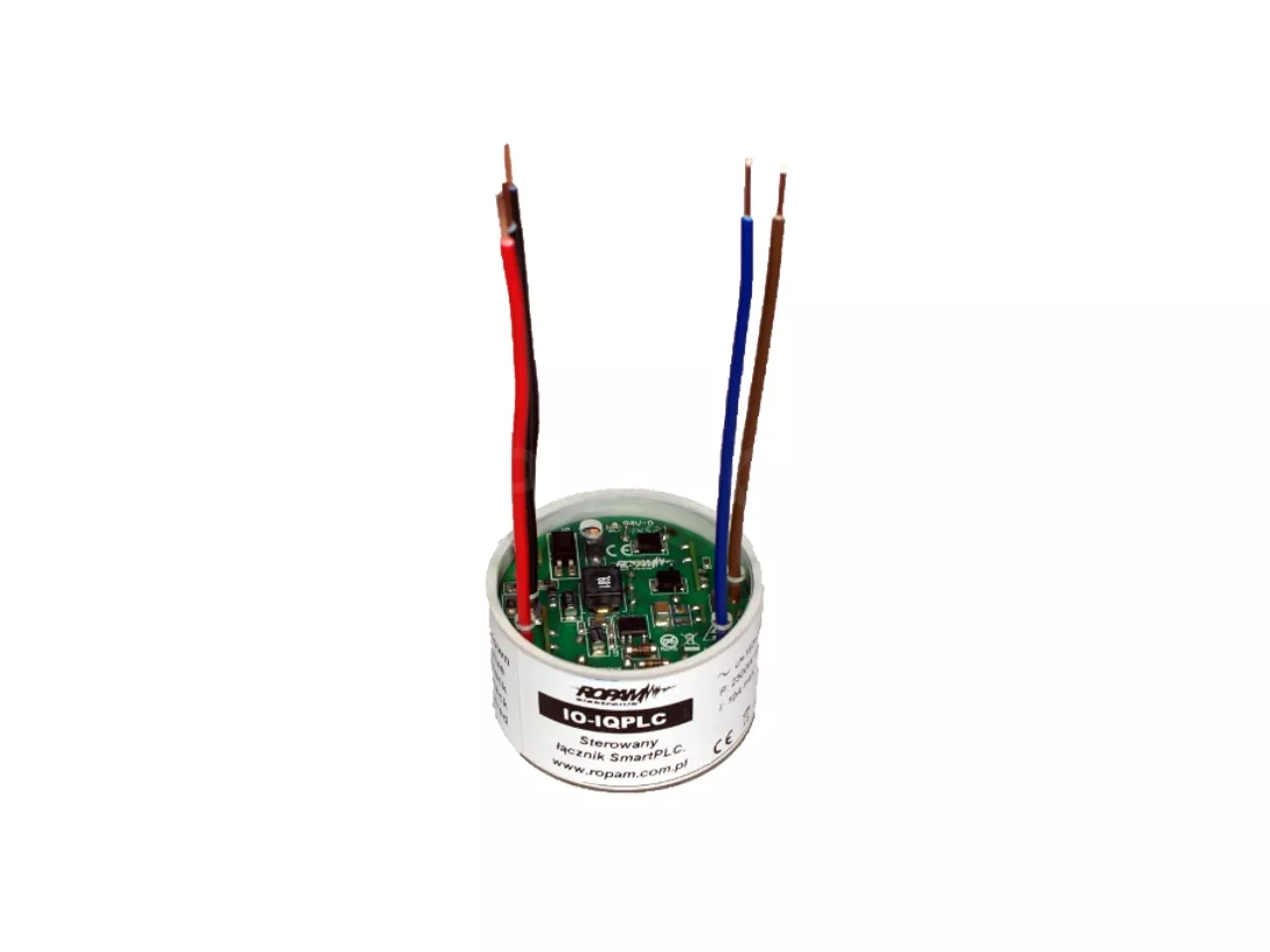

Ropam IO-IQPLC Controlled connector

Ropam IO-IQPLC Controlled connector

Executive element of the system based on the OptimaGSM control panel. Locally maybe operate a single-pole switch or button, and control the output AC 230V electric socket. Operation can also be controlled remotely from the system as part of the LogicProcessor operation.

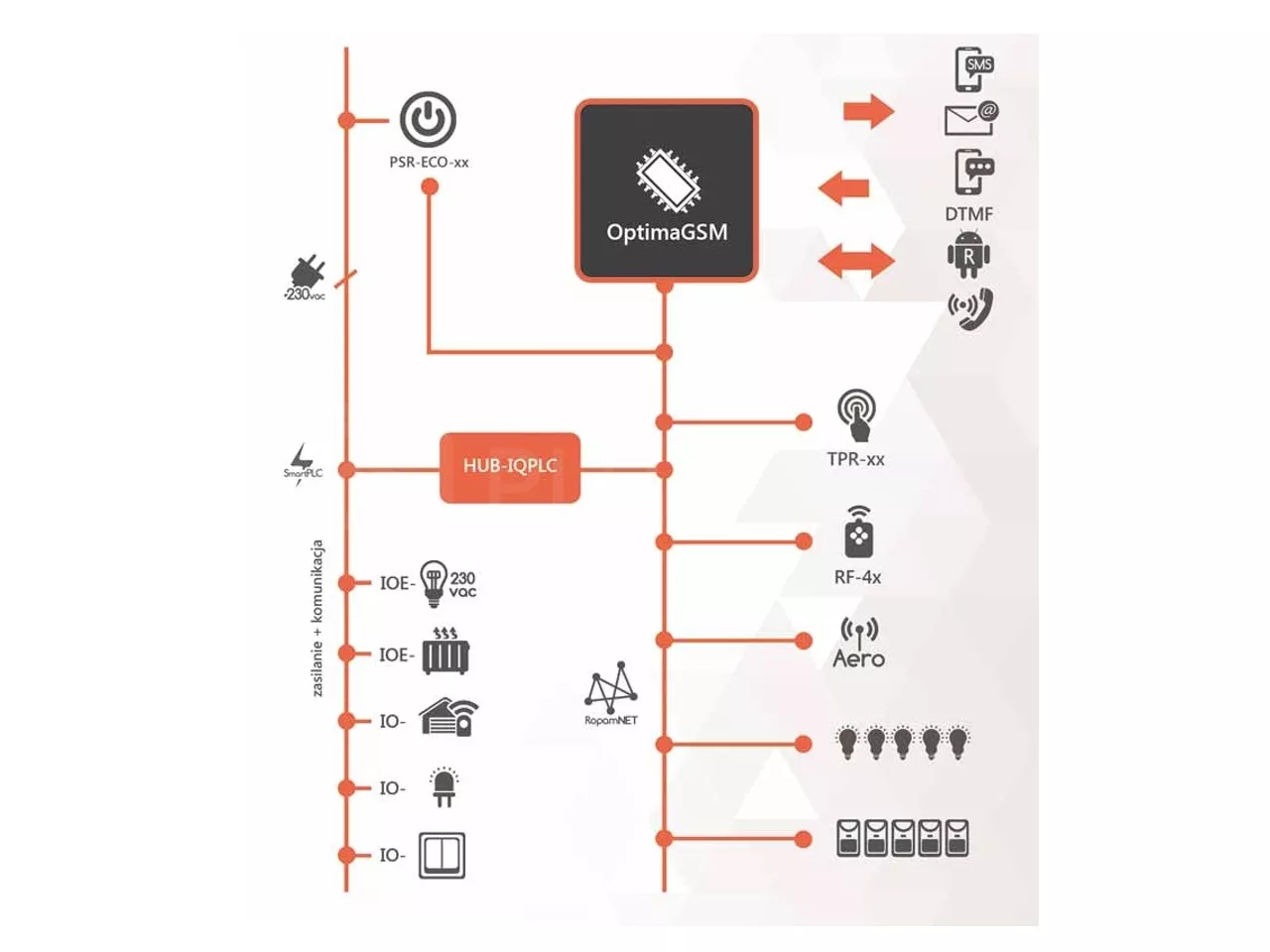

IO-IQPLC does not communicate directly with the control panel, but after power lines using SmartPLC technology with a concentrator HUB-IQPLC-D4M this, in turn, using the RopamNET bus is connected to the headquarters.



PROPERTIES:

• load on switch 10A / 250V

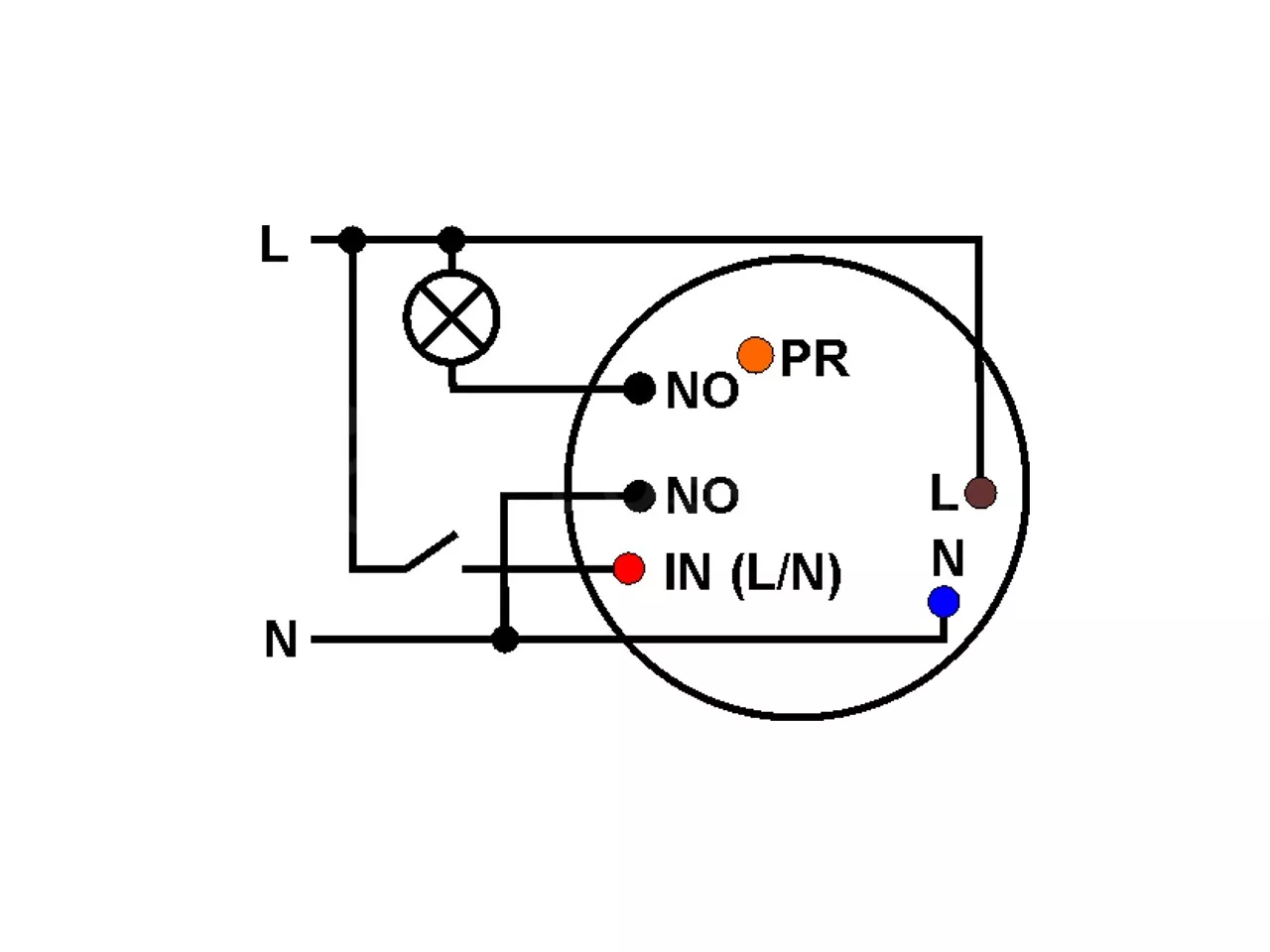

• digital input ON / OFF, potential N / L, for operating a switch or single-pole button
• input: locally or system controlled within the action LogicProcessora
• miniature dimensions: Ø50x30mm

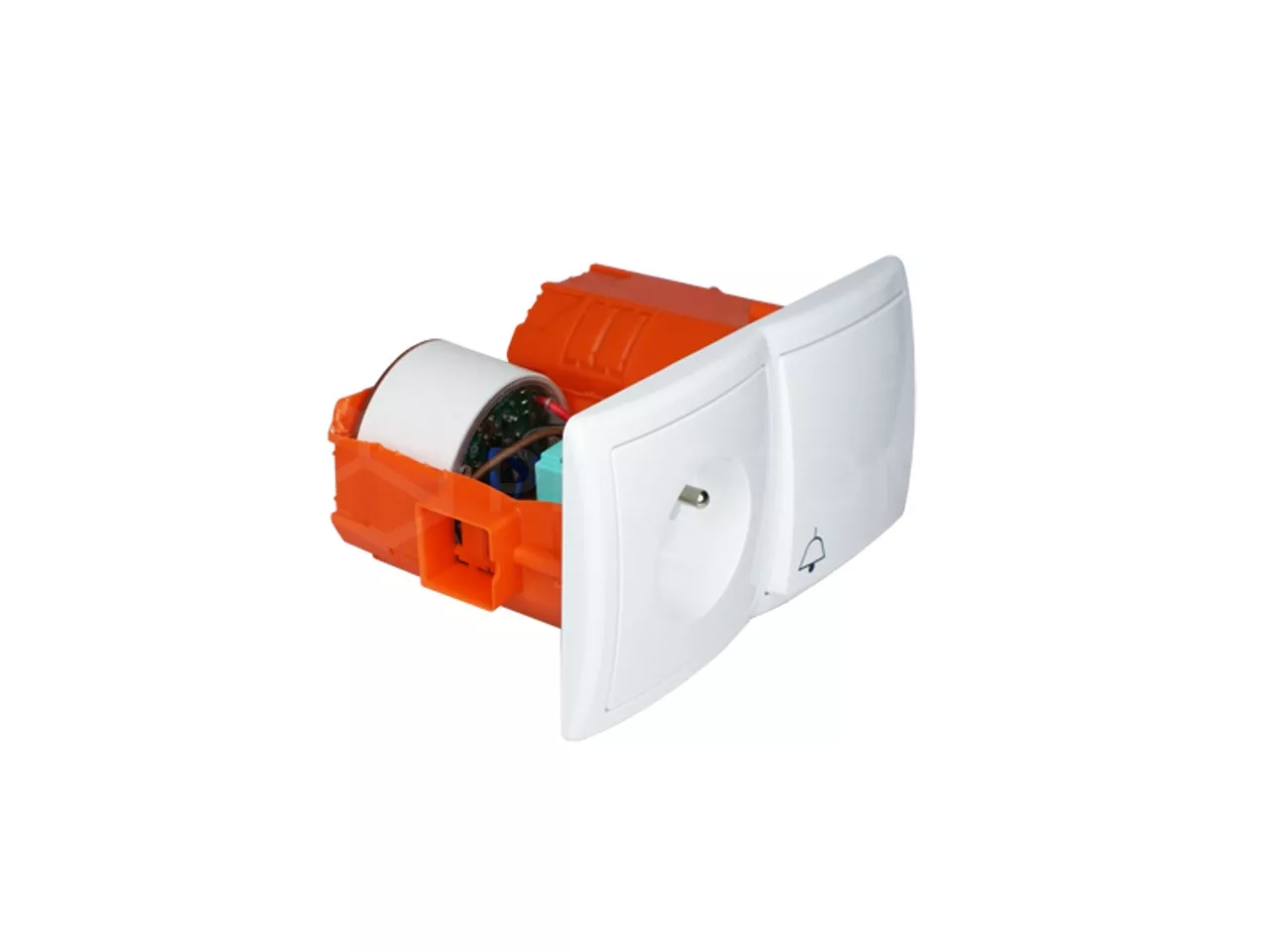

• installation in a Ø60 (deep) flush-mounted box
• module compatible with any standard i socket electric switch / button
• communication SmartPLC, with Hub IQPLC on the building's electrical installation NN
• control and state of the switch are available within the arguments, LogicProcessor of the OptimaGSM
• system
• AC 230V 50Hz power

Modules are an excellent alternative to existing objects , buildings in which can be introduced without changing the cabling home automation elements based on the OptimaGSM control panel.
