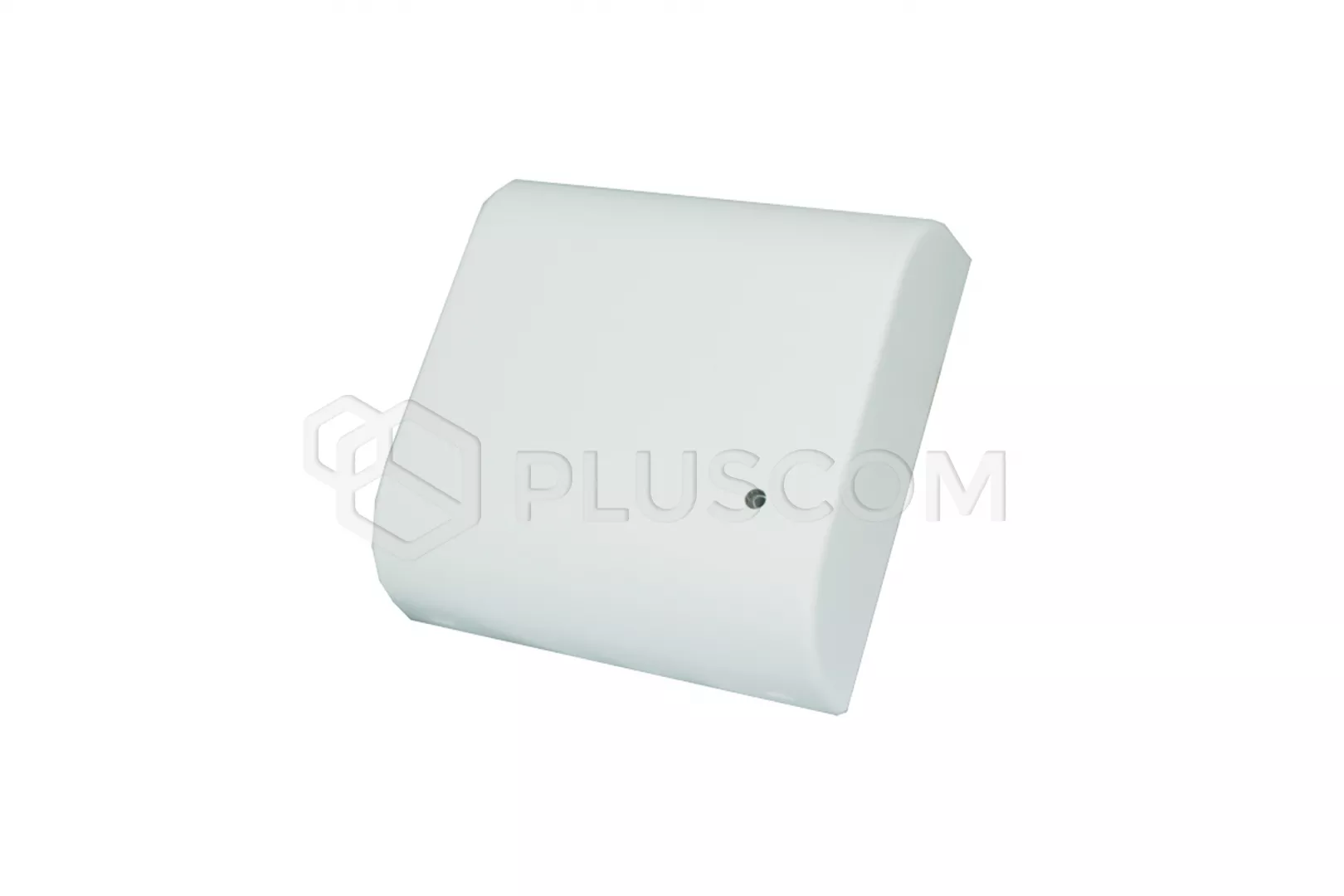

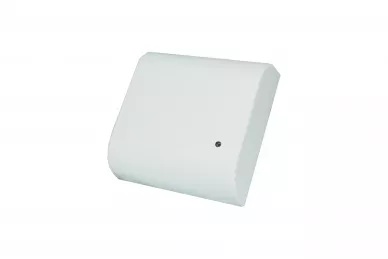

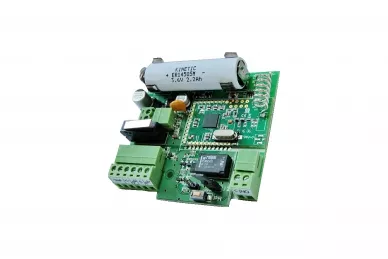

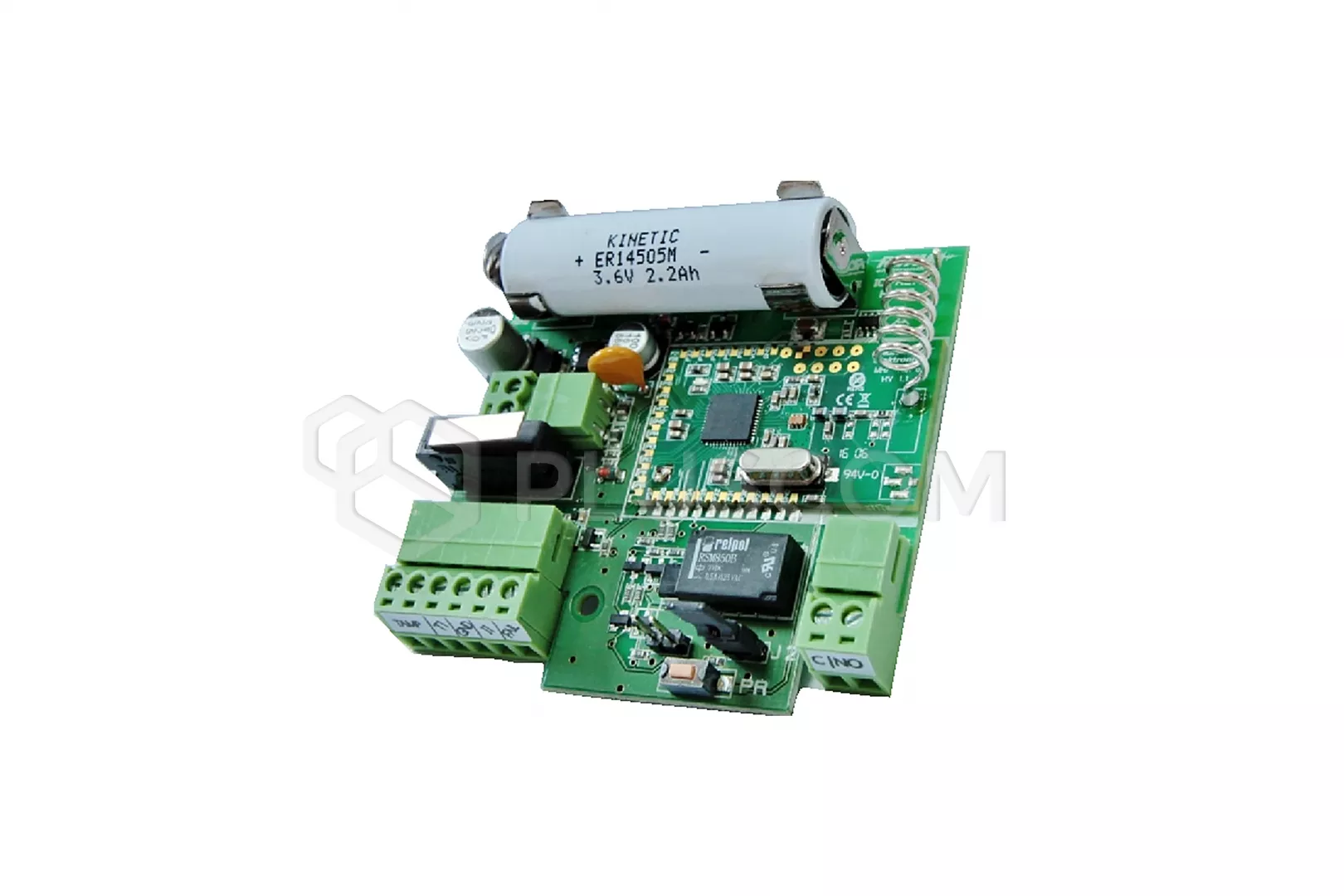

Ropam IO-Aero The input/output module of the Aero wireless system

49,82 EUR including 23.00% VAT
Product code: #21910
Manufacturer: Ropam
  • Cooperation with wired and battery detectors, with NC outputs
  • Wireless integration of wired devices
  • ALARM input
  • TAMPER input
  • Relay output C / NO
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam BAT-ER14505M Lithium battery ER14505M

Ropam IO-Aero The input/output module of the Aero wireless system


Wireless input/output Aero module

I/O specifications:
  • cooperation with any wired or battery motion sensor with NC outputs
  • ALARM input: I1, GND ( NC type, works after arming, generates intrusion alarm type)
  • TAMPER input: T, GND (NC type, works as 24h type zone, generates sabotage alarm)
  • C/NO relay output, controlled/refreshed according to connection intervali (30/60/90s) (constant output mapping Ox ->IO-Aero)
  • FAIL output: transistor OC output, generates GND in case of failure (no connection between Aero and Apx-
Aero communication specifications:
  • dedicated processor for Aero communication, module's energy and states management
  • automatic transmit power management, up to +10dBm, depends on (RSSI) or signal quality level (LQI) for maximum battery life
  • bidirectional, encrypted (AES 128-bit) communication in ISM 868 MHz band
  • high RF sensitivity, up to -110 dBm
  • up to 200m range in open area
General properties:
  • wall mount white ABS casing - dimensions: 80x80x25 WxHxD [mm]
  • LED diode optical signalization
  • working temperature: -10°C do +55°C
  • power supply: battery ER14505M, up to 2-3 years
  • anti-sabotage protection
Programming:
  • from alarm panel, system operation
Applications:
  • system expansion using wireless I/O devices
  • system expansion while wired resources are not available
  • remote control of home automation
  • object protection while wired resources are not available
