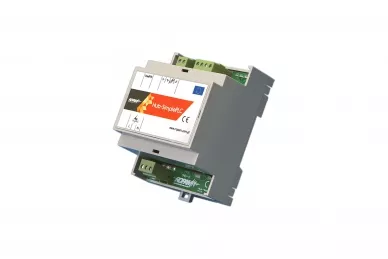

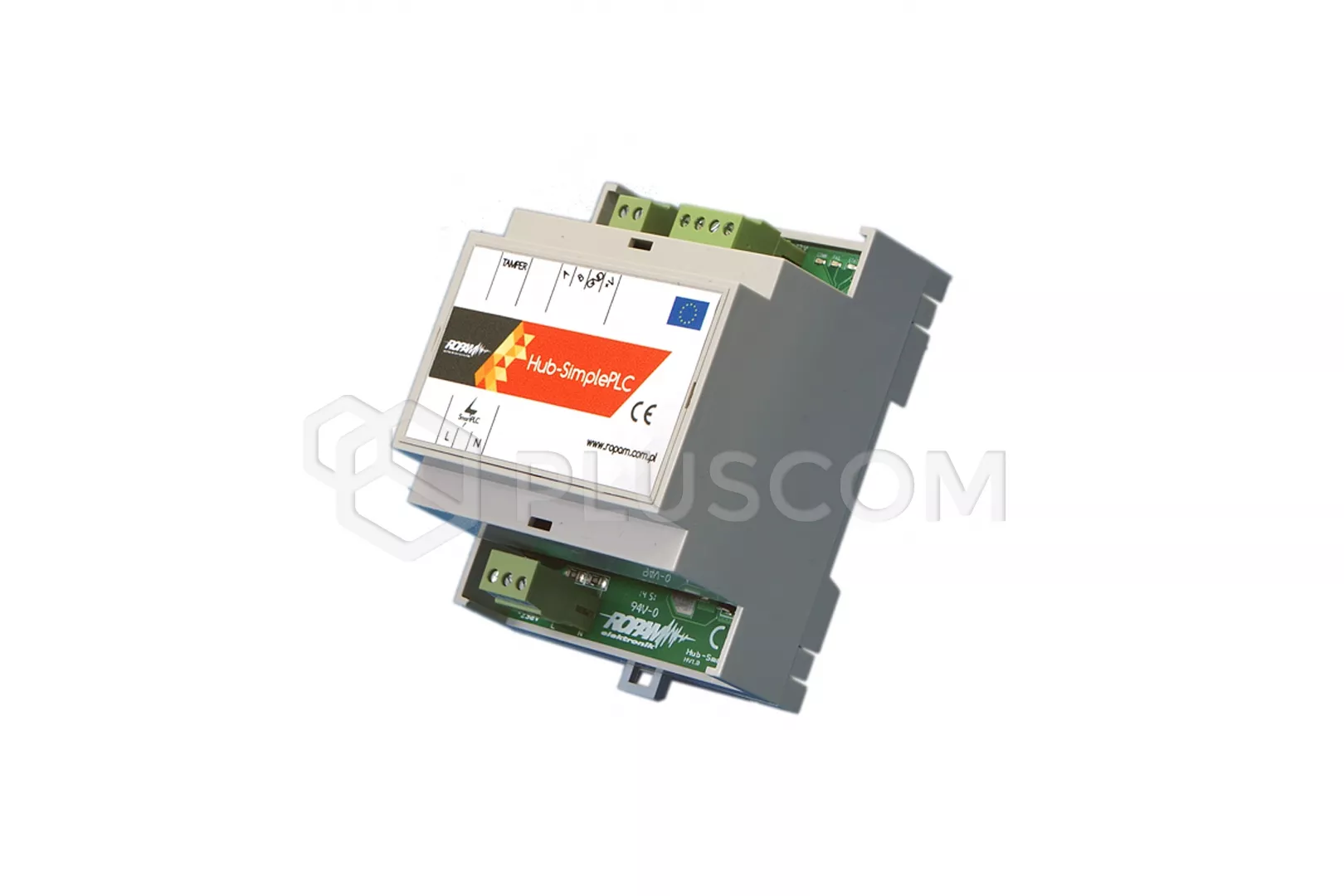

Ropam Hub-SimplePLC-D4M Autonomous SmartPLC network concentrator for the SimplePLC system

62,90 EUR including 23.00% VAT
Product code: #21963
Manufacturer: Ropam
  • Remote control and control of electrical devices,
  • Autonomous operation without the OptimaGSM system
  • Compatibility with expanders (RopamNET)
  • Support for 8 SmartPLC devices
  • DIN rail housing, (4M)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam EXP-O8T-RN Outpaut expander Ropam EXP-O8R-RN-D9M Output expander module in DIN casing Ropam EXP-I8-RN-D4M Inputs module Expander in DIN housing Ropam EXP-I8-RN Inputs module Expander Ropama PLC-Coupler-D2M SmartPLC network coupler Ropam IO-SimplePLC SimplePLC controlled system link Ropam EXP-O8T-RN-D4M Outpaut expander in a DIN housing

Ropam Hub-SimplePLC-D4M SimplePLC home automation system makes autonomic system controlled by inputs/outputs and uses SmartPLC technology


Home Automation System SmartPLC which uses SmartPLC technology. SmartPLC is unique and innovative solution in communication, it transforms building power supply network into communication bus for control and management. SmartPLC technology of Ropam Elektronik company opens new chapter in building/home automation and gives superior capabilities for designers and integrators.

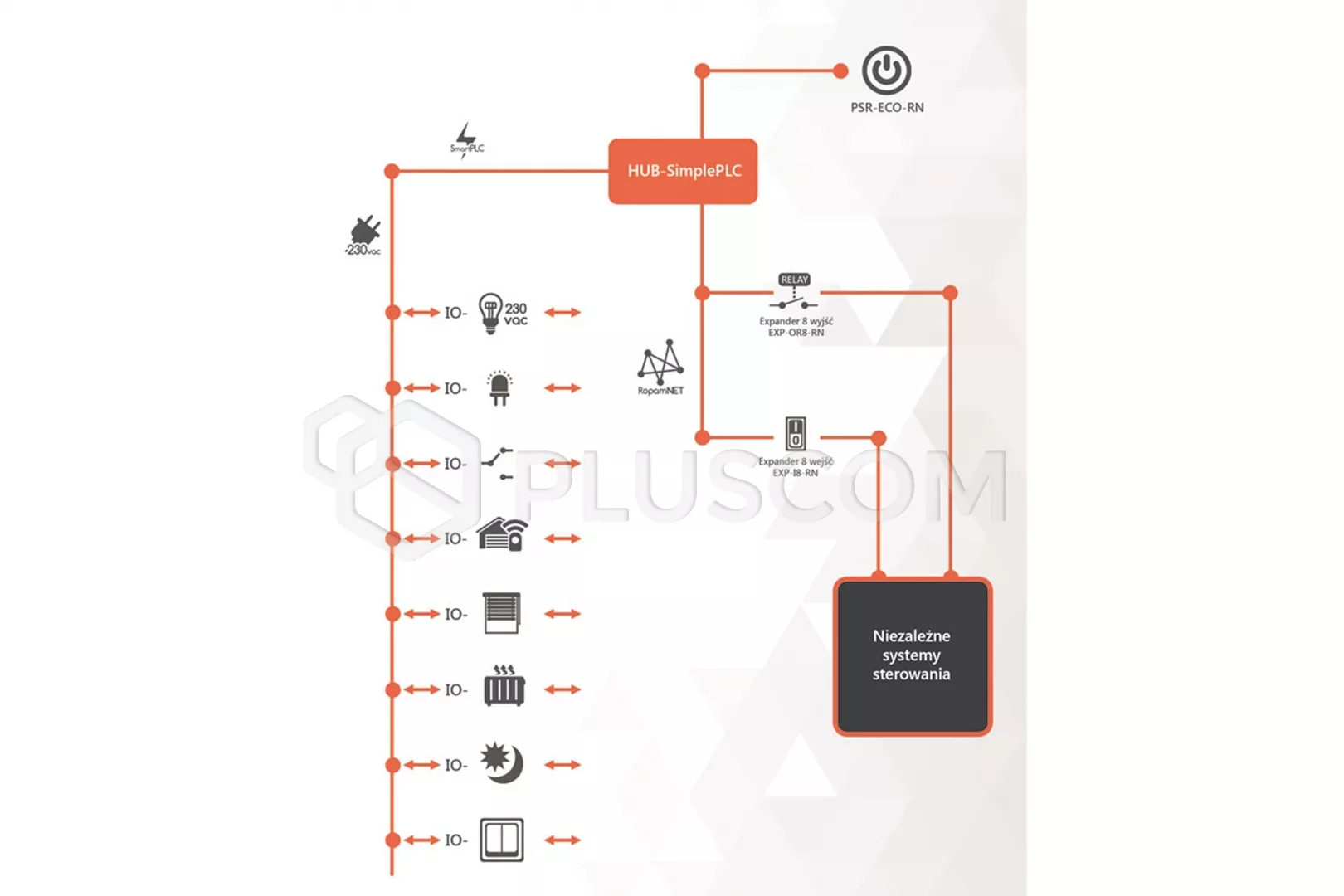

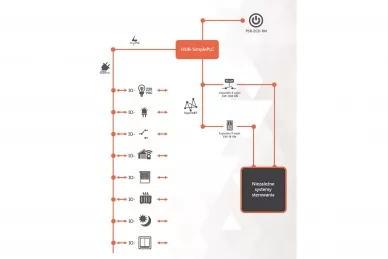

System schematic

System schematic


Applications:
  • smart home, home automation
  • electronic intruder alarm systems
  • remote control and management of electronic devices
  • smart lighting
Hub-SimplePLC concentrator integrates zones expanders and outputs expanders in one independent system with distributed smart PLC nodes ( IO-IQPLC/IOE-IQPLC). Communication between expanders and concentrator is based on RopamNET bus. Communication between concentrator and nodes is based on electric power network (230VAC) thanks to SmartPLC technology.

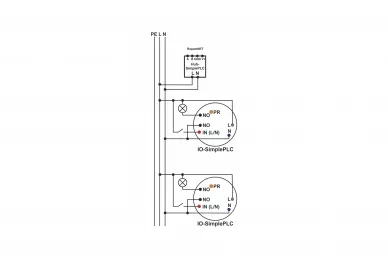

Connecting the Hub and connectors in a 1-phase installation

Connecting the Hub and connectors in a 1-phase installation

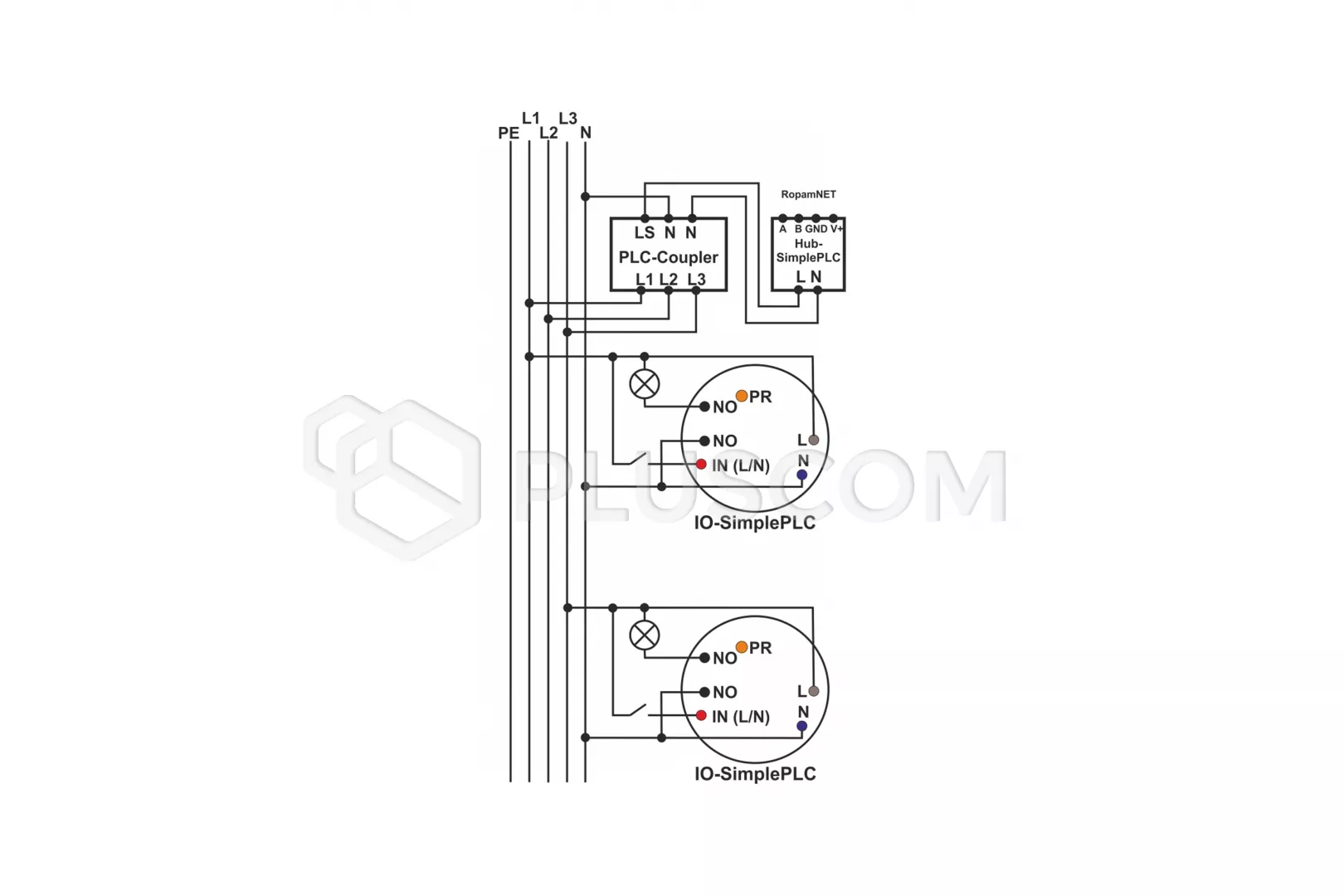

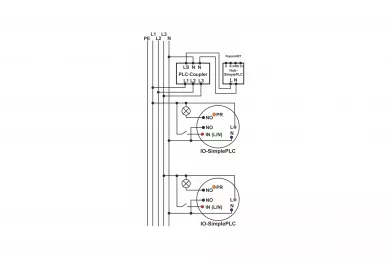

Connecting the Hub and connectors in a 3-phase installation

Connecting the Hub and connectors in a 3-phase installation

Specifications:
  • cooperates with any automation/alarm system through system inputs/outputs
  • compatibility with zone expanders: EXP-I8-RN, outputs expander EXP-O8R-RN, RopamNET bus
  • SmartPLC: innovative and unique two-way communication through 230VAC power line
  • Safety: dynamic route choose, "self-cure" network, tapping protection, interferences protection, data transmission with confirmation, AES256 encryption in lowest data layer
  • Range : unlimited as part of one electric network, building power network installation, in three phases power network or in high noise environment PLC Coupler is needed
  • 8 IQPLC devices support
  • DIN rail mount casing, 4 DIN modules
