Ropam BasicGSM-MAG (10P) Set - 10 pcs

Ropam BasicGSM-MAG Set - collective packaging 10 pcs

Price for 1 pc for a collective package

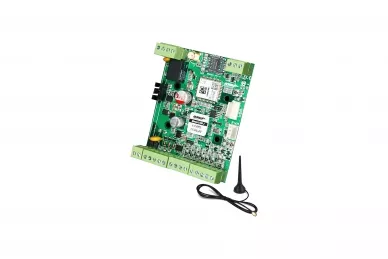

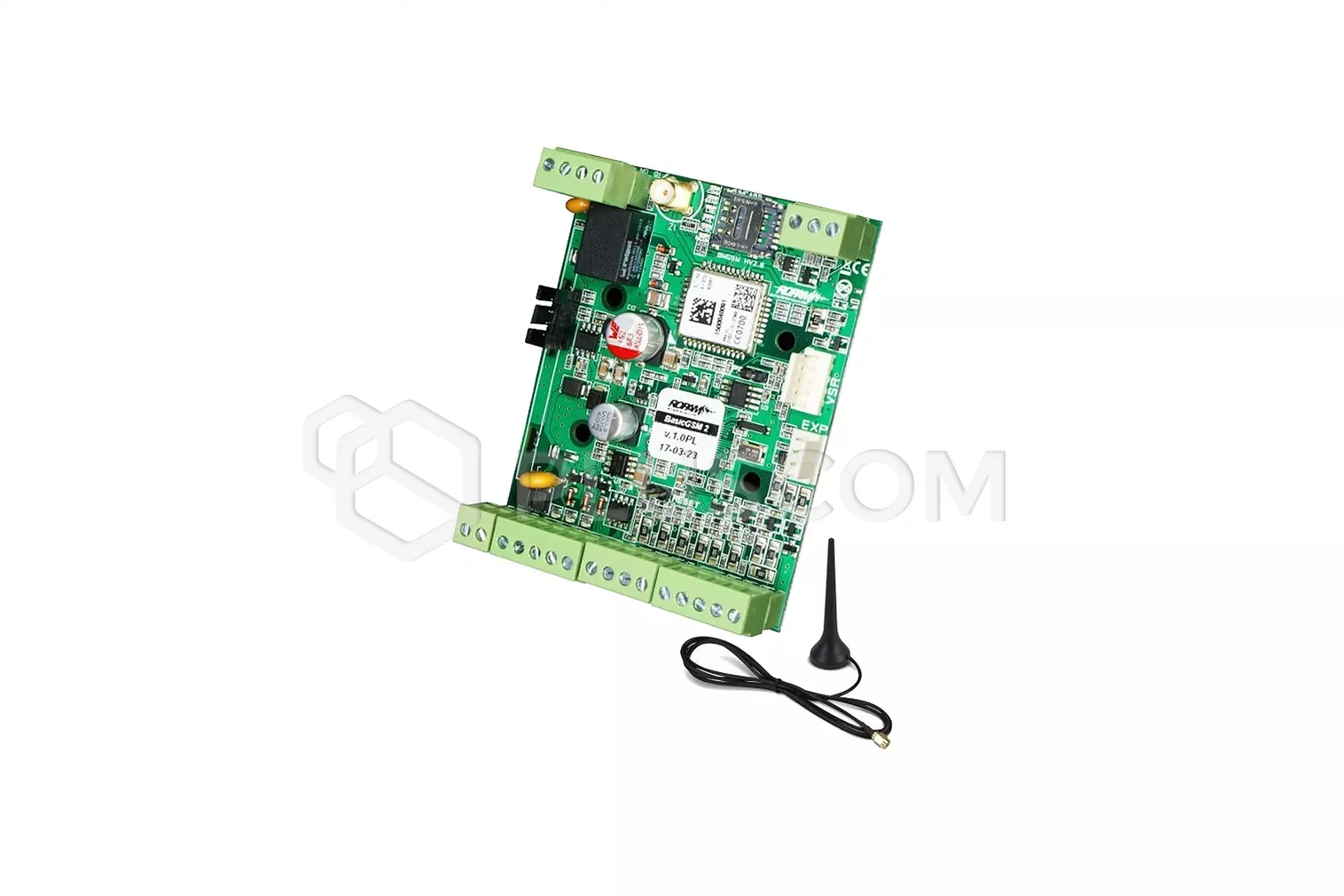

The kit includes: BasicGSM 2 GSM notification and control module AT-GSM-MAG GSM 900 / 1800MHz antenna

Ropam BasicGSM-MAG (10P) Set - 10 pcs

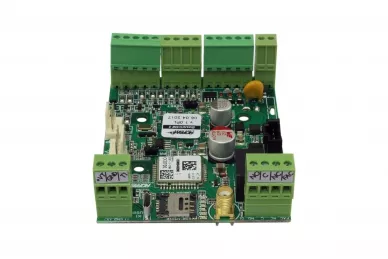

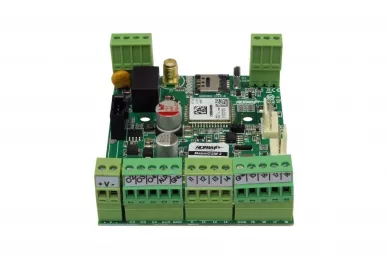

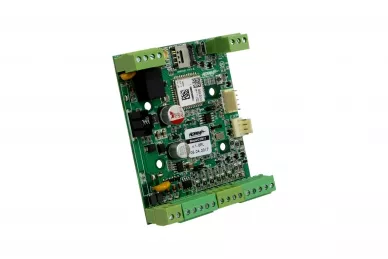

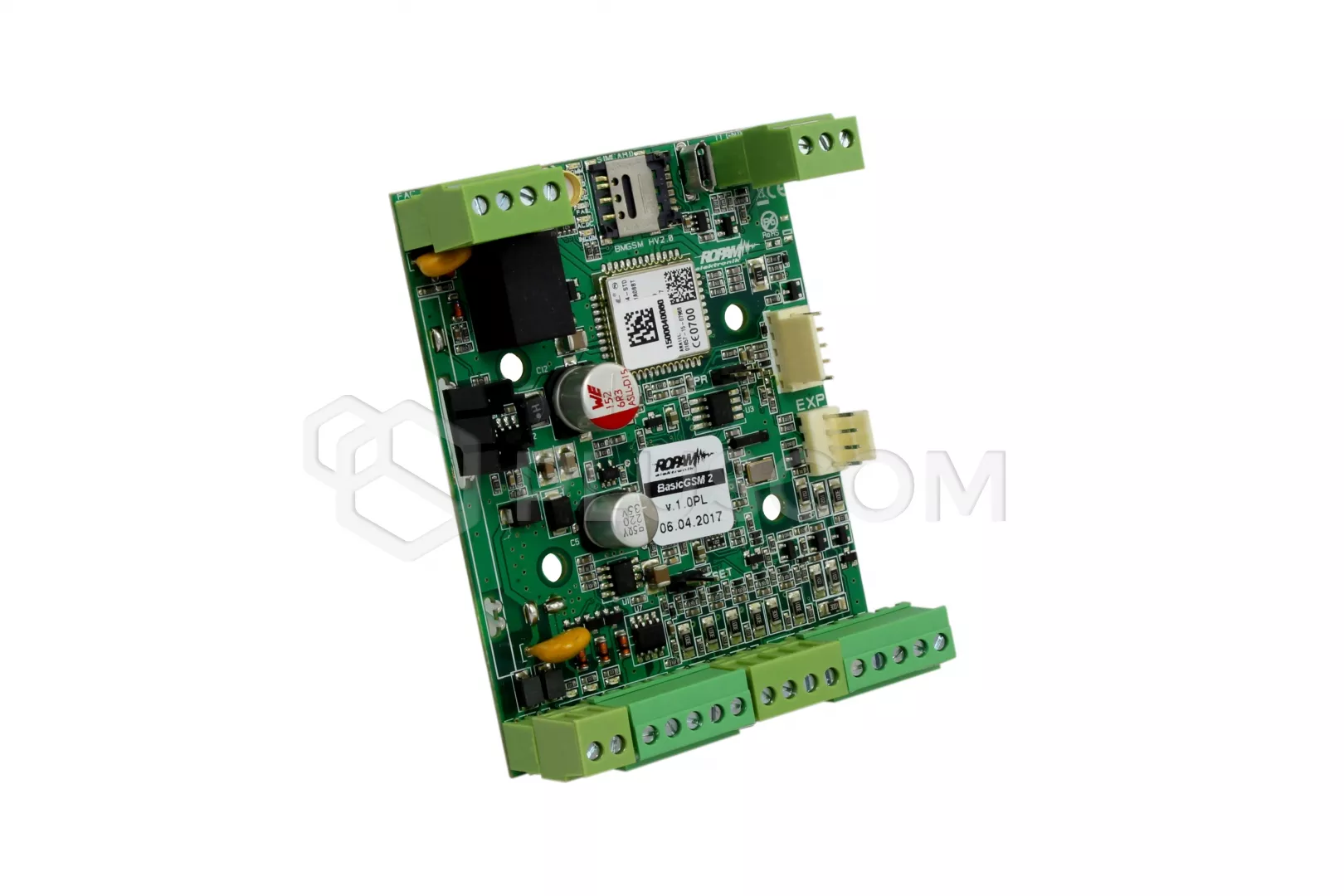

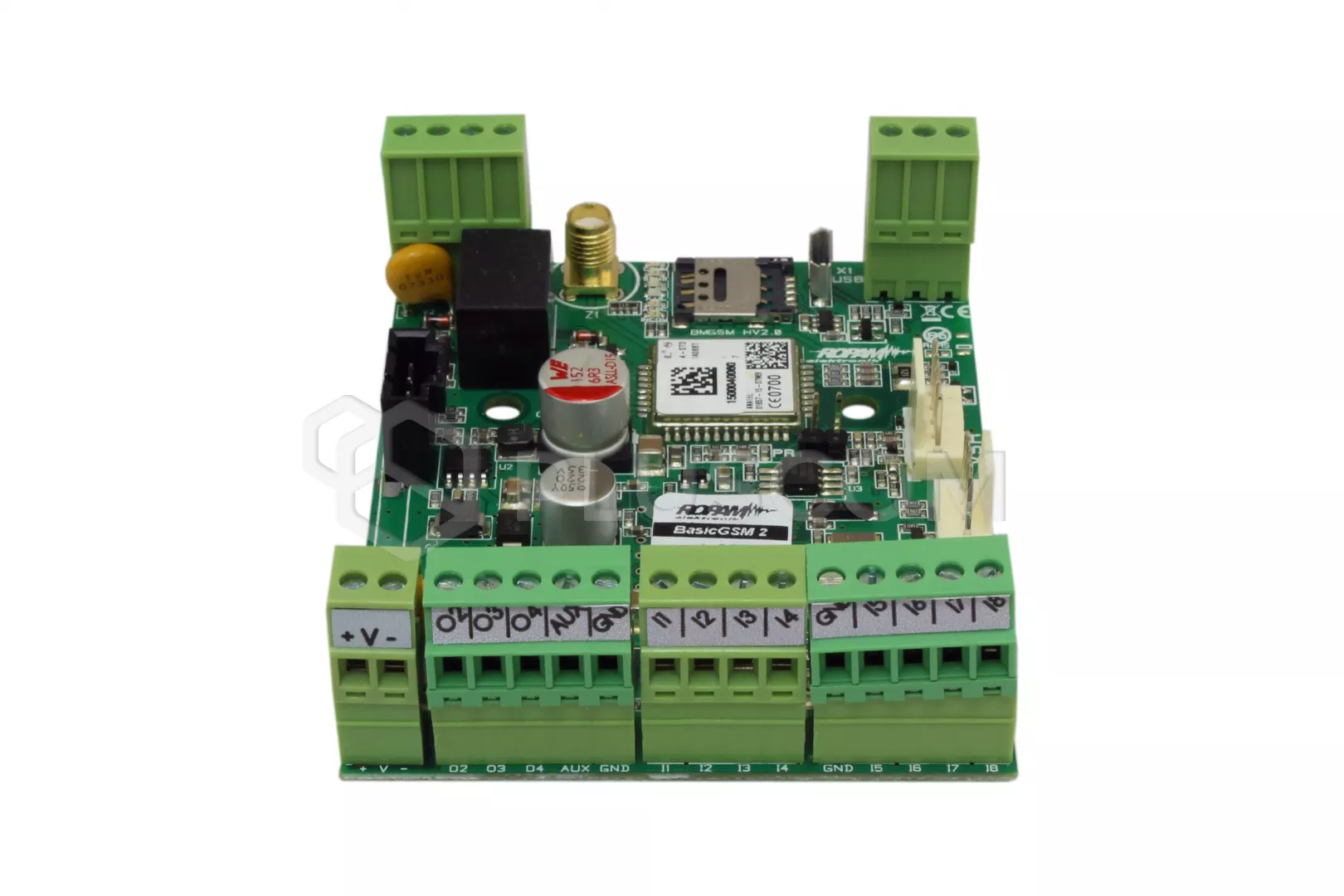

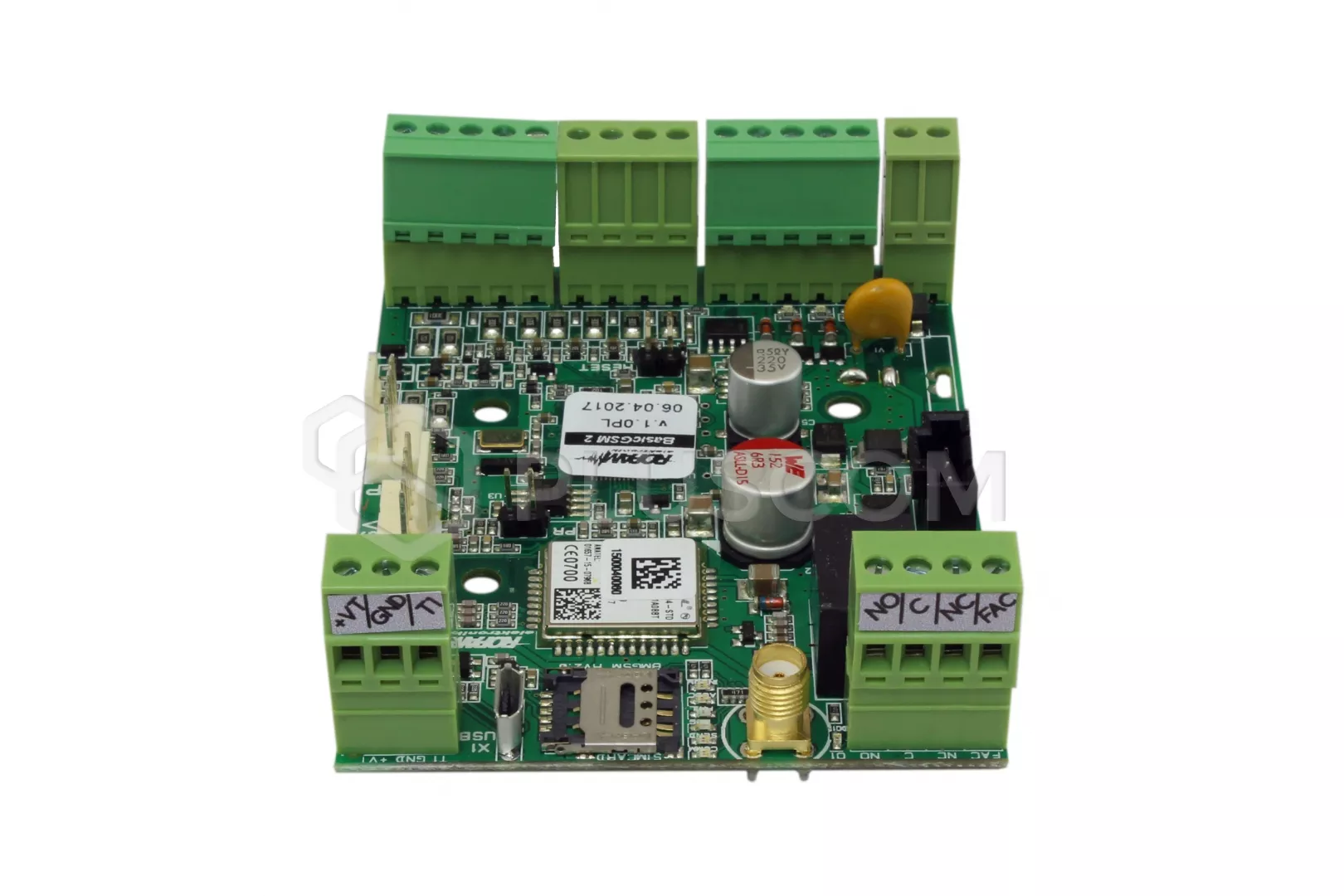

Ropam BasicGSM 2 GSM Notification and control module 8 telephone numbers, 8 inputs, 4 outputs, SMS/VOICE/CLIP/RING, 12V/DC, built-in GSM modem,

GENERAL DESCRIPTION:

• built-in GSM modem (industrial)
• operation with eight telephone numbers (call numbers):
• • cooperation with SMS/CLIP monitoring centers
  • signaling to private call numbers: SMS, VOICE, SMS+VOICE, CLIP
• sending system status information via SMS:
• • programming messages from individual inputs
  • independent violation and restore (input) information
  • power supply failure messages
  • system status messages: inputs, outputs, failures
• sending voice messages:
• • cooperation with VSR-2 voice synthesizers (16 messages)or VSR-1 (1 message)
  • cooperation with voice module, object listening
• inputs [8]:
• • wide range of reactions, e.g. arm/disarm, delayed, counter
  • choice of operating configuration: 2EOL/NC, 2EOL/NO, EOL, NC, NO (I1-I6)
  • triggered inputs „+12V” or „GND„ with configuration NO-NC (I7, I8)
• outputs [4]:
  • one high current (1A) output and three OC (100mA) outputs
  • controlled with: SMS, CLIP, inputs, module status (alarm, failure etc.)
  • programmable mode of operation: MONO- (time) or BISTABLE
  • logical functions I/O and O/O: AND, OR, NOR, XOR
• communication test function:
• • cyclical (every 1-99 hours), according to clock
  • triggered by input, external polling
  • programmable test type: SMS or CLIP (RING)
• module programming:
• • local by PC: USB
  • remote by SMS (selected parameters)
  • remote by PC: modem download (via GPRS)
  • firmware update function (FLASH memory)
• visual signalization:
• • visual signalization of operation and failure status
  • visual signalization of outputs status
• events memory:
• • events registration e.g. alarm arming/disarming
  • event date and time (RTC)
  • register of 1000 events with an overwrite function
• power supply:
• • 9V-14V DC
  • permanently monitors the value of the supply voltage U<11V

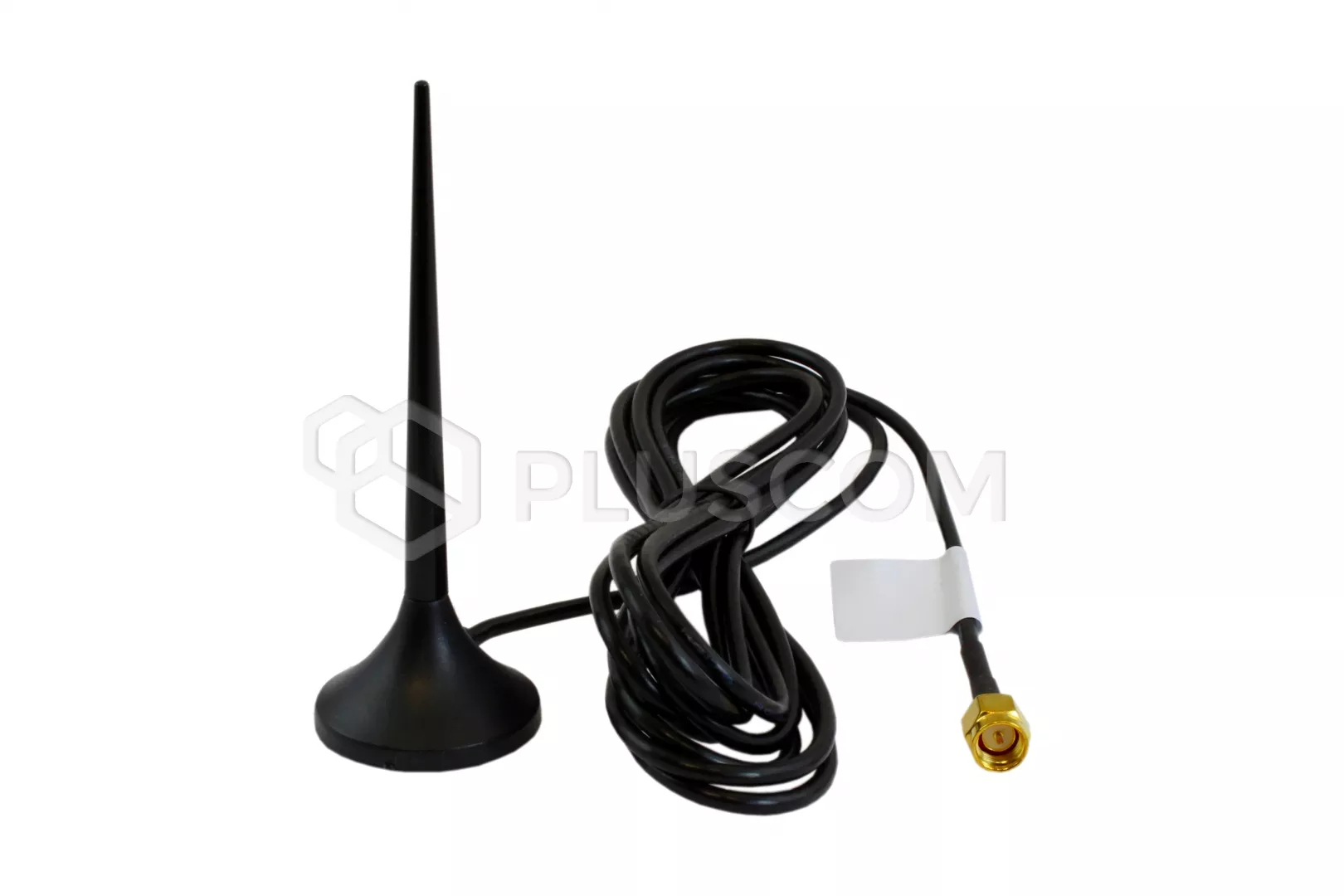

ROPAM AT-GSM-MAG GSM antenna with a magnetic base, dual band 900/1800MHz, SMA plug a dual-band GSM antenna with a magnetic base dedicated to ROPAM notification modules and other with an SMA socket. The magnetic base enables easy and secure mounting on a metal surface, e.g. a housing.

SPECIFICATIONS:

• frequency: dual-band, 900/1800 MHz
• assembly: magnetic base
• connector: SMA plug, RG174 cable, length 2.5m

• gain: 2.2 dBi max
• VSWR: <2.0
• impedance: 50 Ω
• polarization: vertical, omnidirectional
• dimensions: ø31mm x 72mm
• black colour
• working temperature: -40°C...85°C
