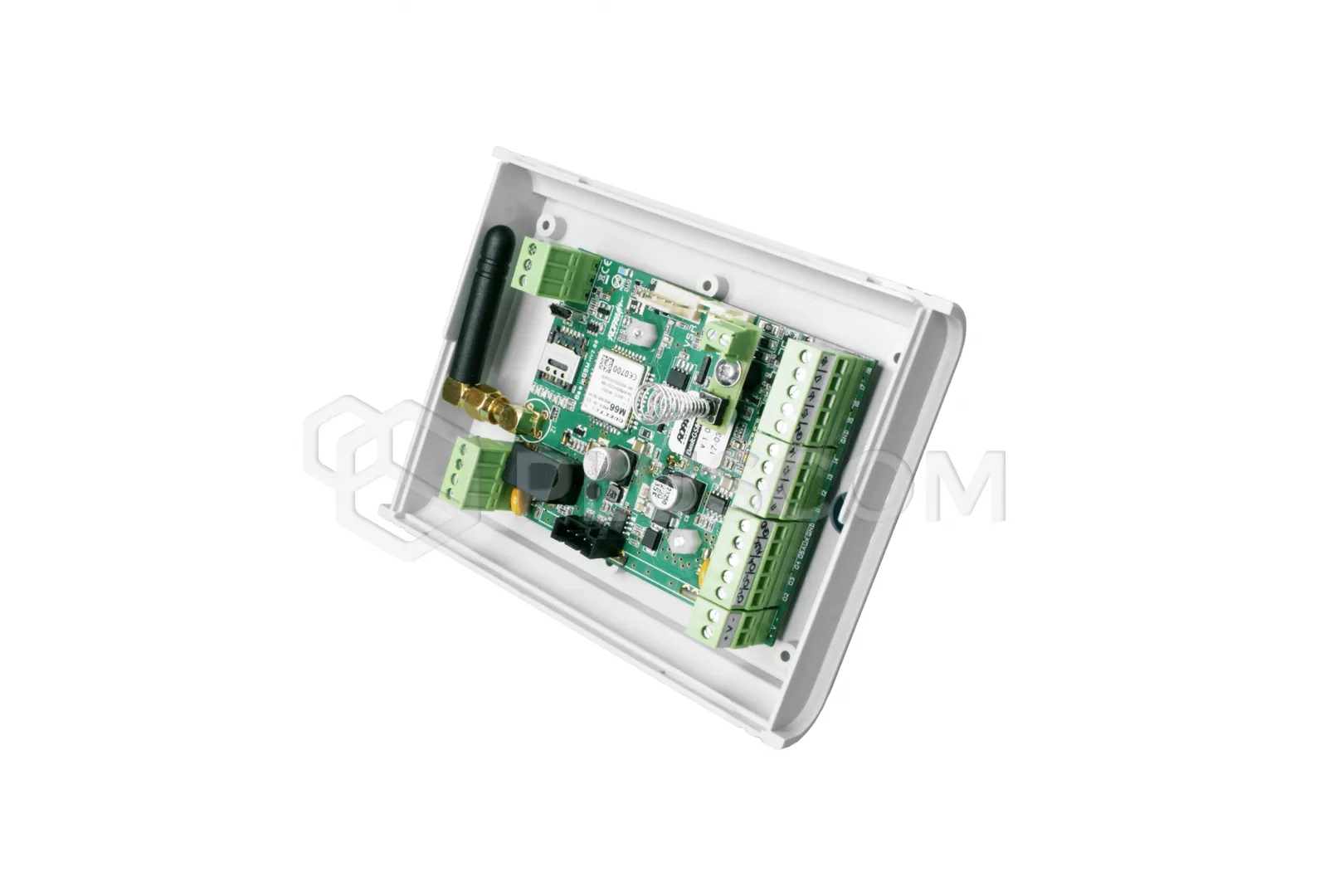

Ropam BasicGSM-BOX 2 GSM notification and control module

Ropam BasicGSM-BOX 2 GSM notification and control module

The kit consists of:

• of the BasicGSM 2 module
• AT-GSM-MINI90 antennas
• universal ABS housing

Terminal BasicGSM2 is dedicated to integration with others devices (e.g. alarm control panels, PLC controllers, relays, controllers) through binary inputs and outputs. Thanks to the built-in GSM modem it is possible to transmit events from the system via SMS, VOICE, E-MAIL. Down SMS, CLIP, DTMF are used for control and monitoring.

GENERAL DESCRIPTION:

• built-in GSM modem (industrial)
• operation with eight telephone numbers (call numbers):
• • cooperation with SMS/CLIP monitoring centers
  • signaling to private call numbers: SMS, VOICE, SMS+VOICE, CLIP
• sending system status information via SMS:
• • programming messages from individual inputs
  • independent violation and restore (input) information
  • power supply failure messages
  • system status messages: inputs, outputs, failures
• sending voice messages:
• • cooperation with VSR-2 voice synthesizers (16 messages)or VSR-1 (1 message)
  • cooperation with voice module, object listening
• inputs [8]:
• • wide range of reactions, e.g. arm/disarm, delayed, counter
  • choice of operating configuration: 2EOL/NC, 2EOL/NO, EOL, NC, NO (I1-I6)
  • triggered inputs „+12V” or „GND„ with configuration NO-NC (I7, I8)
• outputs [4]:
  • one high current (1A) output and three OC (100mA) outputs
  • controlled with: SMS, CLIP, inputs, module status (alarm, failure etc.)
  • programmable mode of operation: MONO- (time) or BISTABLE
  • logical functions I/O and O/O: AND, OR, NOR, XOR
• communication test function:
• • cyclical (every 1-99 hours), according to clock
  • triggered by input, external polling
  • programmable test type: SMS or CLIP (RING)
• module programming:
• • local by PC: USB
  • remote by SMS (selected parameters)
  • remote by PC: modem download (via GPRS)
  • firmware update function (FLASH memory)
• visual signalization:
• • visual signalization of operation and failure status
  • visual signalization of outputs status
• events memory:
• • events registration e.g. alarm arming/disarming
  • event date and time (RTC)
  • register of 1000 events with an overwrite function
• power supply:
• • 9V-14V DC
  • permanently monitors the value of the supply voltage U<11V

The AT-GSM-MINI90 antenna works with GSM modules and alarm control panels of ROPAM. Intended for internal use. 90 ° angled omnidirectional antenna.

PARAMETERS:

• fregrensy: dual-band, 900/1800 MHz
• assembly: screwed into the FME-M connector
• gain: 2 dBi
• VSWR <2.0
• impedance: 50 Ω
• polarization: vertical
• dimensions: ø12x55mm
• black color
• working temperature: -20°C...60°C
