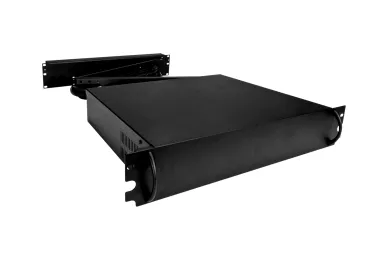

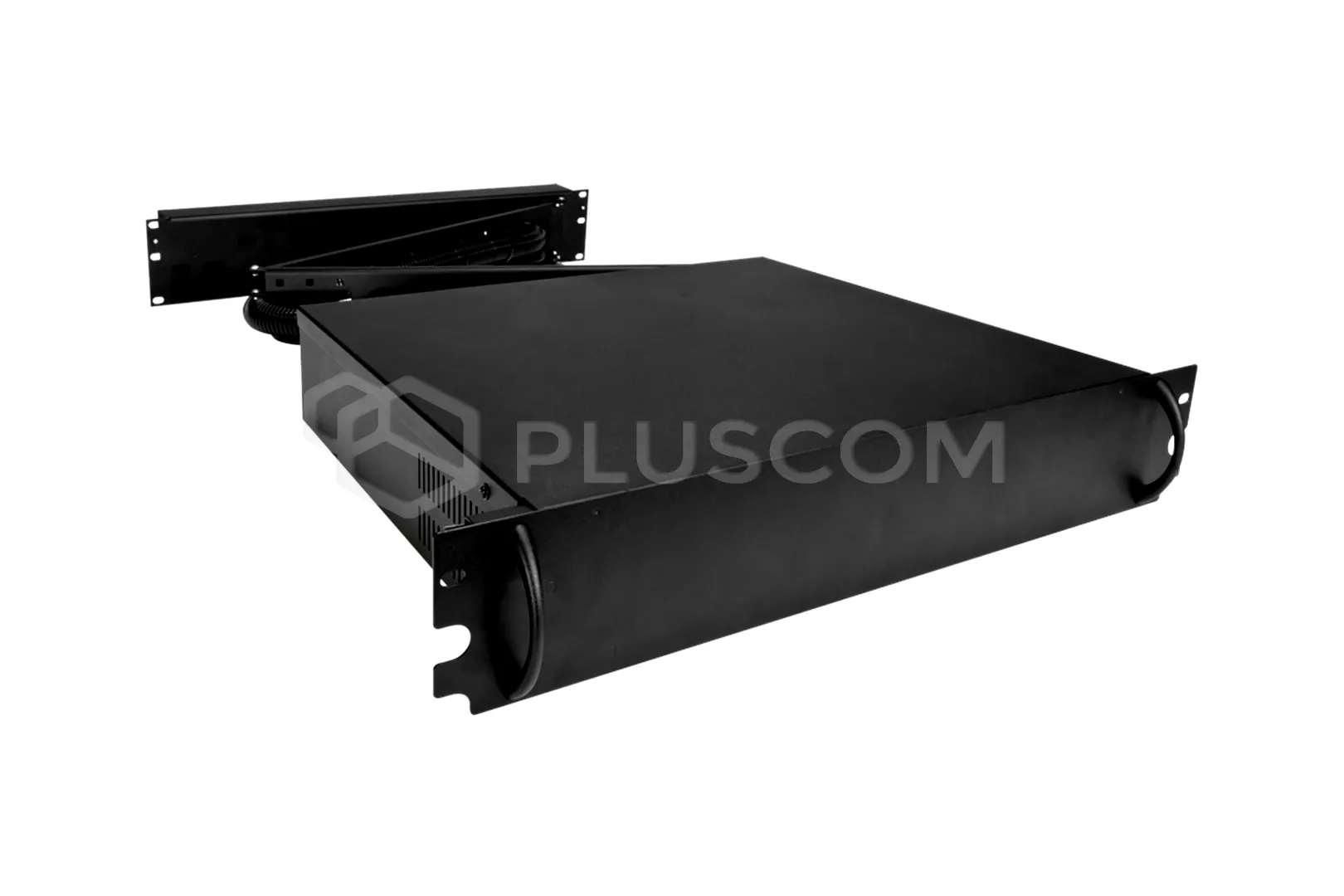

Rack 19'' enclosure Pulsar ARAD-S2

568,19 EUR including 23.00% VAT
Product code: #10488
Manufacturer: Pulsar
  • width 19'', height 2U
  • dimensions: 395x89x400mm
  • tampering protection
  • mounting plate
  • PCB Signal Boards
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
ZRS42611 42U RACK cabinet, floor standing, ready-to-assemble 600x1000 ZRS2761 27U RACK cabinet, floor standing, fully assembled 600x1000 RS4261 42U RACK cabinet, floor standing, ready-to-assemble 600x1000 RS2761 27U RACK cabinet, floor standing, ready-to-assemble 600x1000 RS4288 42U RACK cabinet, floor standing, ready-to-assemble 800x800 RS4281 42U RACK cabinet, floor standing, ready-to-assemble 800x1000 ZRS4268 Szafa RACK 42U stojąca złożona 600x800 RS4268 42U RACK cabinet, floor standing, ready-to-assemble 600x800 ZRS2768 27U RACK cabinet, floor standing, fully assembled 600x800 RS2768 27U RACK cabinet, floor standing, ready-to-assemble 600x800

Pulsar ARAD-S4 (v. 1.0) Security enclosure 4U/400mm/48/17Ah for RACK 19" cabinets two-level


The metal RACK-Security enclosure is designed for mounting the alarm control panel and the input/output modules in freestandingRACK19” cabinets with depths in the range from 800 to 1000mm. It consists of two elements:
  • Patch Panel is used to switch between the YTDY 6x0,5 cable with copper cores and the elastic cable supplying signals and power to the control panel.
  • Pull out enclosure with a 2U height – alarm control panel and input and output modules are mounted in this section - with a space for 7Ah battery, transformer, and the ARAW45 fan (transformer and fan are not included)

Pulsar ARAD-S2

Pulsar ARAD-S2

Both ARAS800 and ARAS1000 rails - selected depending on the depth of a RACK cabinet - constitute the load bearing part of the enclosure (not included). The enclosure is fitted with 3 printed circuit boards (PCB) allowing connection of signal, power and control cables. Each of the boards has 8 pairs of terminals designed to operate at a voltage of 30VDC and a maximum current of 1,5A. In addition, each one is fitted with the 230VAC power board. The enclosure is fitted with 3 tamper switches.
  • Pulling out the enclosure from RACK profiles
  • Enclosure opening
  • Patch Panel opening
Universal holes in the enclosure allow mounting of control panels and expansion modules of the following companies:
DSC, PARADOX, RISCO, SATEL, PYRONIX, CROW, TELMOR, ROEL, ROGER, EBS and PULSAR

Pulsar ARAD-S2

Pulsar ARAD-S2

Pulsar ARAD-S2

Pulsar ARAD-S2



SPECIFICATIONS:
  • Mounting dimensions: W=19", H=3U
  • Dimensons: 395x89x400mm
  • place on battery: 12V/7Ah
  • tamper protection:
  • Tamper protection:
    • 3x – pulling out the enclosure from RACK profiles
    • enclosure opening
    • patch panel opening
  • Material:  1 / 1,5mm, kolor RAL9004
  • PCB Signal Boards:
    • A/B (C/D, E/F) Board – 8 signal lines - 30VDC/1,5A – 1 pair
    • C/D Board – 8 signal lines - 30VDC/1,5A – 1 pair
    • E/F Board – 8 signal lines - 30VDC/1,5A – 1 pair
  • PCB Power Board: 230VAC/max.5A
  • weight: 9.5kg

Pulsar ARAD-S2

Pulsar ARAD-S2


PANELS WHICH CAN BE MOUNTED:

  • protective tube MM020 ø21/ø29 – 0,5m
  • protective tube MM064 ø6/ø10 – 0,5m
  • cable tie (black) 100x2,5 - 10 pieces
  • cable tie (black) 190x4,8 - 4 pieces
  • Six M6 screws+ cage nuts + plastic washer
  • 2 M6 screws + plastic washer

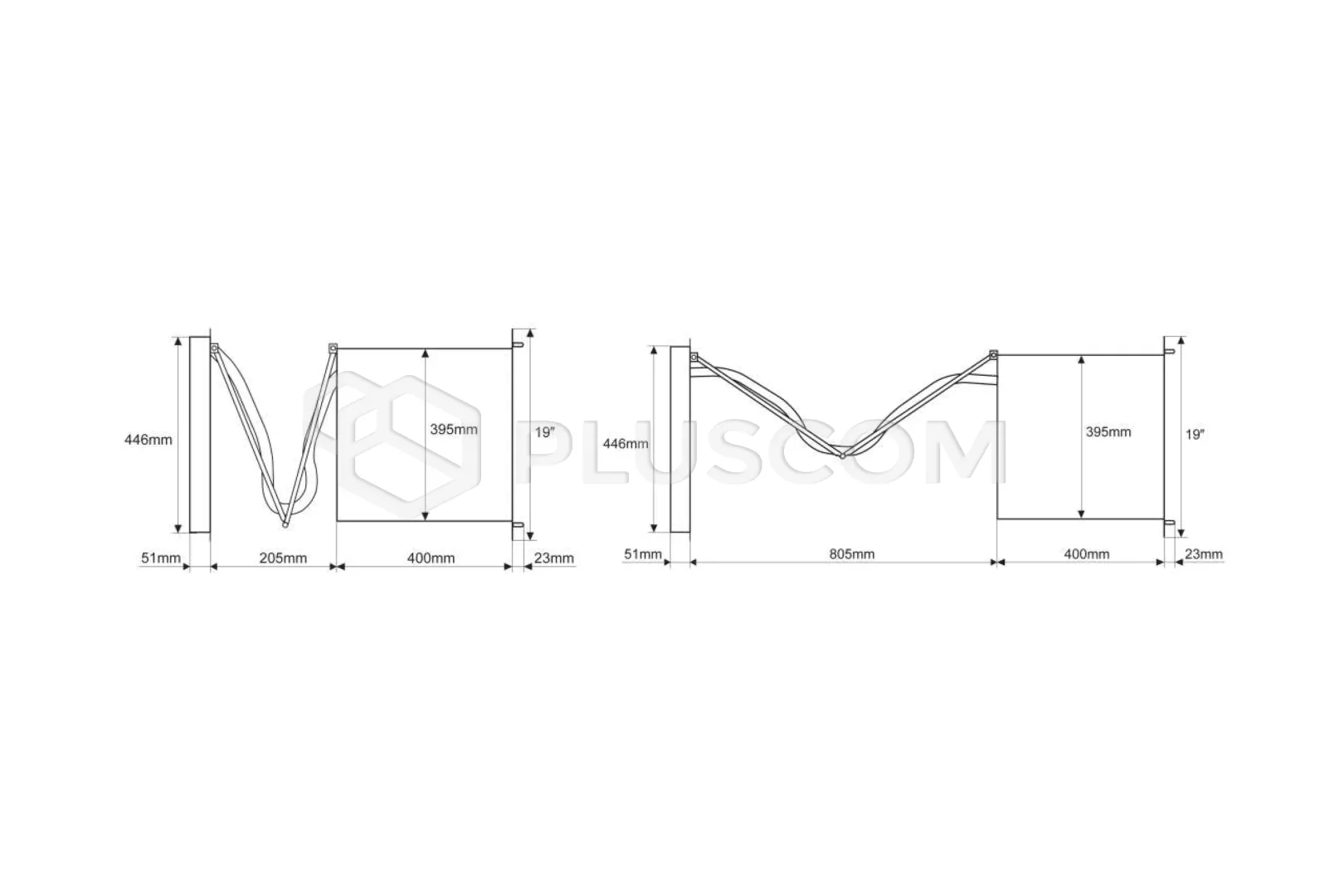

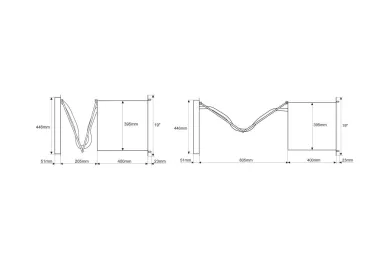

Dimensions:

Dimensions:


Download
Datasheet 0.14 MB
User Manual 1.33 MB
