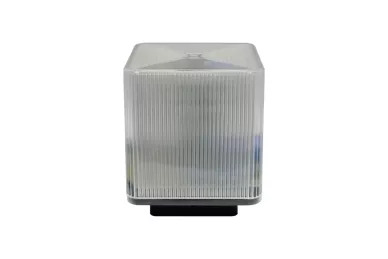

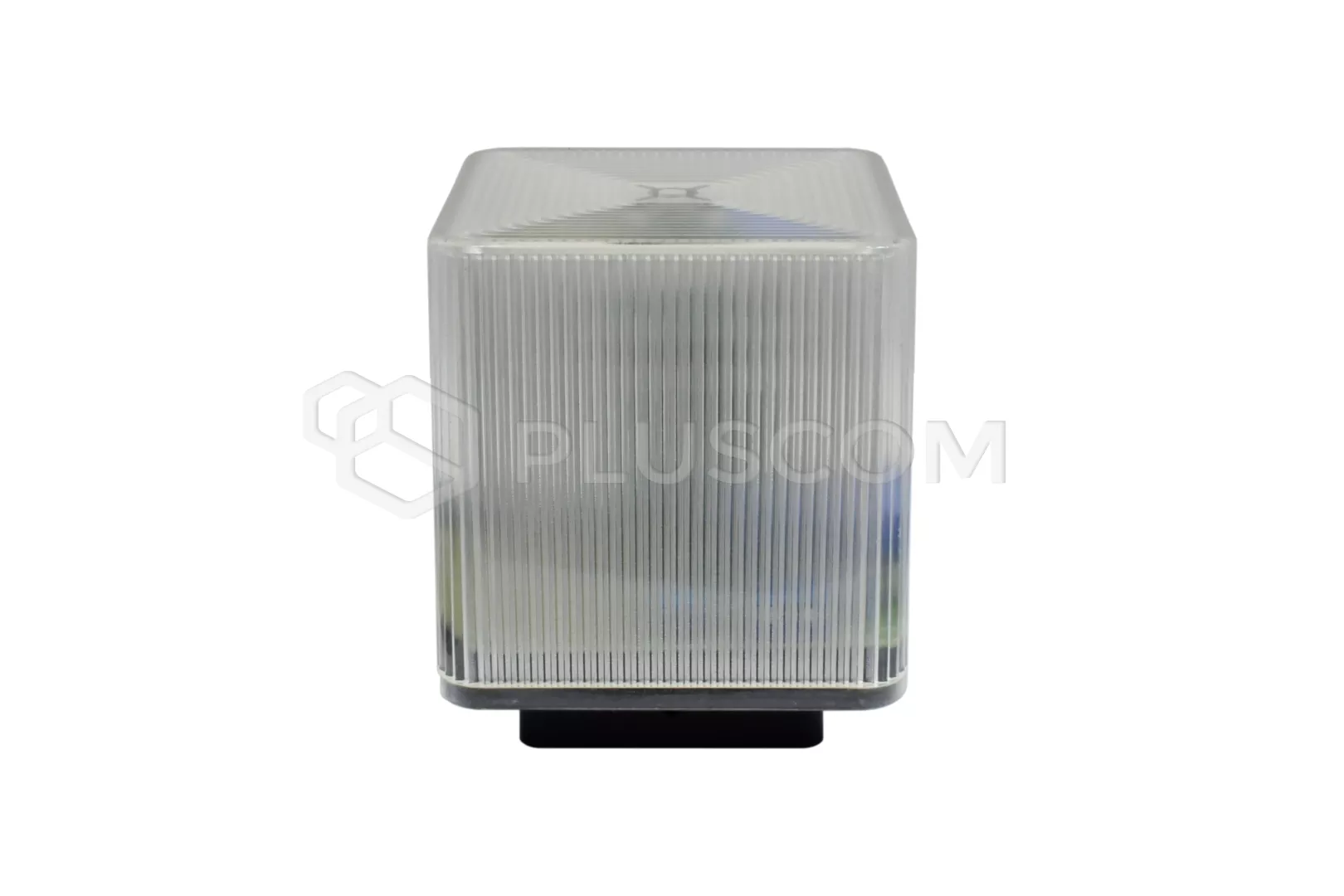

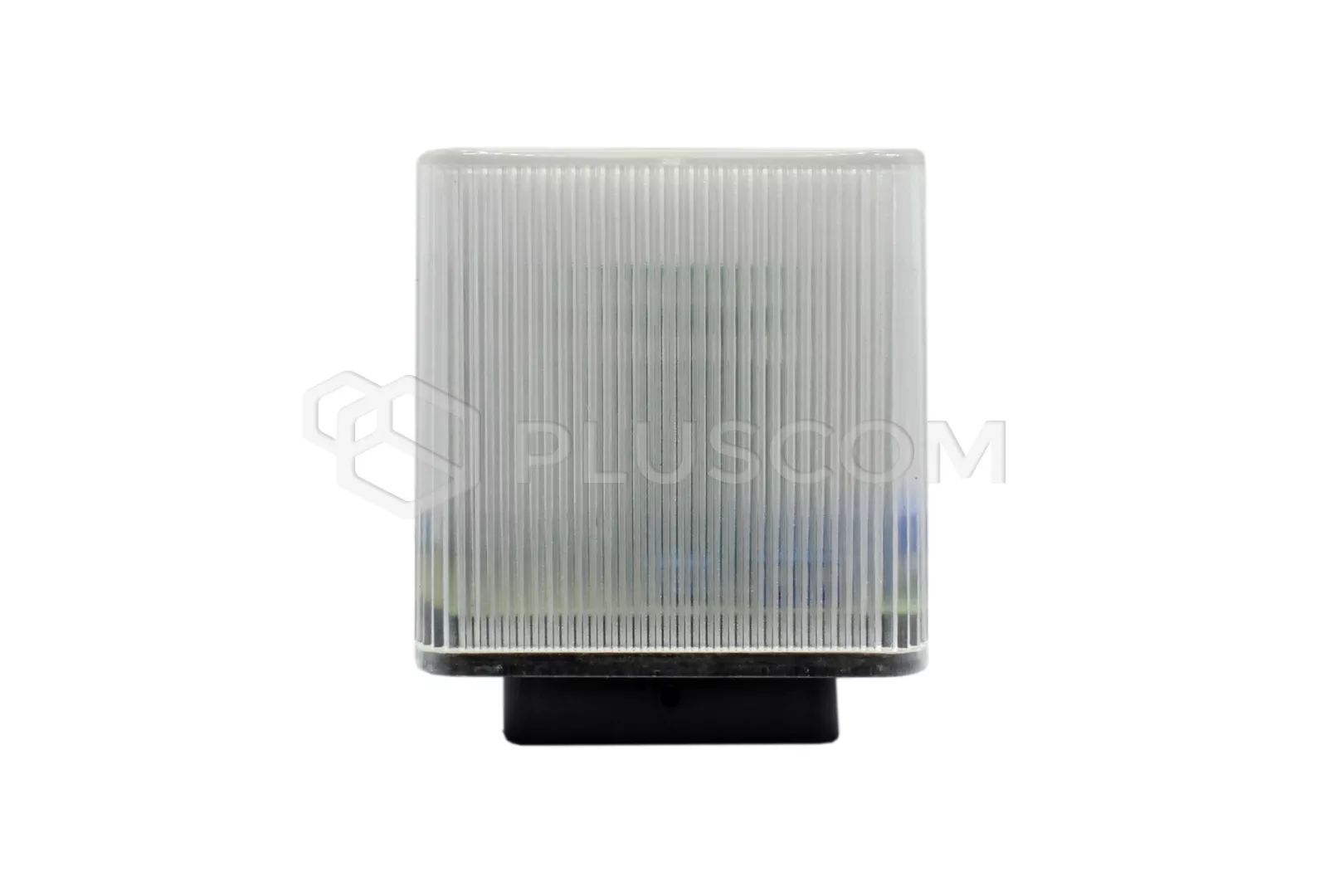

Proxima Square LED lamp 12-24V AC/DC or 230V AC

38,43 EUR including 23.00% VAT
In stock. Ships today!
Product code: #18357
Manufacturer: Proxima
  • LED-light source
  • Continuous operation, intermittent operation 1Hz
  • Power: DC/AC 12-24V lub AC 230V
  • Housing: IP54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Faac 10563046 Delta 3-741 Starter kit Nice RUN1500 MYGO Set for sliding gates up to 1500kg Faac Delta 3-741 Starter kit Faac DELTA 2 Starter Set - 740 Faac 740 E Z16 230V drive with encoder up to 500kg Nice Run 1500 R10 gear motor with built-in control unit up to 1500kg Nice Run 1800 gear motor with built-in control unit for sliding gate Nice THOR1500 Sliding Gate Kit for Gates up to 1500kg Nice RUN1800 MYGO set for sliding gates up to 1800kg

Proxima signal lamp LED Square 12-24V AC/DC, 230V AC with built-in antenna 433MHz



The signal lamp is a practical and functional element of home automation. Informs and warns about the operation of the drive performs safety functions so as not to approach the gate wing.

The square lamp is a universal product:
  • it can be powered by 12-24V AC/DC or 230V AC
  • has a work mode switch: continuous operation / intermittent operation 1.5Hz (configuration by means of a jumper)
  • can be mounted on a vertical or horizontal plane, handles are needed in the set
  • is equipped with an antenna that extends the range of the pilots (433MHz)
  • the light source is bright, energy-saving LED diodes
TECHNICAL PARAMETERS:
  • light source: a set of bright LEDs
  • power supply: AC / DC 12-24V or AC 230V
  • 4W power consumption for AC 230V
  • 24V power consumption: (AC 150mA), (DC 80mA)
  • flashing frequency: 1.5Hz
  • dimensions: 90x90x90mm (without holder)
  • working temperature: -20°C...60°C
  • protection class: IP54

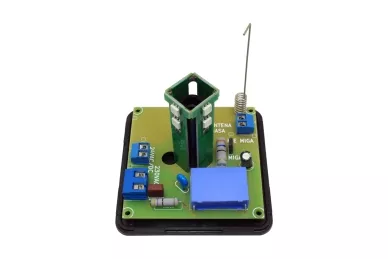

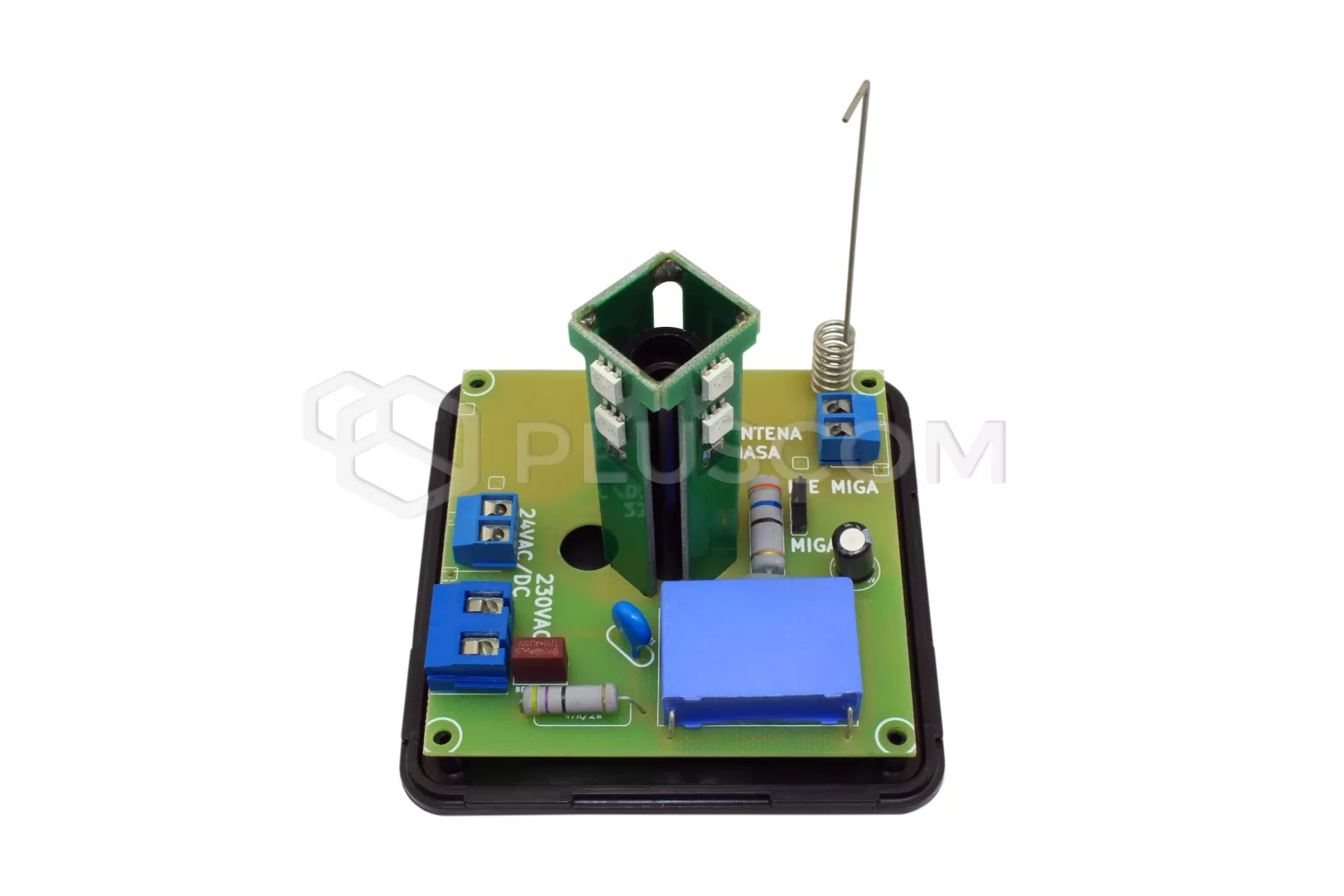

Interior of the lamp:

Interior of the lamp:

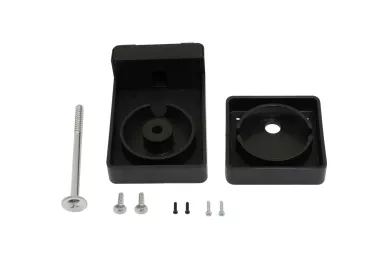

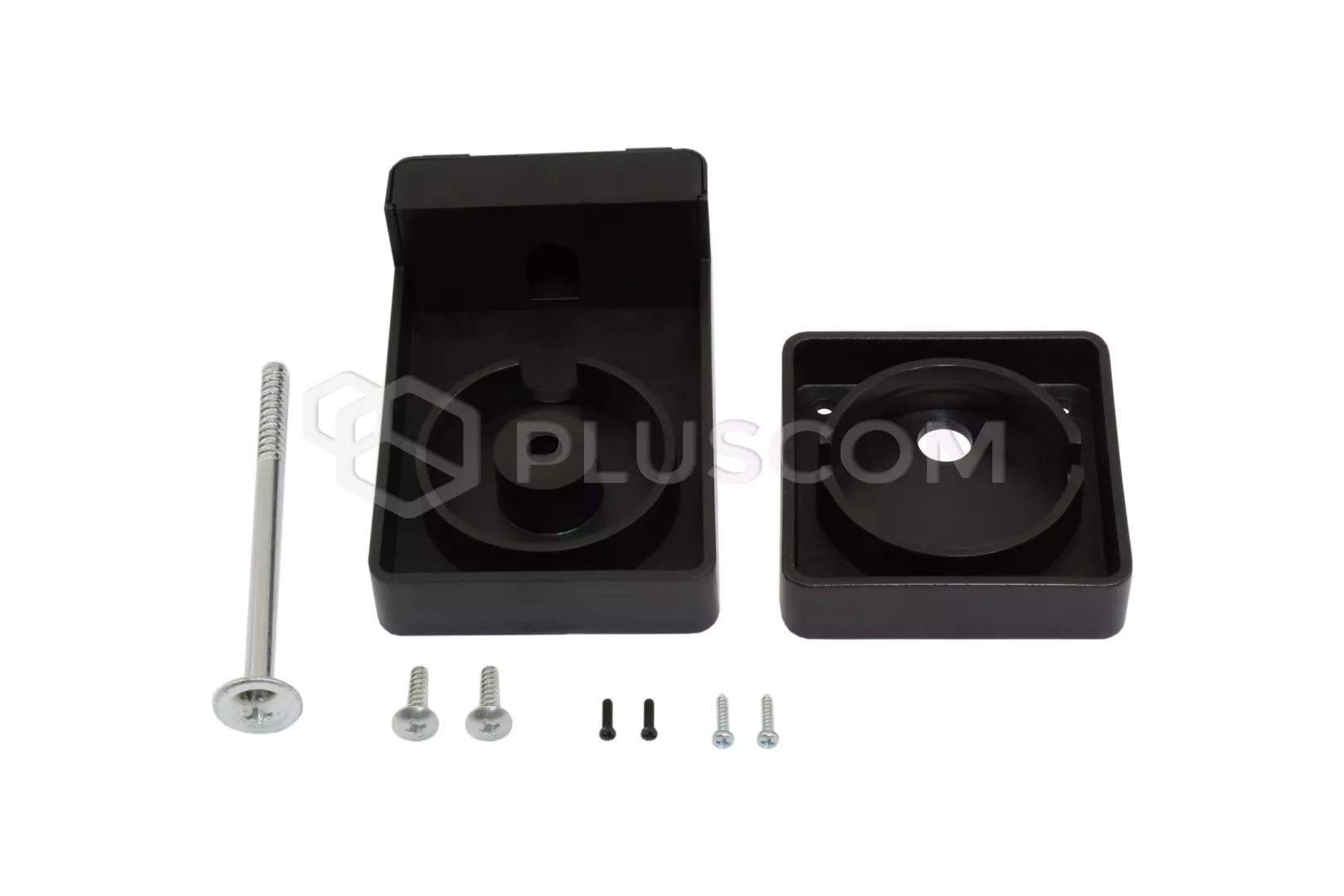

Handle for vertical, horizontal mounting:

Handle for vertical, horizontal mounting:

Download
Datasheet 1.98 MB
Instruction 0.3 MB
