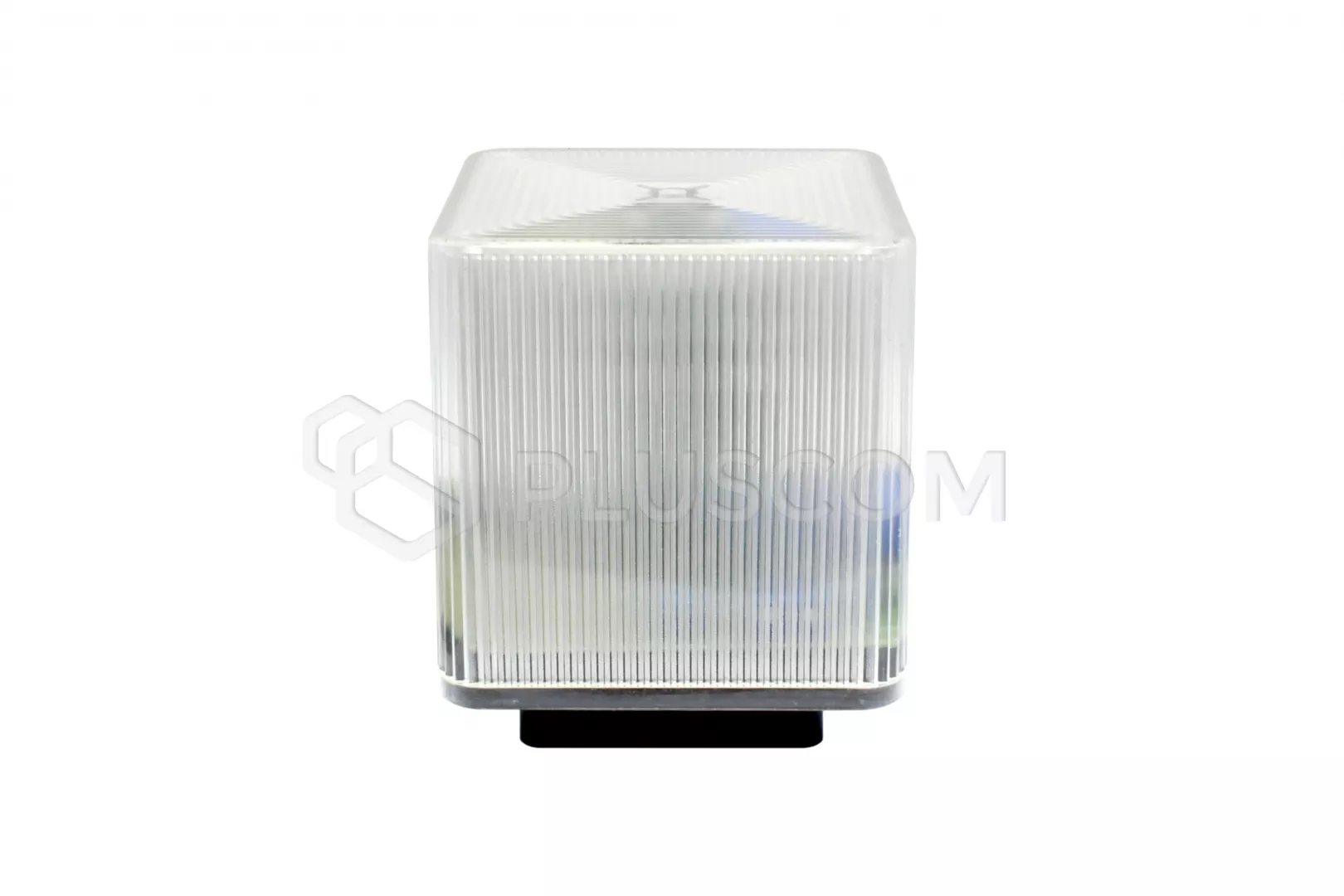

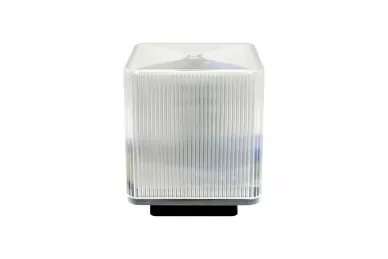

Proxima Square Lamp NW2 12-24V AC/DC or 230V AC

77,52 EUR including 20.00% VAT
Product code: #20649
Manufacturer: Proxima
  • LED-light source
  • Built-in 2-channel NW2 receiver 433.92MHz
  • Continuous operation, intermittent operation 1Hz
  • Power: DC/AC 12-24V lub AC 230V
  • Housing: IP54
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice Robus 600 R10 gear motor with built-in control unit Nice Run 1500 R10 gear motor with built-in control unit up to 1500kg

Proxima LED flashing lamp KWADRAT NW2 FLOR 12-24V, 230V with a built-in radio receiver

The signal lamp is a practical and functional element of home automation. Informs and warns about the operation of the drive performs safety functions so as not to approach the gate wing.

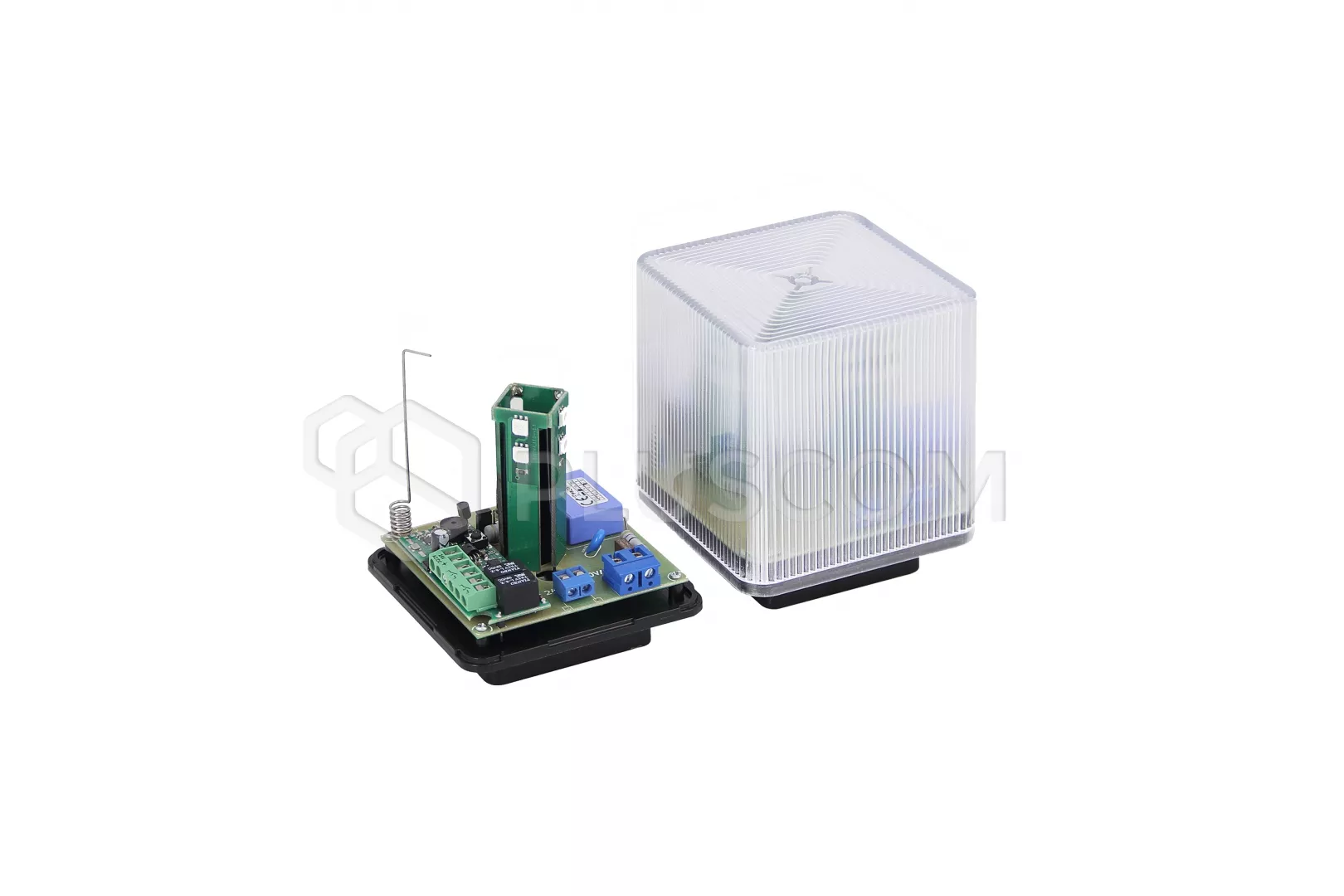

The lamp has a built-in antenna that increases the range of 433.92MHz remote controls and a 2-channel NW2 receiver 433.92MHz.
LED signal lamp QUADRAT NW2 FLOR

LED signal lamp QUADRAT NW2 FLOR



The square lamp is a universal product:
  • it can be powered by 12-24V or 230V
  • has a work mode switch: continuous operation / intermittent operation 1.5Hz (configuration by means of a jumper)
  • can be mounted on a vertical or horizontal plane, handles are needed in the set
  • the light source is bright, energy-saving LED diodes
TECHNICAL PARAMETERS:
  • light source: a set of bright LEDs
  • Outputs: 2x 24V-1A, NO relays
  • power supply: AC / DC 24V or AC 230V
  • 4W power consumption for AC 230V
  • 24V power consumption: (AC 150mA), (DC 80mA)
  • flashing frequency: 1.5Hz
  • dimensions: 90x90x90mm (without holder)
  • working temperature: -20°C...60°C
  • protection class: IP54
