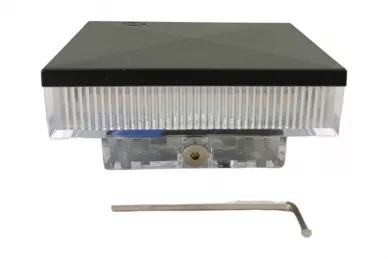

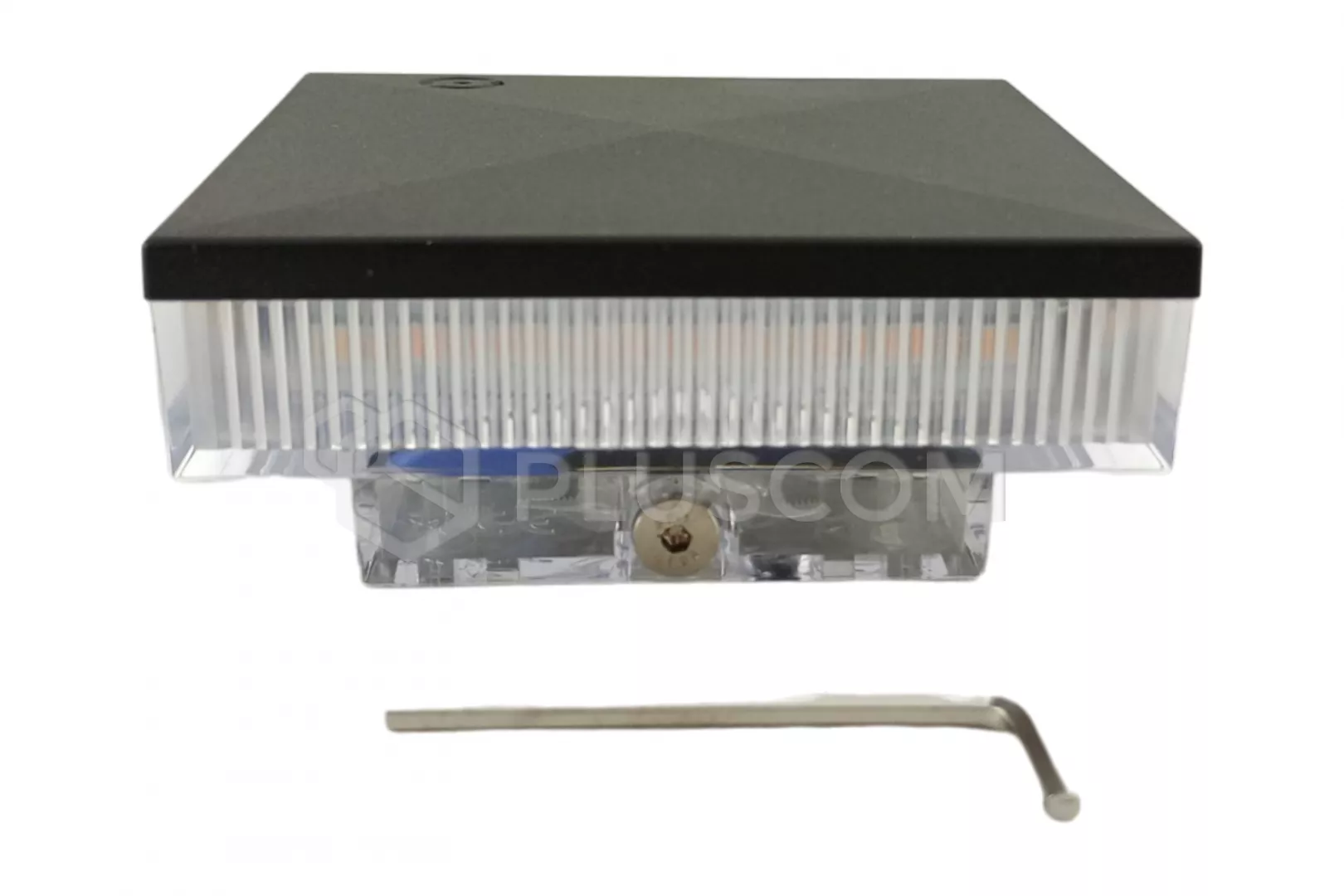

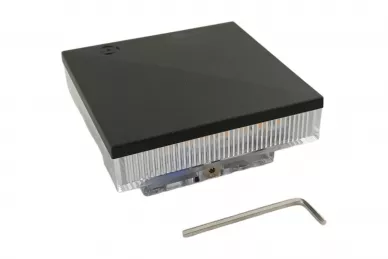

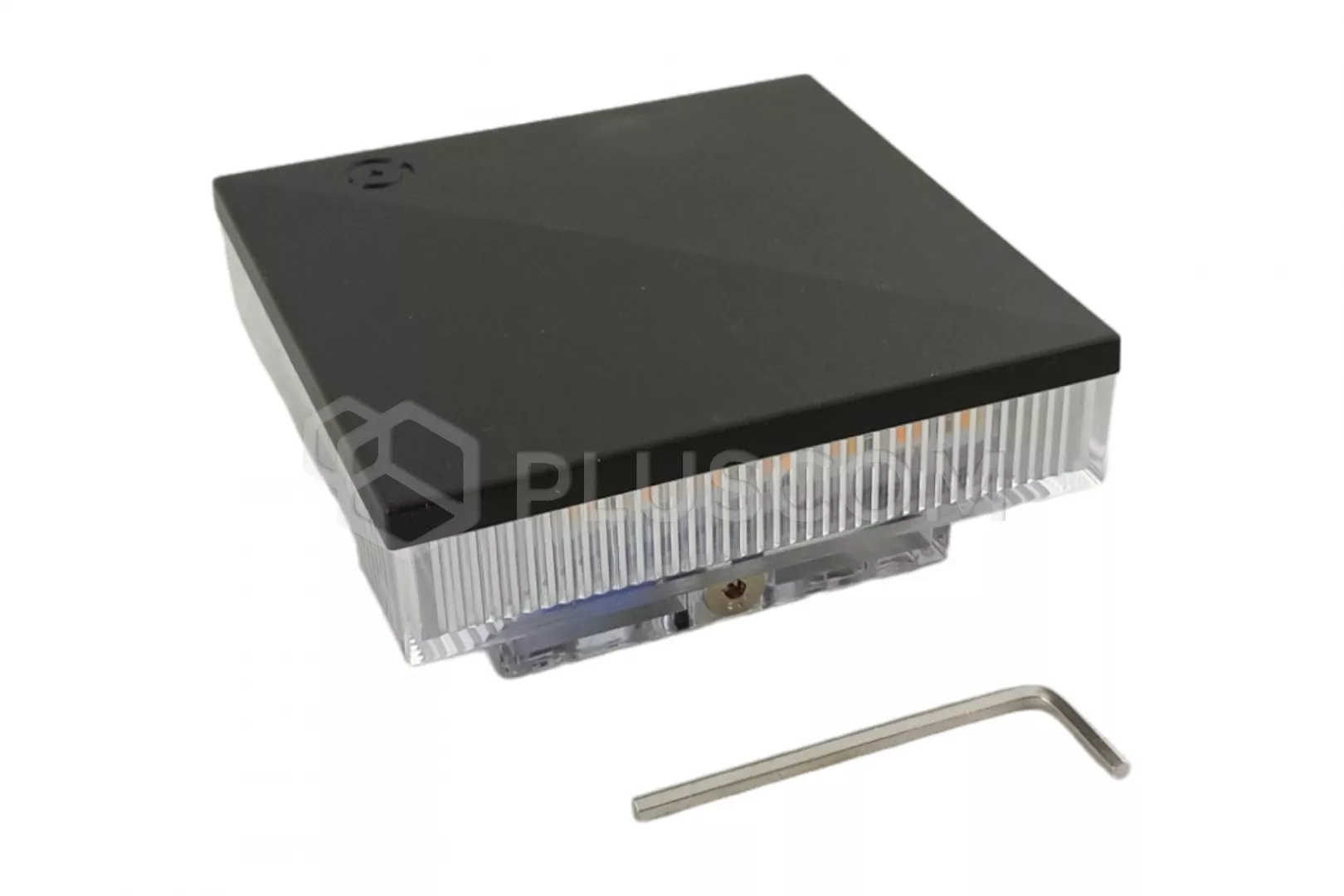

Proxima Signal and lighting bollard lamp

Proxima LED post signal lamp 12-24V AC/DC or 230V AC or 12V DC with built-in interrupter and White-Orange lighting function

The post signal lamp is an eye-catching ending to the gate post universal power supply. It is a practical and functional element of automation home. It informs and warns about the operation of the drive and performs safety functions do not approach the gate leaf.
The lamp has an LED light source and is powered by 2-24V AC/DC or 230V AC (orange) and 12V DC (white). The built-in interrupter allows you to get long lamp life.

The lamp has been expanded with a lighting function. When opening the gate, the lamp switches to signaling mode

Lamp installation

• the lamp is the end of a rectangular post 100x100mm, 80x100mm or 80x80mm
• the lower part of the lamp 73x73mm must fit inside the post
• you should unscrew the conical Allen screws as much as possible so that they are slightly loose push the lower part of the lamp together with the screws into the post
• with resistance
• on the least visible side of the post, drill precisely, on extension of the hexagonal screw socket, a hole with a diameter of 4 mm

TECHNICAL PARAMETERS:

• Power supply:
• • measuring: 12-24V AC/DC or 230V AC
  • white: 12V DC
• Power consumption: 230V AC: 2.5W/20VA
• Power consumption
• • orange: 170mA/12V 80mA/24V
  • white: 200mA/12V
• Light source: LED
• Blinking frequency: 1 Hz
• Operating temperature: from -20º to +60º C
• Tightness class: IP54
• Dimensions:
• • above the post: 103 x 103 x 26 mm
  • in a post 73 x 73 x 20 mm
• Weight: 253 g
