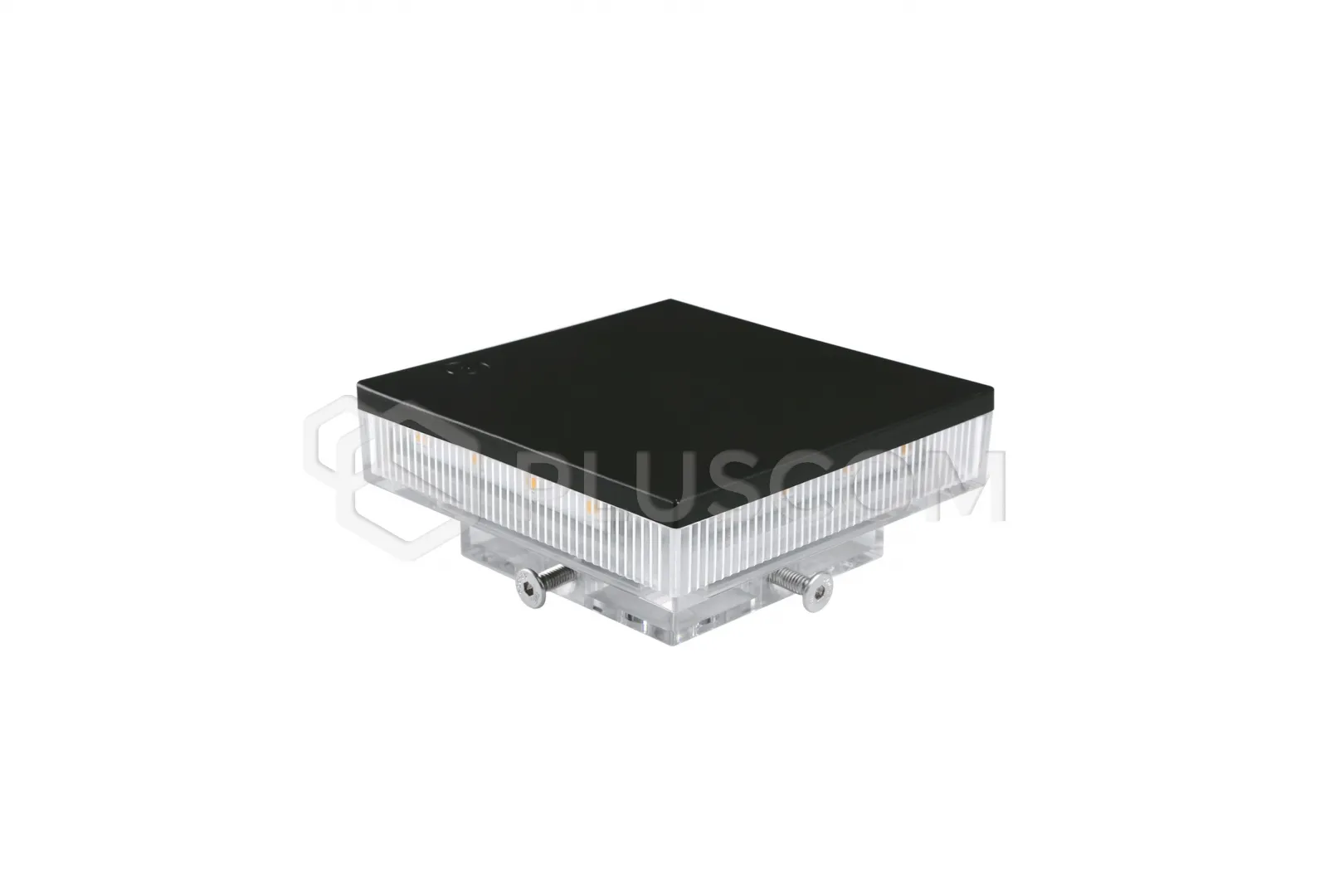

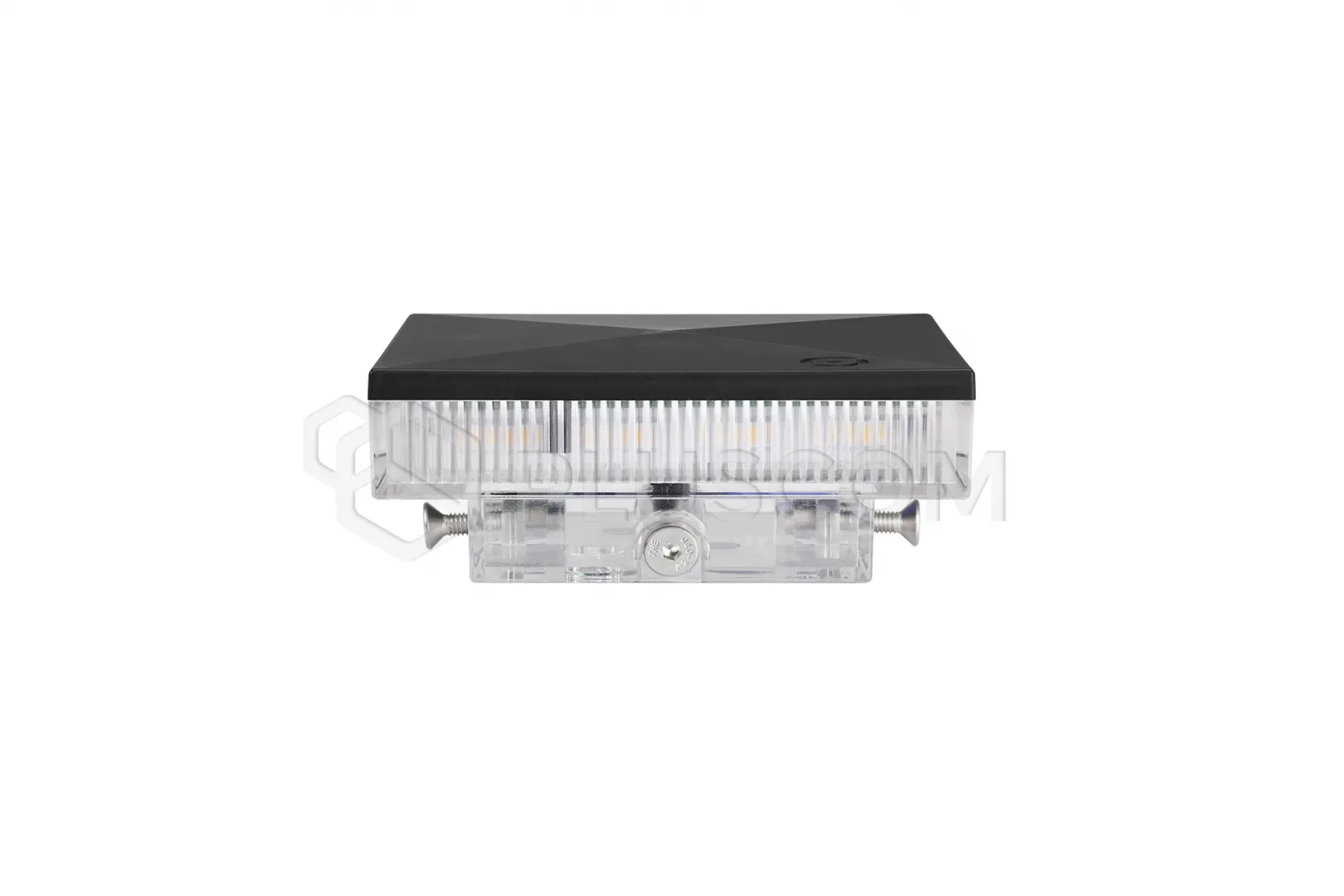

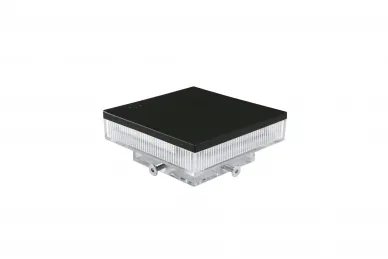

Proxima Pole semaphore lamp

Proxima LED signaling bollard lamp 12-24V AC/DC or 230V AC with built-in breaker

The post signal lamp is an effective finish to the gate post with universal power supply. It is a practical and functional element of home automation. It informs and warns about the operation of the drive, performs functions security not to approach the gate leaf.

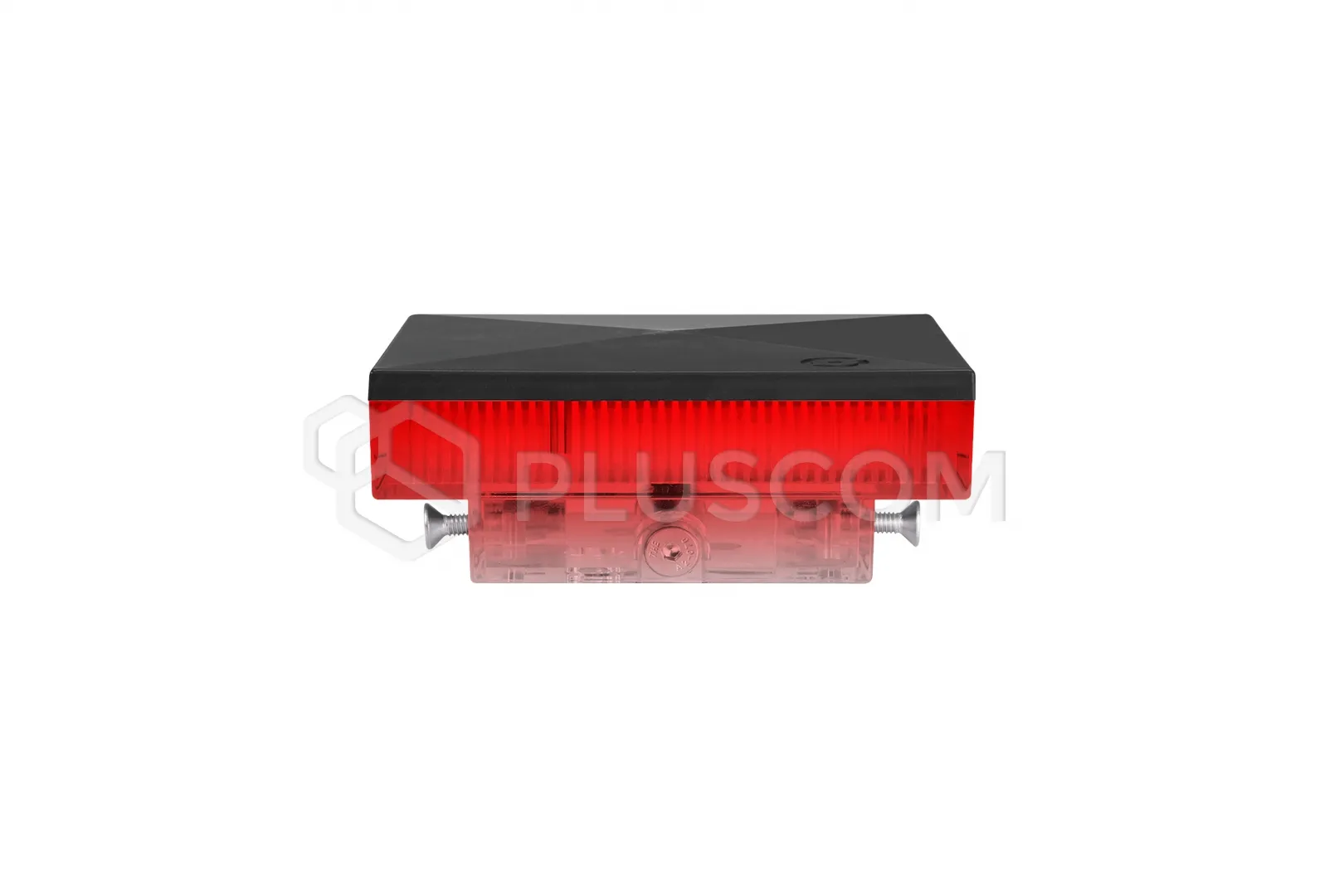

The lamp is powered by 12-24V AC/DC (green), 12-24V AC/DC (red). Thanks to the use of independent power supply for green and red LEDs, the lamp can perform the function of a semaphore. Simultaneously powering the red and green LEDs will cause the red LEDs to light up.

Lamp installation

• the lamp is the end of a rectangular post 100x100mm, 80x100mm or 80x80mm
• the lower part of the 73x73mm lamp must fit inside the post
• unscrew the tapered Allen screws as far as they will go so that the lower one can be inserted with a slight resistance part of the lamp with screws inside the post
• on the least visible side of the post be precise drill a hole with a diameter of 4mm
• in the extension of the hexagon socket of the screw

TECHNICAL PARAMETERS:

• Power supply: 12-24V AC/DC (green), 12-24V AC/DC (red),
• Power consumption: 12V; 200A, 24V; 130mA
• Light source: LED
• Operating temperature: -20º to +60º C
• Rating: IP54
• Dimensions: above the post; 103 x 103 x 26 mm, in a post 72 x 72 x 20 mm
• Weight: 253g
