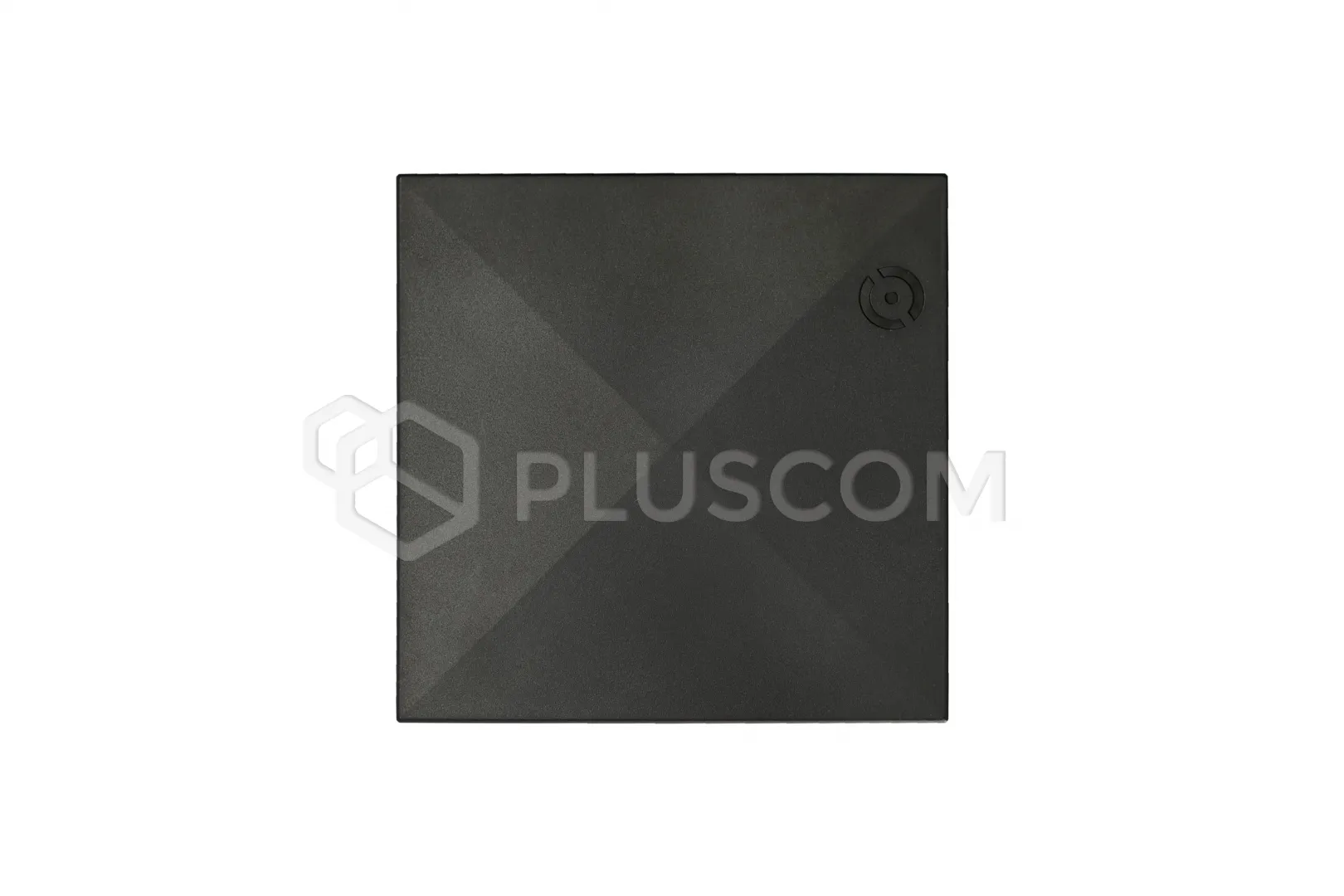

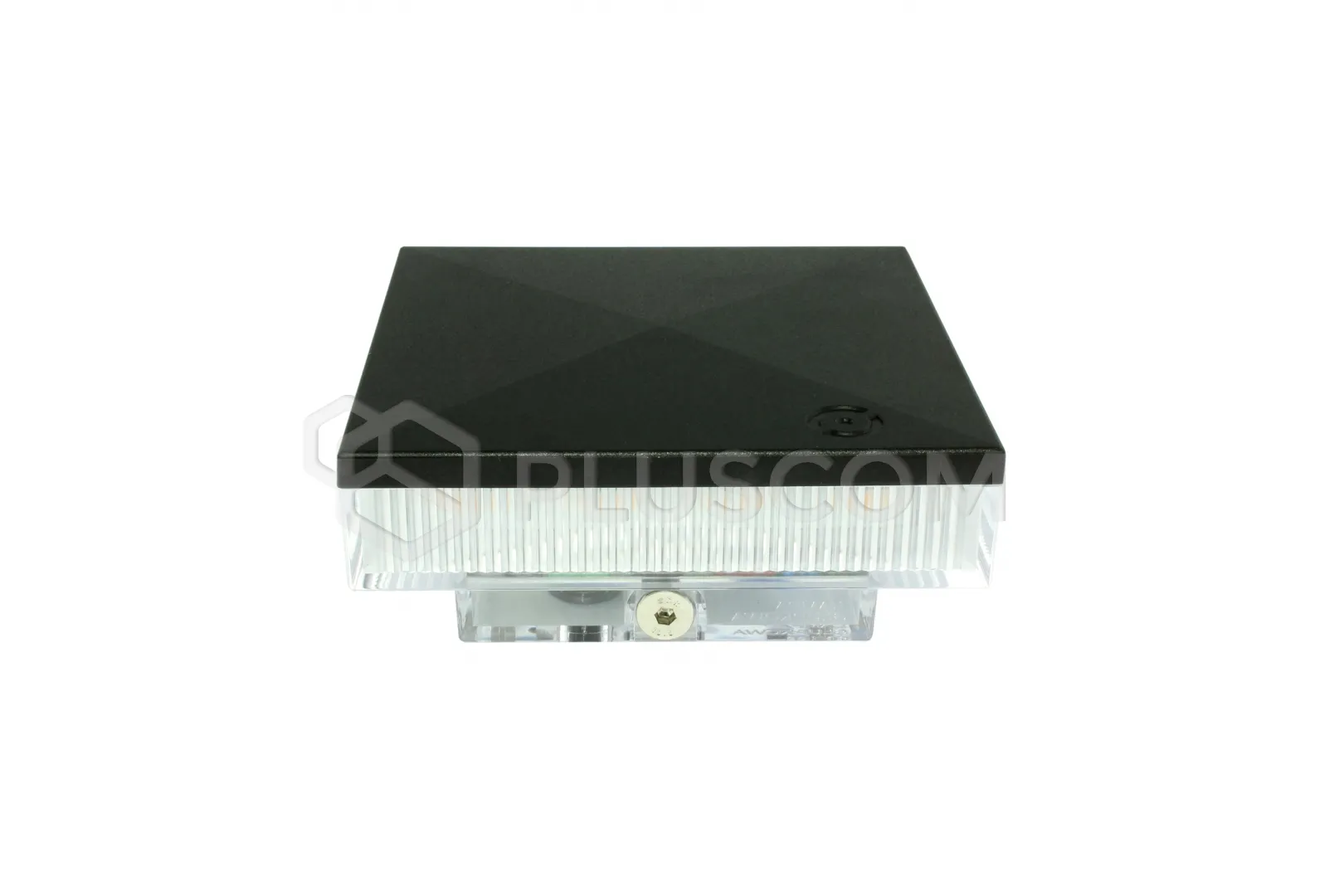

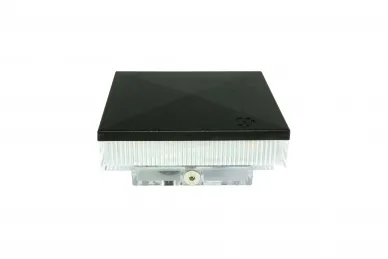

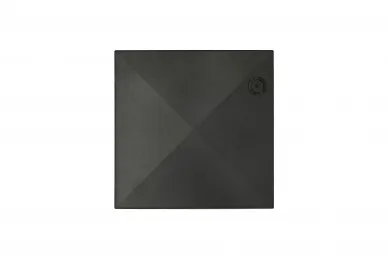

Proxima Bollard light

27,12 EUR including 23.00% VAT
In stock. Ships today!
Product code: #37313
Manufacturer: Proxima
  • LED-light source
  • 12V DC power supply
  • Only lighting function
  • Pole mounting
  • Housing: IP54
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice WINGO2024 INTI Kit for Swing Gates up to 2m (Base) Nice Robus400 R10 gear motor with built-in control unit Nice HO7124 single actuator 24V with built-in POA3 control unit

Proxima LED post signal lamp 12V DC

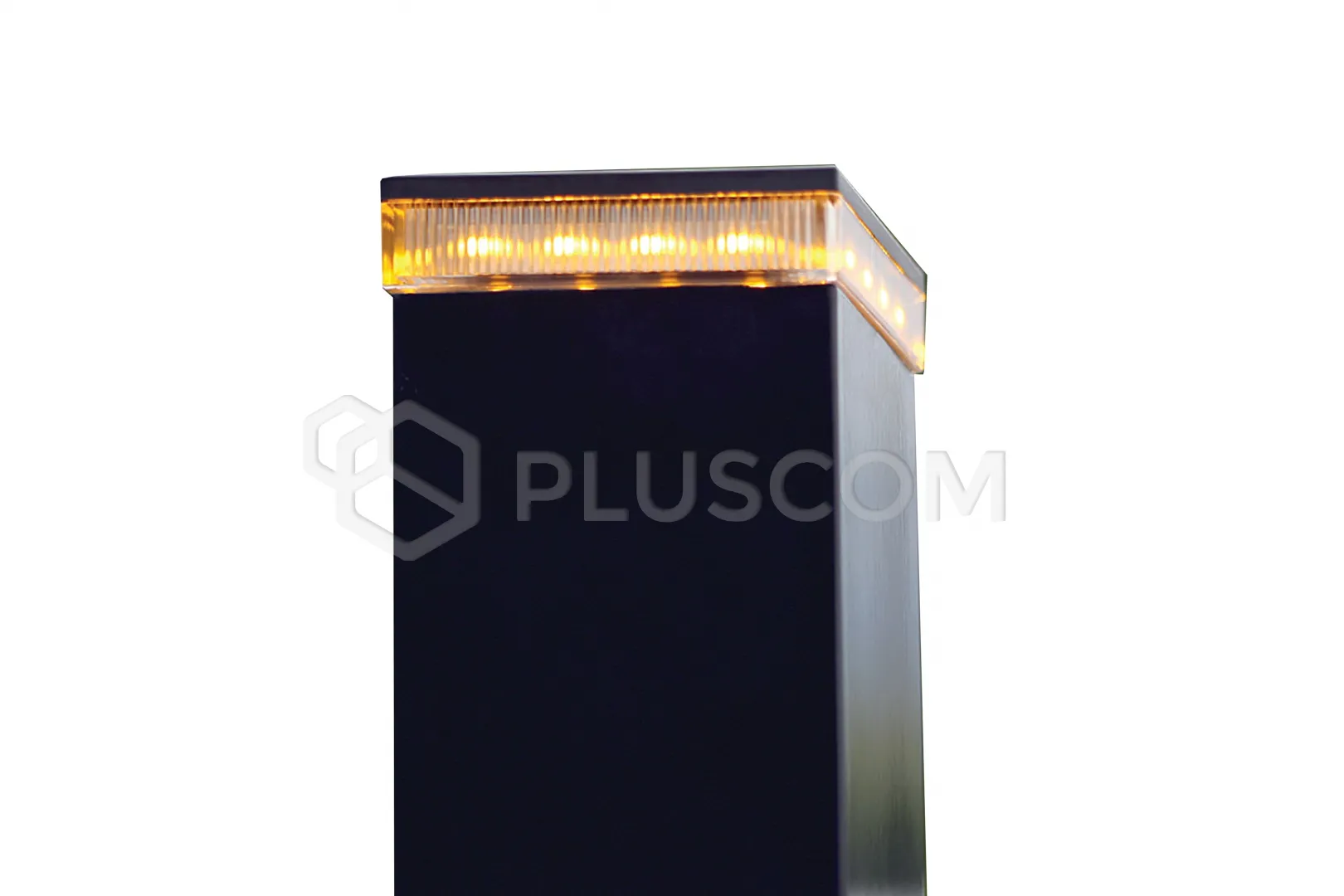

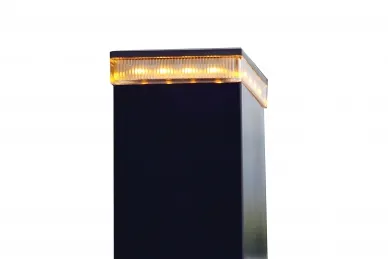

The post signal lamp is an attractive ending to the gate post universal power supply. It is a practical and functional element of automation home. It informs and warns about the operation of the drive and performs safety functions do not approach the gate leaf.
The lamp has an LED light source and is powered by 12V DC or 230V AC. The lamp only has a lighting function.

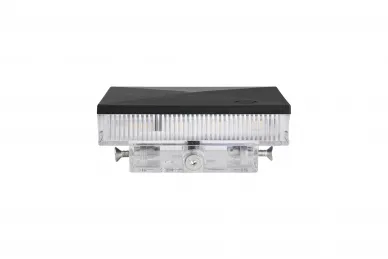

Lamp installation
  • the lamp is the end of a rectangular post 100x100mm, 80x100mm or 80x80mm
  • the lower part of the lamp 73x73mm must fit inside the post
  • you should unscrew the conical Allen screws as much as possible so that they are slightly loose push the lower part of the lamp together with the screws into the post
  • with resistance
  • on the least visible side of the post, drill precisely, on extension of the hexagonal screw socket, a hole with a diameter of 4 mm
TECHNICAL PARAMETERS:
  • Power supply: 12V DC
  • Power consumption: 230V AC: 2.5W
  • Current consumption: 200mA
  • Light source: LED
  • Operating temperature: from -20º to +60º C
  • Tightness class: IP54
  • Dimensions: above the post; 103 x 103 x 26 mm, in a post 72 x 72 x 20 mm
  • Weight: 253 g
