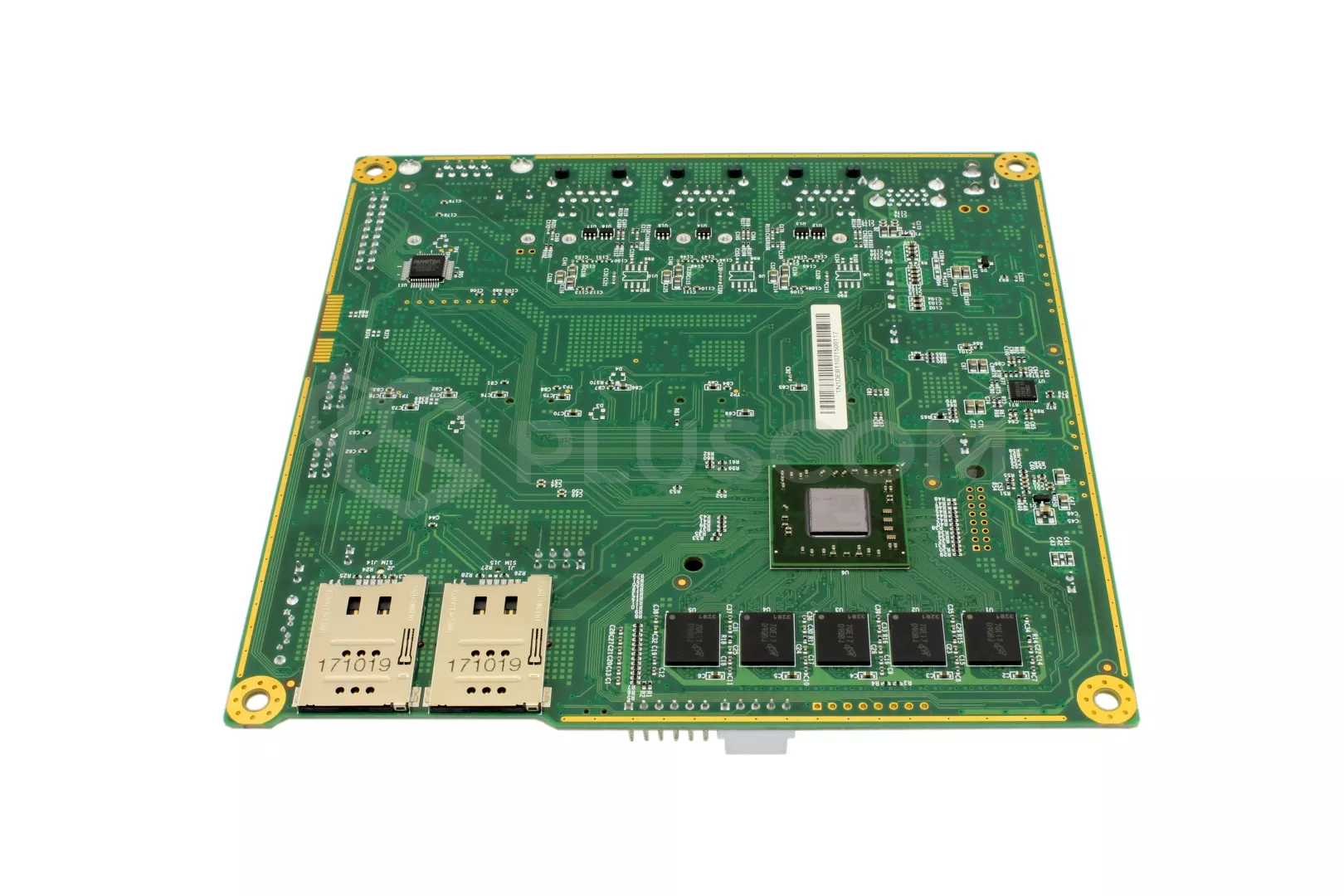

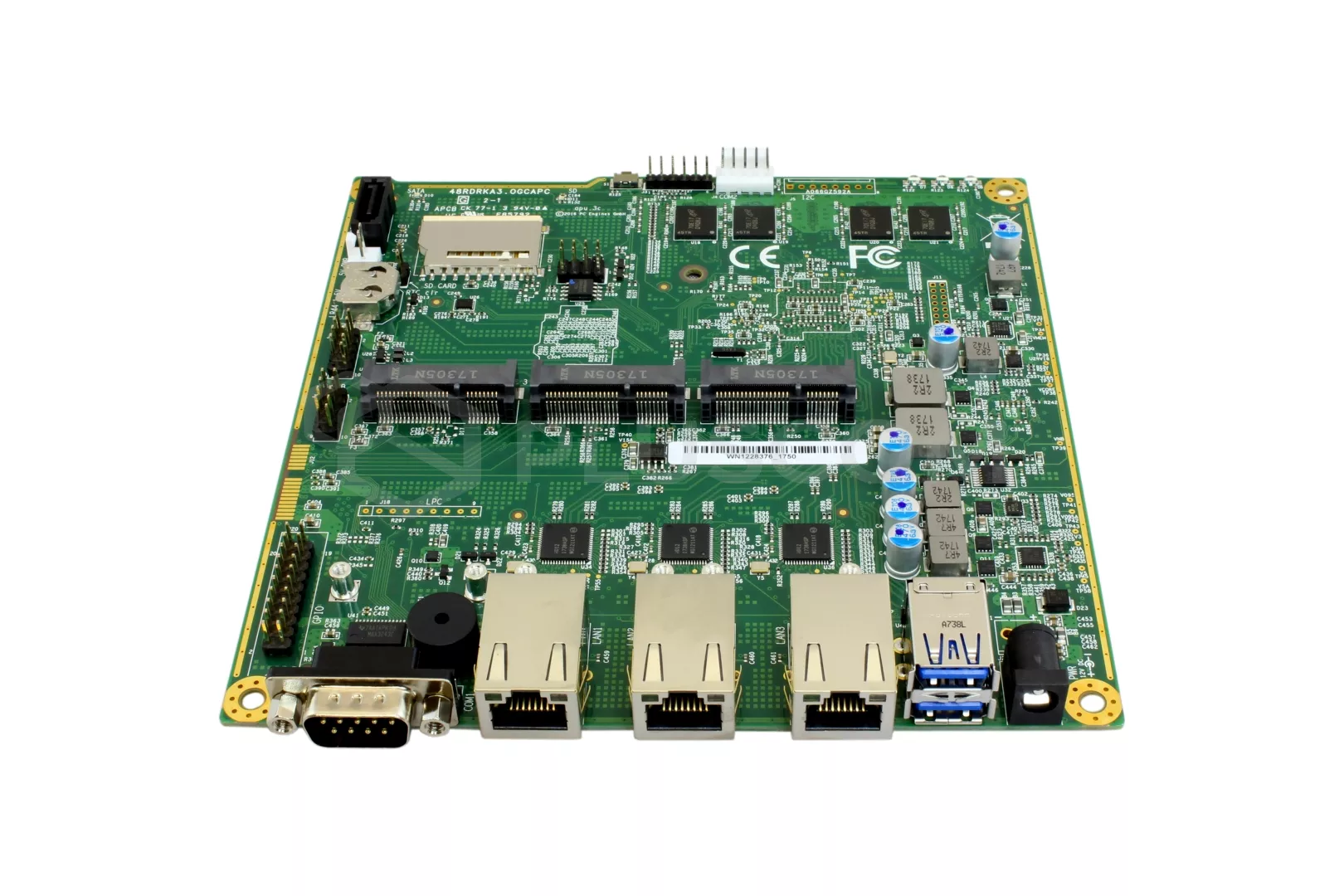

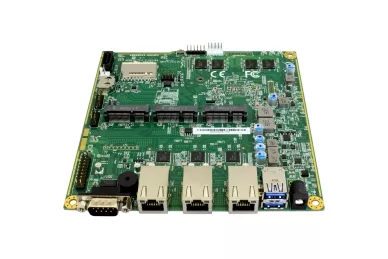

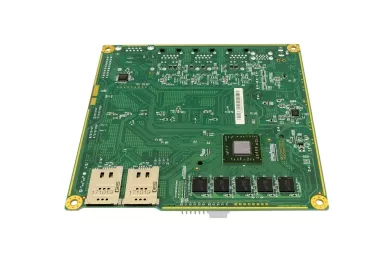

PC Engines APU.3C4 System board 3xGigabitLAN, 4GB RAM, AMD GX-412TC CPU

PC Engines APU 3C4 / GX-412TC / 4GB / 3 LAN Intel i211AT / LED / USB / BUZZER

PC Engines APU 3C4 is a great platform for advanced networking solutions such as routing, network security applications.
System board is fully comatybile with open source systems, Linux Debian, Ubuntu and BSD, OpenWRT, pfSense.

Version apu3c:

• Improve compatibility with LTE modem modules: Disconnect SMB_DAT / SMB_CLK signals (1.8V level on Quectel)
• Improve compatibility with LTE modem modules: No stuff diodes D4 / D17, option resistor bypass (extremely low VIL on Huawei modems, sensitive to incoming EMI)
• Optional SIM presence indicator / SIM card detect
• Disable non-functional NCT5104D watchdog timer
• Increase 3.3V current limit to allow for two simultaneous LTE modems
• Some DFM changes
• APU 3C4 only supports one wifi module (miniPCI express)

This board version is targeted at applications that require 2 3G / LTE modems. SIM sockets can be swapped under GPIO control, enabling failover between two different networks even when only one modem is used. Another feature is the build option for a regular PCI express slot on the side.

The platform is characterized by small size 152,4x152,4mm (6''x 6''), low power (6-12W, depending on CPU load) and above-average performance which provides 64-bit AMD GX-412TC, 1 GHz quad core and 4GB of RAM. When mounted in a dedicated enclosure cooling the CPU is performed passively.

TECHNICAL PARAMETERS

• processor 64-bit AMD GX-412TC, 1 GHz quad-core 2MB L2 cache
• RAM 4 GB DDR3-1333 DRAM with ECC

• mass memory:
• • SD card slot
  • USB connector
  • m-SATA
  • SATA + Power connector


• Expansion joints:
• • 3 miniPCI express

  • GPIO header, optional I2C bus
  • COM2 (3,3V RXD / TXD).

• communication:
• • 3x Gigabit Ethernet (Intel i211AT)

• DC 12V / 1,5A 2,5mm plug

COOLING

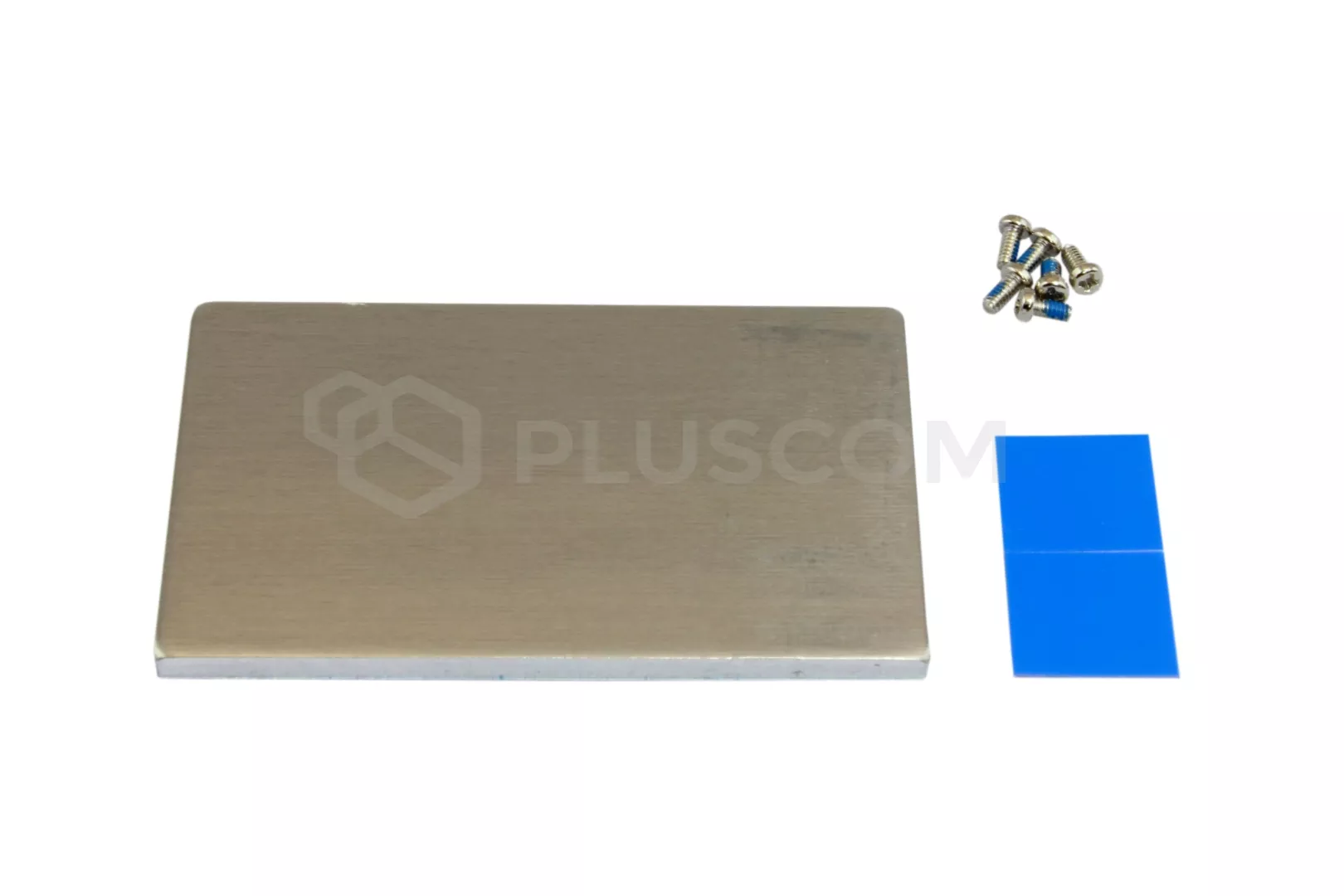

For APU 3C4 is included aluminum plate and thermally conductive strips which allows drainage of excess heat out of the housing
