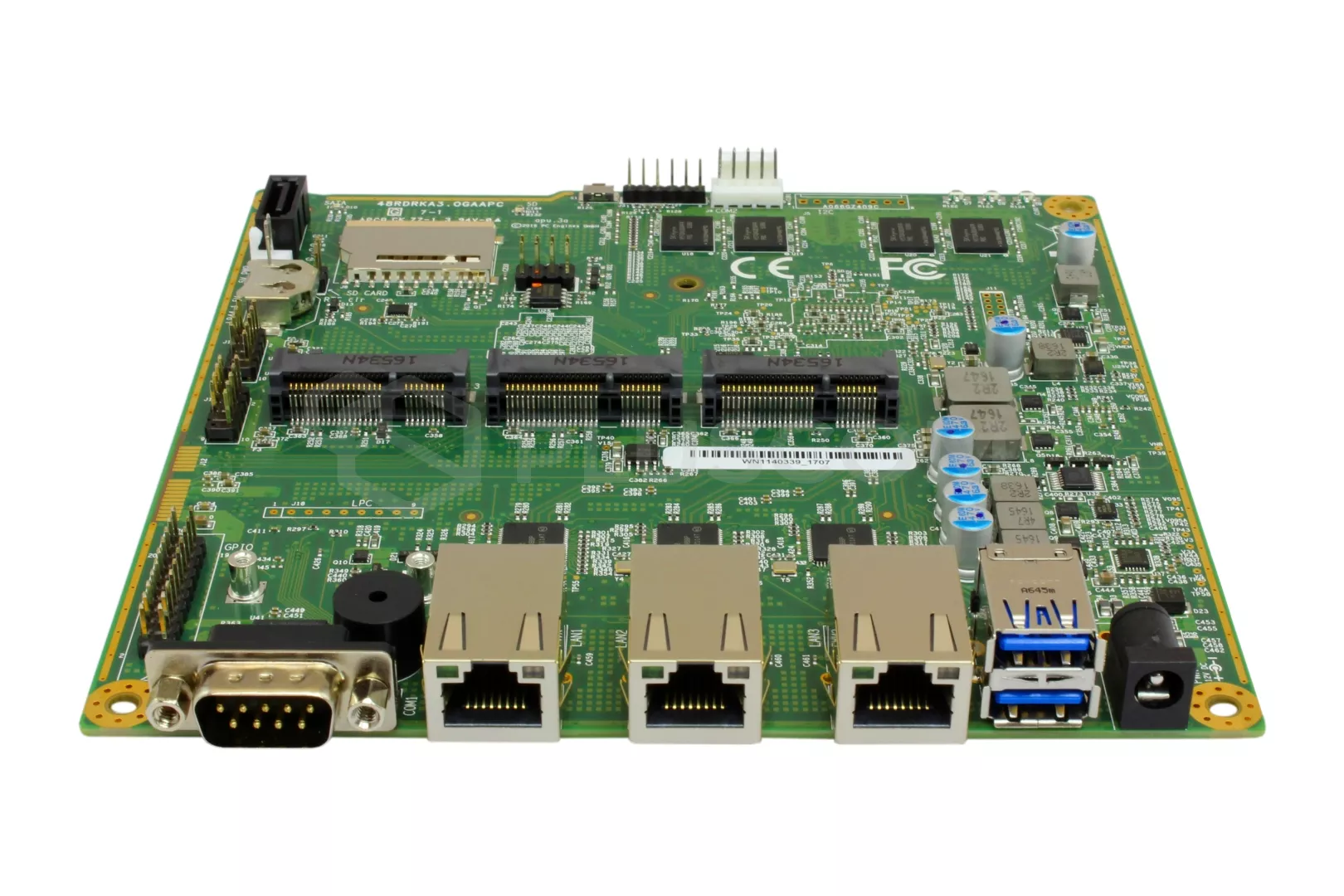

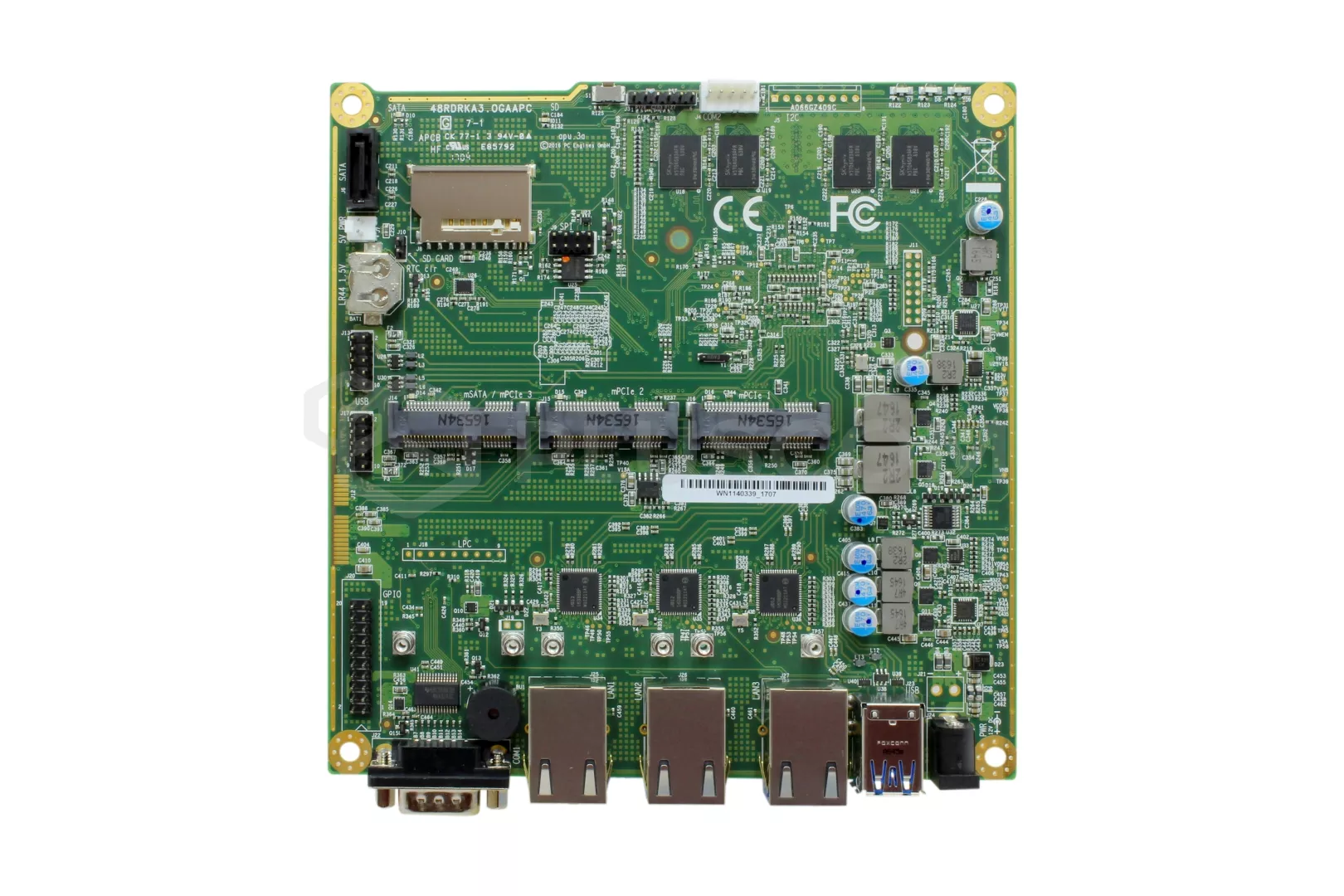

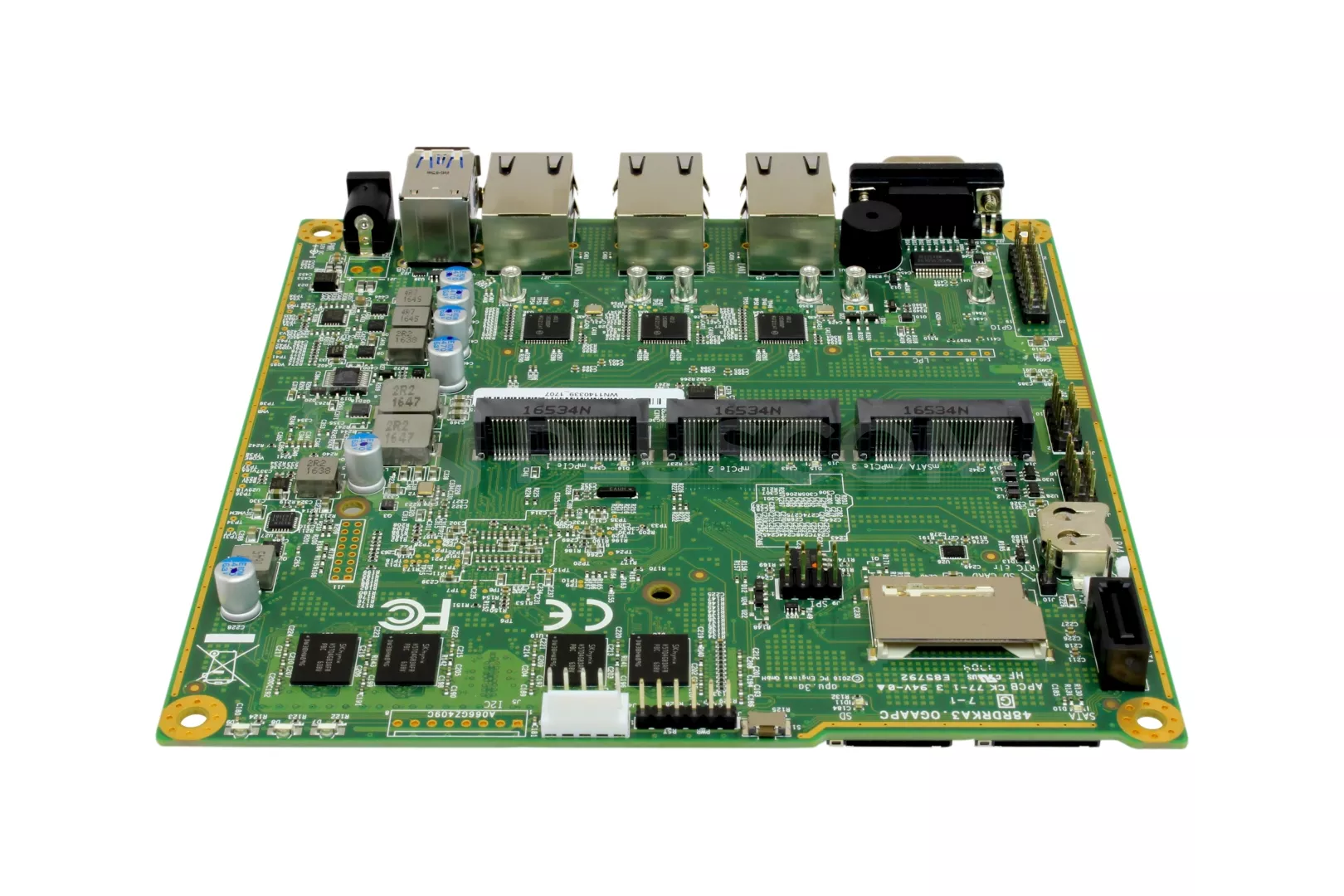

PC Engines APU.3A4 System board 3xGigabitLAN, 4GB RAM, AMD GX-412TC CPU

Out of stock. Archived Product.

This item is EOL and has been replaced by PC Engines APU.3B4 System board 3xGigabitLAN, 4GB RAM, AMD GX-412TC CPU

PC Engines APU 3A4 / GX-412TC / 4GB / 3 LAN / LED / USB / BUZZER

PC Engines APU.3A4 System board 3xGigabitLAN, 4GB RAM, AMD GX-412TC CPU

PC Engines APU.3A4 System board 3xGigabitLAN, 4GB RAM, AMD GX-412TC CPU


PC Engines APU 3A4 is a great platform for advanced networking solutions such as routing, network security applications.
System board is fully comatybile with open source systems, Linux Debian, Ubuntu and BSD, OpenWRT, pfSense.

This board version is targeted at applications that require 2 3G / LTE modems. SIM sockets can be swapped under GPIO control, enabling failover between two different networks even when only one modem is used. Another feature is the build option for a regular PCI express slot on the side.

The platform is characterized by small size 152,4x152,4mm (6''x 6''), low power (6-12W, depending on CPU load) and above-average performance which provides 64-bit AMD GX-412TC, 1 GHz quad core and 4GB of RAM. When mounted in a dedicated enclosure cooling the CPU is performed passively.

TECHNICAL PARAMETERS

  • processor 64-bit AMD GX-412TC, 1 GHz quad-core 2MB L2 cache
  • RAM 4 GB DDR3-1333 DRAM
  • mass memory:
    • SD card slot
    • USB connector
    • m-SATA
    • SATA + Power connector
  • Expansion joints:
    • 3 miniPCI express
    • GPIO header, optional I2C bus
    • COM2 (3,3V RXD / TXD).
  • communication:
    • 3x Gigabit Ethernet (Intel i211AT)
  • DC 12V / 1,5A 2,5mm plug
COOLING

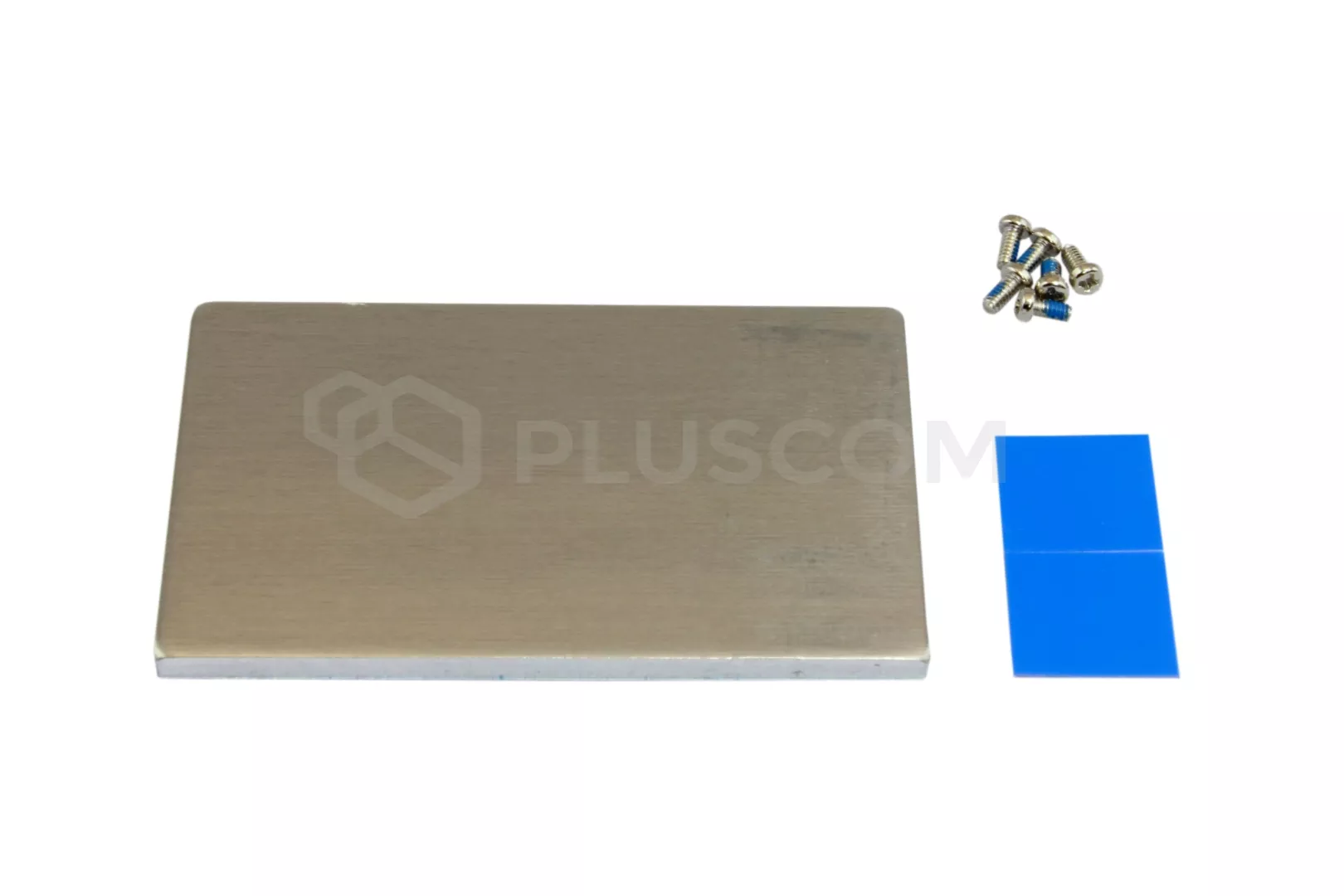

For APU 3A4 is included aluminum plate and thermally conductive strips which allows drainage of excess heat out of the housing

RELATED PRODUCTS:
ENCLOSURES:


MASS STORAGE:


POWER SUPPLY:

Download
User Manual 0.74 MB
