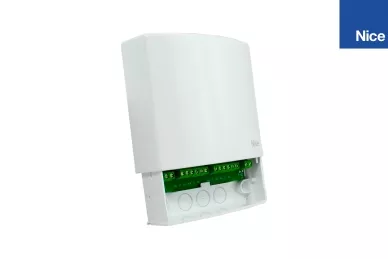

Nice OX4T Universal 4-channel receiver

Nice OX4T Universal 4-channel receiver, 433.92MHz, with programmable 4 relay outputs, memory 1024 remote control

The OX4 / OX4T receiver is part of the NiceOpera System produced by Nice. It is designed for use in systems for the automation of gates, garage doors, road barriers, sun awnings, shutters, skylights, and for the control of lights and electrical circuits in general.

PRODUCT SPECIFICATIONS

• 4 relays with normally open (NO) and normally closed (NC) electrical contacts for use with electric power circuits
• with 3 dip switches: 2 for Timer programming and 1 for future use
• 14 functions for association with output relays
• memory capacity for storage of up to 1024 transmitters
• compatible with radio encoding: O-Code, FloR, TTS or Smilo, Flo


TECHNICAL SPECIFICATIONS OF THE PRODUCT

• Power supply: 110 ÷ 240 Vac 50/60 Hz
• Maximum absorbed current: 80 mA
• Encoding: O-Code / TTS / FloR (rolling code); or Smilo (rolling code) or Flo.
• Frequency: 433.92 MHz
• Antenna impedance: 52 ohm
• Sensitivity: more than 0,5μV for successful signal
• Range: estimated at 200 m if in open space or 35 m ins8ide buildings
• Radiated power (OX4T ONLY): +2dBm
• Capacity of transmitter memory: 1024 (maximum)
• Outputs: 4 relays with NO and NC contacts, voltage-free
• Contact capacity: 5A - 250V
• Maximum BusT4 current: 200 mA
• Timer times: programmable from 2 seconds to 540 minutes
• Protection rating: IP44 (with container intact)
• Operating temperature: -20 ÷ 55 °C
• Dimensions / weight: 128x112x43mm / 260 g
