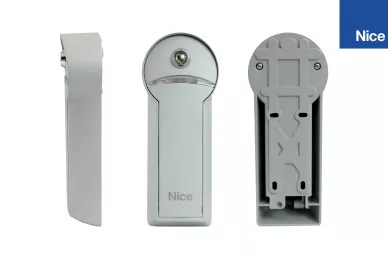

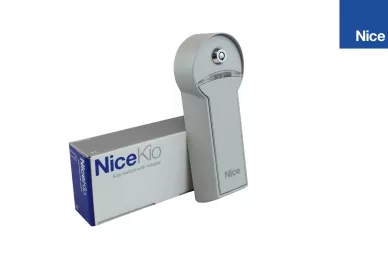

Nice KIO Key-operated selector switch with cord-type release

74,72 EUR including 23.00% VAT
Product code: #4364
Manufacturer: Nice
  • key-operated selector switch with cord-type release
  • LED backlight

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice KA1 6m cable release kit for KIO

Nice KIO

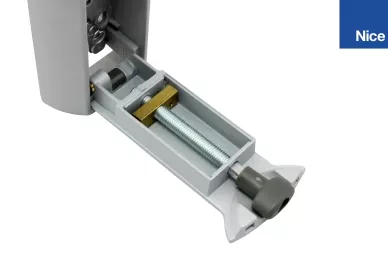

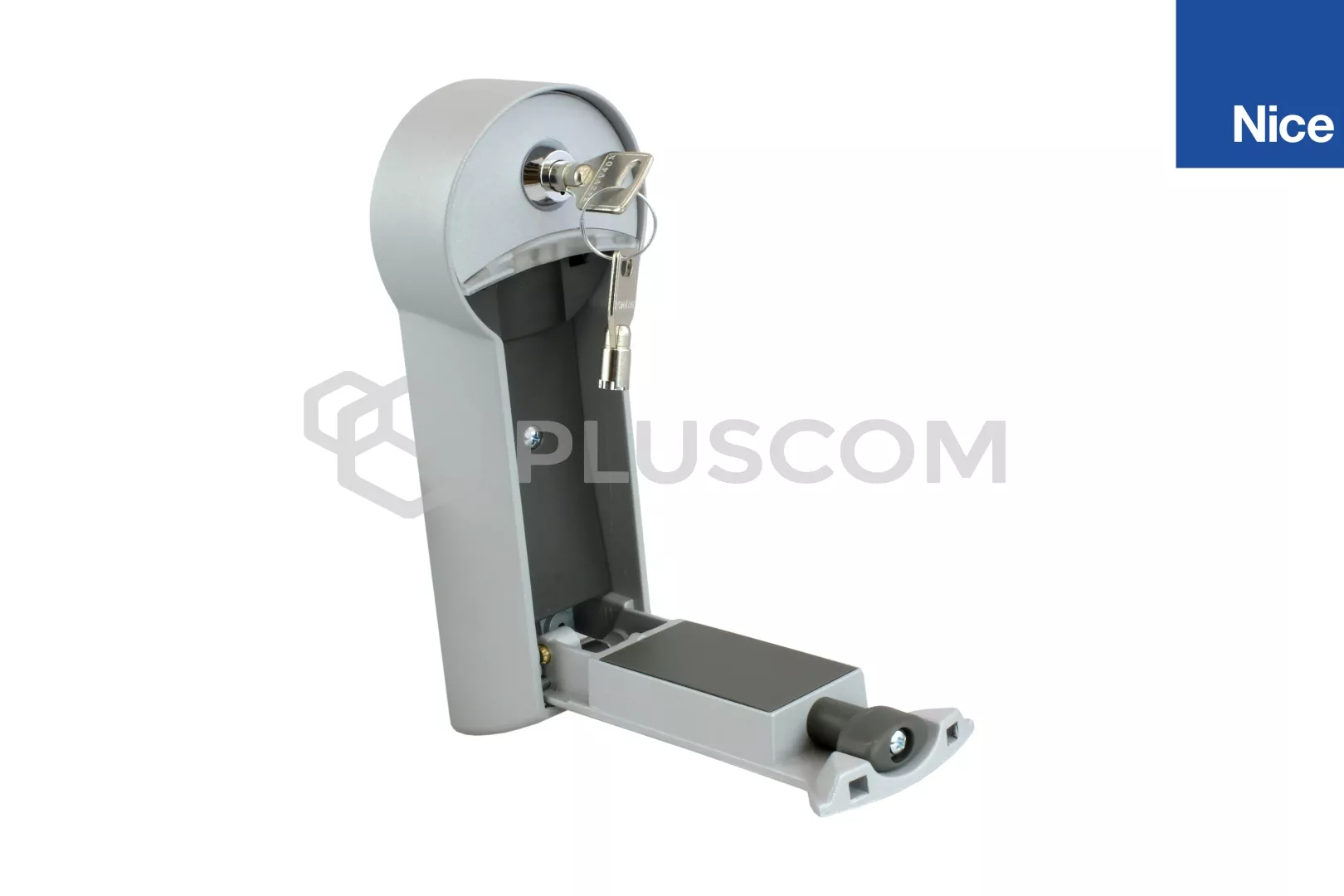

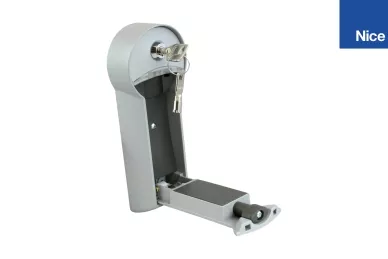

KIO can be operated using a key switch with courtesy light or a release switch. When the key is turned from vertical psition about 30°, two contacts are available: one in clockwise direction, and the other in the opposite direction. When the key is turned further (in either direction) the handle will open, and the release system will function.

Nice KIO Key-operated selector switch with cord-type release

Nice KIO Key-operated selector switch with cord-type release



TECHNICAL FEATURES:

  • type: Key-operated selector switch with cord-type release
  • courtesy light supply: Between 12V and 36Vdc, 12V and 28Vac
  • protection class: IP55
  • working temperature: Between -20 and +50°C (without ice forming)
  • maximum contact voltage: 50Vac - Vdc
  • maximum contact current: 1A
Nice KIO Key-operated selector switch with cord-type release

Nice KIO Key-operated selector switch with cord-type release

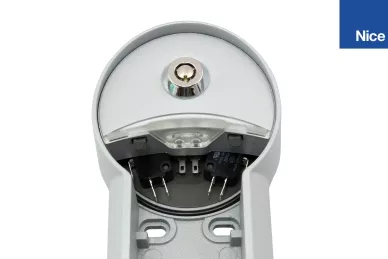

Connecting switches and illumination:

Connecting switches and illumination:





Specification
: unlocking
