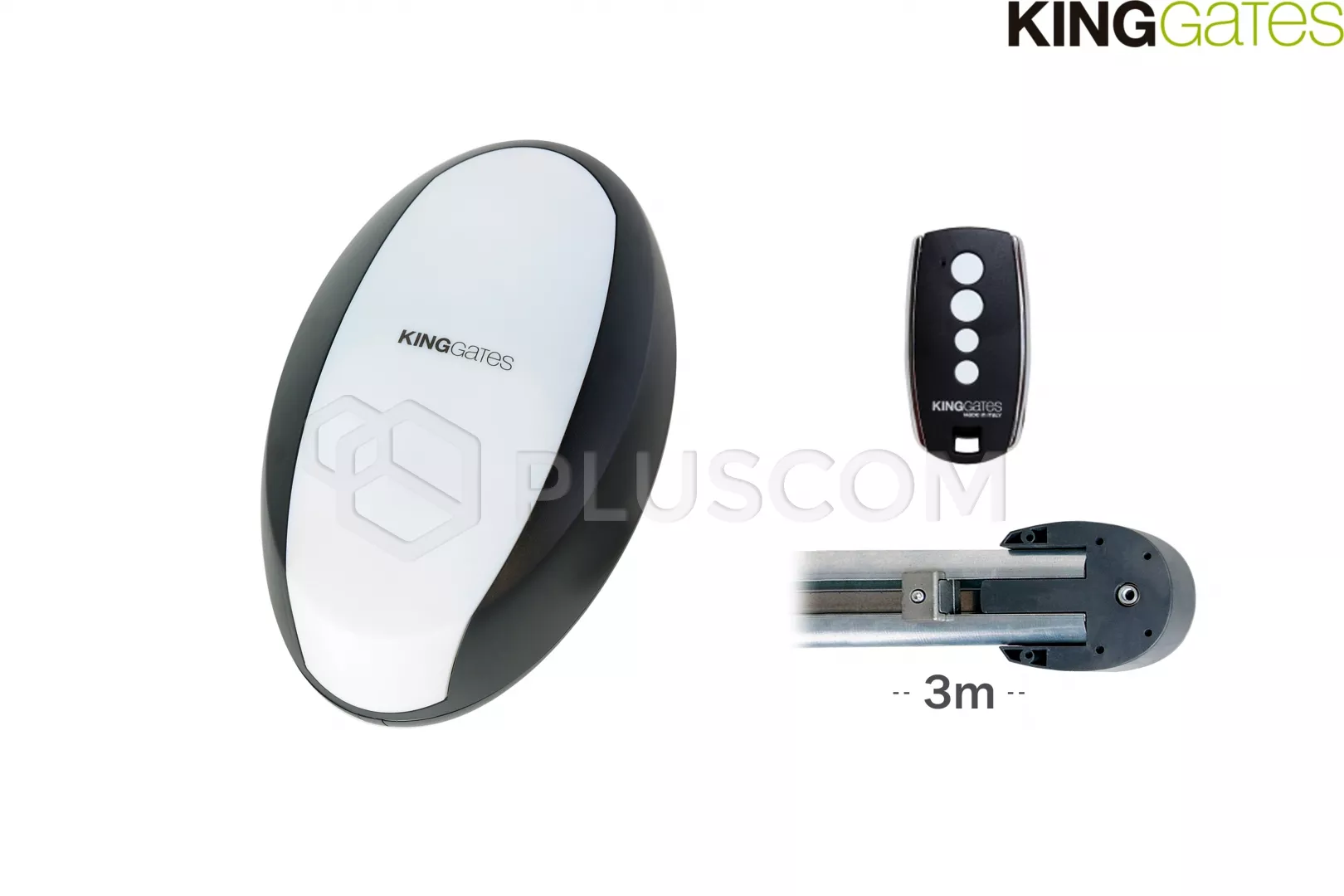

KINGgates ROLLS 1200 Set for garage doors up to 240cm high

KINGgates ROLLS 1200 Set for garage doors up to 240 cm high and area up to 23m²

PURPOSE OF THE DRIVE:
Automation of garage doors up to 240 cm high:

• max sectional door area 23m²
• max. area of the swing gate 14m²

PRODUCT DESCRIPTION:
Easy to use and at the same time very functional gate actuator garage. A pulling force of 1200 N is sufficient to operate the door up-and-over doors with an area of up to 14 m² and a sectional door with an area of up to 23 m².
The rotating cover gives the user easy access to the control unit. Installation the actuator on the rail is provided by metric screws.
A durable reinforced toothed belt is used to transmit the drive, thanks to which it works the drive is silent and maintenance-free.
The innovative manual release system allows the gate to be released on drive trolley or through an external unlocking system. Thanks to the possibilities installation of BAT 12K emergency batteries, the drive can work effectively even when there is no mains power. We can then open and close manually the gate without having to disengage again, and after closing the gate in mode manually, we can open it in automatic mode.

ROLLS 1200 has a built-in STAR GDO100 control unit, which is easy to use easy and intuitive - it has a plastic cover equipped with 3 buttons programming.

CHARACTERISTICS AND FUNCTIONS

• the ability to control additional lighting
• built-in radio receiver, compatible with KING GATES remote controls
• programmable with 3 buttons
• built-in encoder
• built-in beacon
• built-in antenna

• work in "open - pause - close" mode
• work in step-by-step mode
• auto-close feature
• soft start function
• self-testing function
