Hikvision DS-7208HQHI-SH/A(EU)(B)

Out of stock. Archived Product.

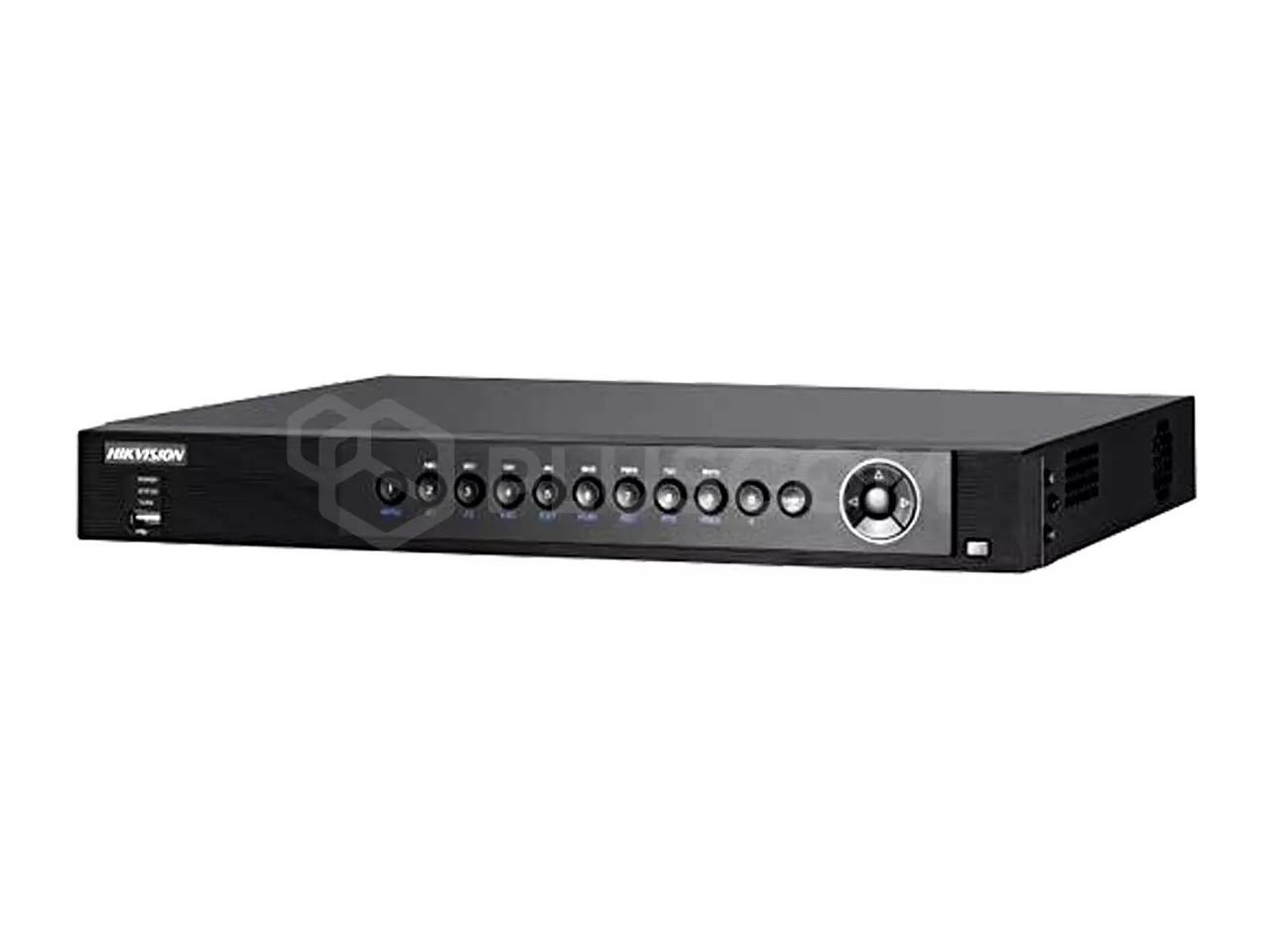

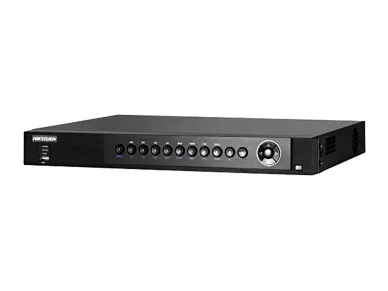

Hikvision DVR DS-7208HQHI-SH/A(EU)(B) Recorder Turbo HD, 8-channel

TECHNICAL PARAMETERS:
  • Number of supported cameras:
    • 8x HDTVI/960H/PAL (BNC, 1.0 Vp-p, 75 Ω)
    • 2x IP
  • Support CVBS
  • Resolution of recording IP: up to 1080p
  • Resolution/ Speed of recording:
    • 1080p 25fps
    • 720p 25fps
  • Max. number of supported HDD: 2x interface SATA
  • Max. capacity of HDD: 6TB for each disk
  • Max. capacity of all HDD's: 12TB
  • Video bit rate: 32Kbps - 10 Mbps
  • Video outputs:
    • HDMI: 1920x1080/60Hz
    • VGA: 1920x1080/60Hz
  • External interfaces:
    • 1x RJ45 10/100/1000Mbps
    • 1x RS-485
    • 2x USB 2.0
    • input audio: 4x (RCA)
    • output audio: 1x (RCA)
    • alarm inputs: 8x
    • alarm outputs: 4x
  • Functions:
    • Dual Stream
    • Smart Search
    • VQD
    • VCA
  • Temperature of work: -10°C~+55°C
  • Chassis 1U
  • Power supply: DC 12V
  • Power consumption:≤ 30W (without HDD)
  • Weight: ≤ 2kg (without HDD)
  • Dimensions: 380x290x48mm
