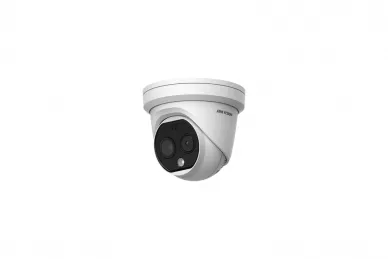

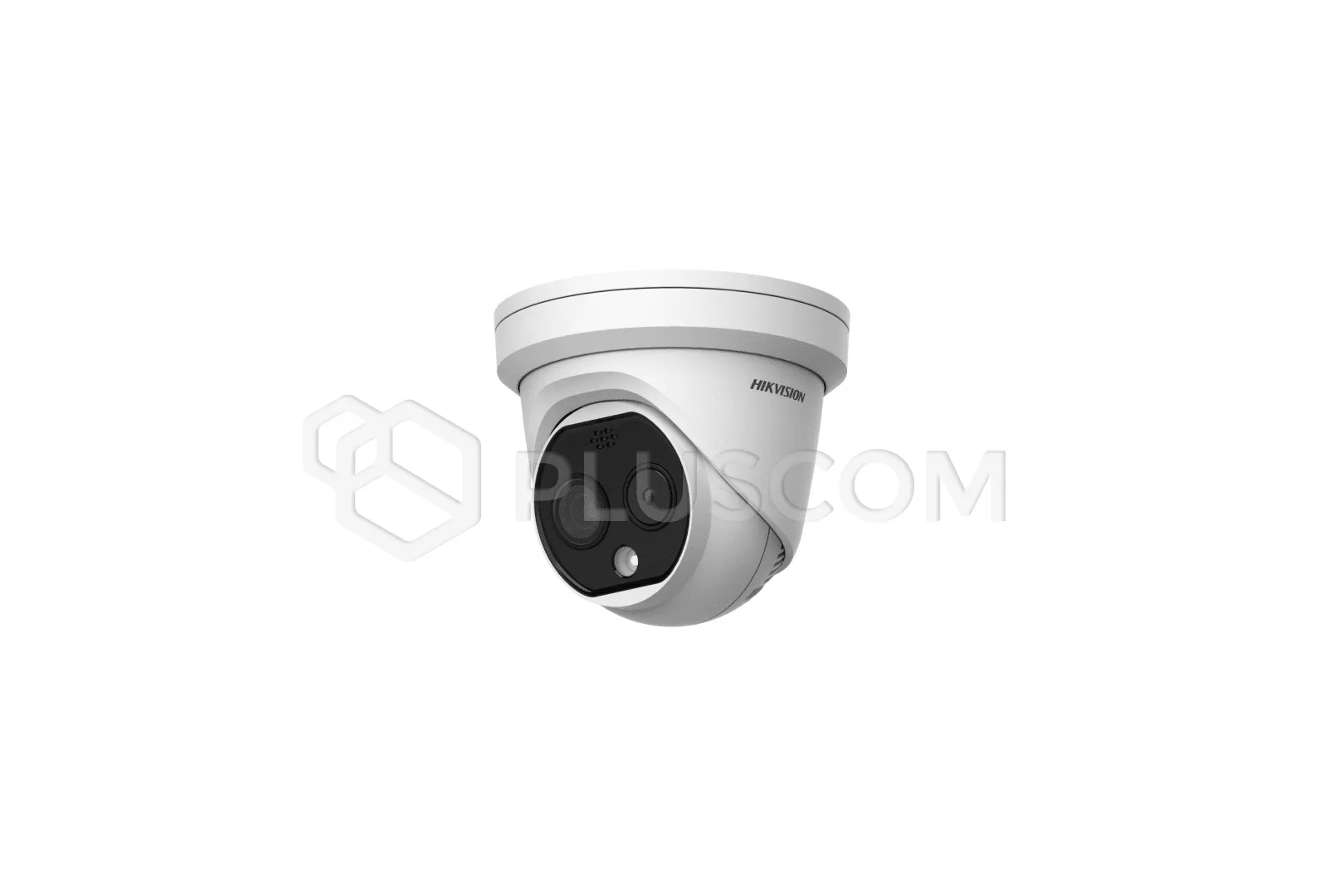

Hikvision DS-2TD1228-3/QA

1064,88 EUR including 22.00% VAT
Product code: #35302
Manufacturer: Hikvision
  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Resolution: 256 × 192
  • Pixel Pitch: 12 μm
  • Spectral Range: 8 μm to 14 μm
  • NETD: < 40 mK (25°C, F1.1)
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2TD1228-3/QA


Technical parameters:

Thermal Module

  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Resolution: 256 × 192
  • Pixel Pitch: 12 μm
  • Spectral Range: 8 μm to 14 μm
  • NETD: < 40 mK (25°C, F1.1)
  • Focal Length: 3.6 mm
  • IFOV: 3.33 mrad
  • Field of View: 50.0° × 37.3° (H × V)
  • Min. Focusing Distance: 0.4 m
  • Aperture: F1.0
  • Digital Zoom: ×2, ×4

Optical Module

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Resolution: 2688 × 1520
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Shutter Speed: 1 s to 1/100,000 s
  • Focal Length: 4.3 mm
  • Field of View: 84.0°(H) x43.1°(V)
  • Aperture (Range): F1.6
  • WDR: 120 dB

Image Effect

  • Target Coloration: Yes. Supported in white hot and black hot mode.

Illuminator

  • IR Distance: Up to 15 m
  • IR Intensity and Angle: Automatically adjusted

Audible and Visual Alarm

  • White Light Range: Up to 30 m
  • Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
  • Audio alarm: Yes, for two types of audible alarm (VCA and Temperature Exception)2 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)

Smart Function

  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20°C to 150°C (-4°F to 302°F)
  • Temperature Accuracy: ±8°C (±14.4°F)

Video and Audio

  • Main Stream: Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream: Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
  • Video Compression: Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,Bonjour,SFTP,SRTP
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
  • Simultaneous Live View: Up to 20 channels
  • User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Security: User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +Local service : Chrome 57.0+, Firefox 52.0 +

Interface

  • Alarm Input: 1, alarm input (0-5 VDC)
  • Alarm Output: 1, alarm output (alarm response actions configurable)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio Output: Linear level, impedance: 600 Ω
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

General

  • Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plugPoE (802.3af, class 3)
  • Power Consumption: 12 VDC ± 25%: 0.5 A, Max 6 WPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
  • Protection Level: IP66 Standard TVS 6000V lightning protection, surge protection, voltage transient protection
  • Dimensions: 138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
  • Weight: 940 g (2.07 lb)
