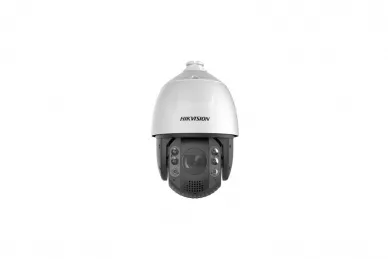

Hikvision DS-2DE7A425IW-AEB(T5)

1539,10 EUR including 23.00% VAT
Product code: #25934
Manufacturer: Hikvision
  • Image Sensor: 1/2.8" progressive scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/1 s to 1/30000 s
  • Slow Shutter: Yes
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Hikvision DS-2DE7A425IW-AEB(T5)


Technical parameters:

Camera

  • Image Sensor: 1/2.8" progressive scan CMOS
  • Max. Resolution: 2560 × 1440
  • Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
  • Shutter Speed: 1/1 s to 1/30000 s
  • Slow Shutter: Yes
  • Day & Night: IR cut filter
  • Zoom: 25x optical, 16x digital
  • DORI: Detect (25px/m): 2046.9 mObserve (63px/m): 812.3 mRecognize (125px/m): 409.4 mIdentify (250px/m): 204.7 m

Lens

  • Focal Length: 4.9 mm to 188.8 mm
  • Zoom Speed: Approx. 4.8 s
  • FOV: Horizontal field of view: 50.8° to 2.6° (wide-tele),Vertical field of view: 29.4° to 1.5° (wide-tele),Diagonal field of view:57.4° to 3° (wide-tele)
  • Aperture: Max. F1.5
  • Focus: Auto, semi-auto, manual

Illuminator

  • Supplement Light Range: IR Distance: up to 200 m
  • Supplement Light Type: IR

PTZ

  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
  • Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
  • Proportional Pan: Yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Power-off Memory: Yes
  • Park Action: Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioning: Yes
  • PTZ Status Display: Yes
  • Preset Freezing: Yes
  • Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video

  • Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: Baseline Profile/Main Profile/High Profile
  • H.265 Type: Main Profile
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 8 fixed regions for each stream

Audio

  • Audio Compression: G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
  • Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • API: Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • Simultaneous Live View: Up to 20 channels
  • User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Client: iVMS-4200, HikCentral Pro, Hik-Connect
  • Web Browser: IE11, Chrome 57+, Firefox 52+, Safari 11+


  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement: BLC, HLC, 3D DNR
  • Wide Dynamic Range (WDR): 120 dB
  • Defog: Digital defog
  • Image Stabilization: EIS
  • Regional Exposure: Yes
  • Regional Focus: Yes
  • Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
  • SNR: > 52 dB

Interface

  • Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • On-board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Alarm: 2 inputs, 1 output
  • Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Reset: Yes
  • Built-in Speaker: 1 built-in speaker with effective distance reaching max. 30 meters

Event

  • Basic Event: Motion detection, video tampering alarm, exception, alarm input and output
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • Smart Tracking: Manual tracking, auto-tracking
  • Alarm Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function

  • Face Capture: Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
  • Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

General

  • Power: 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);Hi-PoE
  • Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Demist: Yes
  • Material: ADC12
  • Dimension: Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
  • Weight: Approx. 5 kg (11.03 lb.)

Approval

  • Protection: IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
  • EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
  • Safety: UL (UL 62368-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 62368-1:2014+A11:2017);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (SANS IEC60950-1)
  • Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
