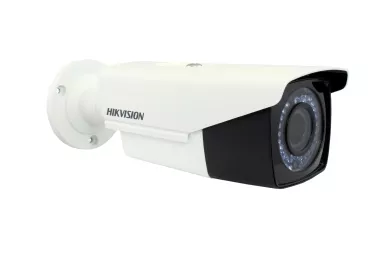

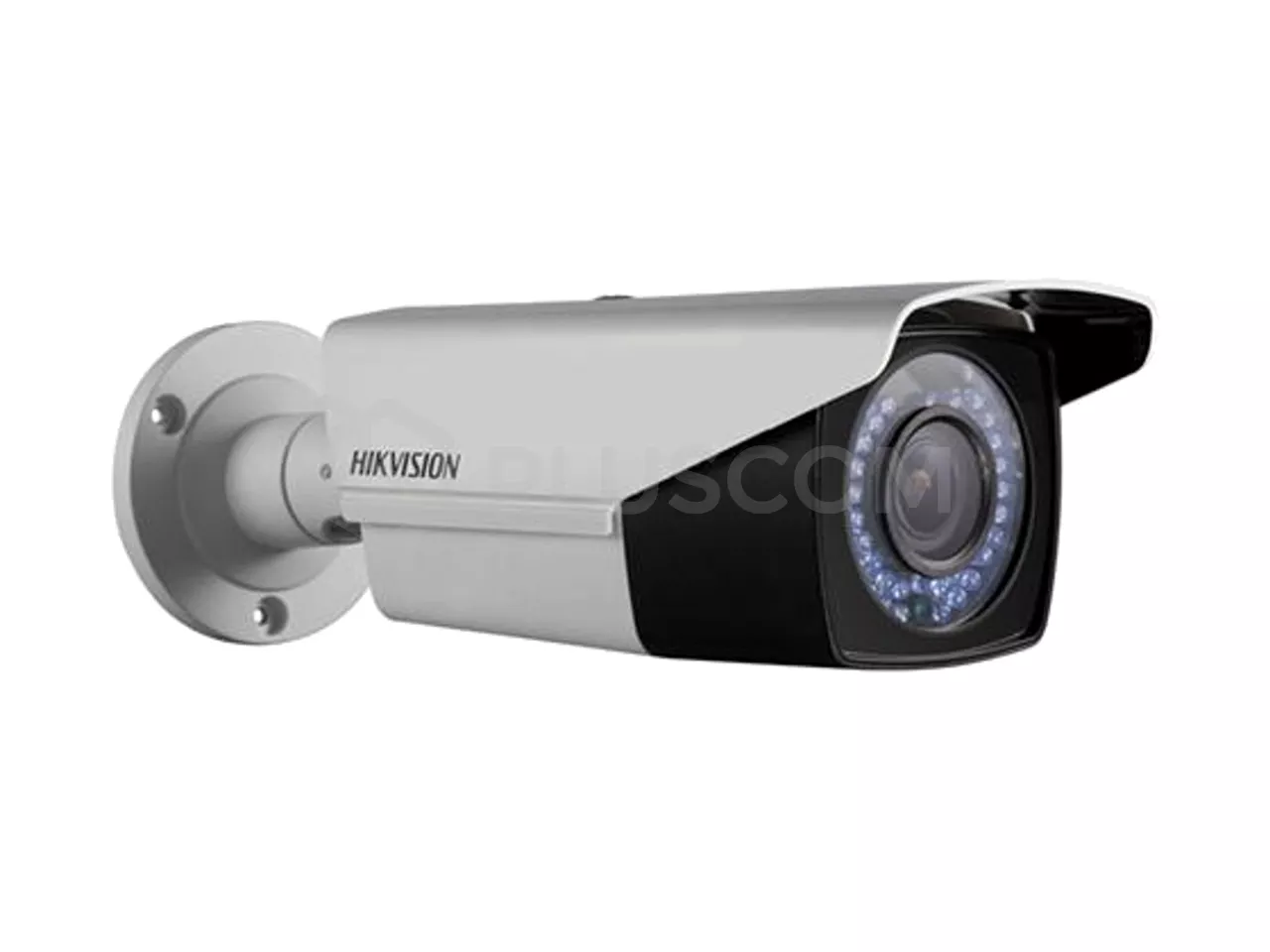

Hikvision DS-2CE16D1T-AVFIR3 (2.8-12mm) 2Mpx

Out of stock. Archived Product.

Camera Hikvision DS-2CE16D1T-VFIR3 works with DVR brand Hikvision working in HD-TVI (Turbo HD).
Hikvision DS-2CE16D1T-AVFIR3

Hikvision DS-2CE16D1T-AVFIR3


The system compared to an analog system and the IP has the following advantages:
  • high-quality HD without delay in transmission
  • transmission distance up to 500m
  • easy and economic to install
  • reliable transmission,
  • resistant to interference by using existing infrastructure based on coaxial cable can connect the camcorder high definition up to 1080p.
The lens has a variable focal length adjustable in the range of 2.8 - 12 mm

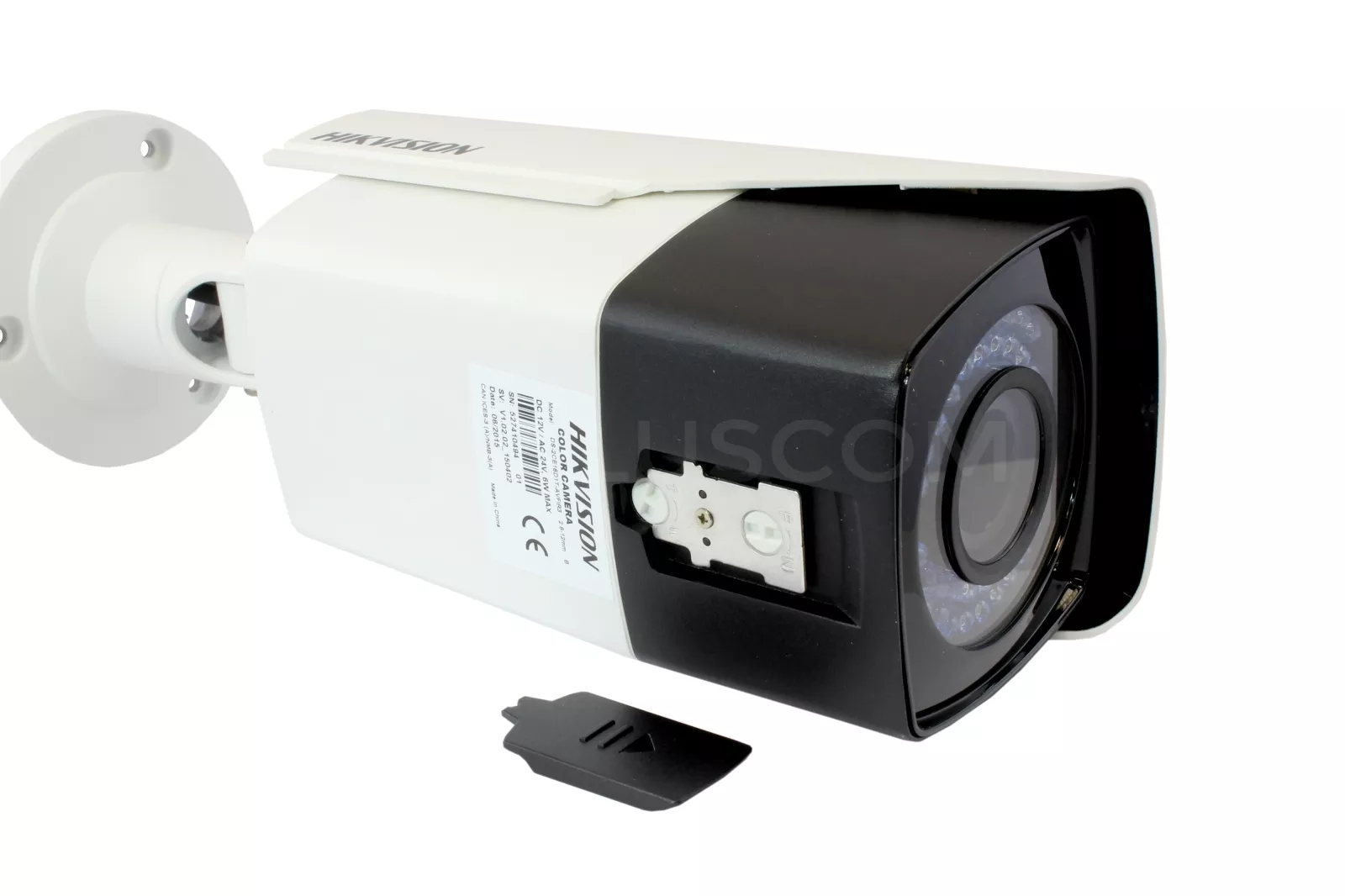

From the bottom of the camera after removing the cover we have access to the adjustment screws with which you can set the desired value approximation and adjust the focus.
Adjust: zoom + focus

Adjust: zoom + focus


The lens is equipped with a mechanical IR cut filter, day / night function.
Lighting at night is carried out by IR LEDs with range up to 40m.

KEY CHARACTERISTICS AND FUNCTIONS
  • resolution of 1920x1080@30fps (2Mpx)
  • vari-focal lens 2.8 - 12mm /F1.4
  • sensitivity: 0.01 Lux (F1.2 AGC On)
  • IR range 40m + mechanical IR cut filter
  • housing sealed to IP66
  • imaging features DNR, AGC, BLC, D-WDR
  • dimensions: 92x85x270mm
  • 12V DC, 24V AC

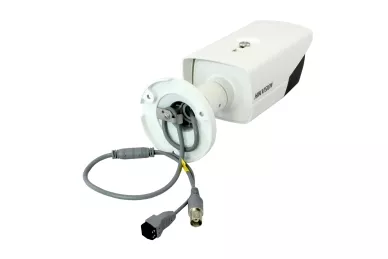

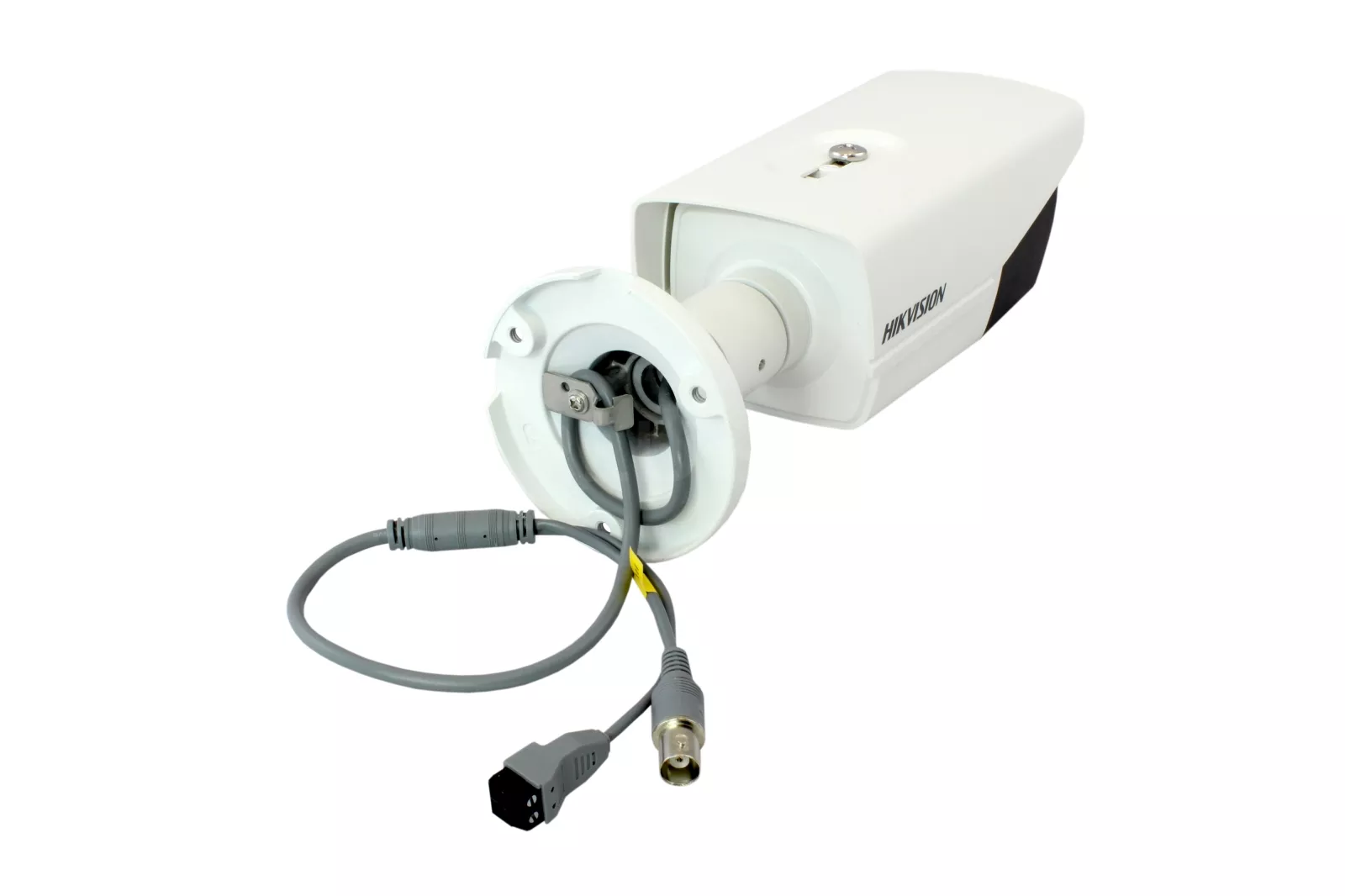

Rear view:

Rear view:


The camera supports communication via coaxial cable. (Up the Coax).
Protocol: Hikvision-C (Coaxitron). Access to the OSD functions can be accessed from the recorder.
The camera has IP66 sealed housing which protects the electronics by unfavorable weather conditions.

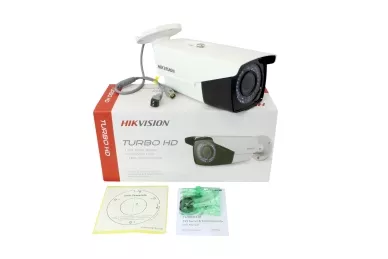

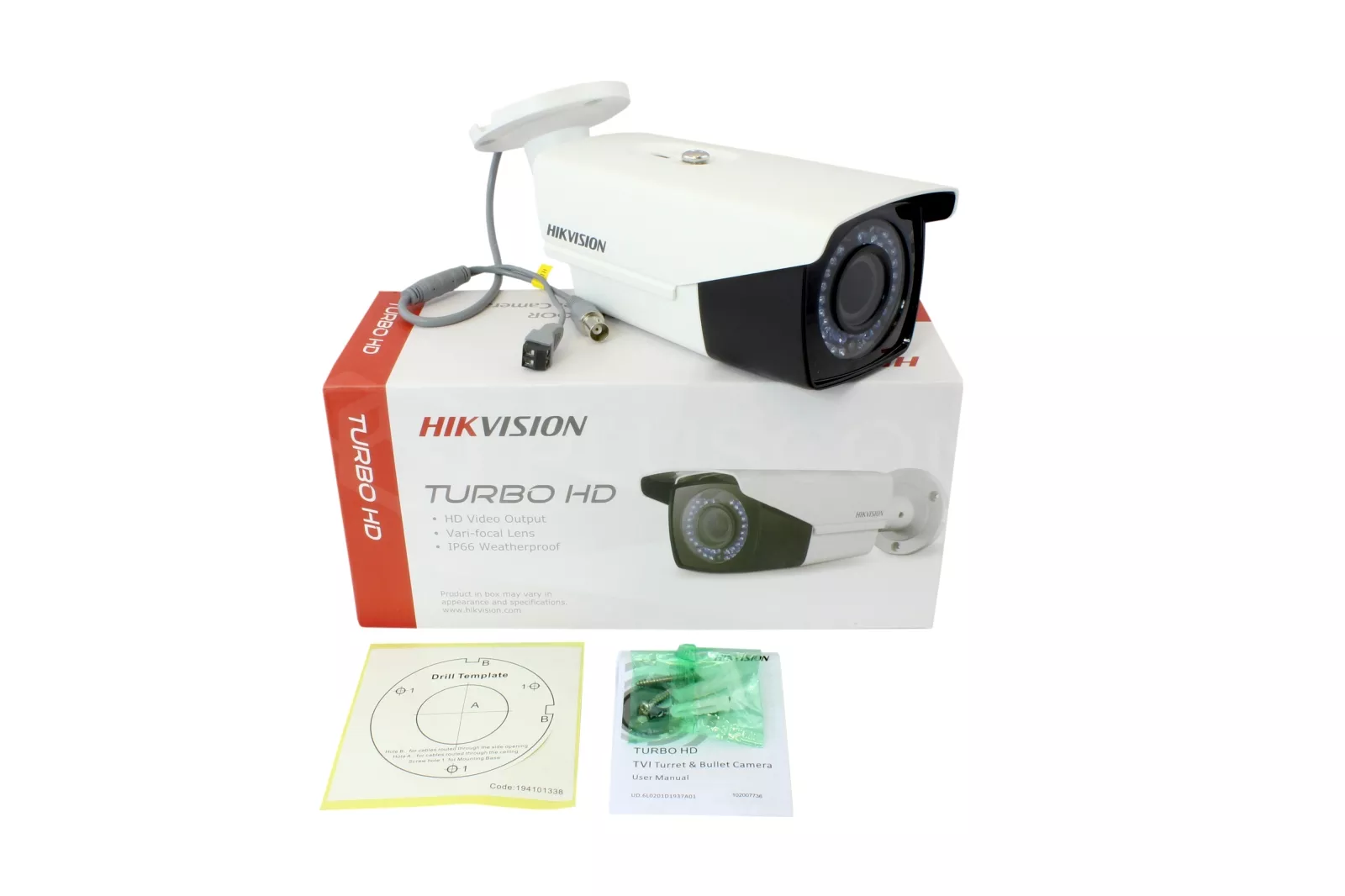

Package contents:

Package contents:




Download
User Manual 0.71 MB
Datasheet 0.56 MB
