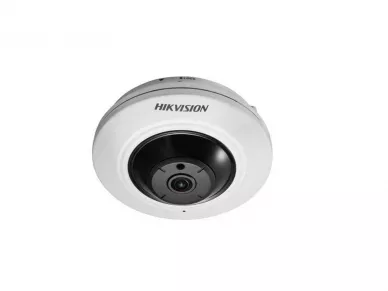

Hikvision DS-2CD2942F-I (Fish-Eye) IP Dome camera

Out of stock. Archived Product.

IP Camera Hikvision DS-2CD2942F-I belongs to a group HiWatch that was designed specifically for small and medium-sized enterprises.

Products from the group HiWatch characterized by:
  • ease of use
  • ease of maintenance
  • affordable, high-quality
  • the possibility of a flexible upgrade
KEY FEATURES:
  • resolution of 2560x1440 (4Mpx)
  • fixed lens 1.6mm /F1.6 - a "fisheye"
  • wide view angle 186° in the horizontal plane of 106° in a vertical plane
  • IR range 10m
  • built-in slot microSD card support up to 64GB
  • features 3D DNR, D-WDR, BLC
PHYSICAL PARAMETERS
IP Camera DS-2CD2942F-I is designed for indoor applications. The camera body is compact diameter of about 120mm height of about 42mm. The camera is ideal for monitoring of offices, shops where installing it in a central location on the ceiling or wall can replace several cameras with a conventional lens.

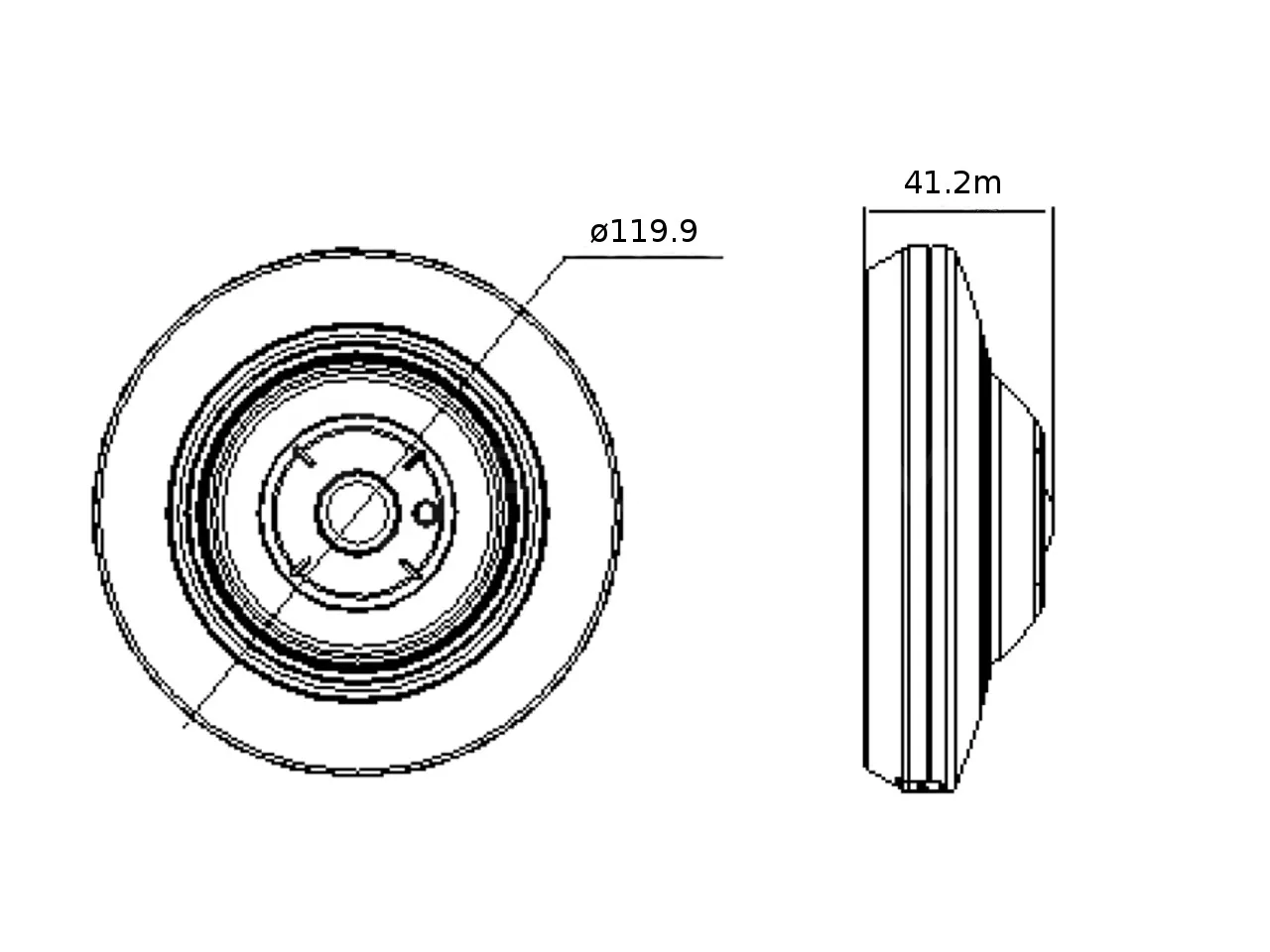

Dimensions (mm):

Dimensions (mm):


COMPRESSION
High quality CMOS sensor generates a 4-megapixel image. There we have two independent streams and two compression methods H.264 / MJPEG. For each stream, we can fine-tune the bandwidth in the range of 32kbps - 8Mbps. The camera can also send individual frames in JPEG format directly to an FTP server or an e-mail in the form of notification.

INFRARED & OPTICS
Optics lens has a fixed focal length of 1.6mm /F1.6 and viewing angle 186° horizontal - 106° vertical object It is a "fish-eye" with an angle of view of 186° so that the observed space there are no dead zones.
The small focal length lens and a large observation area causes distortion of the image, we can correct and compensate in the camera settings.
The image can be displayed as a panorama 360° panorama 2x180° or divided into 3 - 4 windows.

Lighting at night is carried out by IR LED with a range of 10m.

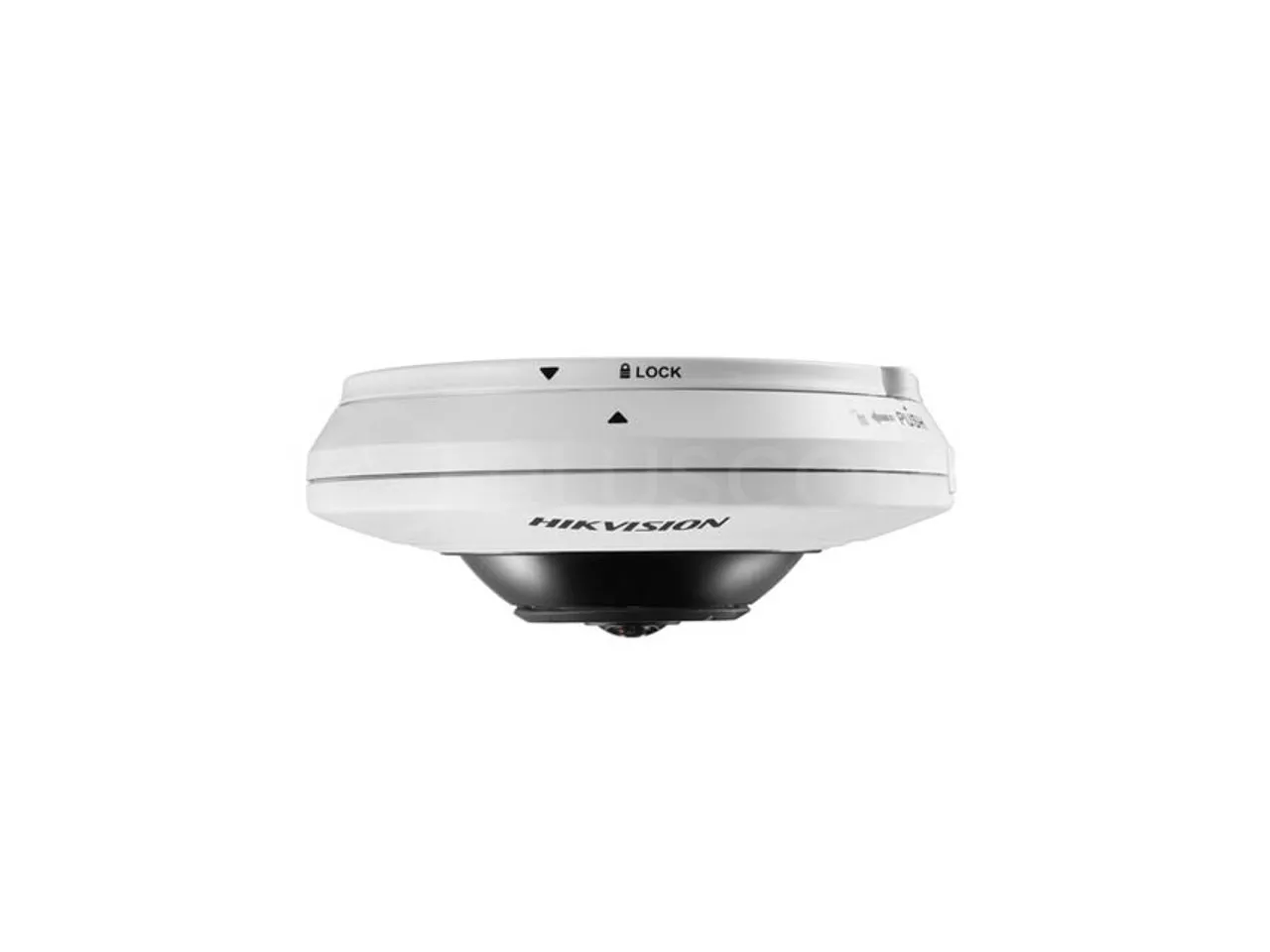

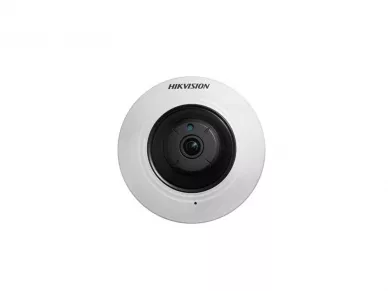

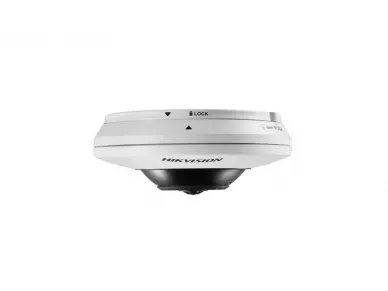

Hikvision DS-2CD2942F-I

Hikvision DS-2CD2942F-I


POWER
Can be implemented by 12V DC or PoE compatible with 802.3af standard. This reduces the wiring problem, and makes the installation more flexible.

PERIPHERALS AND SOFTWARE
The camera works perfectly with DVRs HIKVISION, through compliance with ONVIF and PSIA cooperation is possible with devices based on the IP protocol provides other free software manufacturers .
The manufacturer provides free software iVMS-4200 and iVMS-4500 that becomes the central "brain" Hikvision remote management products. In addition to the basic functions of capturing and storing video content it offers professional camera management and analysis of the material significantly increasing safety functions performing by the system.
