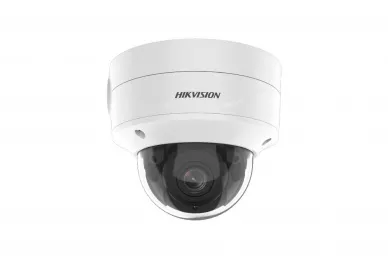

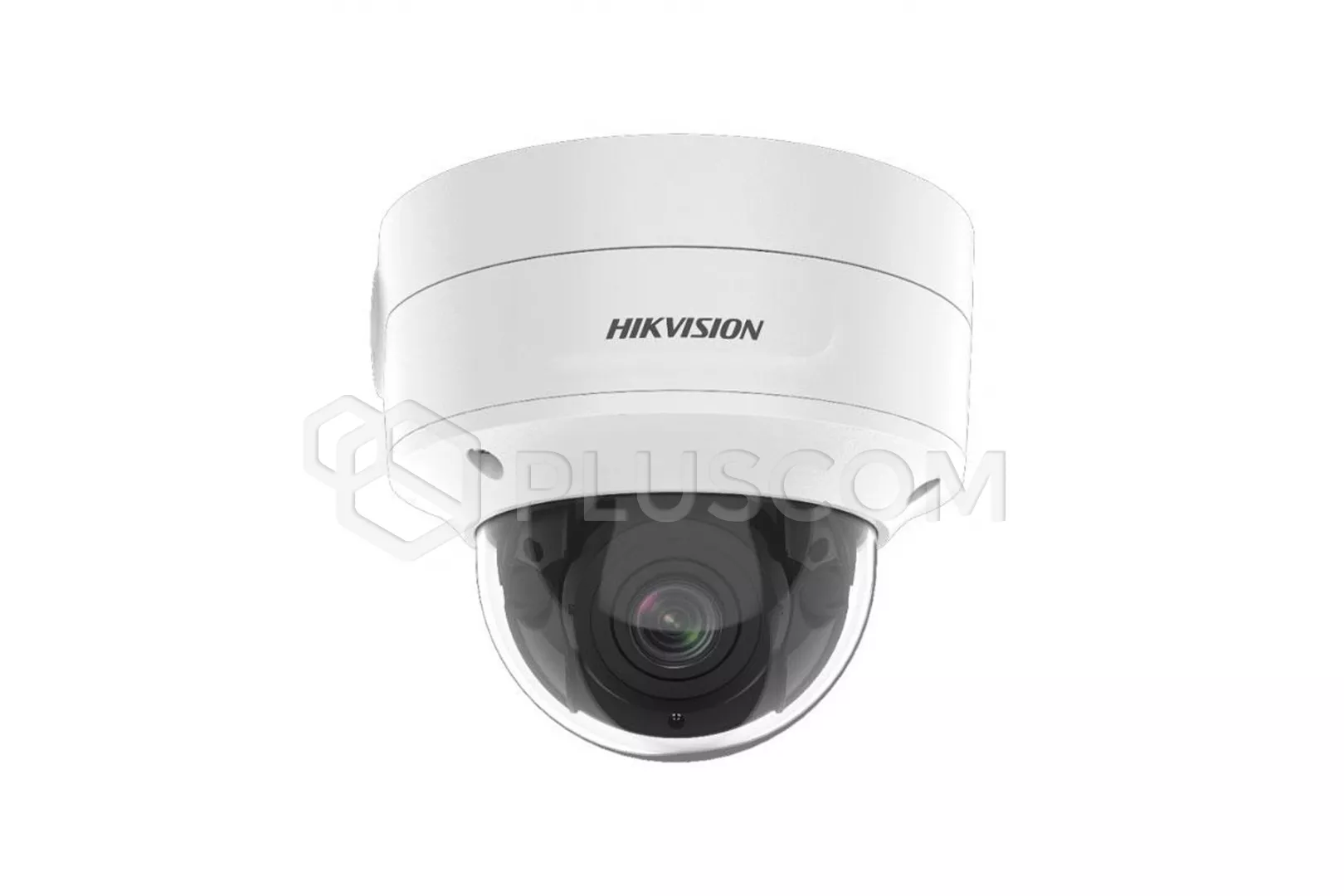

Hikvision DS-2CD2746G2-IZS 2.8-12mm (C) 4MP

335,96 EUR including 23.00% VAT
Product code: #27248
Manufacturer: Hikvision
  • Camera: 4Mpx 2688 × 1520
  • Lens: 2.8 mm - 12 mm
  • IR range: 40m
  • Audio I/O, Alarm I/O
  • AcuSense technology
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Hikvision DS-1471ZJ-155 Ceiling mount Hikvision DS-2CD27x5FWD Wall Mount for Dome Camera Hikvision DS-1253ZJ-L Rain Shade for Outdoor Dome Camera Hikvision DS-1250ZJ Rain Shade for Outdoor Dome Camera

Hikvision DS-2CD2746G2-IZS 2.8-12mm(C) 4Mpx IP Camera


TECHNICAL PARAMETERS:
  • Image sensor: 1/3" progressive scan CMOS, 4 MP
  • Sensitivity: Color: 0.003 Lux @ (F1.4, AGC ON)
  • Shutter Speed: 1/3s to 1/100,000s
  • Day & Night: ICR Cut
  • Image features: 3D DNR, 120dB WDR
  • Adjustment range:
    • Horizontal: 0° to 355°
    • Inclination: 0° to 75°
    • Rotation: 0° to 355°
  • Focal/Angle: 2.8 to 12mm (F1.4), Horizontal FOV: 108° to 30°; vertical FOV: 56° to 17°; diagonal FOV: 131° to 35°
  • Lens mount: Ø 14
  • IR range: 40m
  • Smart supplementary lighting: yes
  • Resolution: 2688 × 1520
  • Compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
  • SVC : yes
  • ROI: 1x fixed regions per stream
  • Audio: Filters ambient noise
  • Audi compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio sampling rate: 8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Audio bit rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) /16 to 64 Kbps (AAC)
  • Memory card: built-in support for microSD / SDHC / SDXC card (256GB), local storage and NAS (NFS, SMB / CIFS), ANR
  • Alarm: 1 alarm input, 1 alarm output (max. 24 VDC/24 VAC, 1 A)
  • Audio:
    • 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equivalent
    • 1 line out, 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equivalent
  • Communication interface: 1 RJ45 10M/100M self-adaptive Ethernet port
  • Behavior Analysis:
    • motion detection
    • scene change detection
    • line crossing detection
    • intrusion detection
    • unattended baggage detection
    • object removal detection
  • Face Detection/Deep Learning: yes
  • Operating temperature: -30 °C to 60 °C, humidity: 95% or less (non-condensing)
  • Power:
    • 12 VDC ± 25%, reverse polarity protected
    • PoE: 802.3af，class 3
  • Power consumption:
    • 12VDC, 0.88A, max. 10.5 W
    • PoE: (802.3af, 36V to 57V), 0.35A to 0.22A, max. 12.5 W
  • Protection level: IP66, IK10

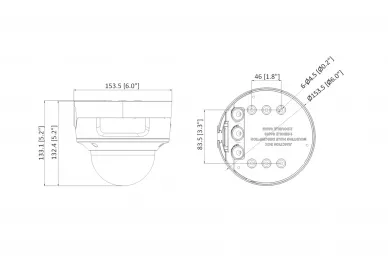

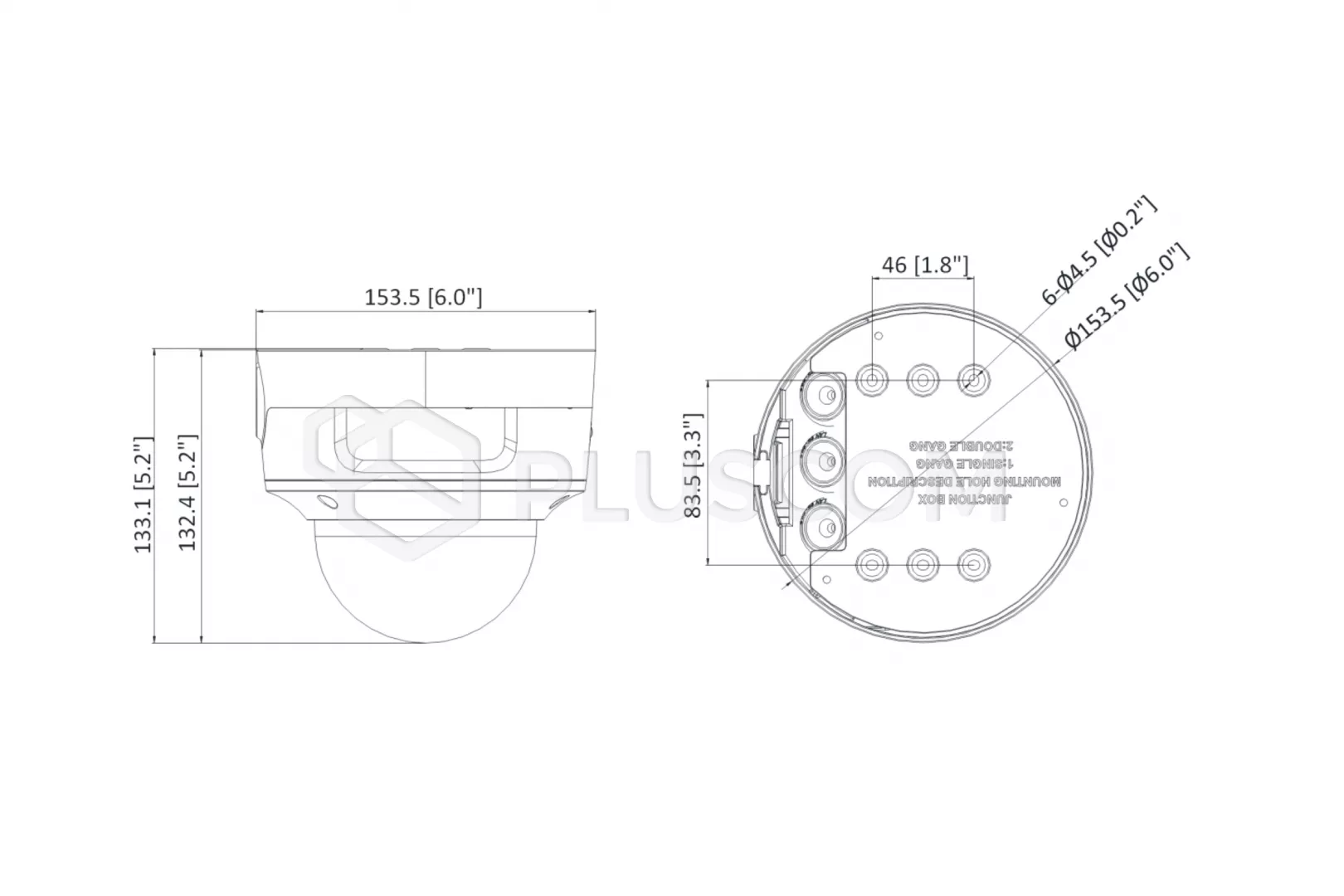

  • Dimensions: Ø 153.5 x 133.1 mm
  • Weight: 845 g
Hikvision DS-2CD2746G2-IZS 2.8-12mm (C) 4MP

Hikvision DS-2CD2746G2-IZS 2.8-12mm (C) 4MP

The camera works with recorders:

PoE power supply for IP cameras:

Download
Datasheet 1.35 MB
