Hikvision DS-2CD2743G2-IZS 2.8-12mm 4MP

298,91 EUR including 23.00% VAT
Product code: #25321
Manufacturer: Hikvision
  • Camera: 4Mpx 2688 × 1520
  • Lens: 2.8 mm - 12 mm Motozoom
  • IR range: 40m
  • Input/output Audio
  • Input/output Alarm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Hikvision DS-1471ZJ-155 Ceiling mount Hikvision DS-1476ZJ-SUS Corner Mount Hikvision DS-2CD27x5FWD Wall Mount for Dome Camera Hikvision DS-1253ZJ-L Rain Shade for Outdoor Dome Camera Hikvision DS-1280ZJ-DM55 Puszka montażowa

Hikvision DS-2CD2743G2-IZS 2.8-12mm 4Mpx IP Camera


TECHNICAL PARAMETERS:
  • Image sensor: 1/3" progressive scan CMOS, 4 MP
  • Sensitivity: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR ON
  • Shutter Speed: 1/3s to 1/100,000s
  • Day & Night: ICR Cut Filter
  • Image features: 3D DNR, 120dB WDR
  • Adjustment range:
    • Horizontal: 0° to 355°
    • Inclination: 0° to 75°
    • Rotation: 0° to 355°
  • Focal/Angle: 2.8 to 12mm @F1.6, Horizontal FOV: 95.8° to 29.2°, Vertical FOV: 50.6° to 16.4°, Diagonal FOV: 114.6° to 33.4°
  • Lens mount: Φ14
  • IR range: up to 40m
  • Compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
  • Resolution: 2688 × 1520
  • Simultaneous live view: up to 6 channels
  • Memory card: support built-in microSD / SDHC / SDXC card (256GB), local storage and NAS (NFS, SMB / CIFS), ANR
  • Behavior Analysis: Motion Detection, Vehicle/Human Classification, Face Detection, Video Tampering Alarm, Line Crossing Detection, Intrusion Detection
  • Operating temperature: -30 °C to 60 °C, humidity: 95% or less (non-condensing)
  • Audio/Alarm:
    • Audio: 1 line in, 1 line out
    • Alarm: 1 alarm input, 1 alarm output (up to 12 VDC, 30 mA)
  • Power supply:
    • 12 VDC
    • PoE (802.3af, 36 V do 57 V), 0.35 A do 0.22 A, max. 12.5W
  • Power consumption: 12 VDC, 0.88 A, max. 10.5 W
  • Protection level: IP67, IK10
  • Dimensions: Ø153.3×111.6mm
  • Weight: 880g

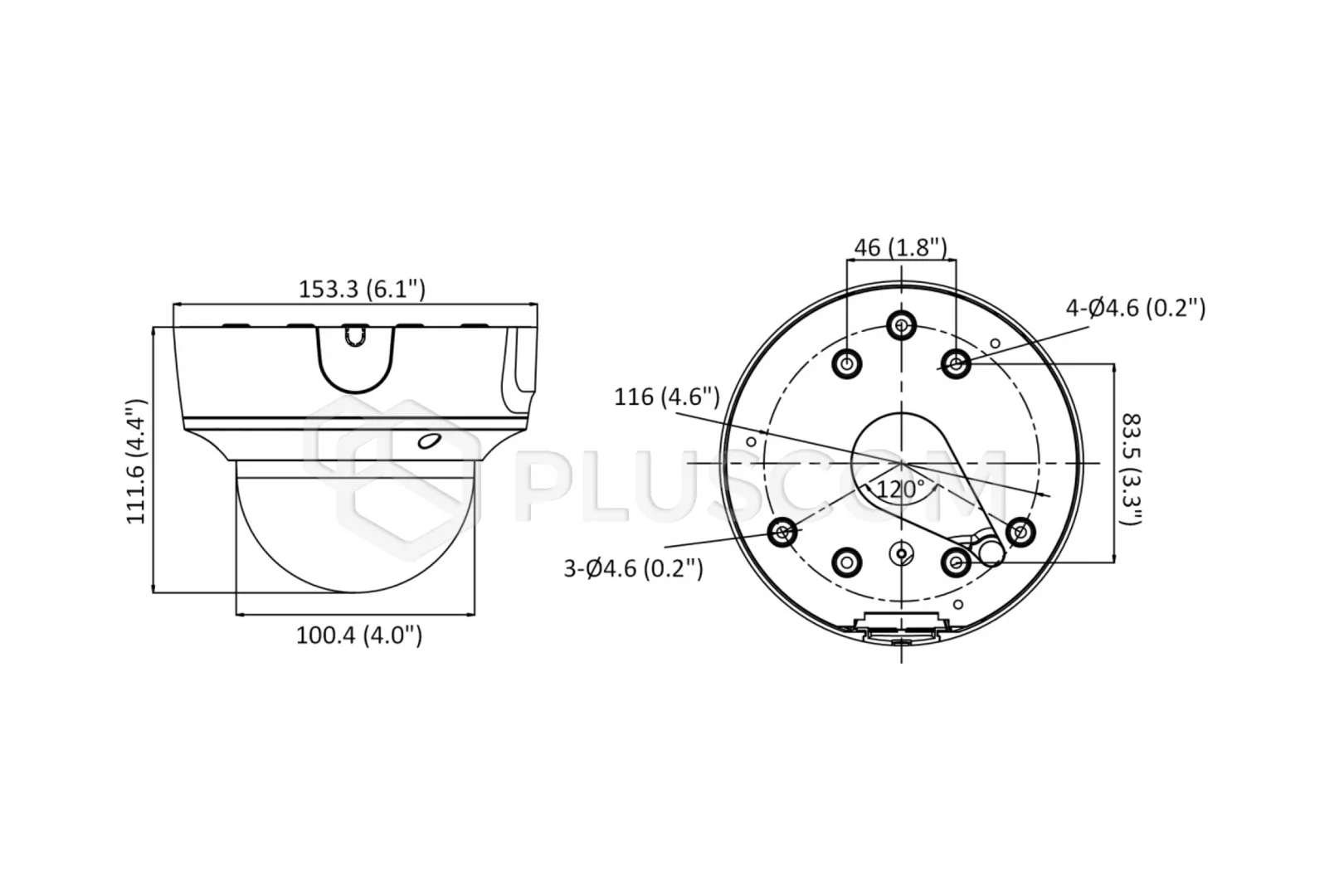

Dimensions:

Dimensions:

The camera works with recorders:

PoE supply for IP cameras:

Download
Datasheet 1.32 MB
User Manual 11.31 MB
