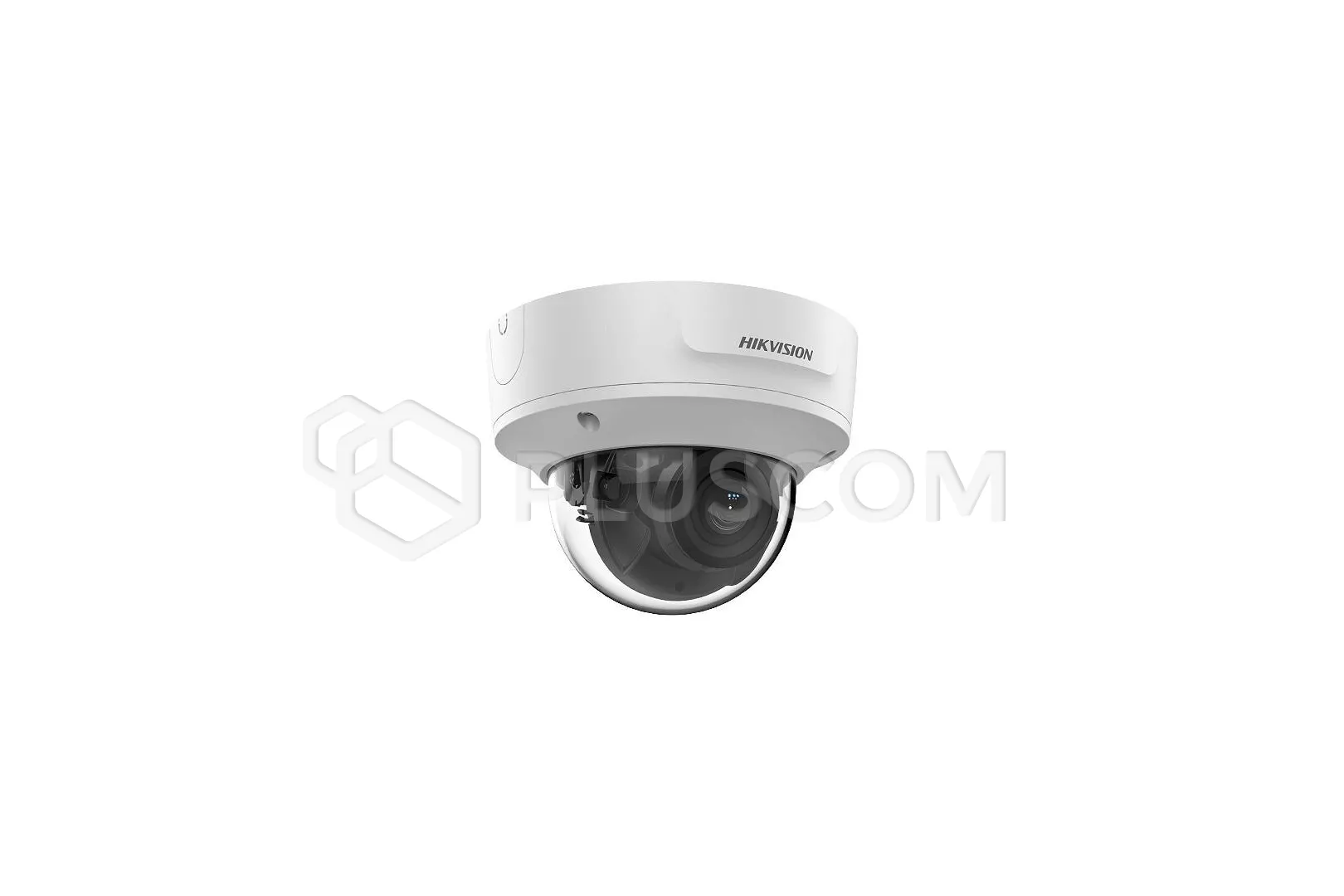

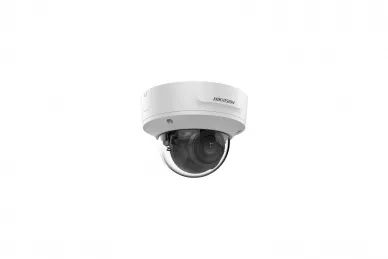

Hikvision DS-2CD2723G2-IZS(2.8-12mm)

Hikvision DS-2CD2723G2-IZS(2.8-12mm)

Technical parameters:

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Max. Resolution: 1920 × 1080
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Depth of Field: 0.5 m to ∞
• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 107° to 32°, vertical FOV 55° to 18°, diagonal FOV 130° to 36°
• Aperture: F1.6
• Lens Mount: Ø14
• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
• Iris Type: Fixed

DORI

• DORI: 2.8 to 12 mm:Wide: D: 45.5m, O: 18.1m, R: 9.1m, I: 4.6mTele: D: 137.9m, O: 54.7m, R: 27.6m, I: 13.8m

Illuminator

• IR Wavelength: 850 nm
• Supplement Light Type: IR
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• User/Host: Up to 32 users3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+


• Privacy Mask: Yes
• Day/Night Switch: Day,Night,Auto,Schedule
• Image Enhancement: BLC,HLC,3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB

Interface

• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Reset Key: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event: Line crossing detection, intrusion detection(support alarm triggering by specified target types (human and vehicle)), face detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

General

• Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: 802.3 af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• General Function: Heartbeat,anti-flicker,password reset via email,pixel counter
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Material: Upper cover and base: metal, bubble: plastic
• Dimension: Ø153.3 mm × 111.6 mm (Ø6.1" × 4.4")
• Package Dimension: 244 mm × 174 mm × 173 mm (9.7" × 6.9" × 6.9")
• Weight: Approx. 880 g (1.9 lb.)
• With Package Weight: Approx. 1460 g (3.1 lb.)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

• EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013;IK10: IEC 62262:2002
