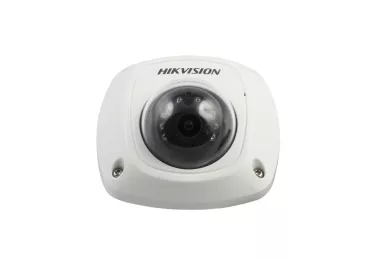

Hikvision DS-2CD2522F-IS (2,8mm) IP Dome camera

Out of stock. Archived Product.
IP Camera Hikvision DS-2CD2522F-IS belongs to a group HiWatch that was designed specifically for small and medium-sized enterprises.

Products from the group HiWatch characterized by:
  • ease of use
  • ease of maintenance
  • lower price and high-quality
  • the possibility of a flexible upgrade

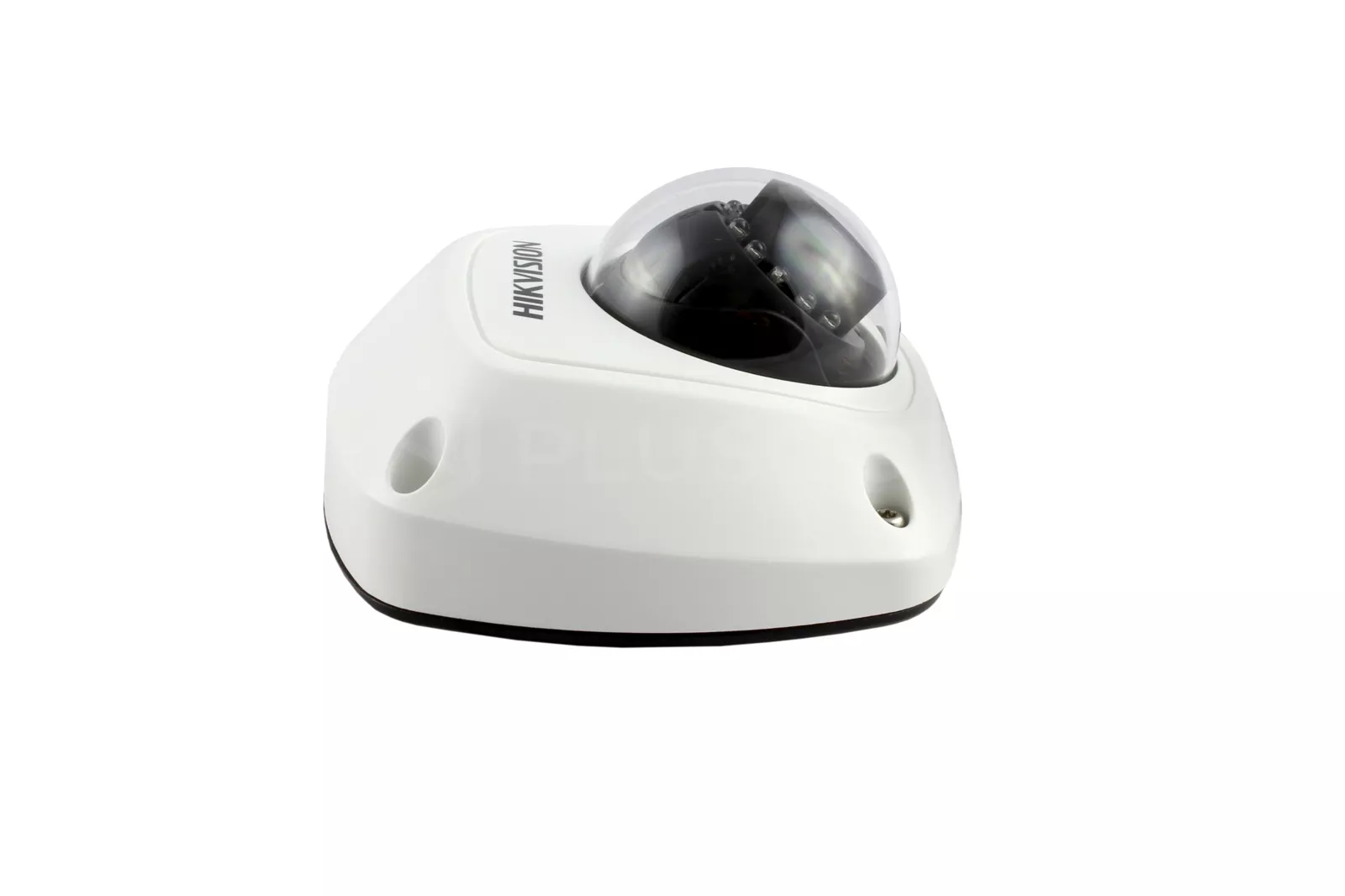

Hikvision DS-2CD2522F-IS

Hikvision DS-2CD2522F-IS

KEY FEATURES:
  • resolution of 1920x1080 (2Mpx)
  • 2,8mm fixed lens /F2.0
  • IR range 10m + mechanical IR cut filter
  • built-in slot microSD card support up to 64GB
  • IP66 sealed housing, vandal-proof IK08
  • features 3D DNR, D-WDR, BLC
  • miniature dimensions of the camera
  • biult-in microphone, audio out
  • alarm in / out
PHYSICAL PARAMETERS
IP Camera DS-2CD2522F-IS external IP dome camera having a compact size and IP66 sealed housing which protects the electronics by unfavorable weather conditions. The vandal-proof housing provides mechanical strength at standard IK08

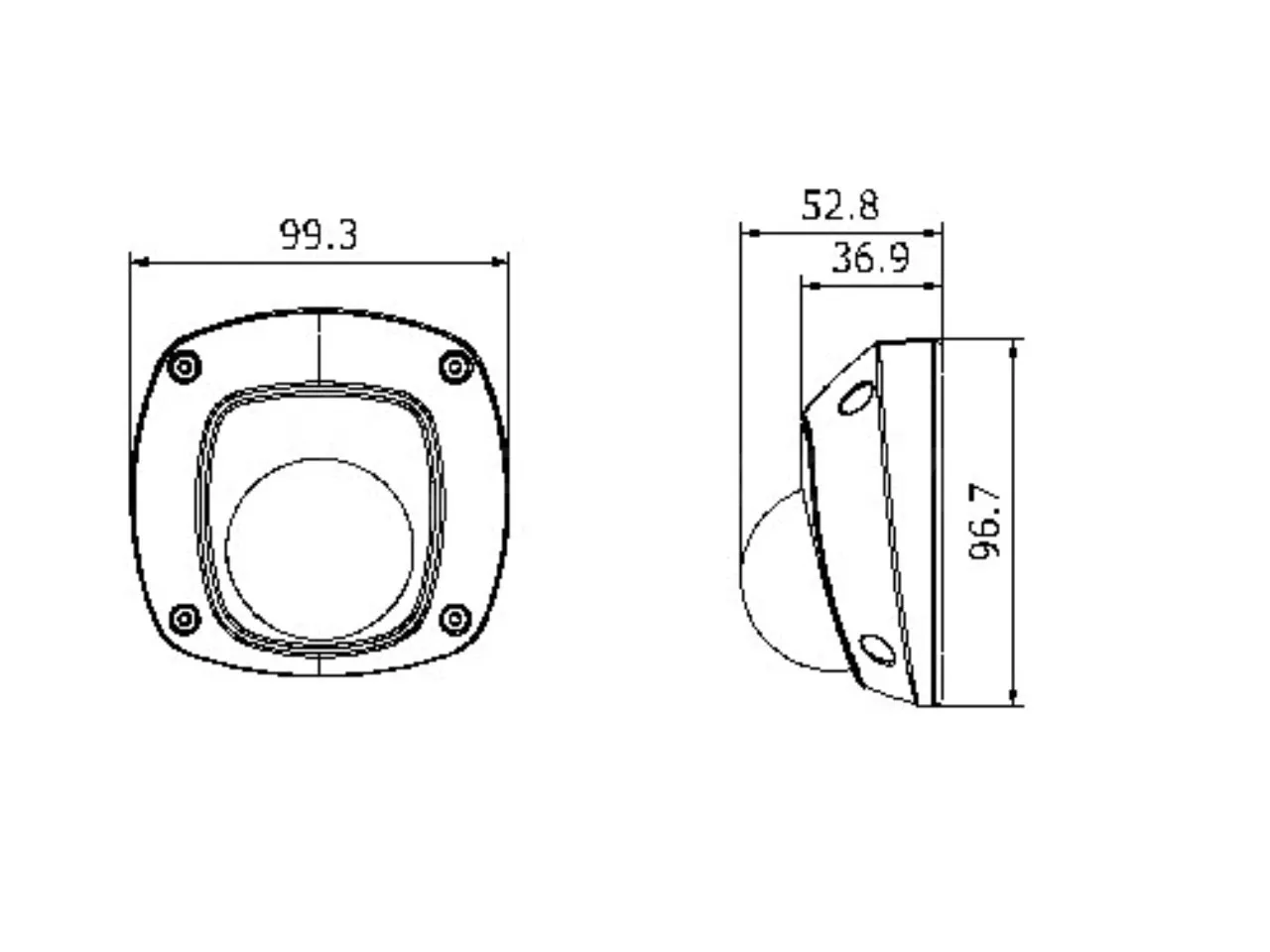

Dimensions (mm):

Dimensions (mm):


COMPRESSION
High quality CMOS sensor generates a 2-megapixel image. There we have two independent streams and two compression methods H.264 / MJPEG. For each stream, we can fine-tune the bandwidth in the range of 32Kbps - 12Mbps. The camera can also send individual frames in JPEG format directly to an FTP server or an e-mail in the form of notification.

INFRARED & OPTICS
Lens has a fixed focal length of 2.8mm /F2.0 and angle of view of 106° horizontally. The lens is equipped with a mechanical IR cut filter, day / night function. Lighting at night is carried out by IR LED (10pcs) with a range of up to 10m.

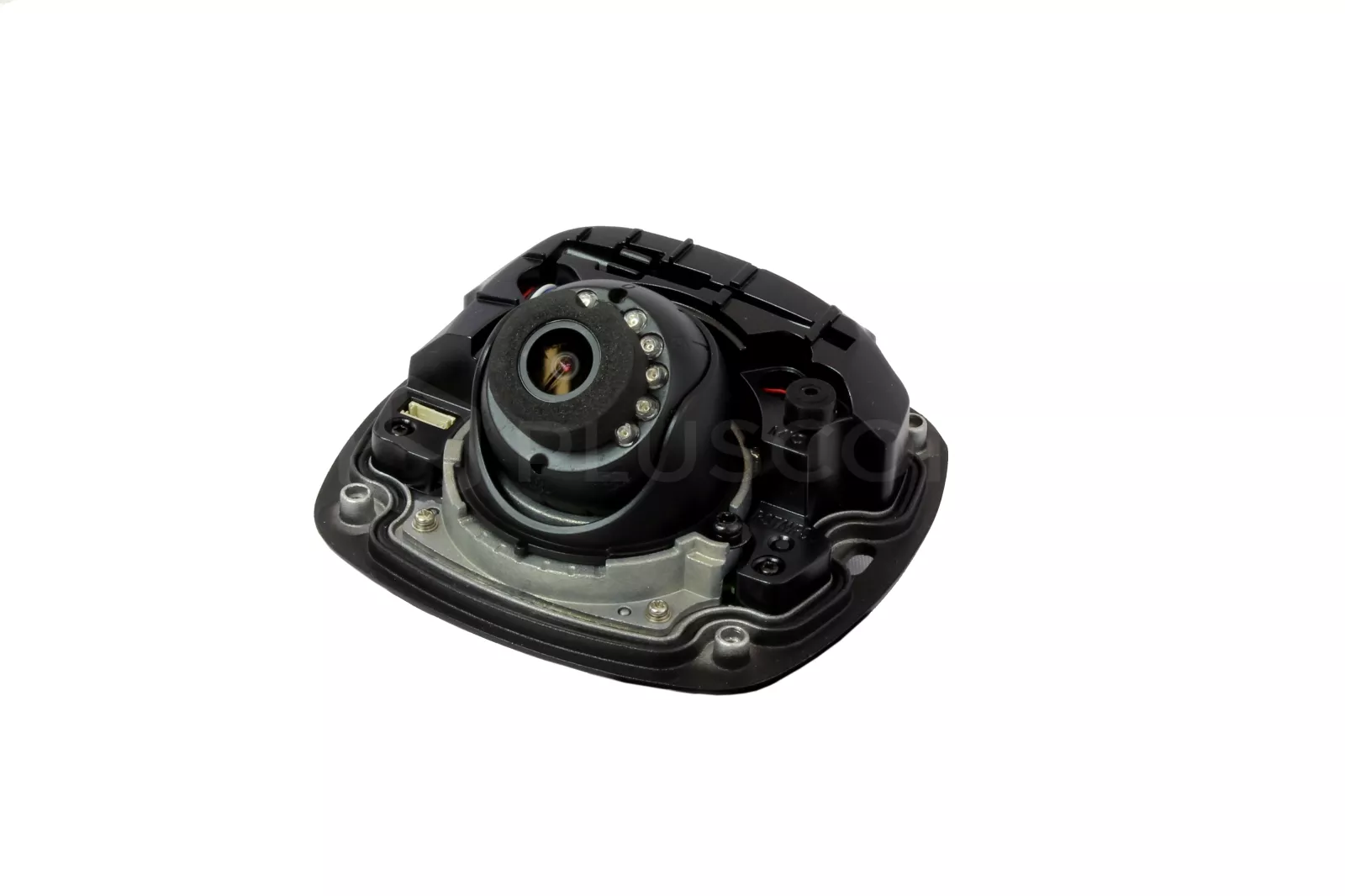

Dome removed:

Dome removed:


POWER
Can be implemented by 12V DC or PoE compatible with 802.3af standard. This reduces the wiring problem, and makes the installation more flexible.

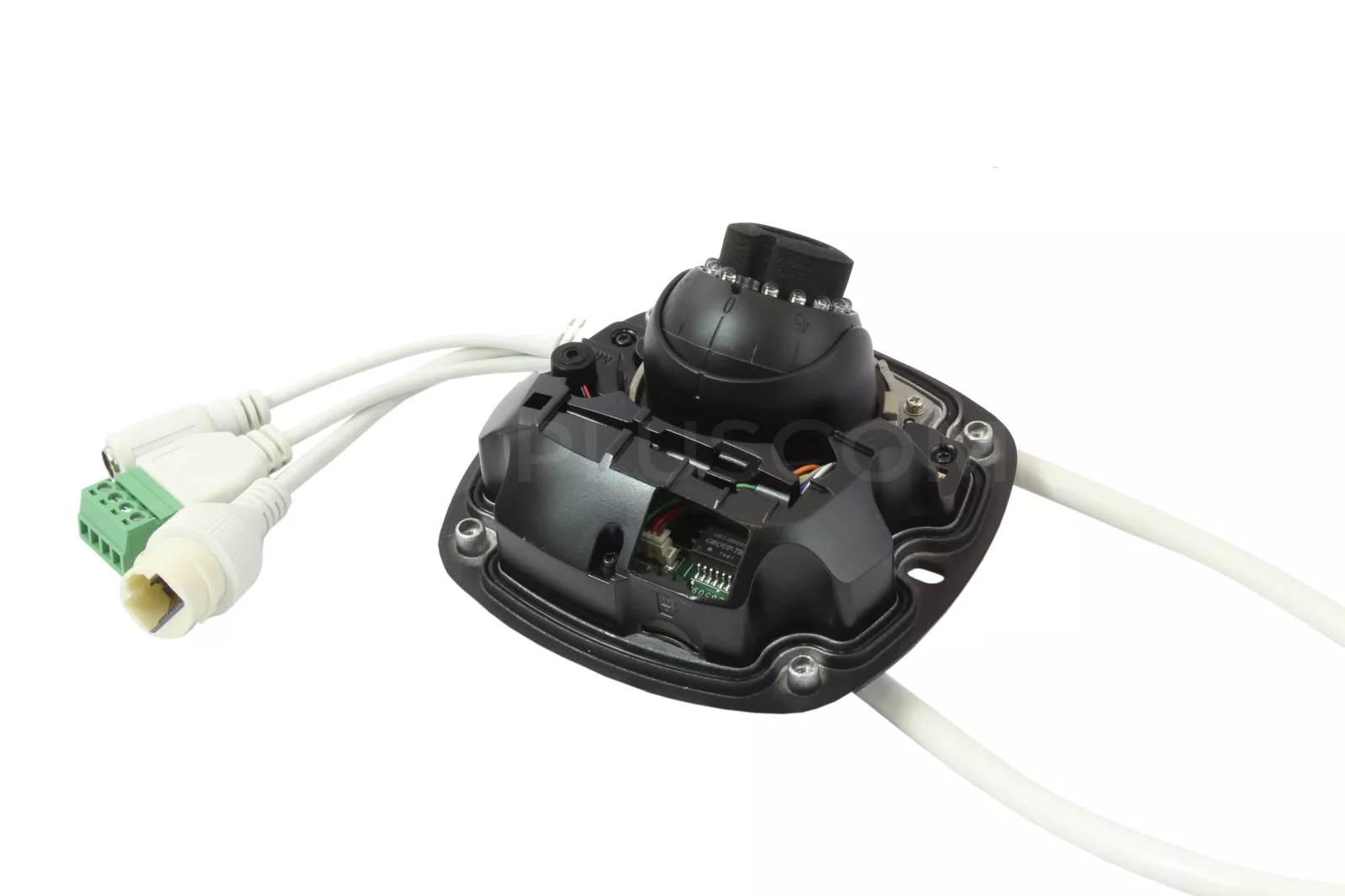

MicroSD slot card, microphone:

MicroSD slot card, microphone:


PERIPHERALS AND SOFTWARE
The camera works perfectly with DVRs HIKVISION, through compliance with ONVIF and PSIA cooperation is possible with devices based on the IP of other manufacturers.
The manufacturer provides free software iVMS-4200 and iVMS-4500 that becomes the central "brain" Hikvision remote management products. In addition to the basic functions of capturing and storing video content it offers professional camera management and analysis of the material significantly increasing safety functions performing by the system.

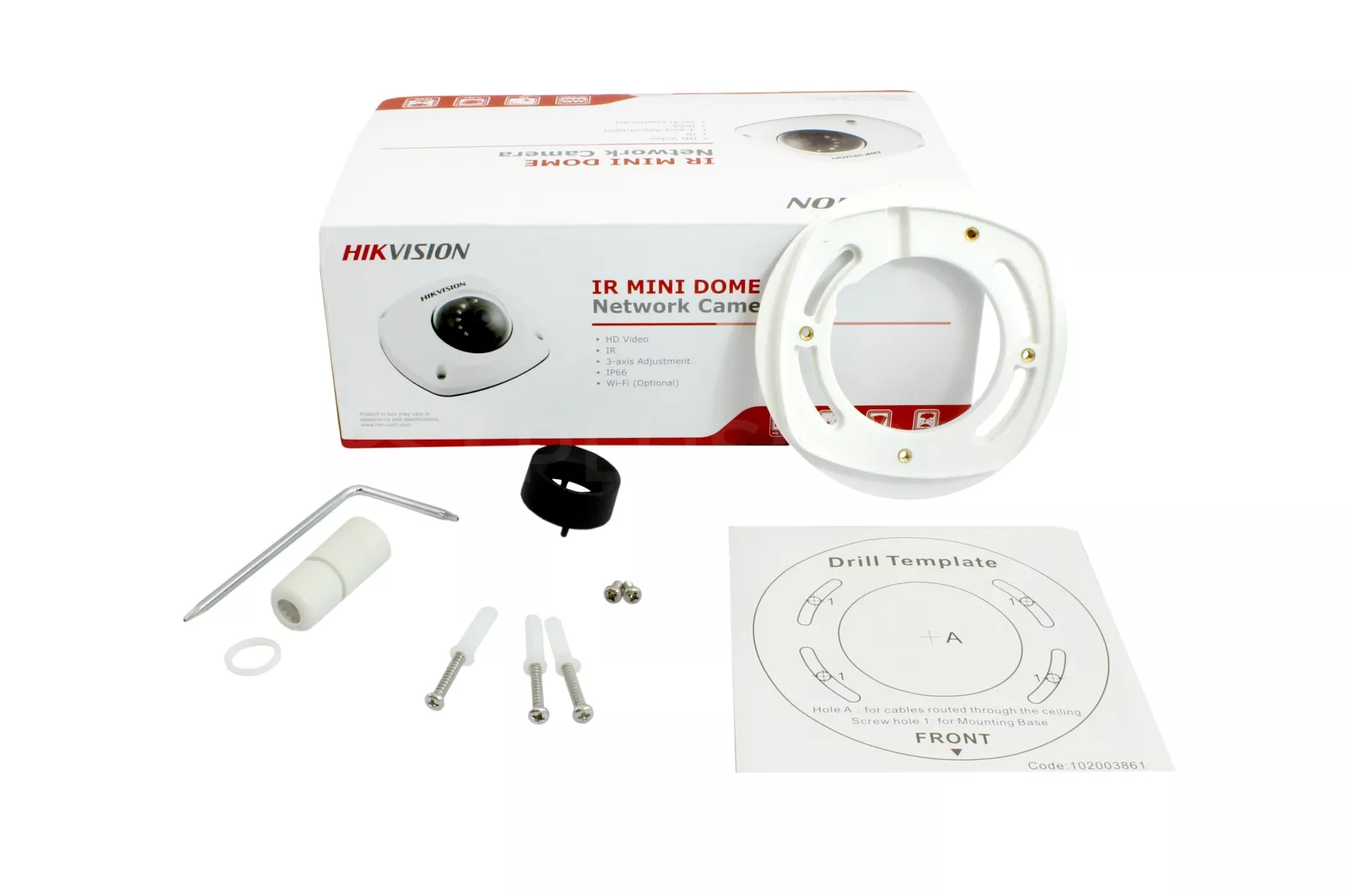

Package contents:

Package contents:
